Air conditioning
132
AC indicator (Cooling connected)
Interior temperature indicator selected
Air flow direction indicator
Fan speed increase
Fan speed decrease
Interior temperature increase
Interior temperature decrease
button – Automatic adjustment of temperature, ventilation and air
distribution
Button – Windscreen demisting function. The air drawn in is directed
at the windscreen. The air recirculation mode will be switched off as soon
as the demisting function is switched on. At temperatures over 3 °C, the
cooling system is switched on automatically in order to dry the air.
Button – Air distribution to head area
Button – Air distribution to the upper body.
Button – Air distribution to footwell
– Manual air recirculation
button – To switch on the air conditioning.WARNING
For your safety, the windows should never be fogged up or covered with
snow or ice. This is essential to ensure good visibility. Please familiarise
yourself with the correct operation of the heating and ventilation system,
including the demist/defrost functions for the windows.
Note
Please consider the general notes.
Automatic mode
In automatic mode air temperature, air flow and distribution
are automatically regulated so that a specified temperature is
attained as quickly as possible, and then maintained.Switching on automatic mode
– Press the button . The indication ⇒page 131, fig. 101
is visible.
–Press keys and ⇒ page 131, fig. 101 to adjust the desired
temperature inside the vehicle. We recommend you adjust the
temperature to 22 °C (72 °F).A comfortable interior climate is quickly reached when a temperature of 22 °C
(72 °F) is set in automatic mode. Therefore, we recommend you not to change
this adjustment, except as necessary to suit individual preferences or partic-
ular circumstances. The inside temperature can be set between +18 °C (64 °F)
and +29 °C (86 °F). If a lower or higher temperature is selected, LO or HI are
respectively displayed on the screen. These are approximate temperatures
which may slightly vary depending on the outside conditions.
Climatronic maintains a constant temperature. To do it, it automatically regu-
lates the supplied air temperature, the blower speed and the air distribution.
The system also considers the sunlight radiation, so there is no need for
manual readjustment. Therefore, automatic mode almost always provides
the best comfort for the vehicle occupants throughout the year.
Automatic mode is switched off whenever an adjustment is made using the
buttons for the air distribution, blower or . The temperature continues to
self-regulate.
A5A6A7A8A9A10A11A12
AUTO
A13
<
A14

A15

A16

A17

A18
AC
AUTO
A7
A10
A11
AC
IbizaST_EN.book Seite 132 Dienstag, 14. September 2010 1:31 13

If and when219
Safety First
Operating Instructions
Practical Tips
Technical Specifications
The individual electrical circuits are protected by fuses. The fuses are located
behind a cover at the left-hand end of the dash panel. When the steering
wheel is on the right, the fuses are on the right-hand side of the dash panel,
behind a cover.
The electric windows are protected by
circuit breakers. These reset automat-
ically after a few seconds when the overload (caused for example by frozen
windows) has been corrected.
Fuses colour code
WARNING
Never “repair” damaged fuses and never replace them with fuses with a
higher rating. Failure to comply could result in fire. This could also cause
damage to other parts of the electrical system.
Note
•If a newly replaced fuse blows again after a short time, the electrical
system must be checked by a specialised workshop as soon as possible.•If you replace a fuse with higher-rating fuse, you could cause damage to
another location in the electrical system.
•Always keep some spare fuses in the vehicle. These are available from
SEAT dealers.Fuses on left side of dash panelFuses
Colour
Amps
Beige
5
Brown
7.5
Red
10
Blue
15
Ye l l o w
20
Natural (white)
25
Green
30
Number
Consumer
Amps
1
Power steering/Engine operation
7.5
2
Diagnostics/Heater/Autoclimate/Cli-
matronic/Electric anti-dazzle mirror/Naviga-
tor/Air conditioning pressure switch/ Climate
fan/ Kisi/ AFS Control unit/Coming home
relay/Soundaktor
10
3
Petrol engine control unit/Flow meter/Diesel
engine control unit/Relay coils/Engine opera-
tion/Bi-turbo fuel control unit
5
4
ABS/ESP switch (turning sensor)/Light lever
10
5
Reverse light/Heating nozzles
10
6
Instrument panel
5
7
Rear fog light
7.5
8
Va can t
9
Headlight lever
10
10
Headlight lever/Clutch (Petrol)/Brakes (all)
5
11
Airbag control unit
5
12
Automatic gearbox/ Headlight lever
10
13
Exterior mirror control
5
IbizaST_EN.book Seite 219 Dienstag, 14. September 2010 1:31 13

If and when
220
14
Left-hand AFS headlights
15
15
Right-hand AFS headlights
15
16
Vaca n t
17
Number plate light /Dimmer /Side light indicator
light
5
18
Dimmer
5
19
Electronic control unit
5
20
Turn signals
15
21
Lights control/ Instrument panel
5
22
Electronic control unit/ Heated mirrors
5
23
Engine injection module/ Rain sensor/ Auto-
matic gear lever/ Starter relay
7.5
24
Glove compartment light/ Luggage compartment
light/ Interior light
10
25
Parking aid
5
26
Towing hook
27
Vaca n t
28
Lambda probe
10
29
Engine power supply
20
30
Petrol engine operation
10
31
Petrol engine operation/Glow plugs/Relay
coil/Bi-turbo electric fan
10
32
Engine control unit
15
33
Clutch switch power supply/ Preheating relay/
Servo sensor
5
Number
Consumer
Amps
34
Fuel control unit / Bi-turbo engine supply
15
35
12V power socket in luggage compartment
15
36
Main beam headlight, right
10
37
Main beam headlight, left/Coming Home
10
38
Electric fan motor
30
39
Vaca n t
15
40
12 Volt Input/Cigarette lighter
15
41
Heated seats control unit / Cup Holder
25
42
Horn
20
43
Panorama sunroof
30
44
Windscreen wipers
20
45
Heated rear window
30
46
Radio / VDA telephone / Bluetooth / Steering
wheel controls / DC/DC converter for Start/Stop
20
47
Climatronic/autoclimate
5
48
Locking unit
25
49
Front electric window
30
50
Rear electric windows
30
51
Automatic gearbox control unit
30
52
Alarm/Volume sensor
15
53
Electro-kinetic pump relay/bi-turbo fuel control
unit
15
54
Reverse light for automatic gearbox/ Fog light
15
55
Transformer on
15
Number
Consumer
Amps
IbizaST_EN.book Seite 220 Dienstag, 14. September 2010 1:31 13

If and when
222BulbsGeneral notesBefore changing any bulb, first turn off the failed component.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and condensation on the mirror surface, thus
reducing efficiency.
A bulb should only be replaced by one of the same type. The type is inscribed
on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the following spare bulbs, which are essential for road safety,
should be kept in the vehicle.
Double headlights
Dipped beam - H7 Long Life
Main beam - H7
Position - 2 x W5W Long Life
Turn signal - PY21W
Single headlight
Dipped/Main H4 Long Life
Position W5W Long Life
Turn signal PY 21W
Xenon headlights
13)/adaptive*
Dipped and full beam - D1S
14)
Position W5W Blue Long Life DRL (day light) P21W Super Long Life
Turn signals PY21W
Fog lights
Fog light/cornering - H11
Ta i l l i g h t s
Fog light - P21W
Reverse gear - R10W
Stop/position P21 /5W Long Life
Turn signal - PY21W
Side turn signal
Side turn signal - W5W
Number plate light
Number plate light - W5W Long Life
Note
•Depending on weather conditions (cold or wet), the front lights, the fog
lights, the tail lights and the turn signals may be temporarily misted. This has
no influence on the useful life of the lighting system. By switching on the
lights, the area through which the beam of light is projected will quickly be
demisted. However, the edges may continue to be misted.•Please check at regular intervals that all lighting (especially the exterior
lighting) on your vehicle is functioning properly. This is not only in the interest
of your own safety, but also that of all other road users.•Due to the difficulty in accessing some of the bulbs, any replacement work
should be done by a SEAT dealer. However, there is a description below as to
how to change these bulbs, except for the fog lights.
13)On this type of headlight, the bulb changes must be made by the SEAT dealer, given that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.
14)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halogen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.
IbizaST_EN.book Seite 222 Dienstag, 14. September 2010 1:31 13

If and when
228
– Remove the lid with a flat screwdriver, placing it in notch ⇒page 227, fig. 154.Changing bulbs– Remove the bulb holder by pressing the clip ⇒fig. 155 and
pulling outwards.
– Replace the faulty bulb, rotating it to the left and outwards.
– To refit follow the steps in reverse order, taking special care when fitting the bulb holder.

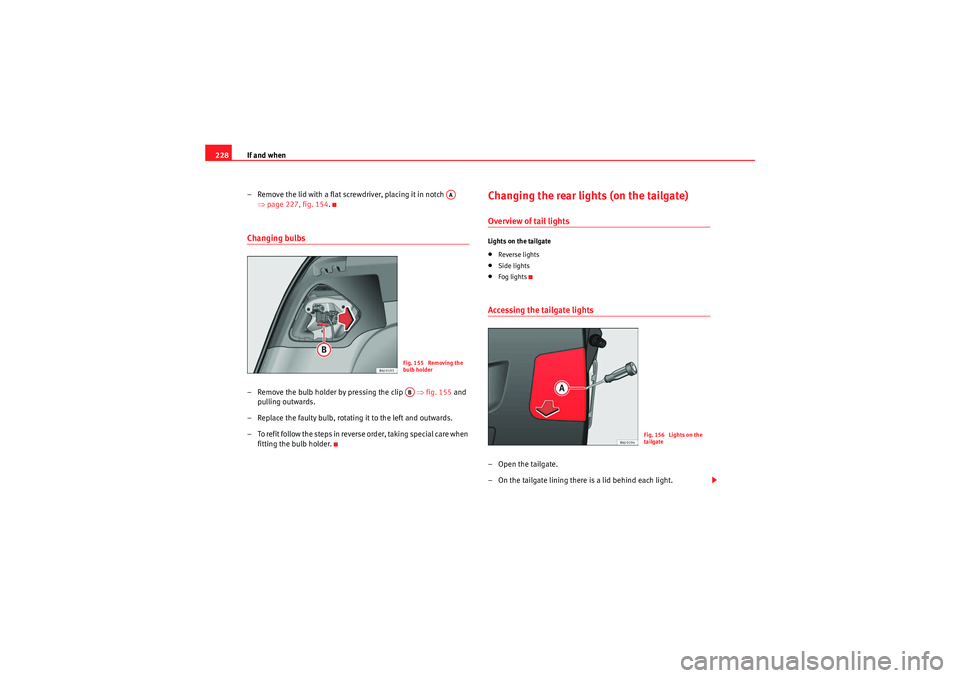

Changing the rear lights (on the tailgate)Overview of tail lightsLights on the tailgate•Reverse lights•Side lights•Fog lightsAccessing the tailgate lights–Open the tailgate.
– On the tailgate lining there is a lid behind each light.
AA
Fig. 155 Removing the
bulb holderAB
Fig. 156 Lights on the
tailgate
IbizaST_EN.book Seite 228 Dienstag, 14. September 2010 1:31 13

Index
256Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Fog lights with cornering function . . . . . . . . . . . 94
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Description . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Front drink holder . . . . . . . . . . . . . . . . . . . . . . . 115
Front interior light . . . . . . . . . . . . . . . . . . . . . . . . 98
Front passenger airbag deactivation . . . . . . . . . 37
Front reading light . . . . . . . . . . . . . . . . . . . . . . . . 99
Front seat adjustment Lumbar support . . . . . . . . . . . . . . . . . . . . . . 109
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Fuel reserve Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 66
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 185
Fuel tank See Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 66
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218GG 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 142 General overview of the engine compartment 241
Glove compartment . . . . . . . . . . . . . . . . . . . . . . 112
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 139
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 62
GRA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 Warning lamp . . . . . . . . . . . . . . . . . . . . 65, 151
Hazard warning lights . . . . . . . . . . . . . . . . . . . . . 96
HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Head restraints Adjusting . . . . . . . . . . . . . . . . . . . . . . . 107, 108
Adjustment of the head restraint angle . . . 108
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Headlight flashers . . . . . . . . . . . . . . . . . . . . . . . . 97
Headlight range control . . . . . . . . . . . . . . . . . . . 93
Headlights Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 169
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Headlight washer . . . . . . . . . . . . . . . . . . . . 103
Heated exterior mirrors* . . . . . . . . . . . . . . . . . . 104
Heated front seats . . . . . . . . . . . . . . . . . . . . . . . 110
Heated rear window Heating element wires . . . . . . . . . . . . . . . . 176
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Heating system . . . . . . . . . . . . . . . . . . . . . . . . . 126
High pressure cleaners . . . . . . . . . . . . . . . . . . . 174
Hill-start assist . . . . . . . . . . . . . . . . . . . . . . . . . 152
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 How to jump start description . . . . . . . . . . . . . 232
Hydraulic Brake Assist
Automatic hazard warning lights activation . . .159
IIdentification number . . . . . . . . . . . . . . . . . . . . 238
Identification plate . . . . . . . . . . . . . . . . . . . . . . 238
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Information in the multifunction display
Memory displays . . . . . . . . . . . . . . . . . . . . . . 54
Instrument and switch lighting . . . . . . . . . . . . . 93
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . 49
Instrument panel Service interval display . . . . . . . . . . . . . . . . 56
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Interior monitoring and anti-towing alarm* Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 44JJump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 231KKeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
IbizaST_EN.book Seite 256 Dienstag, 14. September 2010 1:31 13

Index
258Rear fog light
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 63
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 91
Rear head restraints . . . . . . . . . . . . . . . . . . . . . . 13
Rear seat folding down . . . . . . . . . . . . . . . . . . . . . . . . 111
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Rear shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Rear shelf with storage compartment Storage compartment . . . . . . . . . . . . . . . . . 123
Rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . 103
Rear window automatic wiper/washer . . . . . . 102
Rear window wiper . . . . . . . . . . . . . . . . . . . . . . 102
Recommended gear display . . . . . . . . . . . . . . . . 53
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Remote control key Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Synchronising . . . . . . . . . . . . . . . . . . . . . . . . 81
Removing and fitting the wheel . . . . . . . . . . . . 215
Repairs Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Replacement keys . . . . . . . . . . . . . . . . . . . . . . . . 79
Replacement of parts . . . . . . . . . . . . . . . . . . . . 181
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Reverse gear Manual gearbox . . . . . . . . . . . . . . . . . . . . . 142
Roll-back function Panorama/ tilting sunroof . . . . . . . . . . . . . . 90
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Roof aerial* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182 Roof rack* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Running in
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . 164
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Running in tyres . . . . . . . . . . . . . . . . . . . . . . . . 164
SSafe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safe Security system . . . . . . . . . . . . . . . . . . . . . . 74
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety instructions Coolant temperature . . . . . . . . . . . . . . . . . . . 68
Safety notes Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Deactivating front passenger airbag . . . . . . 38
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 32
Seat belt tensioners . . . . . . . . . . . . . . . . . . . 26
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 35
Using child seats . . . . . . . . . . . . . . . . . . . . . . 39
Using seat belts . . . . . . . . . . . . . . . . . . . . . . 21
Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Seat adjustment . . . . . . . . . . . . . . . . . . . . 106, 109
Seat belt cleaning . . . . . . . . . . . . . . . . . . . . . . . 180
Seat belt position Pregnant women . . . . . . . . . . . . . . . . . . . . . . 24
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Seat belt protection . . . . . . . . . . . . . . . . . . . . . . 21
Seat belt release . . . . . . . . . . . . . . . . . . . . . . . . . 25
Seat belt tensioner
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 28
Seat belt warning lamp . . . . . . . . . . . . . . . . . . . . 18
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Incorrectly fastened . . . . . . . . . . . . . . . . . . . 25
Not worn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 18
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Selective opening* . . . . . . . . . . . . . . . . . . . . . . . 75
Semiautomatic air conditioning controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Service interval display . . . . . . . . . . . . . . . . . . . 56
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Sitting position Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Front passenger . . . . . . . . . . . . . . . . . . . . . . 10
Sitting position, occupants . . . . . . . . . . . . . . . . . 9
Snow chains . . . . . . . . . . . . . . . . . . . . . . . 208, 240
Soot accumulation in the diesel engine particulate filter
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 62
Spanner symbol . . . . . . . . . . . . . . . . . . . . . . . . . 57
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
IbizaST_EN.book Seite 258 Dienstag, 14. September 2010 1:31 13
