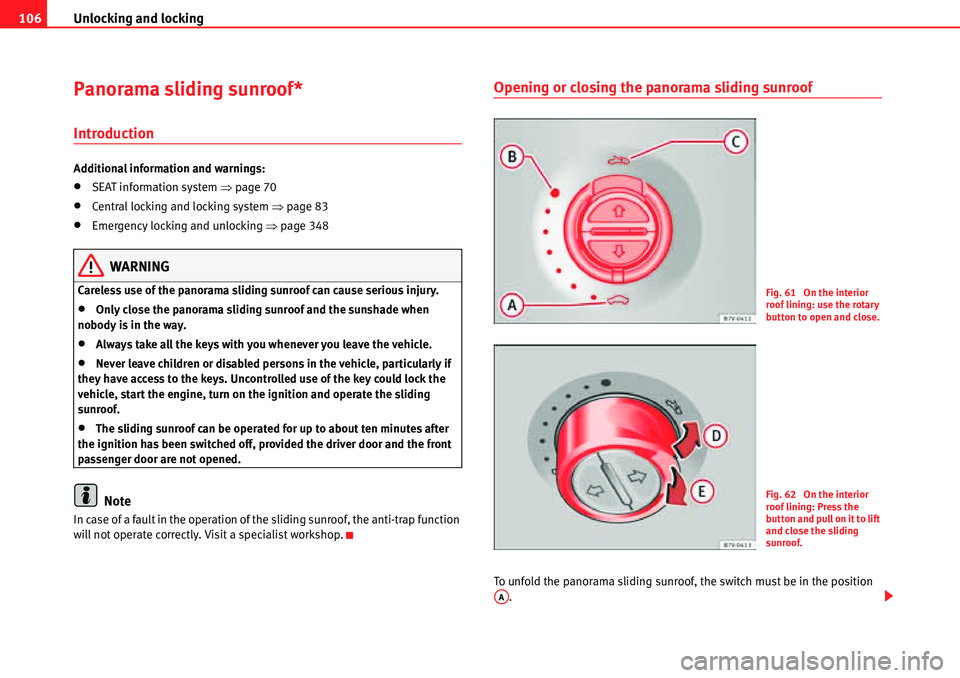

Unlocking and locking 106
Panorama sliding sunroof*
Introduction
Additional information and warnings:
xSEAT information system Ÿpage 70
xCentral locking and locking system Ÿpage 83
xEmergency locking and unlocking Ÿpage 348
WARNING
Careless use of the panorama sliding sunroof can cause serious injury.
xOnly close the panorama sliding sunroof and the sunshade when
nobody is in the way.
xAlways take all the keys with you whenever you leave the vehicle.
xNever leave children or disabled persons in the vehicle, particularly if
they have access to the keys. Uncontrolled use of the key could lock the
vehicle, start the engine, turn on the ignition and operate the sliding
sunroof.
xThe sliding sunroof can be operated for up to about ten minutes after
the ignition has been switched off, provided the driver door and the front
passenger door are not opened.
Note
In case of a fault in the operation of the sliding sunroof, the anti-trap function
will not operate correctly. Visit a specialist workshop.
Opening or closing the panorama sliding sunroof
To unfold the panorama sliding sunroof, the switch must be in the position
.
Fig. 61 On the interior
roof lining: use the rotary
button to open and close.
Fig. 62 On the interior
roof lining: Press the
button and pull on it to lift
and close the sliding
sunroof.
AA

Unlocking and locking 108
Panorama sliding sunroof: operation
Convenience open/close function
The panorama sliding sunroof can be opened or closed from outside the
vehicle using the vehicle key:
xHold in the unlocking for locking button for the vehicle. The panorama
sliding sunroof is adjusted or closes.
xRelease the unlock or lock button to stop the function.
During convenience closing, first the windows and then the sliding sunroof
will be closed.
Note
The sliding sunroof rotary button remains in the last position selected if the
roof is closed using convenience closing from outside the vehicle and will
have to be re-positioned the next time you drive.
Anti-trap function of the panorama sliding sunroof and the
sunshade
The anti-trap function reduces the risk of injury when opening and closing the
panorama sliding sunroof and sunshade Ÿ. When the panorama sliding
sunroof or the sunshade encounter difficulty or an obstacle when closing,
they will stop and reopen.
xCheck why the panorama sliding sunroof or the sunshade did not close.
xAttempt to close the panorama sliding sunroof or sunshade once again.
xIf the panorama sliding sunroof or sunshade is still obstructed, it will stop
at the corresponding position. Now close the panorama sliding sunroof or
sunshade without the anti-trap function.Closing without the roll-back function
xThe Ÿpage 106, fig. 61 switch should be in the “closed” position
.
xPanorama sliding sunroof: Within five seconds of triggering the anti-trap
function, pull the control all the way back Ÿpage 106, fig. 62 (arrow E) until
the panorama sliding sunroof closes fully.
xSunshade: Within five seconds of triggering the anti-trap function, push
the Ÿpage 107, fig. 63 button until the sunshade closes completely.
xThe panorama sliding sunroof or sunshade close without the anti-trap
function.
xIf the panorama sliding sunroof still cannot be closed, visited a special-
ised workshop.
WARNING
Closing the panorama sliding sunroof or sunshade without the anti-trap
function can cause serious injuries.
xAlways close the panorama sliding sunroof carefully.
xNobody should be in the way of the panorama sliding sunroof or
sunshade, especially when they are closed without the anti-trap function.
xThe anti-trap function does not prevent fingers or other parts of the
body getting pinched against the window frame and causing injury.
Note
The anti-trap function is activated if the windows and the panorama sliding
sunroof are closed from the outside of the vehicle using the ignition key for
convenience closing Ÿpage 104.
A1AA
A2

Lights and visibility117
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
xSwitching on the fog lights : Turn the switch to position  or pull out  to the first stop.
xSwitching on the rear fog light
: turn the light switch to position  o
pull out  to the maximum.
xTo switch off the fog lights, press the light switch or turn it to position /.
Audible warnings to advise the driver that the lights have not been switched
off
If the key is not in the ignition and the driver's door is open, an audible
warning signal is heard in the following cases: This is a reminder to turn off
the lights.
xWhen the parking light is on Ÿpage 115.
xWhen the light switch is in position .
WARNING
The side lights or daytime driving lights are not bright enough to illuminate
the road ahead and to ensure that other road users are able to see you.
xAlways use your dipped beam head lights if it is raining or if visibility is
poor.
Lights and visibility: functions
Parking light
When the parking light is switched on,(right or left turn signal), the front side
light and the rear light on the corresponding side of the vehicle stay lit. The
parking lights will only work with the ignition off.
Daytime driving light
The daytime driving light consists of individual lights in the front headlamps.When the daytime driving light is switched on, only the individual lights come
on Ÿ.
The daytime lights are switched on each time the ignition is turned on if the
light switch is in position
!, 5,4 or /.
When the light switch is in position
!, 5, 4 or /, a photo sensor goes out and
the instrument and switch lighting comes on automatically.
Automatic dipped beam control
!54/
The automatic dipped beam control is merely intended as an aid and is not
able to recognise all driving situations.
When the light switch is in position
!, 5, 4 or /, the vehicle lights and the
instrument panel and switch lighting switch on and off automatically in the
following situations Ÿ:
Activating the daytime lightsDeactivating the daytime lights
Press and hold the turn signal and
main beam lever upwards and back-
wards (right turn signal and light
flasher).Press and hold the turn signal and
main beam lever downwards and
backwards (left turn signal and light
flasher).
Switch the ignition on and off for approximately 3 seconds.
Automatic switching on:Automatic switching off or switch to
daytime lighting:
The photo sensor detects darkness,
for example, when driving through a
tunnel.When adequate lighting is detected.
When driving at more than 140 km/h
for a few seconds.When driving at less than 65 km/h
for a few minutes.
The rain sensor detects rain and acti-
vates the windscreen wipers.When the windscreen wiper has
been inactive for a few minutes.

Lights and visibility121
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
xAdjust the light beam to the vehicle load status so that it does not blind
other drivers.
Interior and reading lights
Storage and luggage compartment lighting
When the glove box and the tailgate are opened and closed, a light automat-
ically switches on or off.
Background lighting
The background lighting in the front covering of the ceiling lights up the
controls on the central console from above when the side or dipped lights are
on.
In addition, the lever on the door moulding can also be illuminated.
Note
The reading lights go out when the vehicle is locked, or a few minutes after
the key is removed from the ignition. This prevents the battery from
discharging.
Button /
SwitchFunction
/Switches interior lights off.
Switches interior lights on.
o
Switches door contact control on (central position).
The interior lights come on automatically when the vehicle is
unlocked, a door is opened or the key is removed from the
ignition.
The lights go off a few seconds after all the doors are closed,
the vehicle is locked or the ignition is switched on.
Turning the reading light on and off
WARNING (continued)

Lights and visibility 132
Exterior mirrors
Synchronised mirror adjustment
xIn the menu Settings - Convenience select whether or not the mirrors
should move in synchronisation Ÿpage 70.
xTurn the knob to position L.
xAdjust the left-hand exterior mirror. The right exterior mirror will be
adjusted at the same time (synchronised).
xIf necessary the right exterior mirror adjustment may need correcting. Turn
the knob to position R.
Automatic anti-dazzle exterior mirror, driver's side
The automatic anti-dazzle exterior mirror is controlled in the same way as the
automatic anti-dazzle rear vision mirror Ÿpage 131.
Store the reverse settings for the passenger exterior mirror
xSelect the vehicle key in which the setting is to be stored.
xUse this key to unlock the vehicle.
xConnect the automatic parking brake.
xSwitch the ignition on.
xMove the gear lever to neutral.
xIn the menu Settings - Convenience activate the function Mirror
adjustment.
xSelect reverse gear.
xAdjust the front passenger exterior mirror so that you can see, for
example, the kerb area.
xThe new position of the mirror will be stored automatically and allocated
to the vehicle key that was used to unlock the vehicle. For vehicles with seat
memory, please see Ÿpage 137.
Activating the passenger exterior mirror settings
xTurn the exterior mirror knob to position R.
xWith the ignition switched on, select reverse gear.
xThe stored position of the passenger exterior mirror for reverse gear is
deleted when driving forwards at 15 km/h, or if the knob is turned from posi-
tion R to another position.
Turn the knob to the required position:
#Electric folding exterior mirrors Ÿ.
?Switch on the exterior mirror heating This only heats up if the
ambient temperature is less than +20 °C (+68 °F).
,Adjust the left-hand exterior mirror by turning the knob for-
wards, backwards, to the left or to the right.
2Adjust the right-hand exterior mirror by turning the knob for-
wards, backwards, to the left or to the right.
Zero position. Exterior mirror unfolded, exterior mirror heating
off, adjustment of exterior mirror not possible.
Fig. 80 In the driver door:
exterior mirror controls

Seats and storage compartments139
Safety FirstOperating instructionsPractical tipsTe c h n i c a l D a t a
xSwitch the ignition on.
xPress the required memory button.
xSelect reverse gear.
xAdjust the front passenger exterior mirror so that you can see, for
example, the kerb area.
xThe new position of the mirror will be stored automatically and allocated
to the vehicle key that was used to unlock the vehicle.
Activating exterior mirror settings
xWith the driver's door open and the ignition turned off, push the memory
button of the corresponding door briefly.
xALTERNATIVELY: With the ignition switched on, hold in the corresponding
memory button until the memorised position is reached.
To activate the memory function of the vehicle key
Important: a position must be memorised in the memory.
xOpen the driver-side door.
xPress and hold any memory button.
xWithin the following three seconds, push the button to open the
vehicle on the vehicle key. A sound confirms the settings have been acti-
vated.
Adjusting the wing mirrors for driving and assigning driver seat settings to a
vehicle key
xActivate the memory function of the vehicle key
xAdjust the front seat and the exterior mirrors.
xLock the vehicle. The settings are assigned to the vehicle key.
To deactivate the memory function of the vehicle key
Important: a position must be memorised in the memory.
xPress and hold the button.
xWithin the following ten seconds, push the button to open the vehicle
on the vehicle key. A sound confirms the settings have been deactivated.
Initialising the seat position memory
The position memory system must be initialised if, for example, the driver's
seat has been changed.
Initialisation deletes all memories and assignments for the seat with position
memory. The memory buttons can then be reprogrammed and the vehicle
keys re-assigned.
xOpen the driver's door and do not get into the vehicle.
xOperating the seat settings from outside the vehicle.
xMove the angle of the backrest completely forwards.
xRelease the control to set the angle and then press again until a sound is
heard.
Note
The front passenger side wing mirror automatically changes from the position
stored for reversing as soon as the vehicle moves forward at a speed of at
least 15 km/h or when the gear selection lever is changed to a position other
than R.
0
SET
0

Seats and storage compartments 166
Glove compartment
Opening and closing the glove compartment
Unlock the glove compartment where necessary. The glove compartment is
locked when the key slot is vertical.Pull the lever to open Ÿfig. 114.
Press the cover upwards to close.
Vehicle wallet compartment
The glove compartment is designed to store the vehicle wallet.
The vehicle wallet should always be kept in the glove compartment. To store
the wallet, insert it sideways into the glove compartment.
Cooling the glove compartment
There is an air vent Ÿfig. 115 on the rear panel so that cooled air from
the climate control system (this must be connected) is fed into the glove
compartment. Turn the air vent to open and close it.
WARNING
The risk of serious injuries in the event of an accident during a sudden
braking manoeuvre or turn is increased if the glove compartment is left
open.
xKeep the glove compartment closed while the vehicle is in motion.
Caution
For structural reasons, some model versions will have gaps behind the glove
compartment into which small objects may fall. This could lead to strange
noises and damage to the vehicle. You should therefore not keep very small
objects in the glove compartment.
Fig. 114 Glove compart-
ment.
Fig. 115 Glove compart-
ment open.
AA

Driving 192
Driving
Steering
Introduction
The power steering is not hydraulic but electromechanical. The advantage of
this steering system is that it disposes of hydraulic tubes, hydraulic oil, the
pump, filter and other components. The electromechanical system saves
fuel. While a hydraulic system requires oil pressure to be maintained, electro-
mechanical steering only requires energy when the steering wheel is turned.
With the power steering system, the assisted steering function automatically
adjusts according to the vehicle speed, the steering torque and the wheel
turning angle. The power steering only works when the engine is running.
Additional information and warnings:
xStart and stop the engine Ÿpage 195
xVehicle battery Ÿpage 318
xTow-starting and towing away Ÿpage 375
WARNING
If the power steering is not working then the steering wheel is much more
difficult to turn and the vehicle more difficult to control.
xThe power steering only works when the engine is running.
xNever allow the vehicle to move when the engine is switched off.
xNever remove the key from the ignition if the vehicle is in motion. The
steering may lock and it will not be possible to turn the steering wheel.
Control and warning lamps
lights upPossible causeSolution
D (red)Power steering faulty.The steering system should be
checked by a qualified workshop
as soon as possible.
D (yel-
low)
Power steering operation
reduced.
The steering system should be
checked by a qualified workshop
as soon as possible.
If, after restarting the engine and
driving for a short distance, the
yellow warning light no longer
comes on, it will not be neces-
sary to take the vehicle to a spe-
cialised workshop.
The vehicle battery was dis-
connected and has been
reconnected.Drive for a short distance at 15 –
20 km/h.
