2010 RENAULT SCENIC display

13B-120
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V10 MR-372-J84-13B100$120.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
DF648
PRESENT OR
STOREDCOMPUTER1.DEF: Enter EEPROM memory
2.DEF: Read EEPROM memory
NOTESSpecial notes:
When this fault appears:
the engine speed is locked at 1300 rpm, the engine is noisy, and the level 1 warning
light illuminates with the message Check injection displayed on the instrument panel,
Contact Techline.
DCM1.2_V48_DF648/DCM1.2_V4C_DF648/DCM1.2_V50_DF648/DCM1.2_V54_DF648/DCM1.2_V58_DF648/DCM1.2_V5C_DF648

13B-121
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V10 MR-372-J84-13B100$120.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
DF859
PRESENT OR
STOREDINJECTOR PROGRAMMING CYCLE NOT DONE
NOTESConditions for applying fault finding procedures to stored faults:
The fault is considered present when the engine is running.
Priorities when dealing with a number of faults:
–Deal with all the other faults before fault DF859
Special notes:
This fault is activated if the injector recalibration has not been carried out since
1800 miles (3000 km).
Leave the vehicle to run at idle speed until the engine is warm.
When the engine is warm (PR064 COOLANT TEMPERATURE above 77˚C), carry out the following test drive:
–Drive at a speed of up to 30 mph (50 km/h) and change into 5th gear.
–Stay in this gear and perform 8 accelerations from 30 mph (50 Km/h) to 54 mph (90 Km/h).
–At the end of driving: without switching off the ignition, allow the vehicle to run at idle speed for at least
10 minutes.
–Switch off the ignition, and wait 30 seconds.
–switch on the ignition, check that the fault is stored and clear the fault.
DCM1.2_V48_DF859/DCM1.2_V4C_DF859/DCM1.2_V50_DF859/DCM1.2_V54_DF859/DCM1.2_V58_DF859/DCM1.2_V5C_DF859

13B-122
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V10 MR-372-J84-13B100$120.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
DF886
PRESENT OR
STOREDPRESENCE OF WATER IN THE DIESEL FUEL
NOTESPriorities when dealing with a number of faults:
–DF057 Water in diesel fuel detector circuit,
Special notes:
If water is detected downstream of the diesel filter, the high pressure pump and
the injectors may be damaged.
The level 1 warning light is illuminated.
Use bornier Elé. 1681 for all operations on the engine management computer
connector.
See the Technical Note Wiring Diagrams for the vehicle.
If there is water present, bleed the diesel filter.
If there is a great amount of water, run the first part of Test 13: Diesel fuel conformity check (Is the fuel cloudy
or does it separate into 2 parts?)
Check the connections of the water in diesel fuel sensor, component code 414.
Check the connections of the engine management computer grey connector, component code 120.
If the connector(s) are faulty and there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector(s), otherwise replace the wiring.
With the ignition on, check for +12 V on connections 3FB1 or 3FB2 (for New Twingo) or AP15 (for Kangoo 2) of
component 414.
Check for earth on connections M or 3WU (only for New Twingo) of component 120.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
DCM1.2_V48_DF886/DCM1.2_V4C_DF886/DCM1.2_V50_DF886/DCM1.2_V54_DF886/DCM1.2_V58_DF886/DCM1.2_V5C_DF886

13B-123
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V10 MR-372-J84-13B100$120.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C

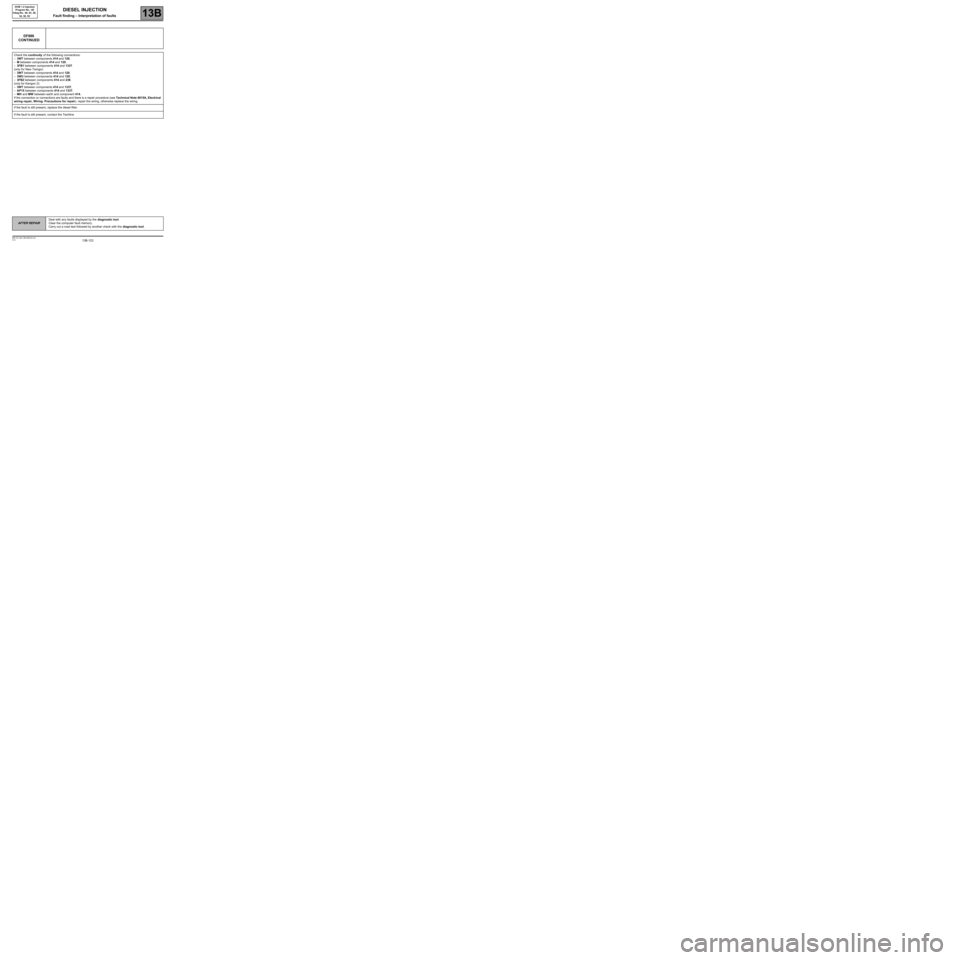

DF886
CONTINUED
Check the continuity of the following connections:
–3WT between components 414 and 120,
–M between components 414 and 120,
–3FB1 between components 414 and 1337.
(only for New Twingo):
–3WT between components 414 and 120,
–3WU between components 414 and 120,
–3FB2 between components 414 and 238.
(only for Kangoo 2):
–3WT between components 414 and 1337,
–AP15 between components 414 and 1337,
–MH and MW between earth and component 414.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, replace the diesel filter.
If the fault is still present, contact the Techline

13B-124
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V10 MR-372-J84-13B100$120.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
DF1070
PRESENT OR
STOREDCOLD LOOP1.DEF: Jammed component
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present with the engine running and with a heating and air
conditioning system request.
Priorities when dealing with a number of faults:
–DF049 Refrigerant sensor circuit if it is present or stored.
When the fault is present or stored, the heating and air conditioning system is inhibited. There is no longer any air
conditioning.
Check fuse F22 (10 A) of the UPC, component code 1337.
Check the connector of the air conditioning compressor, component code 171.
If the connector is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the air conditioning compressor wiring.
If the wiring is faulty and there is a repair procedure (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Manually check if the compressor is jammed (turn the clutch plate manually to check that there is no point of
resistance). In the event of jamming, replace the air conditioning compressor (see MR 364 (Mégane II), MR 370
(Scénic II), MR 385 (Modus), MR 392 (Clio III), MR 411 (New Twingo), MR 417 (Kangoo 2), Mechanical, 62A,
Air conditioning, Compressor: Removal - Refitting).
Top up the refrigerant, check for any leaks, and repair if necessary (see MR 364 (Mégane II), MR 370 (Scénic II),
MR 385 (Modus), MR 392 (Clio III), MR 411 (New Twingo), MR 417 (Kangoo 2), Mechanical, 62A, Air
conditioning, Refrigerant circuit: Draining - Filling).
DCM1.2_V48_DF1070/DCM1.2_V4C_DF1070/DCM1.2_V50_DF1070/DCM1.2_V54_DF1070/DCM1.2_V58_DF1070/DCM1.2_V5C_DF1070

13B-139
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
V10 MR-372-J84-13B100$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
ET042CRUISE CONTROL/SPEED LIMITER
STATUS DEFINITIONNOT DETECTED: This status indicates that the cruise control or speed limiter function
is not present on the vehicle.
INACTIVE: This status indicates that the cruise control/speed limiter main On/Off switch
is in the rest (or neutral) position.
LIMITER: This status indicates that the driver has used the main switch to select the
speed limiter.
CRUISE CONTROL: This status indicates that the driver has used the main switch to
select the cruise control.
NOTESSpecial notes:
Only perform these tests if the statuses do not correspond with the system programming
functions.
Conformity check: Engine stopped, ignition on or engine running.
NOT DETECTED If the vehicle is not fitted with cruise control/speed limiter function buttons, status ET042
is permanently NOT DETECTED. This confirms that the cruise control/speed limiter
function is not present on the vehicle.
If the vehicle is fitted with cruise control or speed limiter function buttons, the main switch
is in rest (or neutral) position and the injection computer has just been programmed or
reprogrammed, then status ET042 is NOT DETECTED.
To activate the cruise control or speed limiter function, press the main switch in the cruise
control position and then in the speed limiter position.
Return to rest position.
The tool displays status ET042 INACTIVE.
If not, several steps must be checked:
1. Return to the multiplex network test page on the Clip application. Repeat the
multiplex network test. Re-establish dialogue with the injection computer. Check
status ET042. If ET042 is INACTIVE, the injection computer has detected the
various positions of the main switch. The cruise control/speed limiter is active.
2. If status ET042 is still NOT DETECTED, check that the vehicle's owner has not had
the cruise control/speed limiter function disabled in the past. Contact the Techline.
DCM1.2_V48_ET042/DCM1.2_V4C_ET042/DCM1.2_V50_ET042/DCM1.2_V54_ET042/DCM1.2_V58_ET042/DCM1.2_V5C_ET042

13B-160
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V10 MR-372-J84-13B100$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 50
ET563FLOW CAPACITY FUNCTION
STATUS DEFINITIONACTIVE: This status indicates that the flow capacity function is active.
INACTIVE: This status indicates that the flow capacity function is inactive.
Conformity check: Engine stopped and ignition on, or engine running, and engine coolant
temperature > 80˚C
INACTIVE
OR ACTIVEIf there is a fault, use the interpretation of fault DF130 "Flow capacity function".
DCM1.2_V50_ET563

13B-162
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
V10 MR-372-J84-13B100$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
ET703CRUISE CONTROL/SPEED LIMITER BUTTONS
STATUS DEFINITIONINACTIVE: This status indicates that no button has been pressed.
INCREASE: This status indicates that the increase button is pressed.
DECREASE: This status indicates that the decrease button is pressed.
SUSPEND: This status indicates that the 0 is pressed.
RESUME: This status indicates that the R button is pressed.
Conformity check: Engine stopped, ignition on or engine running.
INACTIVEStatus ET703 becomes INACTIVE when none of the cruise control/speed limiter buttons
are pressed. These buttons are located on the steering wheel.
To be able to remove the driver's airbag and carry out the measurements safely
(see 88C, Airbag and pretensioners).
If status ET703 does not display INACTIVE,
●check the condition of the cruise control/speed limiter ± button and the condition
of its connector.
●check the condition of the cruise control/speed limiter R/0 button and the
condition of its connector.
Repair if necessary.
INCREASEStatus ET703 becomes INCREASE when the + cruise control/speed limiter button is
pressed. This button is on the steering wheel, on the left-hand side.
To be able to remove the driver's airbag and carry out the measurements safely
(see 88C, Airbag and pretensioners).
If status ET703 does not display INCREASE, check the condition of the cruise control/
speed limiter
± button, and the condition of its connector. Repair if necessary.
Measure the resistance of the button between connections 86M and 86G while
pressing on the + button.
If the resistance is not approximately 300 Ω, check the continuity of the connection when
the button is in the rest position.
If there is continuity, replace the
± control button (see MR 364 (Mégane II), MR 370
(Scénic II), MR 385 (Modus), MR 392 (Clio III), MR 411 (New Twingo), MR 417
(Kangoo 2), Mechanical, 83D, Cruise control, Steering wheel switch: Removal -
Refitting).
DCM1.2_V48_ET703/DCM1.2_V4C_ET703/DCM1.2_V50_ET703/DCM1.2_V54_ET703/DCM1.2_V58_ET703/DCM1.2_V5C_ET703
