7. The passenger side rear turn signal comes on toindicate that corner sensor is ready to be learned.
Proceed to the passenger side rear tire and
repeat the procedure in Step 5.
8. The driver side rear turn signal comes on to indicate that corner sensor is ready to be learned.
Proceed to the driver side rear tire, and repeat
the procedure in Step 5.
9. After hearing the single horn chirp for the driver side rear tire, two additional horn chirps sound to
indicate the tire learning process is done. Turn
the ignition switch to LOCK/OFF.
If no tires are learned after entering the TPMS learn
mode, or if communication with the receiver
stops, or if the time limit has expired, turn the
ignition switch to LOCK/OFF and start over
beginning with Step 2.
10. Set all four tires to the recommended air pressure level as indicated on the Tire and Loading
Information label.
11. Put the valve caps back on the valve stems.TPMS Matching Process for Vehicles
without Remote Keyless Entry (RKE)
1. Set the parking brake.
2. Turn the ignition switch to ON/RUN with the engine off.
3. Using the Driver Information Center (DIC), press the INFO and Set/Reset buttons at the same time
for about one second. Then press and release
the INFO button until the TIRE LEARN? message
displays.
4. Press and hold the Set/Reset DIC button for approximately three seconds to start the TPMS
learn mode. The horn sounds twice to indicate the
TPMS receiver is ready and the TIRE LEARN
ON message displays. The driver side front turn
signal also comes on to indicate that corner sensor
is ready to be learned.
5. Start with the driver side front tire.
6. Remove the valve cap from the tire’s valve stem. Activate the TPMS sensor by increasing or
decreasing the tire’s air pressure for about
eight seconds. The horn chirp, can take up to
30 seconds to sound. It chirps one time and then all
the turn signals flash one time to confirm the sensor
identification code has been matched to the tire/
wheel position.
6-61

FusesUsage
1 Fuse Puller
2 Empty
3 Empty
4 Empty
5 Empty
6 Amplifier
7 Cluster
8 Ignition Switch, PASS-Key
®III+
9 Stoplamp
10 Heating, Ventilation, Air
Conditioning, PASS-Key
®III+
11 Empty
12 Spare
13 Airbag
14 Spare
15 Windshield Wiper
16 Climate Control System, Ignition
17 Window Retained Accessory Power
6-104

•Fluids visual leak check (or every 12 months,
whichever occurs first). A leak in any system must
be repaired and the fluid level checked.
•Engine air cleaner filter inspection (vehicles driven
in dusty conditions only). SeeEngine Air Cleaner/
Filter on page 6-18.
•Brake system inspection (or every 12 months,
whichever occurs first).
Maintenance II
•Perform all services described in Maintenance I.
•Steering and suspension inspection. Visual
inspection for damaged, loose, or missing parts or
signs of wear.
•Engine cooling system inspection. Visual inspection
of hoses, pipes, fittings, and clamps and
replacement, if needed.
•Windshield wiper blade inspection for wear, cracking,
or contamination and windshield and wiper blade
cleaning, if contaminated. SeeWindshield and Wiper
Blades on page 6-98. Worn or damaged wiper blade
replacement. See Windshield Wiper Blade
Replacement on page 6-47 .
•Body hinges and latches, key lock cylinders, and
trunk lid hinges and latches lubrication. See
Recommended Fluids and Lubricants on page 7-10 .
More frequent lubrication may be required when
vehicle is exposed to a corrosive environment.
Applying silicone grease on weatherstrips with a
clean cloth makes them last longer, seal better, and
not stick or squeak.
•Restraint system component check. See Checking
the Restraint Systems on page 2-71 .
•Automatic transmission fluid level check and adding
fluid, if needed. SeeAutomatic Transmission Fluid
on page 6-19.
•Engine air cleaner filter inspection. See Engine Air
Cleaner/Filter on page 6-18 .
•Passenger compartment air filter replacement (or
every 12 months, whichever occurs first). More
frequent replacement may be required if vehicle is
driven regularly under dusty conditions.
7-4

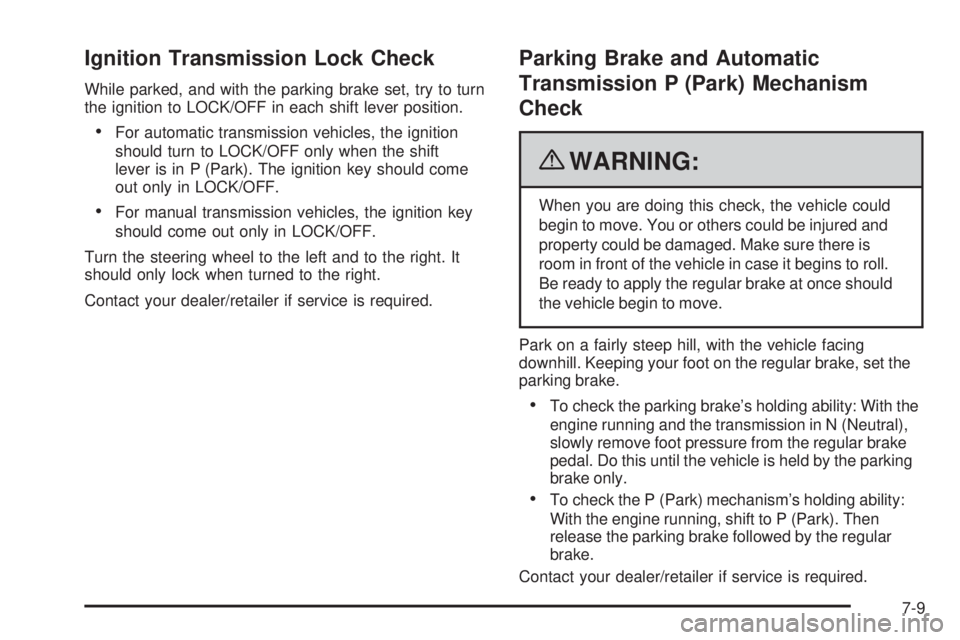

Ignition Transmission Lock Check
While parked, and with the parking brake set, try to turn
the ignition to LOCK/OFF in each shift lever position.
•For automatic transmission vehicles, the ignition
should turn to LOCK/OFF only when the shift
lever is in P (Park). The ignition key should come
out only in LOCK/OFF.
•For manual transmission vehicles, the ignition key
should come out only in LOCK/OFF.
Turn the steering wheel to the left and to the right. It
should only lock when turned to the right.
Contact your dealer/retailer if service is required.
Parking Brake and Automatic
Transmission P (Park) Mechanism
Check
{WARNING:
When you are doing this check, the vehicle could
begin to move. You or others could be injured and
property could be damaged. Make sure there is
room in front of the vehicle in case it begins to roll.
Be ready to apply the regular brake at once should
the vehicle begin to move.
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
•To check the parking brake’s holding ability: With the
engine running and the transmission in N (Neutral),
slowly remove foot pressure from the regular brake
pedal. Do this until the vehicle is held by the parking
brake only.
•To check the P (Park) mechanism’s holding ability:
With the engine running, shift to P (Park). Then
release the parking brake followed by the regular
brake.
Contact your dealer/retailer if service is required.
7-9

UsageFluid/Lubricant
Key Lock Cylinders Multi-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Manual
Transmission Shift Linkage Chassis Lubricant
(GM Part No. U.S. 12377985, in
Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Chassis
Lubrication Chassis Lubricant
(GM Part No. U.S. 12377985, in
Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.Usage
Fluid/Lubricant
Hood Latch Assembly,
Secondary Latch,
Pivots, Spring Anchor, and
Release Pawl Lubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293, in
Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and Door Hinges Multi-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Weatherstrip Conditioning Weatherstrip Lubricant
(GM Part No. U.S. 3634770, in
Canada 10953518) or
Dielectric Silicone Grease
(GM Part No. U.S. 12345579, in
Canada 992887).
7-11

OnStar®
If the vehicle has OnStar and you subscribe to the
OnStar services, please refer to the OnStar Terms and
Conditions for information on data collection and use.
Navigation System
If your vehicle has a navigation system, use of the
system may result in the storage of destinations,
addresses, telephone numbers, and other trip
information. Refer to the navigation system operating
manual for information on stored data and for deletion
instructions.
Radio Frequency
Identication (RFID)
RFID technology is used in some vehicles for functions
such as tire pressure monitoring and ignition system
security, as well as in connection with conveniences
such as key fobs for remote door locking/unlocking and
starting, and in-vehicle transmitters for garage door
openers. RFID technology in GM vehicles does not use
or record personal information or link with any other
GM system containing personal information.
Radio Frequency Statement
This vehicle has systems that operate on a radio
frequency that comply with Part 15 of the Federal
Communications Commission (FCC) Rules and with
RSS-210/211 of Industry and Science Canada.
Operation is subject to the following two conditions:1. The device may not cause interference.
2. The device must accept any interference received, including interference that may cause undesired
operation of the device.
Changes or modifications to any of these systems by
other than an authorized service facility could void
authorization to use this equipment.
8-18

Electrical SystemEngine Compartment Fuse Block .................6-105
Floor Console Fuse Block ...........................6-103
Fuses and Circuit Breakers .........................6-103
Headlamp Wiring ....................................... 6-102
Power Windows and Other Power Options ....6-102
Windshield Wiper Fuses .............................6-102
Electronic Immobilizer PASS-Key
®III+ ........................................... 3-17
Electronic Immobilizer Operation PASS-Key
®III+ ........................................... 3-17
Electronic Stability Control ................................. 5-6
Electronic Stability Control Indicator Light ...........4-28
Engine Air Cleaner/Filter ......................................... 6-18
Check and Service Engine Soon Lamp ...........4-30
Compartment Overview ................................6-12
Coolant ...................................................... 6-24
Coolant Heater ............................................ 3-23
Coolant Temperature Warning Light ................4-29
Cooling System ........................................... 6-20
Drive Belt Routing ....................................... 7-13
Exhaust ..................................................... 3-33
Oil ............................................................. 6-13
Overheating ................................................ 6-27
Starting ...................................................... 3-22Engine Oil
Life System ................................................ 6-16
Enhanced Traction System (ETS) Active Light .....5-11
Enhanced Traction System (ETS) Indicator/ Warning Light ............................................. 4-27
Entry/Exit Lighting ........................................... 4-12
Event Data Recorders ..................................... 8-17
Extender, Safety Belt ....................................... 2-31F
Filter
Engine Air Cleaner ...................................... 6-18
Finish Damage ............................................. 6-100
Fixed Mast Antenna ........................................ 4-84
Flashers, Hazard Warning .................................. 4-3
Flash-to-Pass ................................................... 4-5
Flat Tire ........................................................ 6-70
Flat Tire, Changing ......................................... 6-80
Flat Tire, Storing ............................................. 6-90
Fluid Automatic Transmission ................................6-19
Windshield Washer ...................................... 6-28
Fog Lamps Bulb Replacement ....................................... 4-11
Light .......................................................... 4-34
5

Horn ............................................................... 4-3
How to Wear Safety Belts Properly...................2-16
Hydraulic Clutch ............................................. 6-19
I
Ignition Positions............................................. 3-19
Indicator/Warning LIghts Enhanced Traction System (ETS) ...................4-27
Infants and Young Children, Restraints ...............2-35
Inflation - Tire Pressure ................................... 6-55
Instrument Panel Brightness .................................................. 4-11
Cluster ....................................................... 4-20
Introduction ...................................................... 7-2
J
Jump Starting ................................................. 6-34
K
Keyless Entry
Remote (RKE) System ................................... 3-3
Keyless Entry System ....................................... 3-3
Keys ............................................................... 3-2
L
Labeling, Tire Sidewall ..................................... 6-49
Lamps Back-Up ..................................................... 6-45
Daytime Running (DRL) ................................4-10
Dome ........................................................ 4-11
License Plate .............................................. 6-46
Malfunction Indicator .................................... 4-30
Mirror Reading ............................................ 4-12
Taillamps and Turn Signal .............................6-44
Lap-Shoulder Belt ........................................... 2-25
LATCH System for Child Restraints ...................2-43
Lighting Entry/Exit ................................................... 4-12
Lights ............................................................. 4-9
Airbag Readiness ........................................ 4-23
Antilock Brake System (ABS) Warning ............4-27
Brake System Warning ................................. 4-26
Charging System ......................................... 4-25
Engine Coolant Temperature Warning .............4-29
Enhanced Traction System (ETS) Active .........5-11
Flash-to-Pass ............................................... 4-5
Fog Lamps ................................................. 4-34
Highbeam On ............................................. 4-34
High/Low Beam Changer ................................ 4-5
Oil Pressure ............................................... 4-33
On Reminder .............................................. 4-10
7
