ERGONOMICS and COMFORT
3
77
Practical information
1. Driver's upper glove box
FRONT INTERIOR LAYOUT
T h i s i s fi t t e d w i t h a l o c k .
T o o p e n t h e g l o v e b o x , l i f t t h e h a n d l e .
The light comes on when the cover is
o p e n e d .
It contains three sockets for the
c o n n e c t i o n o f v i d e o e q u i p m e n t a n d
access to the fascia fuse box.
I t i n c l u d e s s p e c i a l c o m p a r t m e n t s f o r
s t o r i n g m a p s , a p a c k e t o f c i g a r e t t e s ,
a n A 4 d o c u m e n t e t c .
RCA sockets.
This permits the connection of a mobile
t e l e p h o n e c h a r g e r , a b a b y ' s b o t t l e
w a r m e r , e t c .
T o o p e n , p r e s s t h e b u t t o n .
T o c l o s e , p r e s s t h e c o v e r .
I t i n c l u d e s s p e c i a l c o m p a r t m e n t s f o r
s t o r i n g a p e n , a m o b i l e t e l e p h o n e ,
c o i n s o r t o k e n s a n d c r e d i t c a r d s .
2 . A u d i o e q u i p m e n t c o n c e a l i n g fl a p
L o w e r t h e fl a p f u l l y t o l o c k i t i n p l a c e .
P r e s s t h e fl a p t o r a i s e i t .
3. Central storage compartment
4. Passenger's upper glove box
T o o p e n , p r e s s t h e b u t t o n .
T o c l o s e , p r e s s t h e c o v e r .
I t i n c l u d e s s p e c i a l c o m p a r t m e n t s f o r
s t o r i n g a p a i r o f s p e c t a c l e s , k e y s , fi v e
C D s a n d f o u r a u d i o c a s s e t t e s o r n i n e
a u d i o C D s . 5. Passenger's lower glove box
6. Lighter or 12 V socket for
accessories (120 W) 1 2 . M a t fi t t i n g / r e m o v a l
W h e n r e m o v i n g t h e f r o n t m a t , p u s h
t h e s e a t s a s f a r b a c k a s p o s s i b l e a n d
r e m o v e t h e fi x i n g s .
W h e n r e fi t t i n g , p o s i t i o n t h e m a t
c o r r e c t l y o n t h e p i n s a n d c l i p t h e
fi x i n g s . C h e c k t h a t t h e m a t i s s e c u r e d
correctly.
To prevent the mat from becoming
c a u g h t u n d e r t h e p e d a l s :
- o n l y u s e m a t s s u i t e d t o t h e fi x i n g s
a l r e a d y p r e s e n t i n t h e v e h i c l e . I t
i s i m p e r a t i v e t h a t t h e s e fi x i n g s a r e
u s e d .
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
7. Cooled compartment
I t c a n h o l d u p t o t h r e e c a n s .
S l i d e t h e c l o s e r , l o c a t e d o n t h e r i g h t , t o
o p e n ( u p w a r d s ) o r c l o s e ( d o w n w a r d s )
the air inlet.
8. Can holder and ashtray
T h i s r e t r a c t a b l e a n d l i t s u p p o r t c o n t a i n s
u p t o t w o c a n h o l d e r s , a r e m o v a b l e
a s h t r a y a n d a l o c a t i o n f o r t h e l i g h t e r
w h e n i t i s u s e d a s a 1 2 V s o c k e t
( 1 2 0 W ) . 9. Storage compartment or
additional telematics control
The storage compartment must not be
u s e d a s a n a s h t r a y .
I f fi t t e d o n y o u r v e h i c l e , t h e a d d i t i o n a l
t e l e m a t i c s c o n t r o l i s l o c a t e d o n t h e
centre console.
10. Storage compartment
11. Door tray with space for a bottle of water
Bluetooth.
Page 106 of 237
104
Towing a trailer
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake
gradually. Please contact a PEUGEOT dealer
fi r s t f o r f u r t h e r i n f o r m a t i o n .
Automatic adjustment
For vehicles with Xenon bulbs, and if
the change in load makes it necessary,
this system automatically corrects the
height of the beam after approximately
2 minutes. The driver is then assured
of having optimum lighting and not
causing a nuisance to other road
users.
In certain cases of particularly
arduous use (towing the
maximum load up a steep slope
in high temperatures), the engine
automatically limits its power. In this
case, cutting off the air conditioning
allows the engine power to be
recovered, and therefore the towing
s p e e d t o b e s i g n i fi c a n t l y i n c r e a s e d
(approximately 12 mph [20 km/h]
more). Sequential control of the
gearbox may also become unavailable. Lighting
Bicycle carrier
R e f e r t o t h e " I d e n t i fi c a t i o n
features" section of chapter 8. Refer to the "Steering wheel
controls" section of chapter 3.
When using a trailer connection,
you must add a fuse. Refer to
the "Changing a fuse" section of
chapter 7.
If the coolant temperature warning light
comes on, stop the vehicle and switch
off the engine as soon as possible.
Tyres: check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pressure.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.
Towbar
We recommend the use of original
PEUGEOT towbars, which have been
tested for endurance from the design
stage of your vehicle.
T o w i n g e q u i p m e n t m u s t b e fi t t e d i n
accordance with the manufacturer's
instructions, with particular attention to
the towing capacities of your vehicle,
the load towed, the nose weight and
t h e e l e c t r i c a l c o n n e c t i o n . A s t h i s fi t t i n g
should be carried out by a professional,
we recommend that you entrust the
fi t t i n g o f t h i s e q u i p m e n t t o a P E U G E O T
dealer.
In accordance with the general
instructions referred to above, we draw
your attention to the risk connected
w i t h fi t t i n g a t o w b a r o r o t h e r e l e c t r i c a l
accessory which is not recommended
by the PEUGEOT network. Fitting such
equipment could result in a failure of
your vehicle's electronic system. Manual adjustment
Adjust your headlamps so as not to
dazzle other road users. Check the
electrical signalling of the trailer.
I f y o u fi t a b i c y c l e c a r r i e r o n
the tailgate, deactivate the
rear wiper from the display's
c o n fi g u r a t i o n m e n u .
Page 114 of 237
112
Under the bonnet
UNDER-BONNET LAYOUT
DIESEL ENGINES
1. Windscreen/headlamp wash
reservoir.
2. Fuse box.
3. Coolant reservoir.
4. Wheelbrace.
5. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
6. Jack housing.
7. A i r fi l t e r .
8. Removable towing eye.
9. E n g i n e o i l fi l l e r c a p .
10. Dipstick
( a : 2.0 HDi).
11. Power steering reservoir.
12. Repriming pump.
Page 127 of 237
124
Changing a fuse
CHANGING A FUSE
T h e f u s e b o x e s a r e l o c a t e d i n :
- the instrument panel lower glove b o x ( r i g h t - h a n d s i d e ) ,
- the battery compartment (right- h a n d s i d e fl o o r ) ,
- the engine compartment.
The spare fuses and special pliers A
a r e fi x e d t o t h e i n s i d e o f t h e l i d o f t h e
i n s t r u m e n t p a n e l f u s e b o x . Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
a r e i n d i c a t e d o n t h e f u s e b o x .
- Use the special pliers
A .
Always change a faulty fuse for one
of the same rating.
Removing and changing a fuse
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular when
the combined consumption of all of
the additional equipment connected
e x c e e d s 1 0 m i l l i a m p e r e s .
Page 128 of 237
125
TROUBLESHOOTING
7
Changing a fuse
INSTRUMENT PANEL FUSES
- O p e n t h e l o w e r g l o v e b o x o n t h e r i g h t - h a n d s i d e .
- Pull the handle to open the cover and access the fuses.
N°
Rating
(Amps)
Functions
1 15 Rear wiper.
2 - Not used.
3 5 Air bag control unit.
4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manu
al air conditioning, Clutch
s w i t c h , H e a d l a m p b e a m h e i g h t , P a r t i c l e e m i s s i o n fi l t e r p u m p , E l e c t r o c h r o m a t i c i n t e r i o r m i r r o r .
5 30 Electric mirrors, Passenger's electric window motor, Sunroof row 1.
6 30 Front electric windows supply.
7 5 C o u r t e s y l i g h t s , G l o v e b o x l i g h t , C o u r t e s y m i r r o r l i g h t s , E n t e r t a i n m e n t s c r e e n l i g h t s r o w 2 .
8 20 Multifunction display, Anti-theft alarm siren, Audio equipmen
t, Compact disc changer, Audio/
t e l e p h o n e , D i e s e l a d d i t i v e c o n t r o l u n i t , T y r e u n d e r - i n fl a t i o n d e t e c t i o n c o n t r o l u n i t , S l i d i n g d o o r s
module control unit.
9 30 Lighter.
10 15 S t e e r i n g w h e e l s w i t c h i n g , T r a i l e r f u s e b o x .
11 15 D i a g n o s t i c s o c k e t , I g n i t i o n s w i t c h , A u t o m a t i c g e a r b o x ( 4 - s p e e d ) .
12 15 Driver's seat memory unit, Passenger's electric seat, Air bag control un
it, Parking assistance
c o n t r o l u n i t , S l i d i n g s i d e d o o r b u t t o n s , H a n d s - f r e e k i t , A u t o m a t i c g e a r b o x ( 6 - s p e e d ) .
13 5 E n g i n e f u s e b o x , T r a i l e r f u s e b o x .
14 15 Rain sensor, Automatic air conditioning, Instrument panel, Su
nroofs, Odometer warning lights
unit, Audio-telematics control.
15 30 Passenger's lock locking.
16 30 Locking/unlocking of the accesses.
17 40 Heated rear screen.
Page 129 of 237
126
Changing a fuse
BATTERY COMPARTMENT
FUSES
Fuse box
The fuses are located in the battery
compartment, housed underneath the
fl o o r i n f r o n t o f t h e s e a t o n t h e r i g h t -
hand side:
- unclip the cover.
Carefully close the cover when you
h a v e fi n i s h e d .
Page 130 of 237
127
TROUBLESHOOTING
Changing a fuse

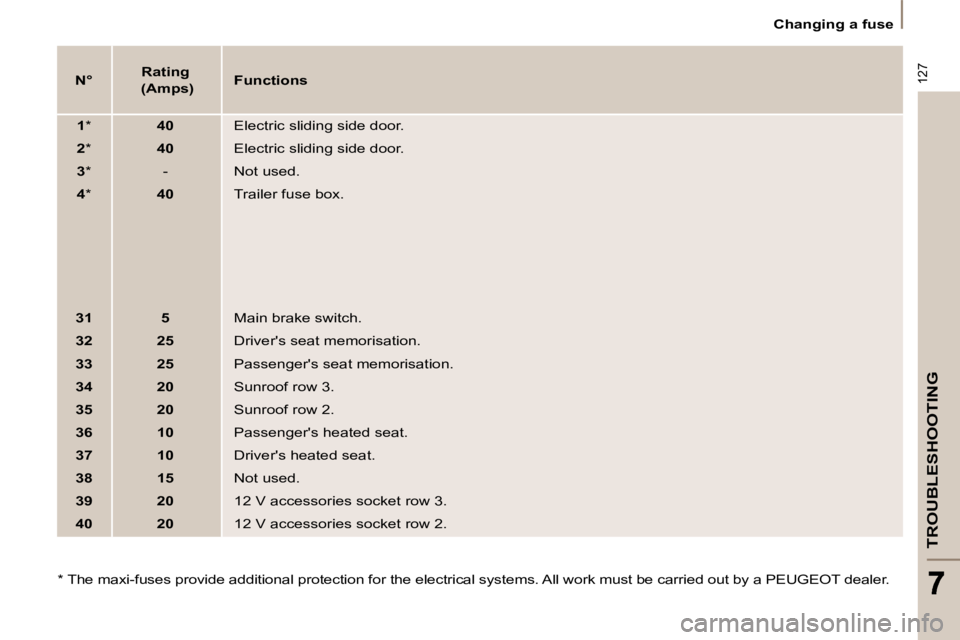

N°
Rating
(Amps)
Functions
1 * 40 Electric sliding side door.
2 * 40 Electric sliding side door.
3 * - Not used.
4 * 40 T r a i l e r f u s e b o x .
31 5 Main brake switch.
32 25 Driver's seat memorisation.
33 25 Passenger's seat memorisation.
34 20 Sunroof row 3.
35 20 Sunroof row 2.
36 10 Passenger's heated seat.
37 10 Driver's heated seat.
38 15 Not used.
39 20 12 V accessories socket row 3.
40 20 12 V accessories socket row 2.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t r i c a l s y s t e m s . A l l w o r k m u s t b e c a r r i e d o u t b y a P E U G E O T d e a l e r .
Page 131 of 237
128
Changing a fuse
Fuse box
To access the fuses located in the
engine compartment (to the left of the
coolant reservoir):
- unclip the cover.
ENGINE COMPARTMENT
FUSES
The designations communicated
only relate to the fuses which can
be changed by the user using
the pliers and spare fuses, located in
t h e g l o v e b o x b e h i n d t h e i n s t r u m e n t
p a n e l f u s e b o x , o n t h e r i g h t - h a n d s i d e .
For any other work, visit a PEUGEOT
dealer.
Carefully close the cover when you
h a v e fi n i s h e d .
The electrical system of your vehicle is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, consult a PEUGEOT dealer.
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular where the
equipment in question consumes more
than 10 milliamperes. Intended for professionals: for full
fuse and relay information, consult the
"Methods" diagram via the PEUGEOT
network.
