112
Under the bonnet
UNDER-BONNET LAYOUT
DIESEL ENGINES
1. Windscreen/headlamp wash
reservoir.
2. Fuse box.
3. Coolant reservoir.
4. Wheelbrace.
5. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
6. Jack housing.
7. A i r fi l t e r .
8. Removable towing eye.
9. E n g i n e o i l fi l l e r c a p .
10. Dipstick
( a : 2.0 HDi).
11. Power steering reservoir.
12. Repriming pump.
Page 116 of 237
114
Levels
Cooling system
O n l y u s e t h e fl u i d r e c o m m e n d e d b y t h e
manufacturer.
Otherwise, you risk seriously damaging
your engine.
When the engine is warm, the
temperature of the coolant is controlled
by the engine fan. As this fan can
operate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to
release the pressure to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and top
up the level with coolant.
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a failure which must be
checked by a PEUGEOT dealer as
soon as possible. Power steering fluid level
The vehicle must be parked on level
ground with the engine cold. Unscrew
the cap integrated with the gauge and
check the level which must be between
the MIN and MAX marks.
During regeneration of the particle
e m i s s i o n fi l t e r , r e l a y n o i s e m a y b e
heard under the fascia.
If the message is still displayed and
the service warning light remains on,
contact a PEUGEOT dealer.
Diesel additive level (Diesel with
particle emission filter)
When this occurs with the engine
running, this is due to the start of
s a t u r a t i o n o f t h e p a r t i c l e e m i s s i o n fi l t e r
(exceptionally prolonged urban driving
c o n d i t i o n s : l o w s p e e d , l o n g t r a f fi c
jams, ...).
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u
are advised to drive at a speed of
more than 40 mph (60 km/h) as soon
a s p o s s i b l e , w h e n t r a f fi c c o n d i t i o n s
p e r m i t , f o r a t l e a s t fi v e m i n u t e s ( u n t i l
the message disappears and the
service warning light is switched off).
Topping up
The level must be between the MIN
and MAX marks on the expansion
b o t t l e . I f m o r e t h a n 1 l i t r e o f fl u i d i s
required to top up the level, have
the system checked by a PEUGEOT
dealer. Windscreen wash and headlamp
wash level
For best quality cleaning and for your
safety, we would advise that you use
products of the PEUGEOT range.
To avoid ice forming, do not use water.
Topping up
It is imperative that this additive is
topped up by a PEUGEOT dealer
without delay.
Used oil
Avoid prolonged contact of used oil
with the skin.
B r a k e fl u i d i s h a r m f u l t o h e a l t h a n d
very corrosive.
Do not dispose of used oil, brake
fl u i d o r c o o l a n t i n t o d r a i n s o r o n t o
the ground but into the containers
dedicated to this use at PEUGEOT
dealerships.
The minimum level of this
additive is indicated by
lighting of the service warning
light, accompanied by an
audible signal and a message
on the display.
Page 128 of 237
125
TROUBLESHOOTING
7
Changing a fuse
INSTRUMENT PANEL FUSES
- O p e n t h e l o w e r g l o v e b o x o n t h e r i g h t - h a n d s i d e .
- Pull the handle to open the cover and access the fuses.
N°
Rating
(Amps)
Functions
1 15 Rear wiper.
2 - Not used.
3 5 Air bag control unit.
4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manu
al air conditioning, Clutch
s w i t c h , H e a d l a m p b e a m h e i g h t , P a r t i c l e e m i s s i o n fi l t e r p u m p , E l e c t r o c h r o m a t i c i n t e r i o r m i r r o r .
5 30 Electric mirrors, Passenger's electric window motor, Sunroof row 1.
6 30 Front electric windows supply.
7 5 C o u r t e s y l i g h t s , G l o v e b o x l i g h t , C o u r t e s y m i r r o r l i g h t s , E n t e r t a i n m e n t s c r e e n l i g h t s r o w 2 .
8 20 Multifunction display, Anti-theft alarm siren, Audio equipmen
t, Compact disc changer, Audio/
t e l e p h o n e , D i e s e l a d d i t i v e c o n t r o l u n i t , T y r e u n d e r - i n fl a t i o n d e t e c t i o n c o n t r o l u n i t , S l i d i n g d o o r s
module control unit.
9 30 Lighter.
10 15 S t e e r i n g w h e e l s w i t c h i n g , T r a i l e r f u s e b o x .
11 15 D i a g n o s t i c s o c k e t , I g n i t i o n s w i t c h , A u t o m a t i c g e a r b o x ( 4 - s p e e d ) .
12 15 Driver's seat memory unit, Passenger's electric seat, Air bag control un
it, Parking assistance
c o n t r o l u n i t , S l i d i n g s i d e d o o r b u t t o n s , H a n d s - f r e e k i t , A u t o m a t i c g e a r b o x ( 6 - s p e e d ) .
13 5 E n g i n e f u s e b o x , T r a i l e r f u s e b o x .
14 15 Rain sensor, Automatic air conditioning, Instrument panel, Su
nroofs, Odometer warning lights
unit, Audio-telematics control.
15 30 Passenger's lock locking.
16 30 Locking/unlocking of the accesses.
17 40 Heated rear screen.
Page 134 of 237
131
TROUBLESHOOTING
7
Having your vehicle towed
From the rear
- unclip the top of the cover using a coin,
- screw in the removable towing eye until it locks.
TOWING YOUR VEHICLE
Special features of the
automatic gearbox
When being towed with four wheels on
the road, it is essential to observe the
following rules:
- selector lever in position N ,
- tow the vehicle at a speed below 30 mph (50 km/h) over a distance
limited to 30 miles (50 km)
m a x i m u m ,
- d o n o t a d d o i l t o t h e g e a r b o x .
When towing with the engine switched
off, there is no braking or steering
assistance.
Without lifting
(4 wheels on the road)
You should always use a towbar.
The removable towing eye is inside the
engine compartment.
From the front
- unclip the cover by pressing the
bottom part,
- screw in the removable towing eye until it locks. Lifting (2 wheels on the road only)
It is preferable to raise the vehicle
using professional lifting equipment.
VEHICLES FITTED WITH
A MANUAL GEARBOX
(diesel version)
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
m a n u a l g e a r b o x , t h e g e a r l e v e r m u s t
be in the neutral position. Failure to
observe this special condition may
result in damage to certain braking
components and the absence of
b r a k i n g a s s i s t a n c e t h e n e x t t i m e t h e
engine is started.
Put the gear lever in neutral.
Failure to observe this rule may
result in damage to certain
components.
Page 146 of 237
9.6
0 2 STEERING MOUNTED CONTROLS
RADIO: selection of the next stored station. MP3/USB/JUKEBOX: selection of the next directory. Selection of the next item on a menu.
RADIO: selection of the previous stored station. MP3/USB/JUKEBOX: selection of the previous directory. Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency. CD/MP3/USB/JUKEBOX: selection of the next track. CD/USB: continuous press: fast forwards play.
RADIO: automatic search for a lower frequency. CD/MP3/USB/JUKEBOX: selection of the previous track. CD/USB: continuous press: fast backwards play.
- Change of sound source. - C o n fi r m a t i o n o f a s e l e c t i o n . - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.
Volume increase.
Volume decrease.
Mute: by pressing the volume increase and decrease buttons simultaneously.
The sound is restored by pressing one of the two volume buttons.

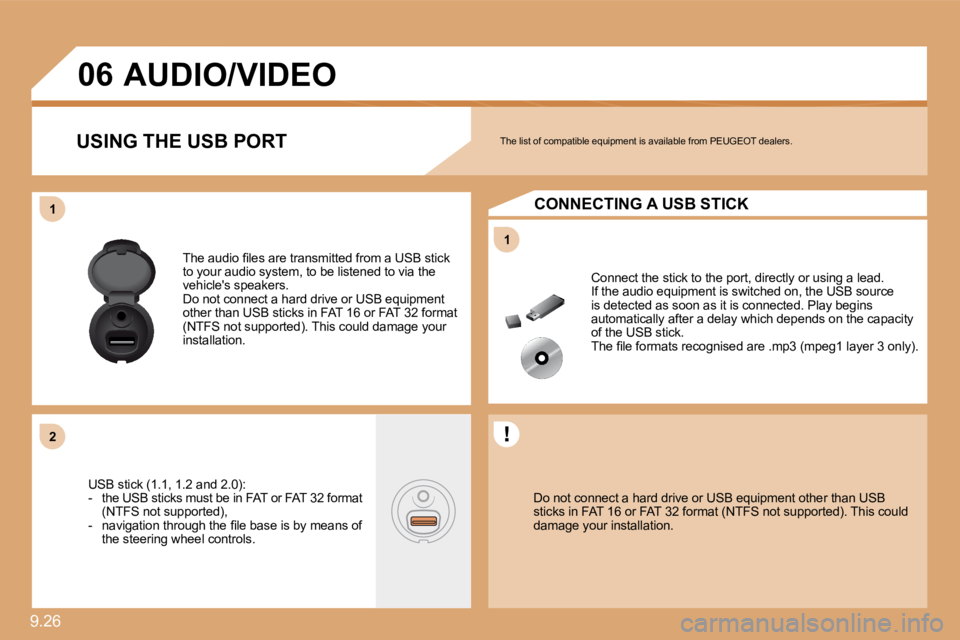

Page 166 of 237
9.26
11
11
2 2
0 6
Do not connect a hard drive or USB equipment other than USB sticks in FAT 16 or FAT 32 format (NTFS not support ed). This could damage your installation.
Connect the stick to the port, directly or using a lead. If the audio equipment is switched on, the USB sour ce is detected as soon as it is connected. Play begins automatically after a delay which depends on the capacity of the USB stick. T h e fi l e f o r m a t s r e c o g n i s e d a r e . m p 3 ( m p e g 1 l a y e r 3 o n l y ) .
The list of compatible equipment is available from PEUGEOT dealers. USING THE USB PORT
CONNECTING A USB STICK
T h e a u d i o fi l e s a r e t r a n s m i t t e d f r o m a U S B s t i c k to your audio system, to be listened to via the vehicle's speakers. Do not connect a hard drive or USB equipment other than USB sticks in FAT 16 or FAT 32 format (NTFS not supported). This could damage your installation.
USB stick (1.1, 1.2 and 2.0): - the USB sticks must be in FAT or FAT 32 forma t (NTFS not supported), - n a v i g a t i o n t h r o u g h t h e fi l e b a s e i s b y m e a n s o f the steering wheel controls.
AUDIO/VIDEO
Page 175 of 237
9.35
1
2 2
3 3
5 5
6 6
4 4
0 7 USING THE TELEPHONE
CALLING A CONTACT
Turn the dial and select the DIAL function.
Press the PICK UP button to display the telephone short-cut menu.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Dial the telephone number of your contact using the alphanumeric keypad.
Press the PICK UP button to call the number dialled.
Press the HANG UP button to end the call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button to accept a call.
Press the HANG UP button to refuse a call.
You can also press and hold the steering wheel Tel button to access the telephone menu: calls log, directory, voice mailbox.
To select the telephone used, press MENU, then select TELEMATICS, then BLUETOOTH FUNCTIONS, then BLUETOOTH ACTIVATION MODE. Then sel ect: - DEACTIVATED: to use the internal telephone, - ACTIVATED AND VISIBLE: to use the bluetooth telephone, visible to all telephones, - ACTIVATED AND NOT VISIBLE: to use the bluetoot h telephone, not visible to other telephones, it is not possible to match a new telephone.
Select CALL LIST or PHONE BOOK and press OK. Sele ct the n u m b e r r e q u i r e d a n d c o n fi r m t o m a k e t h e c a l l .
