2010 PEUGEOT 807 warning light
[x] Cancel search: warning lightPage 31 of 237
Instruments and controls
READY TO SET OFF
2
33
Warning light is indicates Solution - action
Front fog
lamps lit. manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on.
Rear fog
lamps lit. manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on. In conditions of normal
v i s i b i l i t y , t a k e c a r e t o s w i t c h t h e m o f f o n p e n a l t y o f
b e i n g b o o k e d . " T h i s l i g h t i s a d a z z l i n g r e d . "
Display is indicates Solution - action
Cruise control lit. cruise control selected. Manual selection. Chapter 3, "Steering wheel
controls" section.
Speed limiter lit. speed limiter selected. Manual selection. Chapter 3, "Steering wheel
controls" section.
Service
spanner lit. service due shortly. R e f e r t o t h e l i s t o f c h e c k s i n t h e s e r v i c i n g b o o k l e t .
H a v e t h e s e r v i c e c a r r i e d o u t b y a P E U G E O T
dealer.
Automatic
gearbox displayed. gear lever position selected. Chapter 2, "Instrume
nts and controls" section.
Particle
e m i s s i o n fi l t e r
saturation
warning displayed and
associated with
the service
warning light. malfunction of the particle
e m i s s i o n fi l t e r ( d i e s e l
additive level, risk of
clogging, ...).
H a v e t h e fi l t e r c h e c k e d b y a P E U G E O T d e a l e r .
Chapter 6, "Levels" section.
Page 32 of 237
Instruments and controls
34
W a i t f o r t h e e n g i n e t o c o o l b e f o r e
topping up the level.
The cooling system is pressurised.
I n t h e e v e n t o f a b r e a k d o w n a n d i n
order to avoid any risk of scalding,
unscrew the cap two turns to allow the
pressure to drop.
When the pressure has dropped,
remove the cap and top up the level.
Contact a PEUGEOT dealer.
COOLANT TEMPERATURE INDICATOR
I n z o n e A , the temperature is correct.
I n z o n e B , the temperature is too high.
The central STOP warning light and
the maximum coolant temperature
warning light 1 come on, accompanied
b y a n a u d i b l e s i g n a l a n d t h e m e s s a g e
"Engine coolant temp. too high" on
the display.
You must stop immediately.
With monochrome screen
With colour screen
INSTRUMENT PANEL DISPLAY
After switching on the ignition, three
functions are shown in succession:
- service indicator,
- engine oil level indicator (see
corresponding section),
- total distance recorder (total and trip distances).
I t a l s o d i s p l a y s t h e a u t o m a t i c g e a r b o x
positions and programmes selected
(see opposite).
The total and trip distances are
displayed for thirty seconds, when
the ignition is switched off, on
opening the driver’s door as well as on
locking and unlocking the vehicle.
Page 34 of 237
Instruments and controls
36
Zero re-set
Your PEUGEOT dealer carries out this
operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
- Switch off the ignition,
- Press and hold the trip recorder re-set b u t t o n ,
- Switch on the ignition.
T h e d i s p l a y b e g i n s a c o u n t d o w n .
When the display shows "= 0 ", release
t h e b u t t o n ; t h e s p a n n e r d i s a p p e a r s .
Engine oil level indicator
When the ignition is switched on, the
engine oil level is indicated for a few
seconds, after the service information. Oil level correct
Lack of oil
Flashing of
"OIL" ,
linked with the
service warning light,
a c c o m p a n i e d b y a n
a u d i b l e s i g n a l a n d a m e s s a g e o n t h e
display, indicates a lack of oil which
could damage the engine.
I f t h e l a c k o f o i l i s c o n fi r m e d b y a c h e c k
using the dipstick, it is essential that
the level is topped up.
Oil level gauge fault
Flashing of "OIL --"
indicates a malfunction
of the engine oil level
gauge. Consult a
PEUGEOT dealer. Dipstick
A = maximum, never exceed
this level as a surplus of oil
may damage the engine.
Contact a PEUGEOT dealer
without delay.
B = minimum, top up the level
v i a t h e o i l fi l l e r c a p , u s i n g
the type of oil suited to your
engine.
Trip recorder zero
reset button
With the ignition on, press
t h e b u t t o n u n t i l t h e z e r o s
appear.
Lighting rheostat
With the lights on, press
t h e b u t t o n t o v a r y t h e
intensity of the lighting
of the instruments and
controls. When the lighting reaches
the minimum (or maximum) setting,
r e l e a s e t h e b u t t o n t h e n p r e s s i t a g a i n
t o i n c r e a s e ( o r r e d u c e ) t h e b r i g h t n e s s .
As soon as the lighting is of the
r e q u i r e d b r i g h t n e s s , r e l e a s e t h e b u t t o n .
T h e l e v e l r e a d w i l l o n l y b e c o r r e c t
if the vehicle is on level ground
a n d t h e e n g i n e h a s b e e n o f f f o r
more than 15 minutes.
After this operation, if you wish to
d i s c o n n e c t t h e b a t t e r y , l o c k t h e
vehicle and wait for at least
fi v e m i n u t e s , o t h e r w i s e t h e z e r o r e - s e t
w i l l n o t b e r e g i s t e r e d .
Page 40 of 237
42
Starting and stopping
STARTING AND STOPPING
STOP position: steering lock.
The ignition is off.
Good practice when starting Handbrake
I f y o u r v e h i c l e i s fi t t e d w i t h a
version with a rotating front seat,
t h e h a n d b r a k e c a n b e d i s e n g a g e d .
P u l l i n g t h e h a n d b r a k e t o i m m o b i l i s e
the vehicle then lowering the lever
d o e s n o t r e l e a s e t h e b r a k e , i t p e r m i t s
rotation of the driver’s seat.
P u l l t h e b u t t o n p l a c e d a t t h e e n d o f t h e
h a n d b r a k e f o r w a r d s .
T h e h a n d b r a k e l e v e r l o w e r s .
You can now rotate the seat.
To return to normal operation, pull the
lever up until it clicks.
I f t h e h a n d b r a k e i s o n o r h a s
n o t b e e n r e l e a s e d f u l l y , t h i s i s
i n d i c a t e d b y :
- a warning light which comes
on on the instrument panel,
- a n a u d i b l e s i g n a l ,
- a message on the display.
Key
Take care not to place the key in
contact with grease, dust, rain or a
damp environment.
A h e a v y o b j e c t a t t a c h e d t o t h e k e y
(key ring, ...) weighing down on the
shaft of the key in the ignition switch
may cause a malfunction.
Running and accessories position.
C e r t a i n a c c e s s o r i e s c a n b e u s e d .
Starting position.
The starter is operated. Diesel pre-heating warning
light
Turn the key to the Running
position.
In cold weather, wait for this warning
light to switch off then operate the
starter (Starting position) until the
engine starts.
If the temperature is high enough, the
warning light comes on for less than
one second, you can start without
waiting. Good practice when stopping
Minimise engine and gearbox wear
When switching off the ignition, let the
engine run for a few seconds to allow
t h e t u r b o c h a r g e r t o r e t u r n t o i d l e .
Do not press the accelerator when
switching off the ignition.
There is no need to engage a gear
after parking the vehicle.
Page 43 of 237
Steering wheel controls
44
F r o n t f o g l i g h t s ( g r e e n )
a n d r e a r f o g l i g h t s
( a m b e r , 2 n d r o t a t i o n o f
t h e r i n g f o r w a r d s ) . T o s w i t c h o f f t h e f r o n t a n d r e a r
f o g l i g h t s , t u r n t h e r i n g r e a r w a r d s
twice in succession.
Front and rear fog lights
Rotate ring B f o r w a r d s t o s w i t c h o n
a n d r e a r w a r d s t o s w i t c h o f f . T h e
s t a t u s i s c o n fi r m e d b y t h e l i g h t o n t h e
instrument panel.
T h e s e o p e r a t e w i t h t h e s i d e l i g h t s a n d
t h e d i p p e d b e a m h e a d l a m p s . I n c l e a r w e a t h e r o r i n r a i n , b o t h
d a y a n d n i g h t , r e a r f o g l i g h t s
d a z z l e a n d a r e p r o h i b i t e d .
Do not forget to switch them off when
t h e y a r e n o l o n g e r n e e d e d .
Automatic switching on of the lights
s w i t c h e s o f f t h e r e a r f o g l a m p s , b u t t h e
front fog lamps remain on. Daytime lights
D e p e n d i n g o n t h e c o u n t r y i n w h i c h
t h e v e h i c l e i s s o l d , t h e v e h i c l e m a y
b e e q u i p p e d w i t h d a y t i m e l i g h t s . T h e
d i p p e d h e a d l a m p s c o m e o n w h e n t h e
v e h i c l e i s s t a r t e d .
T h e i n s t r u m e n t s a n d c o n t r o l s
( i n s t r u m e n t p a n e l , d i s p l a y , a i r
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e
only lit on switching to the automatic
s w i t c h i n g o n o f t h e l i g h t s m o d e o r
w h e n t h e l i g h t s a r e s w i t c h e d o n
manually.
Dipped beam/main beam change
P u l l t h e s t a l k f u l l y t o w a r d s y o u .
F r o n t f o g l i g h t s ( g r e e n ,
1st rotation of the ring
f o r w a r d s ) .
Lights-on buzzer
W h e n t h e i g n i t i o n i s s w i t c h e d o f f , w h e n
t h e d r i v e r ' s d o o r i s o p e n e d , a b u z z e r
s o u n d s i f y o u h a v e l e f t y o u r l i g h t s o n .
This warning light comes on
on the instrument panel.
Page 86 of 237
86
Driving safety
HANDBRAKE
HAZARD WARNING LIGHTS
Press the button, the direction
i n d i c a t o r s fl a s h .
They can operate with the ignition off.
Automatic lighting of hazard
warning lights
Equipment conditioned according
to country: when braking in an
emergency, depending on the
deceleration, the hazard warning lights
come on automatically. They switch
o f f a u t o m a t i c a l l y t h e fi r s t t i m e y o u
accelerate.
It is also possible to switch them off by
pressing the button.
DRIVING SAFETY
Applying
When parking, pull the handbrake to
immobilize your vehicle. When parking
on a slope, direct your wheels towards
the pavement and pull the handbrake.
Releasing

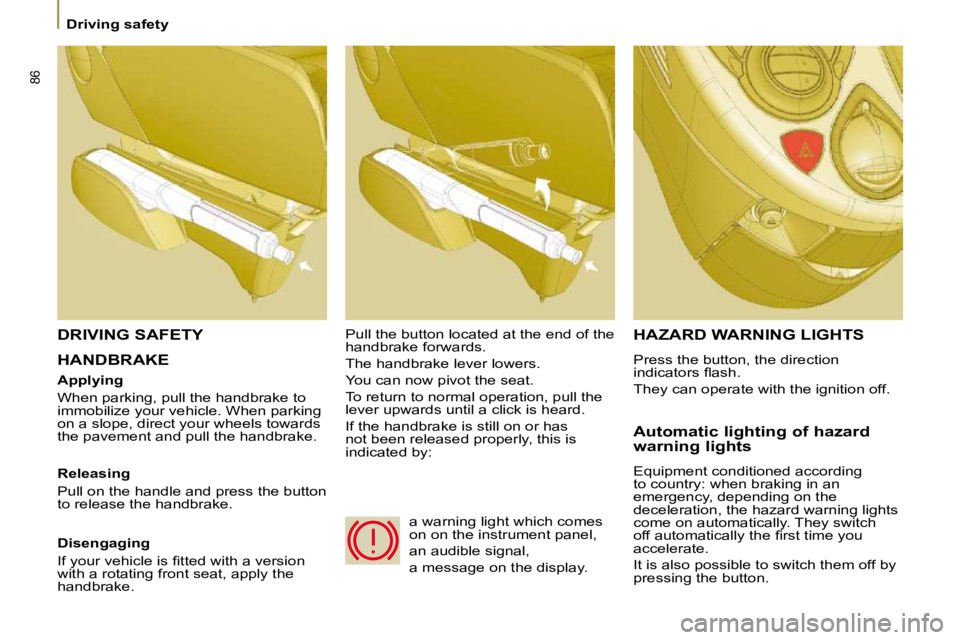

Pull on the handle and press the button
to release the handbrake. Pull the button located at the end of the
handbrake forwards.
The handbrake lever lowers.
You can now pivot the seat.
To return to normal operation, pull the
lever upwards until a click is heard.
If the handbrake is still on or has
not been released properly, this is
indicated by:
Disengaging
I f y o u r v e h i c l e i s fi t t e d w i t h a v e r s i o n
with a rotating front seat, apply the
handbrake. a warning light which comes
on on the instrument panel,
an audible signal,
a message on the display.
Page 88 of 237
88
Driving safety
ANTI-LOCK BRAKING SYSTEM
(ABS) AND ELECTRONIC
BRAKE FORCE DISTRIBUTION
(EBFD)
The ABS, in conjunction with the
electronic brake force distribution,
increases the stability and
manoeuvrability of your vehicle on
braking, in particular on poor or
slippery road surfaces.
HORN
Press one of the spokes of the steering
wheel. When changing wheels (tyres and
rims), make sure that these are
approved.
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
When this warning light
comes on, accompanied by
a buzzer and a message,
it indicates that there is a
malfunction of the ABS, which
can cause a loss of control of the
vehicle when braking.
When this warning light comes
on, connected to the STOP
warning light, accompanied
by a buzzer and a message,
it indicates that there is a
malfunction of the electronic brake force
distribution, which can cause a loss of
control of the vehicle when braking.
Stop immediately.
In both cases, consult a
PEUGEOT dealer.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
In emergency braking, press
v e r y fi r m l y w i t h o u t r e l e a s i n g t h e
pressure.
EMERGENCY BRAKING
ASSISTANCE SYSTEM (EBA)
In an emergency, this system enables
the optimum braking pressure to be
reached more quickly, press the pedal
fi r m l y w i t h o u t r e l e a s i n g i t .
It is triggered by the speed at which the
brake pedal is activated.
This alters the resistance of the brake
pedal under your foot.
To prolong the operation of the
emergency braking assistance system:
keep your foot on the brake pedal.
Page 90 of 237
90
Driving safety
TYRE UNDER-INFLATION
DETECTION
Sensors check the tyre pressure during
driving, and trigger a warning in the
event of a malfunction (speed greater
than approx.15 mph [25 km/h]) or
puncture.
An outline representing one or more
w h e e l s fl a s h i n g i n d i c a t e s t h e l o c a t i o n
of the wheel or wheels concerned. Flat tyre
The SERVICE warning light
comes on, accompanied
by the message "Tyre(s)
d e fl a t e d " , an outline on the display,
and an audible signal.
Check the tyre pressure as soon as
possible. If the damaged tyre is temporarily
stored in the boot, it will again emit
this message to remind you of the
necessity of having it repaired. This will
prevent another warning of the same
type being displayed.
Sensor(s) not detected
The SERVICE warning light
comes on, accompanied
by the message "X tyre
pressure sensor(s) missing" , an
outline on the display and an audible
signal.
U n d e r - i n fl a t i o n d e t e c t i o n i s a b s e n t
from one (or several) tyre(s). Consult a
PEUGEOT dealer to replace the faulty
sensor(s). This message is also displayed
when one of the tyres is away
from the vehicle (being repaired)
or when a wheel without a sensor is
fi t t e d .
All repairs and changing of
t y r e s o n a w h e e l fi t t e d w i t h t h i s
system must be carried out by a
PEUGEOT dealer.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is a driving aid which does
not take the place of the vigilance or
the responsibility of the driver.
This system does not remove the
need to have the tyre pressure
checked regularly (including the spare
wheel), to ensure that the dynamic
performance of the vehicle remains at
its best and to avoid premature wear
of the tyres, in particular in the case
of arduous driving (heavy load, high
speed).
The system may temporarily be
disturbed by radio broadcasts on a
frequency close to it.
Puncture
The STOP warning light
comes on, accompanied
by the message
"Punctured tyre(s)" , an outline on the
display and an audible signal.
Stop immediately, avoiding any sudden
movement of the steering wheel and
the brakes.
Change the damaged (punctured or
v e r y d e fl a t e d ) t y r e , a n d h a v e t h e t y r e
pressure checked as soon as possible.
Refer to the "Changing a wheel"
section of chapter 7.
