41
MONOCHROME SCREEN A (WITH AUDIO EQUIPMENT) Controls
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e * ( t h i s fl a s h e s i f there is a risk of ice),
-
status of the openings (doors, boot, ...),
- audio sources (radio, CD, ...),
- trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. Some can be cleared
by pressing the "ESC" button.
Main menu
Press the "MENU" button for access
to the main
menu , then press the
" " or " " buttons to scroll through
the various menus:
- radio-CD,
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required.
From the audio equipment control pan-
el, you can:
press the "MENU" button to gain
access to the main
menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source, ...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. Radio-CD
With the audio equipment switched on,
once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the radio
(RDS, REG), the CD or the CD changer
( i n t r o s c a n , s h u f fl e , C D r e p e a t ) .
* With air conditioning only. For more information on the
"Radio-CD" application, refer
to the "Audio and Telematics"
section.
Page 42 of 315
43
MONOCHROME SCREEN C (WITH PEUGEOT CONNECT SOUND) Main menu
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e * ( t h i s fl a s h e s i f there is a risk of ice),
- status of the openings (doors, boot...),
- audio sources (radio, CD...),
- trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic headlamp
lighting activated") may appear tempo-
rarily. These can be cleared by pressing
the "
ESC " button.
"Audio functions" menu
With the audio equipment switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText) or the CD or CD changer
( i n t r o s c a n , s h u f fl e , C D r e p e a t ) .
Controls
From the audio equipment control panel,
you can:
press the " MENU
" button to gain
access to the main
menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "
MODE
" button to change
the permanent application (trip com-
puter, audio source...),
press the " " or " " buttons to
change a setting value,
press the "
OK " b u t t o n t o c o n fi r m ,
or
press the "
ESC " button to abandon
the operation in progress.
Press the "MENU" button for access
to the main
menu :
- audio functions,
- trip computer (refer to the end of the section),
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (Bluetooth system).
Press the" " or " " button to select
t h e m e n u r e q u i r e d , t h e n c o n fi r m b y
pressing the " OK " button.
* With air conditioning only. For more information on the
"Audio functions" application,
refer to the Peugeot Connect
Sound part of the "Audio and
Telematics" section.
Page 45 of 315
46
Displays on the screen
When the screen is unfolded, it displays
the following information automatically
and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis- p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- doors check,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- trip computer information,
-
satellite navigation system information.
From the Peugeot Connect Navigation
control panel, to select one of the applica-
tions:
press the dedicated "RADIO" ,
"MUSIC" , "NAV" , "TRAFFIC" ,
"SETUP" or "PHONE" button for
access to the corresponding menu,
turn the navigator to move the se-
lection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display.
16/9 RETRACTABLE COLOUR SCREEN (WITH PEUGEOT CONNECT NAVIGATION) Controls For operation of the retractable
screen (opening, closing, ad-
justment of the position, etc.),
refer to the paragraph "Access to the
retractable screen".
For more information on these
applications, refer to the "Au-
dio and Telematics" section.
Page 47 of 315
48
16/9 HIGH DEFINITION RETRACTABLE COLOUR SCREEN (WITH PEUGEOT CONNECT MEDIA)
Displays on the screen
When the screen is unfolded, it displays
the following information automatically
and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis- p l a y e d fl a s h e s i f t h e r e i s a r i s k o f i c e ) ,
- audio functions,
- telephone and address book infor- mation,
-
satellite navigation system information.
Controls
From the Peugeot Connect Media control
panel, to select one of the applications:
press the dedicated "RADIO" ,
"MEDIA" , "NAV" , "TRAFFIC" , "ADDR
BOOK" or "SETUP" button for access
to the corresponding menu,
turn the navigator to move the se-
lection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display. For more information on these
applications, refer to the "Au-
dio and Telematics" section or
t o t h e s p e c i fi c u s e r g u i d e g i v e n t o y o u
with the other owner’s documents.
For operation of the retractable
screen (opening, closing, ad-
justment of the position, etc.),
refer to the paragraph "Access to the
retractable screen".

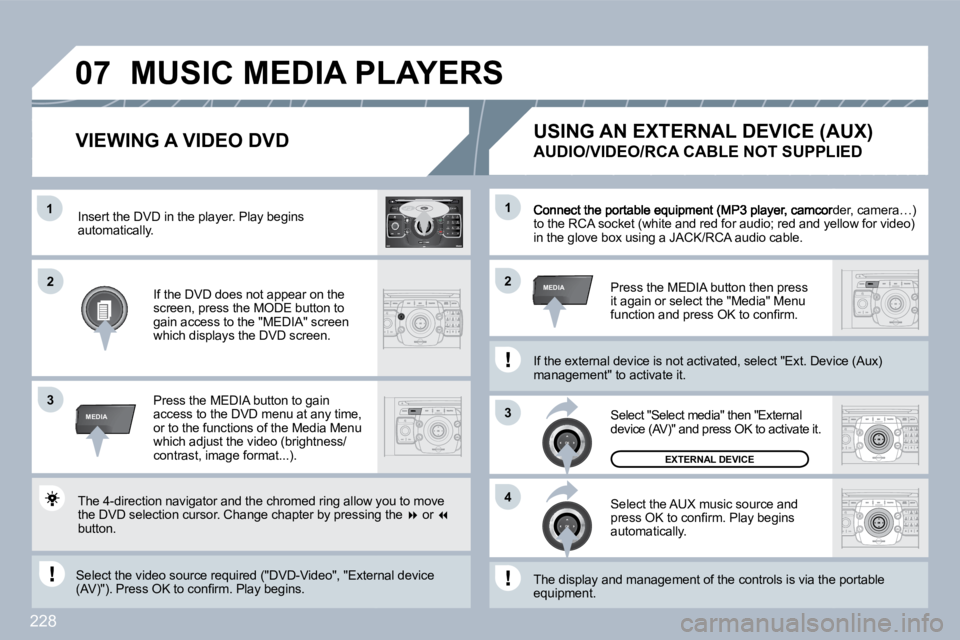

Page 253 of 315
228
1
3
4
2 2
3
MEDIA
1
MEDIA
0 7
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDRBOOK C o n n e c t t h e p o r t a b l e e q u i p m e n t ( M P 3 p l a y e r , c a m c o
r d e r , c a m e r a … ) t o t h e R C A s o c k e t ( w h i t e a n d r e d f o r a u d i o ; r e d a n d y e l l o w f o r v i d e o ) t o t h e R C A s o c k e t ( w h i t e a n d r e d f o r a u d i o ; r e d a n d y e l l o w f o r v i d e o ) i n t h e g l o v e b o x u s i n g a J A C K / R C A a u d i o c a b l e .
Press the MEDIA button then press it again or select the "Media" Menu f u n c t i o n a n d p r e s s O K t o c o n fi r m .
S e l e c t t h e A U X m u s i c s o u r c e a n d p r e s s O K t o c o n fi r m . P l a y b e g i n s automatically.
Select "Select media" then "External d e v i c e ( A V ) " a n d p r e s s O K t o a c t i v a t e i t .
E X T E R N A L D E V I C E
The display and management of the controls is via the pa the portable equipment.
U S I N G A N E X T E R N A L D E V I C E ( A U X )
A U D I O / V I D E O / R C A C A B L E N O T S U P P L I E D
I f t h e e x t e r n a l d e v i c e i s n o t a c t i v a t e d , s e l e c t " E x t . D e v i c e ( A u x ) I f t h e e x t e r n a l d e v i c e i s n o t a c t i v a t e d , s e l e c t " E x t . D e v i c e ( A u x ) management" to activate it.
V I E W I N G A V I D E O D V D
Select the video source required ("DVD-Video", "E xternxternal device ( A V ) " ) . P r e s s O K t o c o n fi r m . P l a y b e g i n s .
Press the MEDIA button to gain access to the DVD menu at any time, or to the functions of the Media Menu w h i c h a d j u s t t h e v i d e o ( b r i g h t n e s s / c o n t r a s t , i m a g e f o r m a t . . . ) .
If the DVD does not appear on the screen, press the MODE button to gain access to the "MEDIA" screen which displays the DVD screen.
Insert the DVD in the player. Play begins automatically.
The 4-direction navigator and the chromed ring allow you to move the DVD selection cursor. Change chapter by pressin g the or button.
MUSIC MEDIA PLAYERS
