17
PASSENGER SAFETY
Passenger's front airbag
1. Insert the key.
2. Select the position:
"OFF" (deactivation), with "rear fac-
ing" child seat,
"ON" (activation), with front passen-
ger or "forwards facing" child seat.
3. Remove the key keeping the switch
in the new position.
128
front airbag
A. Front and/or rear seat belts not fas-
tened/unfastened warning lamp.
B. Front left seat belt warning lamp.
C. Front right seat belt warning lamp.
D. Rear right seat belt warning lamp.
E. Rear centre seat belt warning lamp.
F. Rear left seat belt warning lamp.
G. Passenger's front airbag deactivat-
ed warning lamp.
H. Passenger's front airbag activated
warning lamp.
125
Child lock (locking of the rear doors)
Lighting of the indicator lamp indicates
the status of the corresponding function. 117
Page 27 of 315
29
Deactivation indicator lamps
I f o n e o f t h e f o l l o w i n g i n d i c a t o r l a m p s c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e s p o n d i n g s y s t e m h a s b e e n s w i t c h e d o f f i n t e n t i o n a l l y .
This is accompanied by an audible signal and a message on the multifunction screen.
Warning lamp is on Cause Action/Observations
Passenger's
airbag system fi x e d . The control, located in the
glove box, is set to the
OFF
position.
The passenger's front airbag
is deactivated.
In this case you can install a
"rear facing" child seat. Set the control to the
ON position to activate the
p a s s e n g e r ' s f r o n t a i r b a g . I n t h i s c a s e , d o n o t fi t
a child seat in the rear-facing position.
The passenger's airbag system is put into
service automatically when the vehicle is started
( ON position).
Dynamic
stability control
(ESP/ASR) fi x e d . The Grip control button or dial
(located at the bottom right of
the dashboardl) is operated.
The indicator lamp comes
on.
The ESP/ASR is deactivated.
ESP: electronic stability
programme.
ASR: anti-skid regulation. Press the button to activate the ESP/ASR or turn
the Grip control dial to ESP. The indicator lamp
goes out.
From approximately 30 mph (50 km/h), the
system is reactivated automatically.
The ESP/ASR system is activated automatically
when the vehicle is started.
Page 31 of 315
33
Warning lamp is on Cause Action/Observations
Door(s)
open
fi x e d i f t h e s p e e d i s
below 6 mph (10 km/h).
A door, the boot, the lower
tailgate or the bonnet (with
alarm only) is still open. Close the door or boot. fi x e d a n d a c c o m p a n i e d
by an audible signal if the speed is above 6 mph (10 km/h).
Seat belt not
fastened/
unfastened fi x e d t h e n fl a s h i n g
accompanied by an increasing audible signal. The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt.
Pull the strap then insert the tongue in
the buckle.
Airbags temporarily.
This lamp comes on for a
few seconds when you turn
on the ignition, then switches
off. This lamp should switch off when the
engine is started.
If it does not switch off, contact a
PEUGEOT dealer.
fi x e d . One of the airbag or seat belt
pretensioner systems has a
fault. Have it checked by a PEUGEOT dealer.
Water in
Diesel fi x e d . T h e d i e s e l fi l t e r c o n t a i n s
water. Risk of damage to the injection system
on Diesel engines.
Contact a PEUGEOT dealer without
delay.
Directional
headlamps fl a s h i n g . The directional headlamps
system is faulty. Have it checked by a PEUGEOT dealer.
D e fl a t e d
wheel fi x e d . The pressure in one or more
wheels is too low. Check the pressure of the tyres as soon
as possible.
This check should preferably be carried
out when the tyres are cold.
Page 129 of 315
CHILD SAFETY
111
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt :
Group 0+: from birth to 13 kg Group 1: from 9 to 18 kg
L1
" R Ö M E R / B R I T A X B a b y - S a f e P l u s " .
Installed in the
rearwards-facing position.
L2
" R Ö M E R D u o P l u s ISOFIX".
Groups 1, 2 and 3: from 9 to 36 kg
L3
" K I D D Y L i f e " .
The use of the restraining cushion is compulsory for the transportation of young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L4
" R E C A R O S t a r t ’ ’ .
L5
" K L I P P A N O p t i m a " .
From the
age of 6 years
(approximately 22 kg), the booster is used on its own.
For more information on de-
activating the airbag, refer
to the "Safety" section then
"Airbags".
Page 130 of 315
CHILD SAFETY
111
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt :
Group 0+: from birth to 13 kg Group 1: from 9 to 18 kg
L1
" R Ö M E R / B R I T A X B a b y - S a f e P l u s " .
Installed in the
rearwards-facing position.
L2
" R Ö M E R D u o P l u s ISOFIX".
Groups 1, 2 and 3: from 9 to 36 kg
L3
" K I D D Y L i f e " .
The use of the restraining cushion is compulsory for the transportation of young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L4
" R E C A R O S t a r t ’ ’ .
L5
" K L I P P A N O p t i m a " .
From the
age of 6 years
(approximately 22 kg), the booster is used on its own.
For more information on de-
activating the airbag, refer
to the "Safety" section then
"Airbags".
Page 146 of 315

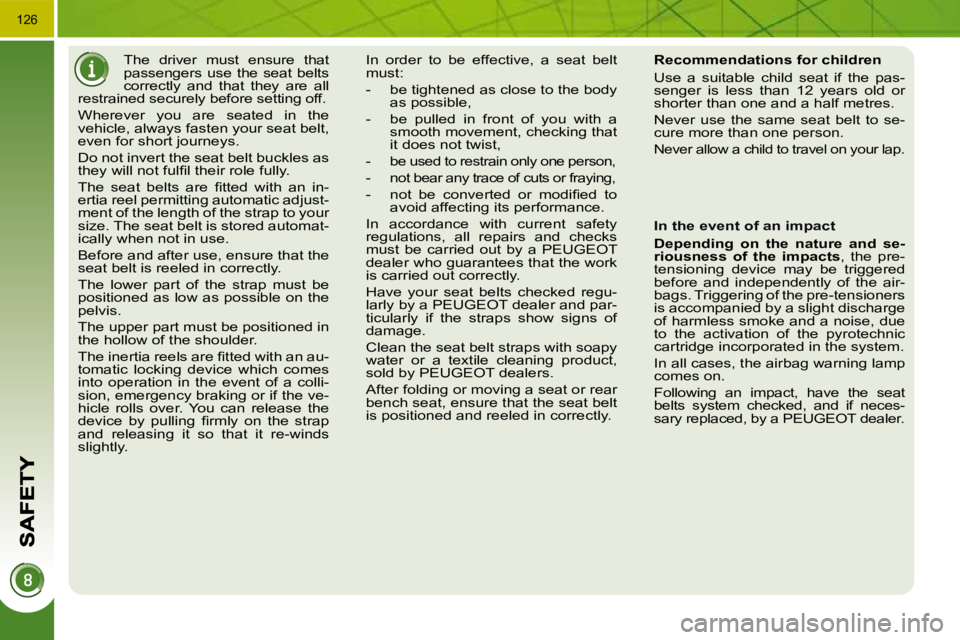

126
The driver must ensure that
passengers use the seat belts
correctly and that they are all
restrained securely before setting off.
Wherever you are seated in the
vehicle, always fasten your seat belt,
e v e n f o r s h o r t j o u r n e y s .
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
e r t i a r e e l p e r m i t t i n g a u t o m a t i c a d j u s t -
ment of the length of the strap to your
s i z e . T h e s e a t b e l t i s s t o r e d a u t o m a t -
ically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, emergency braking or if the ve-
hicle rolls over. You can release the
d e v i c e b y p u l l i n g fi r m l y o n t h e s t r a p
and releasing it so that it re-winds
slightly. In order to be effective, a seat belt
must:
- be tightened as close to the body
as possible,
- be pulled in front of you with a smooth movement, checking that
it does not twist,
-
be used to restrain only one person,
-
not bear any trace of cuts or fraying,
- n o t b e c o n v e r t e d o r m o d i fi e d t o avoid affecting its performance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a PEUGEOT
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your lap.
In the event of an impact
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air-
bags. Triggering of the pre-tensioners
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer.
Page 147 of 315
127
AIRBAGS
Triggering of the airbag(s) is
accompanied by a slight emis-
sion of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated in
the system.
This smoke is not harmful, but sensi-
tive individuals may experience slight
irritation.
The noise of the detonation may re-
sult in a slight loss of hearing for a
short time.
Front airbags
System which protects the driver and
front passenger in the event of a seri-
ous front impact in order to limit the risk
o f i n j u r y t o t h e h e a d a n d c h e s t .
The driver's airbag is incorporated in
the centre of the steering wheel; the
front passenger's airbag is incorporated
in the dashboard above the glove box.
Activation
The airbags are triggered simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of a
serious front impact to all or part of the
f r o n t i m p a c t z o n e A , in the longitudinal
c e n t r e l i n e o f t h e v e h i c l e o n a h o r i z o n t a l
plane and directed from the front to the
rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e f r o n t
occupant of the vehicle and the dash-
board to cushion his forward movement.
Impact detection zones
A. F r o n t i m p a c t z o n e .
B. S i d e i m p a c t z o n e .
The airbags do not oper-
ate when the ignition is
switched off.
This equipment will only deploy once.
If a second impact occurs (during the
same or a subsequent accident), the
airbag will not be triggered again.
System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts
(with the exception of the rear centre
passenger).
If a collision occurs, the electronic de-
tectors record and analyse the front and
side impacts sustained in the impact
d e t e c t i o n z o n e s :
- in the case of a serious impact, the
airbags are triggered instantly and
protect the occupants of the vehicle
(with the exception of the rear centre
passenger); immediately after the
i m p a c t , t h e a i r b a g s d e fl a t e r a p i d l y
so that they do not hinder visibility
or the exit of the occupants,
- in the case of a minor or rear impact or in certain roll-over conditions, the
airbags will not be triggered; the
s e a t b e l t a l o n e i s s u f fi c i e n t t o p r o -
vide optimum protection in these
situations.
Page 148 of 315
128
If at least one of the two air-
bag warning lamps come on
continuously, do not install
a child seat on the front passenger
seat.
Have the system checked by a
PEUGEOT dealer.
Operating fault If this warning lamp comes
on on the instrument panel,
accompanied by an audible
warning and a message on
the multifunction screen,
contact a PEUGEOT dealer to have the
system checked. The airbags may no
longer be triggered in the event of a se-
rious impact.
Reactivation
When you remove the child seat, turn
the switch
1 to the "ON" position to re-
activate the airbag and so assure the
safety of your front passenger in the
event of an impact.
With the ignition on, this war-
ning lamp comes on on the
seat belt and passenger's front
airbag warning lamps display
for approximately one minute,
if the passenger's front airbag
is activated.
To assure the safety of your
child, it is imperative that the
passenger's front airbag is
deactivated when you install a "rear
facing" child seat on the front pas-
senger seat.
Otherwise, the child would risk being
s e r i o u s l y i n j u r e d o r k i l l e d i f t h e a i r b a g
were triggered.
According to version, this
warning lamp comes on either
on the instrument panel or on
the seat belt and passenger's
front airbag warning lamps
display when the ignition is on and until
the airbag is reactivated. I f t h i s w a r n i n g l a m p fl a s h e s ,
contact a PEUGEOT dealer.
The passenger's front airbag
may no longer be triggered in
the event of a serious impact.
Deactivation
Only the passenger's front airbag can
be deactivated:
with the ignition off , insert the key
in the passenger airbag deactivation
switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping the
switch in the new position.
