44
"Trip computer" menu
Press the "MENU" button to gain
access to the general menu.
Press the arrows, then the "OK"
button to select the "Trip computer"
menu.
On the "Trip computer" menu,
select one of the following applica-
tions:
A l e r t l o g
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction screen
Once this menu has been selected, you
can consult information concerning the
status of the vehicle (alert log, status of
the functions...).
D e fi n e t h e v e h i c l e p a r a m e t e r s
Once this menu has been selected, you
can activate or deactivate the following
equipment (according to country):
- wiper linked with reverse gear (refer
to the "Visibility" section),
- selective unlocking (refer to the "Access" section),
- "guide-me-home" lighting (refer to the "Visibility" section).
- interior mood lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- automatic or manual parking brake (refer to the "Driving" section),
- ... "Personalisation- C o n f i g u r a t i o n " m e n u
Once this menu has been selected, you
can gain access to the following func-
tions:
- d e fi n e t h e v e h i c l e p a r a m e t e r s ,
- d i s p l a y c o n fi g u r a t i o n ,
- choice of language.
Status of functions
This summarises the active or inactive
status of the functions present on the
vehicle.
Enter the distance to the destination
This allows you to enter an approximate
v a l u e f o r t h e d i s t a n c e t o t h e fi n a l d e s t i -
nation.
Page 44 of 315
45
D i s p l a y c o n fi g u r a t i o n
Once this menu has been selected, you
can gain access to the following set-
tings:
- brightness-video setting,
- date and time setting,
- selection of the units.
C h o i c e o f l a n g u a g e
Once this menu has been selected,
you can change the screen display
language (Deutsch, English, Espanol,
Français, Italiano, Nederlands, Portugues,
Portugues-Brasil, Türkçe * ).
Example: setting of the duration of the
"guide-me-home" lighting
Press the " " or " " buttons, then
the " OK " button to select the menu
required.
Press the " " or " " buttons, then
the " OK " button to select the "Guide-
me-home headlamps" line.
Press the " " or " " buttons to set the
value required (15, 30 or 60 seconds),
then press the
"
OK " b u t t o n t o c o n fi r m .
Press the " " or " " buttons, then
the " OK " button to select the " OK "
b o x a n d c o n fi r m o r p r e s s t h e " ESC "
button to cancel.
"Telephone" menu
With the audio equipment switched on,
once this menu has been selected you
c a n c o n fi g u r e y o u r B l u e t o o t h h a n d s -
free kit (pairing), consult the various
telephone directories (calls log, ser-
vices...) and manage your communi-
cations (pick up, hang up, call waiting,
secret mode...).
* According to country. F o r s a f e t y r e a s o n s , c o n fi g u -
ration of the multifunction
screen by the driver must only
be done when stationary.
For more information on the
"Telephone" application, re-
fer to the Peugeot Connect
Sound part of the "Audio and
Telematics" section.
Page 45 of 315
46
Displays on the screen
When the screen is unfolded, it displays
the following information automatically
and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis- p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- doors check,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- trip computer information,
-
satellite navigation system information.
From the Peugeot Connect Navigation
control panel, to select one of the applica-
tions:
press the dedicated "RADIO" ,
"MUSIC" , "NAV" , "TRAFFIC" ,
"SETUP" or "PHONE" button for
access to the corresponding menu,
turn the navigator to move the se-
lection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display.
16/9 RETRACTABLE COLOUR SCREEN (WITH PEUGEOT CONNECT NAVIGATION) Controls For operation of the retractable
screen (opening, closing, ad-
justment of the position, etc.),
refer to the paragraph "Access to the
retractable screen".
For more information on these
applications, refer to the "Au-
dio and Telematics" section.
Page 46 of 315
47
"SETUP" menu
Press the "SETUP" button for ac-
cess to the "SETUP" menu. This al-
lows you to select from the following
functions:
- "Languages",
- "Date and time",
- "Display",
- "Vehicle parameters",
- "Units",
- "System".
L a n g u a g e s
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
and Telematics" section or to the specif-
ic user guide given to you with the other
owner's documents). * According to country.
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment (according to country):
- wiper linked with reverse gear (refer
to the "Visibility" section),
- selective unlocking (refer to the "Access" section),
- guide-me-home and welcome light- ing (refer to the "Visibility" section),
- interior mood lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- automatic or manual parking brake (refer to the "Driving" section),
- ...
Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg). F o r s a f e t y r e a s o n s , c o n fi g u -
ration of the multifunction
screen by the driver must only
be done when stationary.
System
This menu allows you to restore the fac-
t o r y c o n fi g u r a t i o n , d i s p l a y t h e s o f t w a r e
version and activate scrolling text.
Page 47 of 315
48
16/9 HIGH DEFINITION RETRACTABLE COLOUR SCREEN (WITH PEUGEOT CONNECT MEDIA)
Displays on the screen
When the screen is unfolded, it displays
the following information automatically
and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis- p l a y e d fl a s h e s i f t h e r e i s a r i s k o f i c e ) ,
- audio functions,
- telephone and address book infor- mation,
-
satellite navigation system information.
Controls
From the Peugeot Connect Media control
panel, to select one of the applications:
press the dedicated "RADIO" ,
"MEDIA" , "NAV" , "TRAFFIC" , "ADDR
BOOK" or "SETUP" button for access
to the corresponding menu,
turn the navigator to move the se-
lection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display. For more information on these
applications, refer to the "Au-
dio and Telematics" section or
t o t h e s p e c i fi c u s e r g u i d e g i v e n t o y o u
with the other owner’s documents.
For operation of the retractable
screen (opening, closing, ad-
justment of the position, etc.),
refer to the paragraph "Access to the
retractable screen".
Page 48 of 315
49
* According to country.
"SETUP" menu
Press the "SETUP" button for ac-
cess to the "SETUP" menu. This al-
lows you to select from the following
functions:
- "Languages and voice functions",
- "Date and time",
- "Display",
- "Units",
- "System".
L a n g u a g e a n d v o i c e f u n c t i o n s
This menu allows you to:
- select the language used by the screen (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Polski, Portugues, Türkçe * ),
- select the voice recognition parame- ters (activation/deactivation, advice
on use, personal voice program-
ming, etc.),
- set the volume of the voice synthe- siser. Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
and Telematics" section or to the specif-
ic user guide given to you with the other
owner's documents).
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Units
This menu allows you to select the
units: temperature (°C or °F) and dis-
tance (miles or km).
System parameters
This menu allows you to restore the fac-
t o r y c o n fi g u r a t i o n , d i s p l a y t h e s o f t w a r e
version and activate scrolling text.
F o r s a f e t y r e a s o n s , c o n fi g u -
ration of the multifunction
screen by the driver must only
be done when stationary.
Page 50 of 315
51

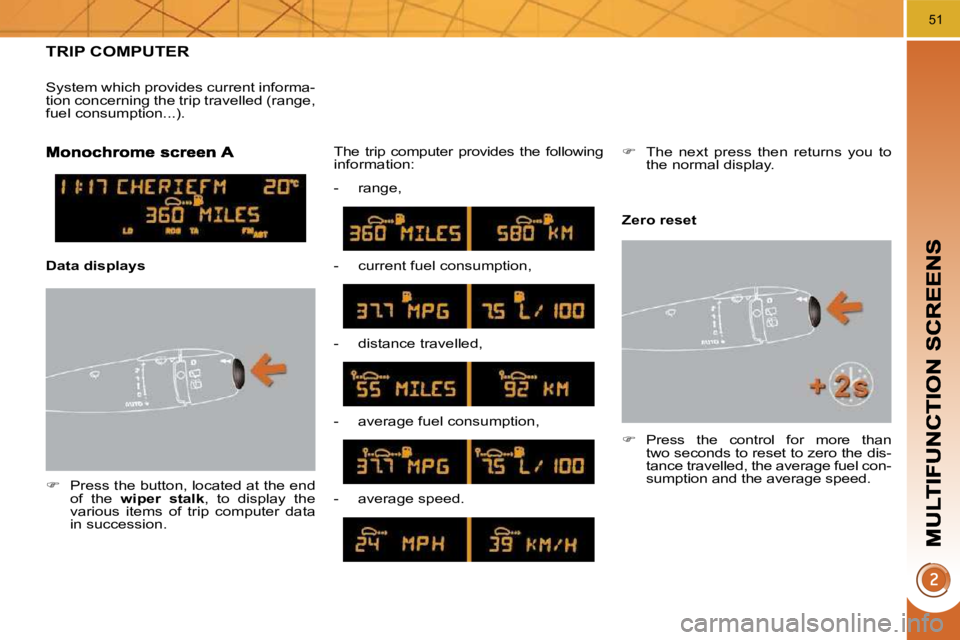

TRIP COMPUTER
Press the button, located at the end
of the wiper stalk , to display the
various items of trip computer data
in succession. The trip computer provides the following
information:
System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).
Press the control for more than
two seconds to reset to zero the dis-
tance travelled, the average fuel con-
sumption and the average speed.
Zero reset
Data displays - range,
- current fuel consumption,
- distance travelled,
- average fuel consumption,
- average speed.
The next press then returns you to
the normal display.
Page 51 of 315
54
A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km). If dashes are displayed
continuously while driving in
place of the digits, contact a
PEUGEOT dealer. This function is only displayed
from 20 mph (30 km/h).
This value may vary following
a change in the style of driv-
ing or the relief, resulting in a
s i g n i fi c a n t c h a n g e i n t h e c u r r e n t f u e l
consumption. R a n g e
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.
A v e r a g e f u e l
consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset. D i s t a n c e t r a v e l l e d
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
A v e r a g e s p e e d
(mph or km/h)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on). D i s t a n c e r e m a i n i n g t o
destination
(miles or km)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
