Page 6 of 315
9
INSTRUMENTS AND CONTROLS
1. Steering wheel adjustment control.
2. Cruise control/speed limiter
switches.
3. Lighting and direction indicators
control stalk.
4. Central adjustable air vents.
5. Head-up display.
6. Multifunction screen.
7. Passenger's airbag.
8. Side adjustable air vent.
9. Glove box - Audio/video sockets -
Passenger's airbag deactivation.
10. Storage compartment with net.
11. Grip control switch.
12. Bonnet release.
13. Grab handle.
14. Heating/air conditioning controls.
15. Audio and telematics system.
16. Buttons:
- head-up display,
- hazard warning lamps,
- Distance alert,
- central locking.
Page 12 of 315
VENTILATION
Digital
air conditioning: we recommend use of the fully automatic mode by pressing the "AUTO" button.

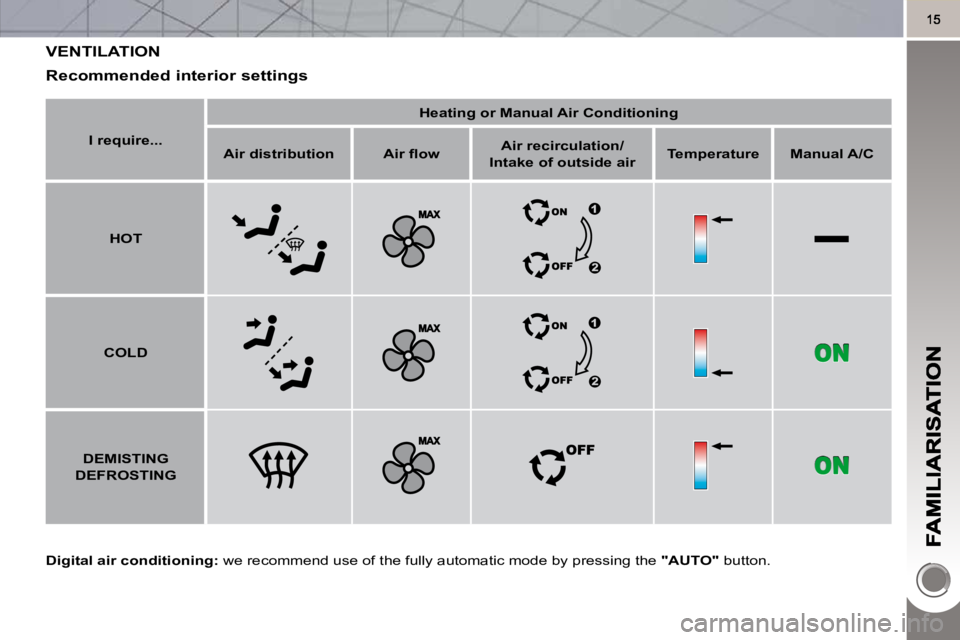

Recommended interior settings
I require...
Heating or Manual Air Conditioning
Air distribution A i r fl o w
Air recirculation/
Intake of outside air
Temperature Manual A/C
HOT
COLD
DEMISTING
DEFROSTING
Page 26 of 315
28

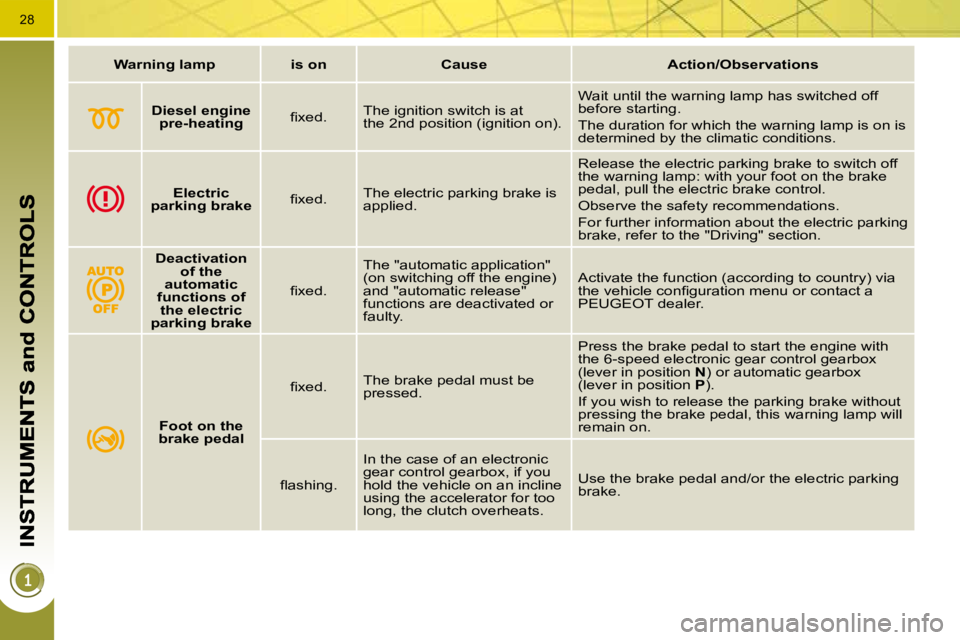

Warning lamp is on Cause Action/Observations
Diesel engine
pre-heating fi x e d . The ignition switch is at
the 2nd position (ignition on). Wait until the warning lamp has switched off
before starting.
The duration for which the warning lamp is on is
determined by the climatic conditions.
Electric
parking brake fi x e d . The electric parking brake is
applied. Release the electric parking brake to switch off
the warning lamp: with your foot on the brake
pedal, pull the electric brake control.
Observe the safety recommendations.
For further information about the electric parking
brake, refer to the "Driving" section.
Deactivation
of the
automatic
functions of the electric
parking brake fi x e d .
The "automatic application"
(on switching off the engine)
and "automatic release"
functions are deactivated or
faulty. Activate the function (according to country) via
t h e v e h i c l e c o n fi g u r a t i o n m e n u o r c o n t a c t a
PEUGEOT dealer.
Foot on the
brake pedal fi x e d .
The brake pedal must be
pressed. Press the brake pedal to start the engine with
the 6-speed electronic gear control gearbox
(lever in position
N ) or automatic gearbox
(lever in position P ).
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
fl a s h i n g . In the case of an electronic
gear control gearbox, if you
hold the vehicle on an incline
using the accelerator for too
long, the clutch overheats. Use the brake pedal and/or the electric parking
brake.
Page 65 of 315
64
Heated seats control
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating
required:
0
: Off.
1
: Low.
2
: Medium.
3
: High.

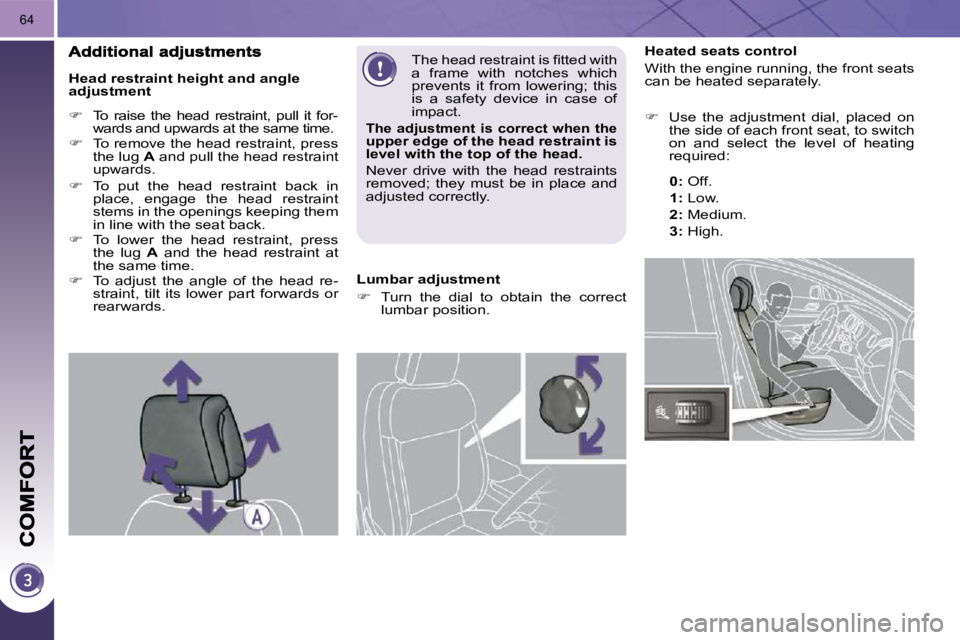

H e a d r e s t r a i n t h e i g h t a n d a n g l e
a d j u s t m e n t
To raise the head restraint, pull it for-
wards and upwards at the same time.
To remove the head restraint, press
the lug A and pull the head restraint
upwards.
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.
To lower the head restraint, press
the lug A and the head restraint at
the same time.
To adjust the angle of the head re-
straint, tilt its lower part forwards or
rearwards. T h e h e a d r e s t r a i n t i s fi t t e d w i t h
a frame with notches which
prevents it from lowering; this
is a safety device in case of
impact.
T h e a d j u s t m e n t i s c o r r e c t w h e n t h e u p p e r e d g e o f t h e h e a d r e s t r a i n t i s
l e v e l w i t h t h e t o p o f t h e h e a d .
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
L u m b a r a d j u s t m e n t
Turn the dial to obtain the correct
lumbar position.
