2010 PEUGEOT 207 steering

150

Fuse N° Rating Functions

F13 40 A Built-in systems interface supply (ignition positive).

F14 30 A Diesel heater (Diesel).

F15 10 A Left main beam headlamp.

F16 10 A Right main beam headlamp.

F17 15 A Left dipped beam headlamp.

F18 15 A Right dipped beam headlamp.
* The maxi-fuses provide additional pro- tection for the electrical systems. All
work on the maxi-fuses must be car-
ried out by a PEUGEOT dealer. Maxi-fuse table

Fuse N° Rating Functions

Box 1

MF1 * 70 A Fan assembly.

MF2 * 20 A/30 A ABS/ESP pump.

MF3 * 20 A/30 A ABS/ESP electrovalves.

MF4 * 60 A Built-in systems interface supply.

MF5 * 60 A Built-in systems interface supply.

MF6 * 30 A Additional fan assembly (1.6 l 16V THP).

MF7 * 80 A Passenger compartment fusebox.

Box 2

MF8 * 30 A "2 Tronic" gearbox ECU.

MF9 * 80 A Heating unit (Diesel).

MF10 * 80 A Electric power steering.

MF11 * 40 A Valvetronic electric motor (1.6 l 16V THP).

!i
154
TOWING THE VEHICLE
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Access to the tools Towing your vehicle

 On the front bumper, pull on the cov-
er to unclip it.

 Screw the towing eye in fully.

 Install the towing bar.

 Switch on the hazard warning lamps
on the towed vehicle.
 On the rear bumper, unclip the cover
by pressing at the bottom.

 Screw the towing eye in fully.

 Install the towing bar.

 Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is stowed in the boot
under the fl oor.
To gain access to it:

 open the boot,

 raise the fl oor,

 secure it by hooking its cord on the
hook on the rear parcel shelf support,

 remove the towing eye from the
holder. When towing with all four wheels
on the ground, always use a tow-
ing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.

 Place the gear lever in neutral
(position N on the 2 Tronic or
automatic gearbox).
Failure to comply with this special
requirement may result in damage
to certain braking components and
the absence of braking assistance
the next time the engine is started.

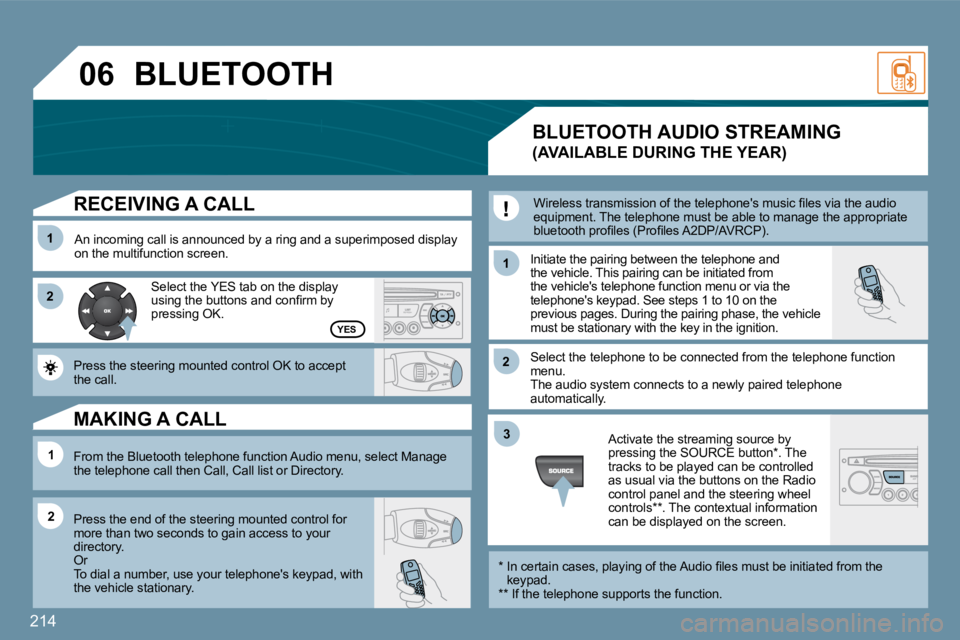

214
06
11
22
11
11
22
33
22
YES
RECEIVING A CALL
An incoming call is announced by a ring and a superimposed display on the multifunction screen. Initiate the pairing between the telephone and the vehicle. This pairing can be initiated from the vehicle's telephone function menu or via the telephone's keypad. See steps 1 to 10 on the previous pages. During the pairing phase, the vehicle must be stationary with the key in the ignition.
Select the telephone to be connected from the tele phone function menu. The audio system connects to a newly paired teleph one automatically.
Select the YES tab on the display using the buttons and confi rm by pressing OK.
Press the steering mounted control OK to accept the call.
From the Bluetooth telephone function Audio menu, select Manage the telephone call then Call, Call list or Directory.
Press the end of the steering mounted control for more than two seconds to gain access to your directory. Or To dial a number, use your telephone's keypad, wit h the vehicle stationary.
MAKING A CALL
BLUETOOTH AUDIO STREAMING
(AVAILABLE DURING THE YEAR)
Wireless transmission of the telephone's music fi les via the audio equipment. The telephone must be able to manage the appropriate bluetooth profi les (Profi les A2DP/AVRCP).
* In certain cases, playing of the Audio fi les must be initiated from the keypad. ** If the telephone supports the function.
Activate the streaming source by pressing the SOURCE button * . The tracks to be played can be controlled as usual via the buttons on the Radio control panel and the steering wheel controls ** . The contextual information can be displayed on the screen.
BLUETOOTH
