2010 PEUGEOT 207 mirror
[x] Cancel search: mirrorPage 77 of 218
!
83
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not come
on automatically.
Do not cover the brightness sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Coupling with the "Guide-me-home"
lighting
Association with the automatic illumina-
tion of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ,
- automatic activation of "guide-me- home" lighting when automatic illumi-
nation of headlamps is in operation.
Automatic illumination of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected (sensor behind the rear view
m i r r o r ) o r w h e n t h e w i n d s c r e e n w i p e r s
are switched on.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lighting is
switched off automatically.
"Guide-me-home" lighting
The dipped headlamps remain on tem-
porarily, after switching off the vehicle's
ignition, to make the driver's exit easier
in poor light.
Activation
With the ignition off, activate a
" h e a d l a m p fl a s h " u s i n g s t a l k B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The "guide-me-home" lighting is
switched off automatically following the
door locking command, after a given
time. Activation
Turn ring A to the " AUTO " position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage on the multifunction screen. Operating fault
In the event of a malfunction of
the brightness sensor, the light-
ing comes on accompanied by
the service warning lamp, an
audible signal and a message on the
multifunction screen.
Have it checked by a PEUGEOT dealer.
Daytime running lamps *
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n n i n g
lamps, the dipped headlamps come on
when the vehicle is started.
This indicator lamp comes on
on the instrument panel.
The instruments and controls (multi-
function screen, air conditioning control
p a n e l , . . . ) a r e n o t l i t , u n l e s s t h e a u t o -
matic lighting mode is activated or the
lighting is switched on manually.
Deactivation
Turn ring A to a position other than
"
AUTO
" . Deactivation is accompa-
nied by a message on the multifunc-
tion screen.
* According to country.
Page 78 of 218
!
83
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not come
on automatically.
Do not cover the brightness sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Coupling with the "Guide-me-home"
lighting
Association with the automatic illumina-
tion of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ,
- automatic activation of "guide-me- home" lighting when automatic illumi-
nation of headlamps is in operation.
Automatic illumination of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected (sensor behind the rear view
m i r r o r ) o r w h e n t h e w i n d s c r e e n w i p e r s
are switched on.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lighting is
switched off automatically.
"Guide-me-home" lighting
The dipped headlamps remain on tem-
porarily, after switching off the vehicle's
ignition, to make the driver's exit easier
in poor light.
Activation
With the ignition off, activate a
" h e a d l a m p fl a s h " u s i n g s t a l k B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The "guide-me-home" lighting is
switched off automatically following the
door locking command, after a given
time. Activation
Turn ring A to the " AUTO " position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage on the multifunction screen. Operating fault
In the event of a malfunction of
the brightness sensor, the light-
ing comes on accompanied by
the service warning lamp, an
audible signal and a message on the
multifunction screen.
Have it checked by a PEUGEOT dealer.
Daytime running lamps *
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n n i n g
lamps, the dipped headlamps come on
when the vehicle is started.
This indicator lamp comes on
on the instrument panel.
The instruments and controls (multi-
function screen, air conditioning control
p a n e l , . . . ) a r e n o t l i t , u n l e s s t h e a u t o -
matic lighting mode is activated or the
lighting is switched on manually.
Deactivation
Turn ring A to a position other than
"
AUTO
" . Deactivation is accompa-
nied by a message on the multifunc-
tion screen.
* According to country.
Page 82 of 218
!
i
87

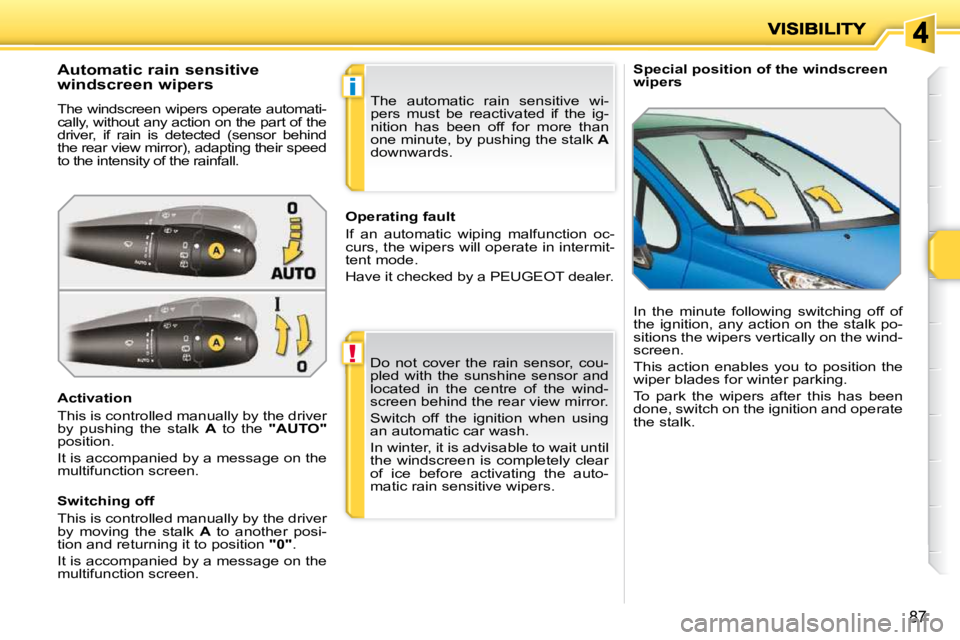

Special position of the windscreen wipers Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
t h e r e a r v i e w m i r r o r ) , a d a p t i n g t h e i r s p e e d
to the intensity of the rainfall.
Activation
This is controlled manually by the driver
by pushing the stalk A to the "AUTO"
position.
It is accompanied by a message on the
multifunction screen. In the minute following switching off of
the ignition, any action on the stalk po-
sitions the wipers vertically on the wind-
screen.
This action enables you to position the wiper blades for winter parking.
To park the wipers after this has been done, switch on the ignition and operate the stalk.
Do not cover the rain sensor, cou-
pled with the sunshine sensor and
located in the centre of the wind-
screen behind the rear view mirror.
Switch off the ignition when using
an automatic car wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic rain sensitive wipers. The automatic rain sensitive wi-
pers must be reactivated if the ig-
nition has been off for more than
one minute, by pushing the stalk
A
downwards.
Switching off
This is controlled manually by the driver
by moving the stalk A to another posi-
tion and returning it to position "0" .
It is accompanied by a message on the
multifunction screen. Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer.
Page 137 of 218
141
Changing the sidelamp bulbs
Disconnect the main headlamp con-
nector.
Remove the plastic protective cover
by pulling on the tab.
Turn the bulb holder one quarter of
a turn and remove it.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing the dipped, main beam or
directional headlamp bulbs
Disconnect the main headlamp con-
nector.
Remove the corresponding plastic
protective cover by pulling on the
tab.
Disconnect the connector of the cor-
responding lamp.
Move aside the spring to release the
bulb and remove the bulb.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order. Changing the foglamp bulbs
For replacement of these bulbs, contact
a PEUGEOT dealer.
Changing the integrated direction
indicator side repeaters
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
T i l t t h e s c r e w d r i v e r t o e x t r a c t t h e r e -
peater and remove the repeater.
Disconnect the repeater connector.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
To obtain a replacement repeater, con-
tact a PEUGEOT dealer.
Page 143 of 218
147

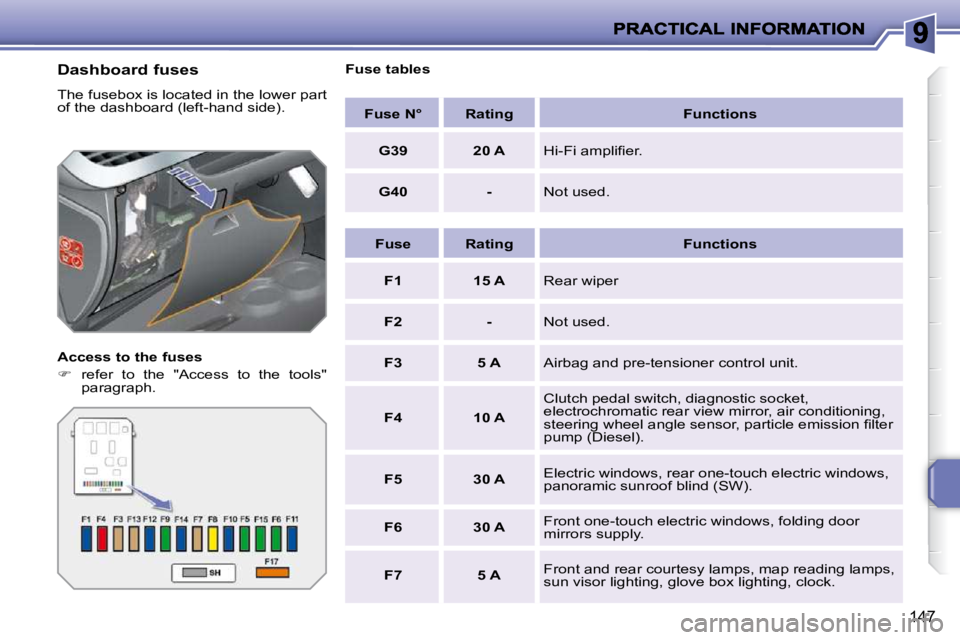

Dashboard fuses
T h e f u s e b o x i s l o c a t e d i n t h e l o w e r p a r t
o f t h e d a s h b o a r d ( l e f t - h a n d s i d e ) .
Access to the fuses
refer to the "Access to the tools"
paragraph. Fuse tables
Fuse N° Rating Functions
G39 20 A H i - F i a m p l i fi e r .
G40 - Not used.
Fuse Rating Functions
F1 15 A Rear wiper
F2 - Not used.
F3 5 A Airbag and pre-tensioner control unit.
F4 10 A Clutch pedal switch, diagnostic socket,
electrochromatic rear view mirror, air conditioning,
s t e e r i n g w h e e l a n g l e s e n s o r , p a r t i c l e e m i s s i o n fi l t e r
p u m p ( D i e s e l ) .
F5 30 A Electric windows, rear one-touch electric windows,
p a n o r a m i c s u n r o o f b l i n d ( S W ) .
F6 30 A Front one-touch electric windows, folding door
mirrors supply.
F7 5 A Front and rear courtesy lamps, map reading lamps,
s u n v i s o r l i g h t i n g , g l o v e b o x l i g h t i n g , c l o c k .
Page 144 of 218
148
Fuse N° Rating Functions
F8 20 A Audio equipment, audio/telephone, multifunction
screen, clock, steering mounted controls, tyre
u n d e r - i n fl a t i o n d e t e c t i o n , t r a i l e r f u s e b o x .
F9 30 A F r o n t 1 2 V s o c k e t , r e a r 1 2 V s o c k e t ( S W ) .
F10 15 A Alarm siren, alarm control unit, directional
headlamps.
F11 15 A Diagnostic socket, low current ignition switch,
a u t o m a t i c g e a r b o x c o n t r o l u n i t .
F12 15 A R a i n / s u n s h i n e s e n s o r , a m p l i fi e r , t r a i l e r f u s e b o x ,
driving school module.
F13 5 A E n g i n e f u s e b o x , A B S r e l a y , d u a l - f u n c t i o n b r a k e
s w i t c h , " 2 T r o n i c " g e a r b o x g e a r l e v e r .
F14 15 A Instrument panel, seat belt warning lamps panel,
headlamp adjustment, air conditioning, Bluetooth
system, rear parking sensors control unit, airbags.
F15 30 A Locking and deadlocking.
F17 40 A Rear screen and door mirrors demist/defrost.
SH - PARC shunt.
Page 154 of 218
!
i
158
T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not re-
commended by PEUGEOT may
result in a failure of your vehicle's
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a repre-
sentative of the Marque to be shown
the range of recommended equip-
ment and accessories.
ACCESSORIES
You can obtain a wide range of accesso-
ries and original parts from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 catego-
r i e s : P R O T E C T I O N - T O U R I N G - I N - C A R
TECHNOLOGY - STYLING - UNIVERSAL.
"Protection":
"Touring":
"In-car technology":
"Styling":
"Universal":
You can obtain "Van" conversion kits to
transform a private vehicle into a van.
* To avoid any risk of jamming of the p e d a l s :
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r . Depending on the country in which
the vehicle is sold, it is compulso-
ry to have a high visibility jacket,
warning triangle and spare bulbs
available in the vehicle.
anti-theft alarm, window en-
graving, wheel security bolts,
b r e a t h a l y z e r , fi r s t a i d k i t ,
warning triangle, high visibility
jacket, stolen vehicle tracking
system, temporary puncture
repair kit, snow chains, non-
slip covers. mats * , boot tray, luggage net,
fi x e d c o a t h o o k o n h e a d r e -
straint, lighter, aluminium or
PVC door sills.
F o r l e i s u r e p u r s u i t s : r o o f b a r s ,
bicycle carrier on towbar, bi-
cycle carrier on roof bars,
s k i c a r r i e r , r o o f b o x , b o o s t e r
seats and child seats, side blinds and
rear blind, front centre armrest, under
shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
audio systems, satellite
navigation systems, Blue-
tooth hands-free system,
CD changer, speakers, DVD
player, connection kit for MP3
player or portable CD player,
U S B B o x , f r o n t a n d r e a r p a r k -
ing sensors.
seat covers compatible with
lateral airbags, aluminium gear
lever knob, foglamps, door de-
fl e c t o r s , s p o i l e r , s t y l i n g s t r i p s ,
alloy wheels, trims, chromed
mirror shells, body kit. s c r e e n w a s h , i n t e r i o r a n d e x t e -
rior maintenance and cleaning
products.
