2010 NISSAN VERSA HATCHBACK service indicator

CHECKING BULBS
With all doors closed, apply the parking brake
and place the ignition switch in the ON position
without starting the engine. The following lights
will come on:
or,,,(blue) ,
,,
If equipped, the following lights come on briefly
and then go off:
or,(red) ,,,
,,,,,
If any light fails to come on, it may indicate
a burned-out bulb or an open circuit in the
electrical system. Have the system repaired
promptly.
WARNING LIGHTS
orAnti-lock BrakingSystem (ABS)
warning light (if so
equipped)
When the ignition switch is placed in the ON
position, the Anti-lock Braking System (ABS)
warning light illuminates and then turns off. This
indicates the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may indicate
the ABS is not functioning properly. Have the
system checked by a NISSAN dealer.
If an ABS malfunction occurs, the anti-lock func-
tion is turned off. The brake system then operates
normally, but without anti-lock assistance. See
Brake system in theStarting and driving sec-
tion.
orBrake warning light
This light functions for both the parking brake and
the foot brake systems. Parking brake indicator
When the ignition switch is placed in the ON
position, the light comes on when the parking
brake is applied.
Low brake fluid warning light
When the ignition switch is placed in the ON
position, the light warns of a low brake fluid level.
If the light comes on while the engine is running
with the parking brake not applied, stop the ve-
hicle and perform the following:
1. Check the brake fluid level. Add brake fluid as necessary. See “Brake fluid” in the “Main-
tenance and do-it-yourself” section of this
manual.
2. If the brake fluid level is correct, have the warning system checked by a NISSAN
dealer.
WARNING
●Your brake system may not be working
properly if the warning light is on. Driv-
ing could be dangerous. If you judge it
to be safe, drive carefully to the nearest
service station for repairs. Otherwise,
have your vehicle towed because driv-
ing it could be dangerous.
Instruments and controls2-7

4. Press the CLOCK button again to exit theclock set mode.
If no action is taken, the display will return to the
regular clock display after 10 seconds.
DISP (display) button
This button works during FM, CD and iPod
operation. See the detailed function for this but-
ton in the section for each mode.
iPOD MENU, ENTER and BACK buttons
These buttons can only be used for iPod opera-
tions. See “iPod Player Operation without Navi-
gation System” later in this section for details
about the functions of these buttons.
FM/AM/SAT radio operation
FM·AM button:
Press the FM·AM button to change the band as
follows:
AM →FM1 →FM2 →AM
If another audio source is playing when the
FM·AM button is pressed, the audio source play-
ing will automatically be turned off and the last
radio station played will begin playing.
The FM stereo indicator (ST) illuminates during
FM stereo reception. When the stereo broadcast signal is weak, the radio automatically changes
from stereo to monaural reception.
SAT band select:
Pressing the AUX button will change the band as
follows:
AUX
→SAT1* →SAT2* →AUX (satellite, if so
equipped)
When the AUX button is pressed while the igni-
tion switch is in the ACC or ON position, the
radio will come on at the station last played.
The last station played will also come on when
the PWR button is pressed to turn the radio on.
*When the AUX button is pressed, the satellite
radio mode will be skipped unless an optional
satellite receiver and antenna are installed and an
XM satellite radio service subscription is active.
Satellite radio is not available in Alaska, Hawaii
and Guam.
If a compact disc is playing when the AUX button
is pressed, the compact disc will automatically be
turned off and the last radio station played will
come on.
TUNE button (Tuning):
Press the TUNE/FF-REW/FOLDER
button
orfor manual tuning.
SEEK tuning:
Press the SEEK/TRACK button
orto tune from low to high or high to low frequen-
cies and to stop at the next broadcasting station.
SCAN tuning:
Press the SCAN/RPT button to stop at each
broadcasting station for 5 seconds. Pressing the
button again during this 5 second period will stop
SCAN tuning and the radio will remain tuned to
that station. If the SCAN/RPT button is not
pressed within 5 seconds, SCAN tuning moves
to the next station.
1 to 6 Station memory operations:
Twelve stations can be set for the FM band (6 for
FM1, 6 for FM2) and six stations can be set for
the AM band. 1. Choose the radio band AM, FM1 or FM2 using the AM·FM select button.
2. Tune to the desired station using manual, SEEK or SCAN tuning. Press and hold any
of the desired station memory buttons (1 –
6) until a beep sound is heard.
3. The channel indicator will then come on and the sound will resume. Programming is now
complete.
4-30Display screen, heater, air conditioner, audio and phone systems

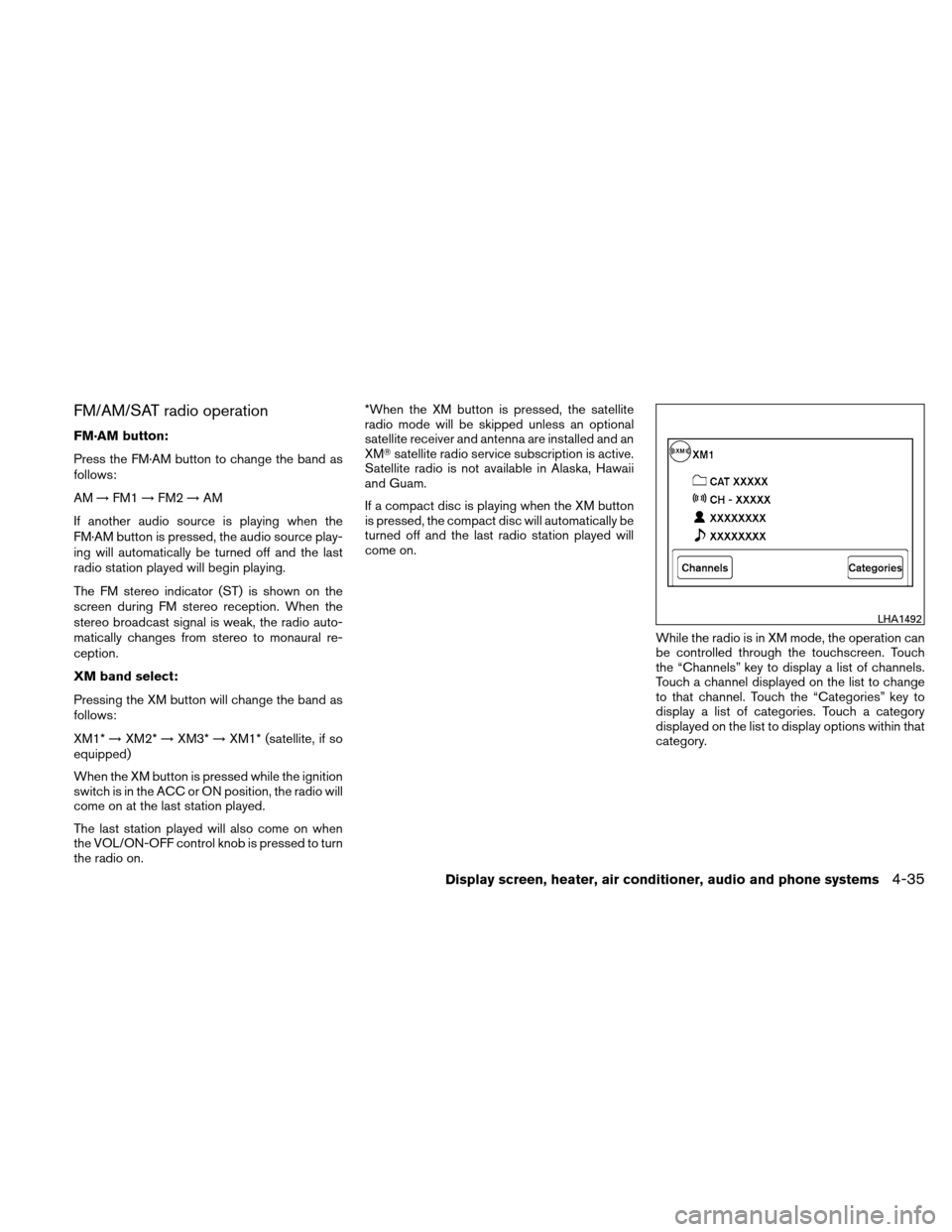

FM/AM/SAT radio operation
FM·AM button:
Press the FM·AM button to change the band as
follows:
AM→FM1 →FM2 →AM
If another audio source is playing when the
FM·AM button is pressed, the audio source play-
ing will automatically be turned off and the last
radio station played will begin playing.
The FM stereo indicator (ST) is shown on the
screen during FM stereo reception. When the
stereo broadcast signal is weak, the radio auto-
matically changes from stereo to monaural re-
ception.
XM band select:
Pressing the XM button will change the band as
follows:
XM1* →XM2* →XM3* →XM1* (satellite, if so
equipped)
When the XM button is pressed while the ignition
switch is in the ACC or ON position, the radio will
come on at the last station played.
The last station played will also come on when
the VOL/ON-OFF control knob is pressed to turn
the radio on. *When the XM button is pressed, the satellite
radio mode will be skipped unless an optional
satellite receiver and antenna are installed and an
XM
satellite radio service subscription is active.
Satellite radio is not available in Alaska, Hawaii
and Guam.
If a compact disc is playing when the XM button
is pressed, the compact disc will automatically be
turned off and the last radio station played will
come on.
While the radio is in XM mode, the operation can
be controlled through the touchscreen. Touch
the “Channels” key to display a list of channels.
Touch a channel displayed on the list to change
to that channel. Touch the “Categories” key to
display a list of categories. Touch a category
displayed on the list to display options within that
category.
LHA1492
Display screen, heater, air conditioner, audio and phone systems4-35

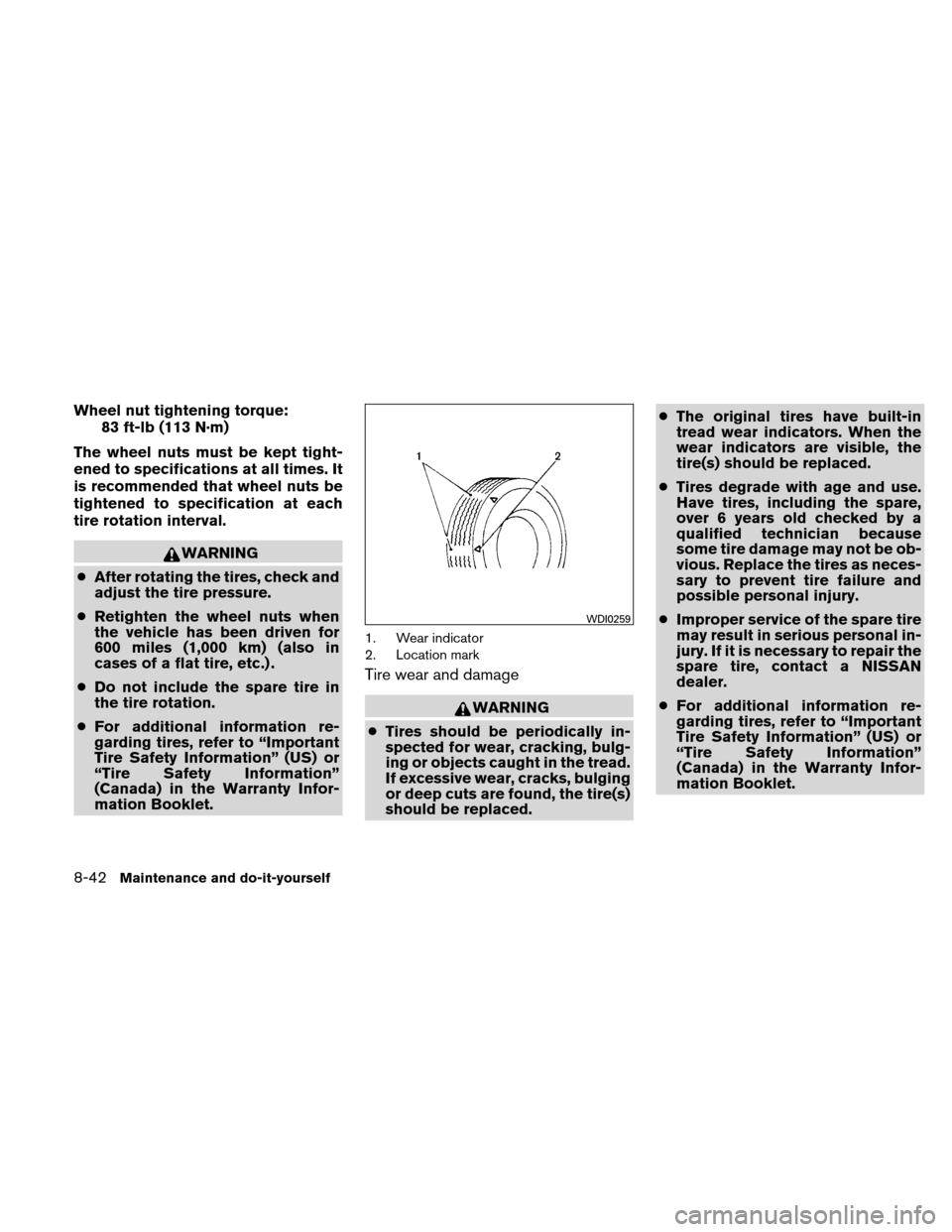

Wheel nut tightening torque:83 ft-lb (113 N·m)
The wheel nuts must be kept tight-
ened to specifications at all times. It
is recommended that wheel nuts be
tightened to specification at each
tire rotation interval.
WARNING
● After rotating the tires, check and
adjust the tire pressure.
● Retighten the wheel nuts when
the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.) .
● Do not include the spare tire in
the tire rotation.
● For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.
1. Wear indicator
2. Location mark
Tire wear and damage
WARNING
● Tires should be periodically in-
spected for wear, cracking, bulg-
ing or objects caught in the tread.
If excessive wear, cracks, bulging
or deep cuts are found, the tire(s)
should be replaced. ●
The original tires have built-in
tread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.
● Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician because
some tire damage may not be ob-
vious. Replace the tires as neces-
sary to prevent tire failure and
possible personal injury.
● Improper service of the spare tire
may result in serious personal in-
jury. If it is necessary to repair the
spare tire, contact a NISSAN
dealer.
● For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.
WDI0259
8-42Maintenance and do-it-yourself

10 Index
A
ABS (Anti-lock Braking System) ........5-29
Air bag (See supplemental restraint
system) .....................1-41
Air bag system Front (See supplemental front impact
air bag system) ...............1-48
Side and curtain (See supplemental side
air bag and curtain side-impact air bag
system) ...................1-52
Air bag warning labels .............1-55
Air bag warning light ...........1-55, 2-11
Air cleaner housing filter ............8-20
Air conditioner Air conditioner operation ..........4-12
Air conditioner service ...........4-16
Air conditioner specification label .....9-12
Air conditioner system refrigerant and oil
recommendations ..............9-7
Heater and air conditioner controls .....4-9
Servicing air conditioner ..........4-16
Air flow charts ..................4-13
Alarm system
(See vehicle security system) .........2-15
Anchor point locations .............1-27
Antenna .....................4-46
Anti-lock brake warning light ..........2-7
Anti-lock Braking System (ABS) ........5-29
Armrests .....................1-5
Audible reminders ...............2-14 Audio system
..................4-17
Compact disc (CD) player . .4-27, 4-31, 4-36
FM/AM radio with compact disc (CD)
player ....................4-29
FM-AM radio with compact disc (CD)
player ....................4-25
FM/AM/SAT radio with compact disc (CD)
player ....................4-33
Audio System iPod Player .............4-39, 4-41
Audio system Radio ....................4-17
Steering wheel audio control switch . . .4-45
USB interface ................4-43
Automatic Automatic power window switch .....2-32
Automatic transmission fluid (ATF) . . . .8-13
Driving with automatic transmission . . . .5-13
Automatic door locks ..............3-6
AUX jack ................ .4-32,

4-38
B
Battery ......................8-16
Charge warning light .............2-8
Before starting the engine ...........5-12
Belt (See drive belt) ..............8-18
Block heater Engine ....................5-33
Bluetooth hands-free phone system .....4-48
Booster seats ..................1-38 Brake
Anti-lock Braking System (ABS) ......5-29
Brake fluid ..................8-15
Brake light (See stop light) .........8-30
Brake system ................5-28
Brake warning light ..............2-7
Brake wear indicators ........2-14, 8-22
Parking brake operation ..........5-23
Self-adjusting brakes ............8-22
Brakes ......................8-22
Break-in schedule ...............5-25
Brightness control Instrument panel ..............2-22
Brightness/contrast button ...........4-8
Bulb check/instrument panel ..........2-7
Bulb replacement ................8-30
C
Capacities and recommended
fuel/lubricants ...................9-2
Car phone or CB radio .............4-47
Cargo cover ...................2-29
Cargo (See vehicle loading information) . . .9-13
CD care and cleaning .............4-45
CD player (See audio system) . .4-27, 4-31, 4-36
Child restraint with top tether strap ......1-26
Child restraints .......1-21, 1-22, 1-23, 1-25
Precautions on child
restraints ........1-23, 1-29, 1-34, 1-38
Top tether strap anchor point locations . .1-27

Headlights..................8-29
Interior light ..................2-35
Light bulbs ..................8-29
Low tire pressure warning light ........2-9
Low windshield-washer fluid warning
light ......................2-10
Passenger air bag and status light .....1-49
Security indicator light ............2-13
Trunk light ..................2-37
Warning/indicator lights and audible
reminders ...................2-6
Lights Map lights ..................2-36
Lock Child safety rear door lock ..........3-7
Door locks ................3-4, 3-5
Fuel-filler door lock opener lever ......3-27
Power door locks ...............3-6
Low fuel warning light ...............2-9
Low tire pressure warning light ..........2-9
Low windshield-washer fluid warning light . . .2-10
Luggage (See vehicle loading information) . .9-13
M
Maintenance General maintenance .............8-2
Inside the vehicle ...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-20
Under the hood and vehicle .........8-4
Malfunction indicator light ............2-13
Manual front seat adjustment ...........1-2Manual windows
.................2-33
Map lights ....................2-36
Map pocket ....................2-25
Meters and gauges ................2-3
Instrument brightness control ........2-22
Mirror Inside mirror .................3-30
Outside mirrors ...............3-30
Vanity mirror .................3-30
Moonroof .....................2-33
N
NISSAN Intelligent K

ey™ .........3-10, 3-13
NISSAN vehicle immobilizer
system ................2-17, 3-2, 5-11
O
Octane rating (See fuel octane rating) ......9-5
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-10
Changing engine oil filter ..........8-12
Checking engine oil level ...........8-9
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity ..............9-6
Outside mirrors .................3-30
Overdrive switch .................5-16 Overheat
If your vehicle overheats ...........6-10
Owner’s manual order form ...........9-21
Owner’s manual/service manual order
information ....................9-21
P
Parking Parking brake operation ...........5-23
Parking/parking on hills ...........5-27
Phone, Bluetooth hands-free system.....4-48
Power Power door locks ...............3-6
Power outlet .................2-24
Power rear windows .............2-32
Power steering system ...........5-28
Power windows ...............2-30
Rear power windows ............2-32
Precautions Maintenance precautions ...........8-5
Precautions on child
restraints .........1-23, 1-29, 1-34, 1-38
Precautions on seat belt usage .......1-12
Precautions on supplemental restraint
system ....................1-41
Precautions when starting and driving . . . .5-2
Programmable features ..............4-5
Push starting .................. .6-10
10-4

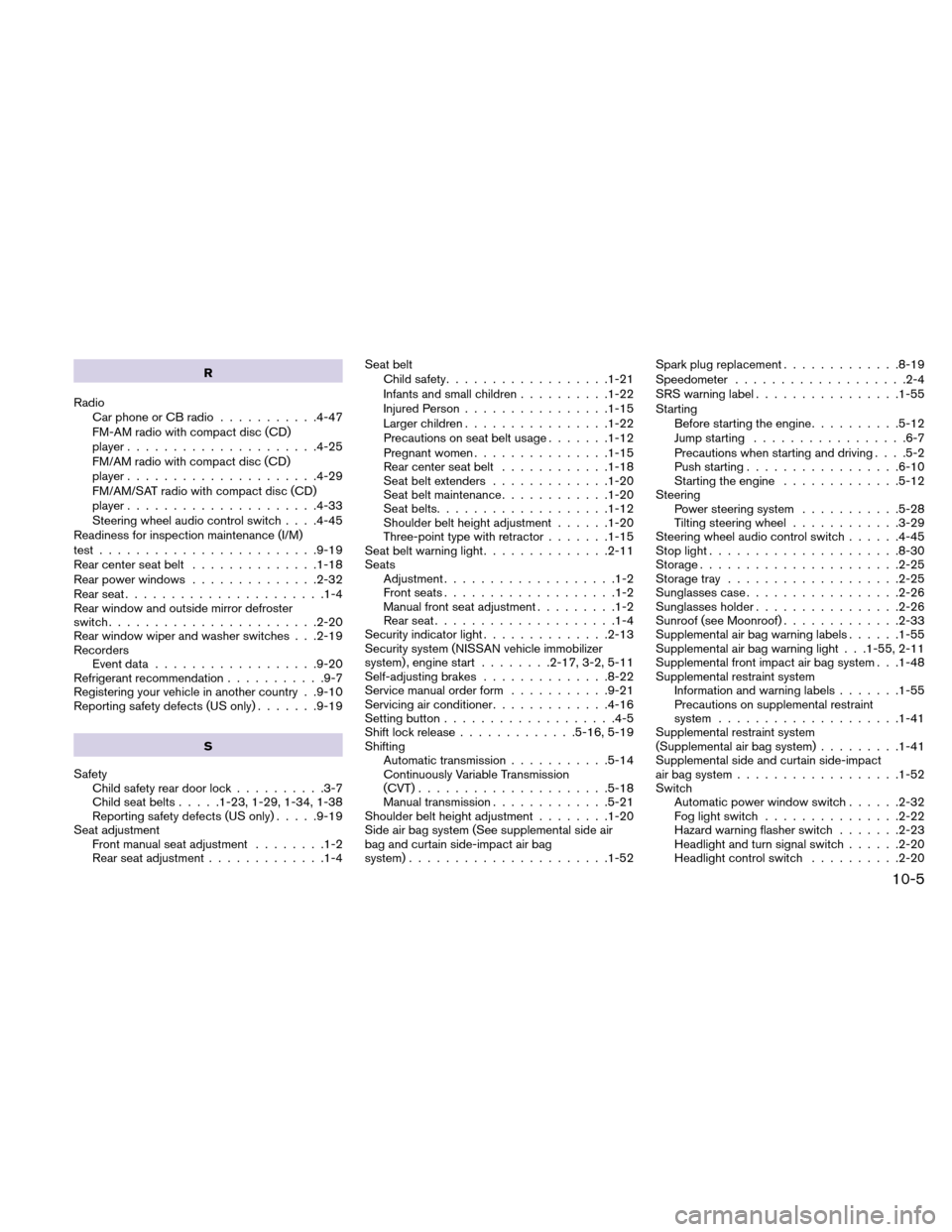

R
Radio Car phone or CB radio ...........4-47
FM-AM radio with compact disc (CD)
player .....................4-25
FM/AM radio with compact disc (CD)
player .....................4-29
FM/AM/SAT radio with compact disc (CD)
player .....................4-33
Steering wheel audio control switch . . . .4-45
Readiness for inspection maintenance (I/M)
test ........................9-19
Rear center seat belt ..............1-18
Rear power windows ..............2-32
Rear seat ......................1-4
Rear window and outside mirror defroster
switch .......................2-20
Rear window wiper and washer switches . . .2-19
Recorders Event data ..................9-20
Refrigerant recommendation ...........9-7
Registering your vehicle in another country . .9-10
Reporting safety defects (US only) .......9-19
S
Safety Child safety rear door lock ..........3-7
Child seat belts .....1-23, 1-29, 1-34, 1-38
Reporting safety defects (US only) .....9-19
Seat adjustment Front manual seat adjustment ........1-2
Rear seat adjustment .............1-4 Seat belt
Child safety ..................1-21
Infants and small children ..........1-22
Injured Person ................1-15
Larger children ................1-22
Precautions on seat belt usage .......1-12
Pregnant women ...............1-15
Rear center seat belt ............1-18
Seat belt extenders .............1-20
Seat belt maintenance ............1-20
Seat belts ...................1-12
Shoulder belt height adjustment ......1-20
Three-point type with retractor .......1-15
Seat belt warning light ..............2-11
Seats Adjustment ...................1-2
Front seats.................. .1-2
Manual

front seat adjustment .........1-2
Rear seat ....................1-4
Security indicator light ..............2-13
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-17, 3-2, 5-11
Self-adjusting brakes ..............8-22
Service manual order form ...........9-21
Servicing air conditioner .............4-16
Setting button ...................4-5
Shift lock release .............5-16, 5-19
Shifting Automatic transmission ...........5-14
Continuously Variable Transmission
(CVT) .....................5-18
Manual transmission .............5-21
Shoulder belt height adjustment ........1-20
Side air bag system (See supplemental side air
bag and curtain side-impact air bag
system) ......................1-52 Spark plug replacement
.............8-19
Speedometer ...................2-4
SRS warning label ................1-55
Starting Before starting the engine ..........5-12
Jump starting .................6-7
Precautions when starting and driving . . . .5-2
Push starting .................6-10
Starting the engine .............5-12
Steering Power steering system ...........5-28
Tilting steering wheel ............3-29
Steering wheel audio control switch ......4-45
Stop light .....................8-30
Storage ......................2-25
Storage tray ...................2-25
Sunglasses case .................2-26
Sunglasses holder ................2-26
Sunroof (see Moonroof) .............2-33
Supplemental air bag warning labels ......1-55
Supplemental air bag

warning light . . .1-55, 2-11
Supplemental front impact air bag system . . .1-48
Supplemental restraint system Information and warning labels .......1-55
Precautions on supplemental restraint
system ....................1-41
Supplemental restraint system
(Supplemental air bag system) .........1-41
Supplemental side and curtain side-impact
air bag system ..................1-52
Switch Automatic power window switch ......2-32
Fog light switch ...............2-22
Hazard warning flasher switch .......2-23
Headlight and turn signal switch ......2-20
Headlight control switch ..........2-20
10-5
