2010 NISSAN VERSA HATCHBACK radio controls

Using the interior light
Press thebutton on the keyfob once to
turn on the interior lights.
For additional information, refer to “Interior light”
in the “Instruments and controls” section in this
manual.
1. Two Intelligent Keys
2. Mechanical keys (inside Intelligent
Keys)
3. Key number plate
WARNING
● Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use. ●
The intelligent key transmits radio
waves when the buttons are pushed.
The FAA advises radio waves may af-
fect aircraft navigation and communi-
cation systems. Do not operate the in-
telligent key while on an airplane. Make
sure the buttons are not operated unin-
tentionally when the unit is stored for a
flight.
The Intelligent Key system can operate all the
door locks using the remote controller function or
pushing the request switch on the vehicle without
taking the key out from a pocket or purse. The
operating environment and/or conditions may af-
fect the Intelligent Key operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
● Be sure to carry the Intelligent Key with
you when operating the vehicle.
● Never leave the Intelligent Key in the
vehicle when you leave the vehicle.
LPD0350
NISSAN INTELLIGENT KEY™ (if so
equipped)
3-10Pre-driving checks and adjustments

4 Display screen, heater, air conditioner,
audio and phone systems
Control panel buttons — color screen with
Navigation System (if so equipped)..................4-2
How to use the touch screen ....................4-3
How to use the back button .....................4-5
How to use the SETUP button ...................4-5
button...................................4-8
Vents ............................................4-8
Heater and air conditioner (manual) ..................4-9
Controls ...................................... 4-10
Heater operation .............................. 4-11
Air conditioner operation (if so equipped) ........4-12
Air flow charts ................................. 4-13
Servicing air conditioner (if so equipped) ............4-16
Audio system (if so equipped) ......................4-17
Radio ........................................ 4-17
FM radio reception ............................ 4-17
AM radio reception ............................ 4-17
Satellite radio reception (if so equipped) .........4-18
Audio operation precautions ....................4-18
FM/AM radio with compact disc (CD) player
(if so equipped) ............................... 4-25
FM/AM/SAT radio with compact disc (CD)
player (Type A) (if so equipped) .................4-29FM/AM/SAT radio with compact disc (CD)
player (Type B) (if so equipped)
.................4-33
iPod* Player Operation without Navigation
System (if so equipped) ........................ 4-39
iPod* Player Operation with Navigation
System (if so equipped) ........................ 4-41
USB interface (if so equipped) ..................4-43
CD care and cleaning .......................... 4-45
Steering wheel switch for audio control
(if so equipped) ............................... 4-45
Antenna ...................................... 4-46
Car phone or CB radio ............................ 4-47
Bluetooth Hands-Free Phone System
(if so equipped) .................................. 4-48
Regulatory Information ......................... 4-49
Using the system .............................. 4-50
Control buttons ............................... 4-52
Getting started ................................ 4-52
List of voice commands ........................ 4-54
Speaker adaptation (SA) mode.................. 4-59
Manual Control................................ 4-60
T roubleshooting

guide ......................... 4-61

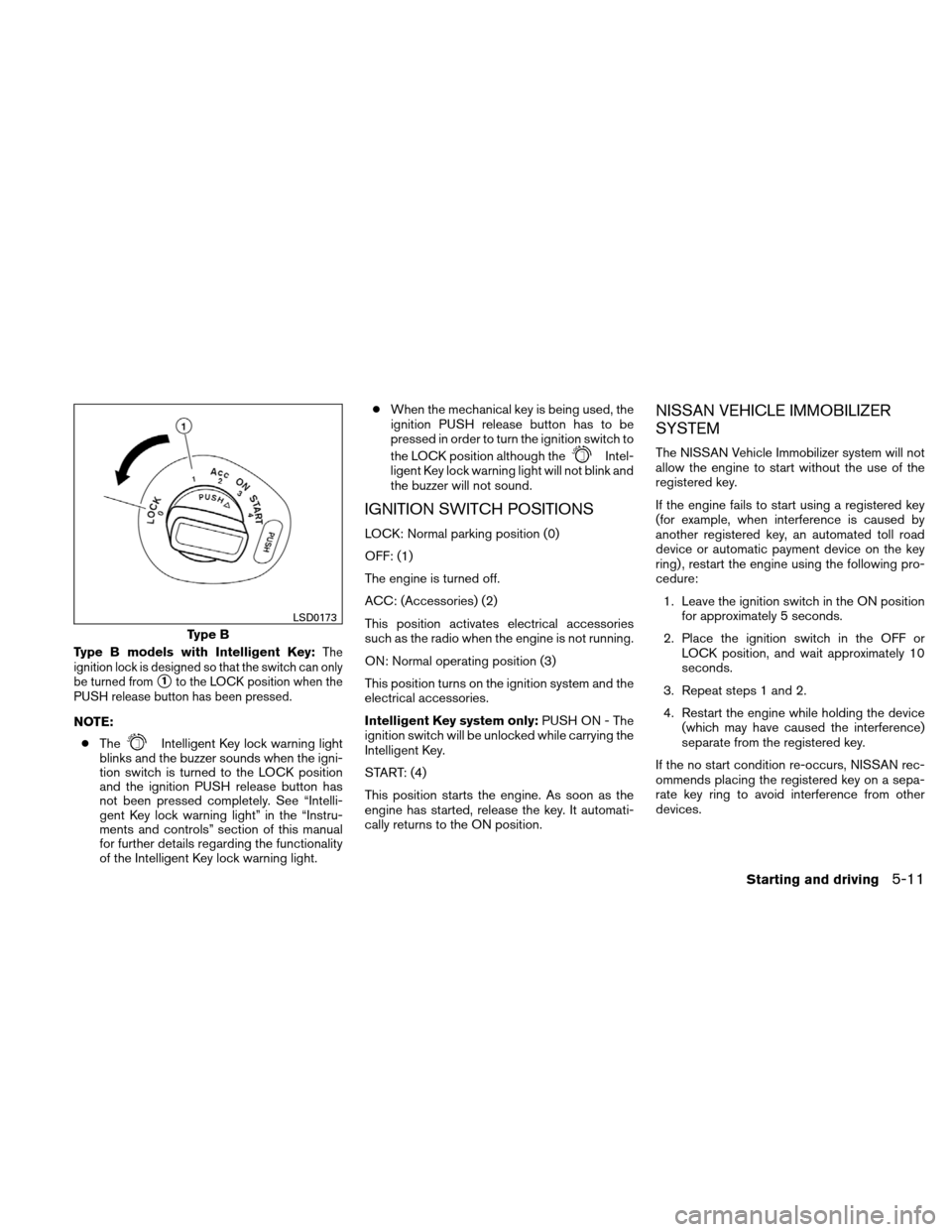

Type B models with Intelligent Key:The
ignition lock is designed so that the switch can only
be turned from
1to the LOCK position when the
PUSH release button has been pressed.
NOTE:
● The
Intelligent Key lock warning light
blinks and the buzzer sounds when the igni-
tion switch is turned to the LOCK position
and the ignition PUSH release button has
not been pressed completely. See “Intelli-
gent Key lock warning light” in the “Instru-
ments and controls” section of this manual
for further details regarding the functionality
of the Intelligent Key lock warning light. ●
When the mechanical key is being used, the
ignition PUSH release button has to be
pressed in order to turn the ignition switch to
the LOCK position although the
Intel-
ligent Key lock warning light will not blink and
the buzzer will not sound.
IGNITION SWITCH POSITIONS
LOCK: Normal parking position (0)
OFF: (1)
The engine is turned off.
ACC: (Accessories) (2)
This position activates electrical accessories
such as the radio when the engine is not running.
ON: Normal operating position (3)
This position turns on the ignition system and the
electrical accessories.
Intelligent Key system only: PUSH ON - The
ignition switch will be unlocked while carrying the
Intelligent Key.
START: (4)
This position starts the engine. As soon as the
engine has started, release the key. It automati-
cally returns to the ON position.
NISSAN VEHICLE IMMOBILIZER
SYSTEM
The NISSAN Vehicle Immobilizer system will not
allow the engine to start without the use of the
registered key.
If the engine fails to start using a registered key
(for example, when interference is caused by
another registered key, an automated toll road
device or automatic payment device on the key
ring) , restart the engine using the following pro-
cedure:
1. Leave the ignition switch in the ON position for approximately 5 seconds.
2. Place the ignition switch in the OFF or LOCK position, and wait approximately 10
seconds.
3. Repeat steps 1 and 2.
4. Restart the engine while holding the device (which may have caused the interference)
separate from the registered key.
If the no start condition re-occurs, NISSAN rec-
ommends placing the registered key on a sepa-
rate key ring to avoid interference from other
devices.
Type B
LSD0173
Starting and driving5-11

10 Index
A
ABS (Anti-lock Braking System) ........5-29
Air bag (See supplemental restraint
system) .....................1-41
Air bag system Front (See supplemental front impact
air bag system) ...............1-48
Side and curtain (See supplemental side
air bag and curtain side-impact air bag
system) ...................1-52
Air bag warning labels .............1-55
Air bag warning light ...........1-55, 2-11
Air cleaner housing filter ............8-20
Air conditioner Air conditioner operation ..........4-12
Air conditioner service ...........4-16
Air conditioner specification label .....9-12
Air conditioner system refrigerant and oil
recommendations ..............9-7
Heater and air conditioner controls .....4-9
Servicing air conditioner ..........4-16
Air flow charts ..................4-13
Alarm system
(See vehicle security system) .........2-15
Anchor point locations .............1-27
Antenna .....................4-46
Anti-lock brake warning light ..........2-7
Anti-lock Braking System (ABS) ........5-29
Armrests .....................1-5
Audible reminders ...............2-14 Audio system
..................4-17
Compact disc (CD) player . .4-27, 4-31, 4-36
FM/AM radio with compact disc (CD)
player ....................4-29
FM-AM radio with compact disc (CD)
player ....................4-25
FM/AM/SAT radio with compact disc (CD)
player ....................4-33
Audio System iPod Player .............4-39, 4-41
Audio system Radio ....................4-17
Steering wheel audio control switch . . .4-45
USB interface ................4-43
Automatic Automatic power window switch .....2-32
Automatic transmission fluid (ATF) . . . .8-13
Driving with automatic transmission . . . .5-13
Automatic door locks ..............3-6
AUX jack ................ .4-32,

4-38
B
Battery ......................8-16
Charge warning light .............2-8
Before starting the engine ...........5-12
Belt (See drive belt) ..............8-18
Block heater Engine ....................5-33
Bluetooth hands-free phone system .....4-48
Booster seats ..................1-38 Brake
Anti-lock Braking System (ABS) ......5-29
Brake fluid ..................8-15
Brake light (See stop light) .........8-30
Brake system ................5-28
Brake warning light ..............2-7
Brake wear indicators ........2-14, 8-22
Parking brake operation ..........5-23
Self-adjusting brakes ............8-22
Brakes ......................8-22
Break-in schedule ...............5-25
Brightness control Instrument panel ..............2-22
Brightness/contrast button ...........4-8
Bulb check/instrument panel ..........2-7
Bulb replacement ................8-30
C
Capacities and recommended
fuel/lubricants ...................9-2
Car phone or CB radio .............4-47
Cargo cover ...................2-29
Cargo (See vehicle loading information) . . .9-13
CD care and cleaning .............4-45
CD player (See audio system) . .4-27, 4-31, 4-36
Child restraint with top tether strap ......1-26
Child restraints .......1-21, 1-22, 1-23, 1-25
Precautions on child
restraints ........1-23, 1-29, 1-34, 1-38
Top tether strap anchor point locations . .1-27
