2010 NISSAN MAXIMA navigation system

COMMAND ACTION
Birdview Map Changes the Map display to Birdview.
Planview Map Changes the Map display to a 2-dimensional view.
North Up Changes the Map display to keep north pointing up on the screen.
Heading Up Changes the Map display to keep the direction of the vehicle pointing up on the screen.
Zoom In <1 to 13> Changes the map scale to a smaller number.
Zoom Out <1 to 13> Changes the map scale to a larger number.
Guidance Voice ON/OFF Turns the navigation voice guidance on or off.
Guide Voice Repeat Repeats the last navigation voice guidance.
Information Command:
COMMAND ACTION
Fuel Economy Displays Fuel Economy information.
Maintenance Display Maintenance information.
Traffic Information Turns the traffic information system on and off.
Where am I? Displays the current vehicle location.
Weather Information Displays weather information.
Weather Map Displays the current weather map.
4-160Monitor, climate, audio, phone and voice recognition systems

User Guide:
The user guide provides basic instructions for
using Voice Recognition and accessing some
voice commands.
NOTE:
The user guide can also be accessed from
within the INFO menu after pressing the
INFO button.
Speaker Adaptation:
Starts a system training procedure to learn the
specific sounds of your voice. See “Speaker ad-
aptation function” in this section.
Alternate Command Mode:
For advanced operation, an Alternate Command
Mode is provided. This setting enables control of
the Audio and Climate Control systems in addi-
tion to additional commands for the Phone and
Navigation systems. With this setting active, the
system does not announce or display the avail-
able commands at each step. When this mode is
activated, the Voice Recognition Settings will
change to show more options.
Minimize Voice Feedback:
Reduces the amount of the information spoken
for each voice instruction.
SPEAKER ADAPTATION FUNCTION
The Voice Recognition system has a function to
learn the user’s voice for better voice recognition
performance. The system can memorize the
voices of up to three persons.
Having the system learn the user’s
voice
1. Press the SETTING button on the instru-
ment panel, select the “Others” key on the
display.
2. Select the “Voice Recognition” key.
3. Select the “Speaker Adaptation” key.4. Select the user whose voice is to be memo-
rized by the system.
LHA1341LHA1346
Monitor, climate, audio, phone and voice recognition systems4-165

5. Select a category to be learned by the sys-
tem from the following list:
cPhone
cNavigation
cInformation
cAudio
cHelp
The voice commands in the category are
displayed.
6. Select a voice command to train.
The Voice Recognition system starts.7. The system requests that you repeat a com-
mand after a tone. This command is also
displayed on the screen.
8. After the tone sounds and the icon on the
screen changes from
to, speak
the command that the system requested.
9. When the system has recognized the voice
command, the voice of the user is learned.
Press the
switch or the BACK button to
return to the previous screen.
If the system has learned the command correctly,
the voice command indicator on the screen turns
on.
Speaker Adaptation function settings
Edit Name:
Edit the user name using the keypad displayed on
the screen.
Reset Result:
Resets the user’s voice that the Voice Recogni-
tion system has learned.
Continuous Learning:
When this item is turned to ON, you can have the
system learn the voice commands in succession,
without selecting commands one by one.
LHA1347LHA1348LHA1349
4-166Monitor, climate, audio, phone and voice recognition systems

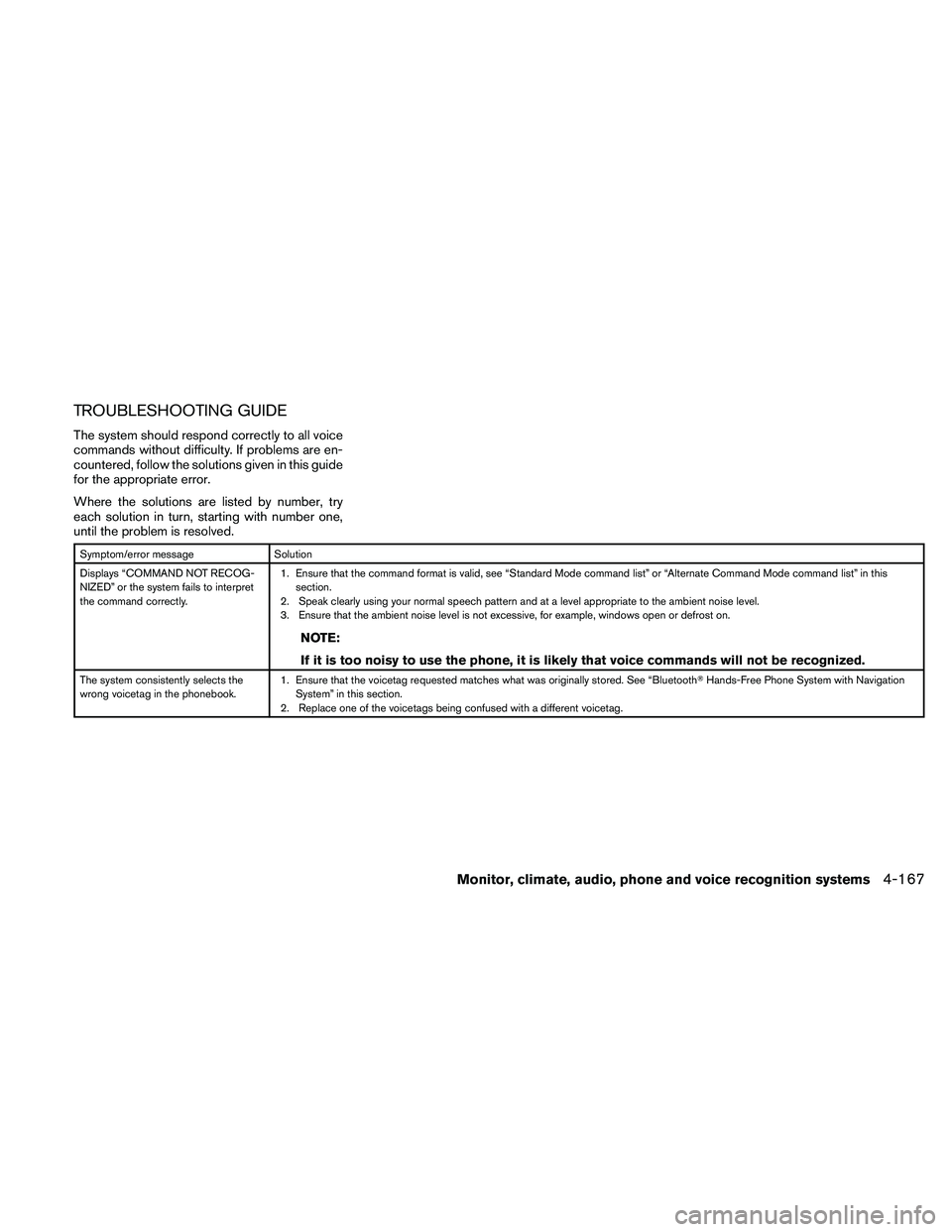

TROUBLESHOOTING GUIDE
The system should respond correctly to all voice
commands without difficulty. If problems are en-
countered, follow the solutions given in this guide
for the appropriate error.
Where the solutions are listed by number, try
each solution in turn, starting with number one,
until the problem is resolved.
Symptom/error message Solution
Displays “COMMAND NOT RECOG-
NIZED” or the system fails to interpret
the command correctly.1. Ensure that the command format is valid, see “Standard Mode command list” or “Alternate Command Mode command list” in this
section.
2. Speak clearly using your normal speech pattern and at a level appropriate to the ambient noise level.
3. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.
NOTE:
If it is too noisy to use the phone, it is likely that voice commands will not be recognized.
The system consistently selects the
wrong voicetag in the phonebook.1. Ensure that the voicetag requested matches what was originally stored. See “BluetoothTHands-Free Phone System with Navigation
System” in this section.
2. Replace one of the voicetags being confused with a different voicetag.
Monitor, climate, audio, phone and voice recognition systems4-167

CD changer (See audio system)........4-66
CD player (See audio system)......4-72, 4-79
Child restraint with top tether strap.......1-25
Child restraints.......1-20, 1-20, 1-21, 1-23
Precautions on child
restraints.........1-21, 1-28, 1-32, 1-36
Top tether strap anchor point locations . .1-25
Child safety rear door lock............3-6
Chimes, audible reminders...........2-16
Cleaning exterior and interior...........7-2
Clock
(models with navigation system) . . .4-12, 4-26
Clock set.................4-12, 4-26
C.M.V.S.S. certification label..........9-10
Cold weather driving..............5-25
Compact disc (CD) player........4-72, 4-79
Console box...................2-40
Continuously Variable Transmission (CVT). . .5-11
Continuously Variable Transmission (CVT)
fluid......................8-11
Driving with Continuously Variable
Transmission (CVT).............5-11
Transmission selector lever lock release . .5-16
Control panel buttons..............4-16
Brightness/contrast button......4-15, 4-31
Enter button...............4-4, 4-16
Setting button.............4-9, 4-24
Without navigation system..........4-4
Controls
Audio controls (steering wheel)......4-113
Heater and air conditioner
controls................4-41, 4-44
Rear audio controls............4-115
Rear seat air conditioner..........4-47Coolant
Capacities and recommended
fuel/lubricants.................9-2
Changing engine coolant...........8-8
Checking engine coolant level........8-7
Engine coolant temperature gauge.....2-5
Corrosion protection...............7-6
Cruise control..................5-18
Cup holders...................2-38
D
Daytime running light system (Canada only) . .2-31
Defroster switch
Rear window and outside mirror defroster
switch.....................2-27
Digital Versatile Disc (DVD) player.......4-84
Dimensions and weights.............9-8
Dimmer switch for instrument panel......2-32
Display controls
(see control panel buttons)........4-4, 4-16
Distance to empty.............4-7, 4-21
Door locks.....................3-4
Drive belt.....................8-15
Drive positioner, Automatic...........3-29
Driving
Cold weather driving............5-25
Driving with Continuously Variable
Transmission (CVT).............5-11
Precautions when starting and driving. . . .5-2
E
Economy - fuel..................5-20Emission control information label.......9-10
Emission control system warranty.......9-25
Engine
Before starting the engine..........5-10
Block heater.................5-27
Capacities and recommended
fuel/lubricants.................9-2
Changing engine coolant...........8-8
Changing engine oil..............8-9
Changing engine oil filter..........8-10
Checking engine coolant level........8-7
Checking engine oil level...........8-8
Engine compartment check locations. . . .8-6
Engine coolant temperature gauge.....2-5
Engine cooling system............8-7
Engine oil...................8-8
Engine oil and oil filter recommendation . . .9-5
Engine oil pressure warning light......2-12
Engine oil viscosity..............9-5
Engine serial number............9-10
Engine specifications.............9-7
Starting the engine.............5-10
Enter button.................4-4, 4-16
Event data recorders..............9-27
Exhaust gas (Carbon monoxide).........5-2
F
Flashers
(See hazard warning flasher switch)......2-33
Flat tire.......................6-2
Floor mat positioning aid.............7-5
Fluid
Brake fluid..................8-12
