P0181 FTT SENSOR
Wiring Diagram
INFOID:0000000005398403
Diagnosis ProcedureINFOID:0000000005398404
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connections E15, E24. Refer to EC-119, "
Ground Inspection".
Is the inspection result normal?
BBWA2636E
Revision: January 20102010 Versa
Page 1502 of 3745
![NISSAN LATIO 2010 Service Repair Manual P0181 FTT SENSOREC-237
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK FUEL TANK TEMPERATURE
SENSOR POWER SUPPLY CI NISSAN LATIO 2010 Service Repair Manual P0181 FTT SENSOREC-237
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK FUEL TANK TEMPERATURE
SENSOR POWER SUPPLY CI](/manual-img/5/57358/w960_57358-1501.png)
P0181 FTT SENSOREC-237
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK FUEL TANK TEMPERATURE
SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect “fuel level sensor unit and fuel pump” harness connector.
3. Turn ignition switch ON.
4. Check the voltage between “fuel level sensor unit and fuel pump” harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors B102, M13
• Harness connectors M69, E7
• Harness connectors E8, F8
• Harness for open or short between ECM and “fuel level sensor unit and fuel pump”
>> Repair open circuit or short to ground or short to power in harness or connector.
4.CHECK FUEL TANK TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect combination meter harness connector.
3. Check the continuity between “fuel level sensor unit and fuel pump” harness connector and combination
meter harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 6.
NO >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors B102, M13
• Harness for open or short between “fuel level sensor unit and fuel pump” and combination meter
>> Repair open circuit or short to ground or short to power in harness or connector.
6.CHECK FUEL TANK TEMPERATURE SENSOR
Refer to EC-238, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 7.
NO >> Replace “fuel level sensor unit and fuel pump”.
7.CHECK INTERMITTENT INCIDENT
Refer to EC-114, "
Diagnosis Procedure".
Fuel level sensor unit and fuel pump
Ground Voltage
Connector Terminal
B100 4 Ground Approx. 5 V
PBIB0932E
Fuel level sensor unit and fuel pump Combination meter Continuity
Connector Terminal Connector Terminal
B100 5M24 24 Existed
Revision: January 20102010 Versa
Page 1503 of 3745
EC-238
< COMPONENT DIAGNOSIS >[HR16DE]
P0181 FTT SENSOR
>> INSPECTION END
Component InspectionINFOID:0000000005398405
1.CHECK FUEL TANK TEMPERATURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect “fuel level sensor uni t and fuel pump” harness connector.
3. Remove fuel level sensor unit.
4. Check resistance between “fuel level sensor unit and fuel pump”
terminals by heating with hot water as shown in the figure.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace “fuel level sensor unit and fuel pump”.
Terminals Condition Resistance
4 and 5 Temperature [ °C ( °F)] 20 (68) 2.3 - 2.7 k
Ω
50 (122) 0.79 - 0.90 kΩ
PBIB0931E
Revision: January 20102010 Versa
Page 1504 of 3745
![NISSAN LATIO 2010 Service Repair Manual P0182, P0183 FTT SENSOREC-239
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0182, P0183 FTT SENSOR
DescriptionINFOID:0000000005398406
The fuel tank temperature sensor
is used to d NISSAN LATIO 2010 Service Repair Manual P0182, P0183 FTT SENSOREC-239
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0182, P0183 FTT SENSOR
DescriptionINFOID:0000000005398406
The fuel tank temperature sensor
is used to d](/manual-img/5/57358/w960_57358-1503.png)
P0182, P0183 FTT SENSOREC-239
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0182, P0183 FTT SENSOR
DescriptionINFOID:0000000005398406
The fuel tank temperature sensor
is used to detect the fuel tempera-
ture inside the fuel tank. The sensor modifies a voltage signal from
the ECM. The modified signal returns to the ECM as the fuel temper-
ature input. The sensor uses a ther mistor which is sensitive to the
change in temperature. The electrical resistance of the thermistor
decreases as temperature increases.
*: These data are reference values and are measured between ECM terminal 43 (Fuel tank temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output vo ltage. Doing so may result in damage to the ECM's transis-
tor. Use a ground other than ECM terminals, such as the ground.
DTC LogicINFOID:0000000005398407
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON and wait at least 5 seconds.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-240, "Diagnosis Procedure".
NO >> INSPECTION END
Fluid temperature
[° C ( °F)] Voltage*
[V] Resistance
[kΩ]
20 (68) 3.52.3 - 2.7
50 (122) 2.20.79 - 0.90
SEF012P
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0182 Fuel tank temperature
sensor circuit low input An excessively low voltage from the sensor is
sent to ECM.
• Harness or connectors
(The sensor circuit is open or shorted.)
• Fuel tank temperature sensor
P0183 Fuel tank temperature
sensor circuit high input An excessively high voltage from the sensor is
sent to ECM.
Revision: January 20102010 Versa
Page 1505 of 3745
EC-240
< COMPONENT DIAGNOSIS >[HR16DE]
P0182, P0183
FTT SENSOR

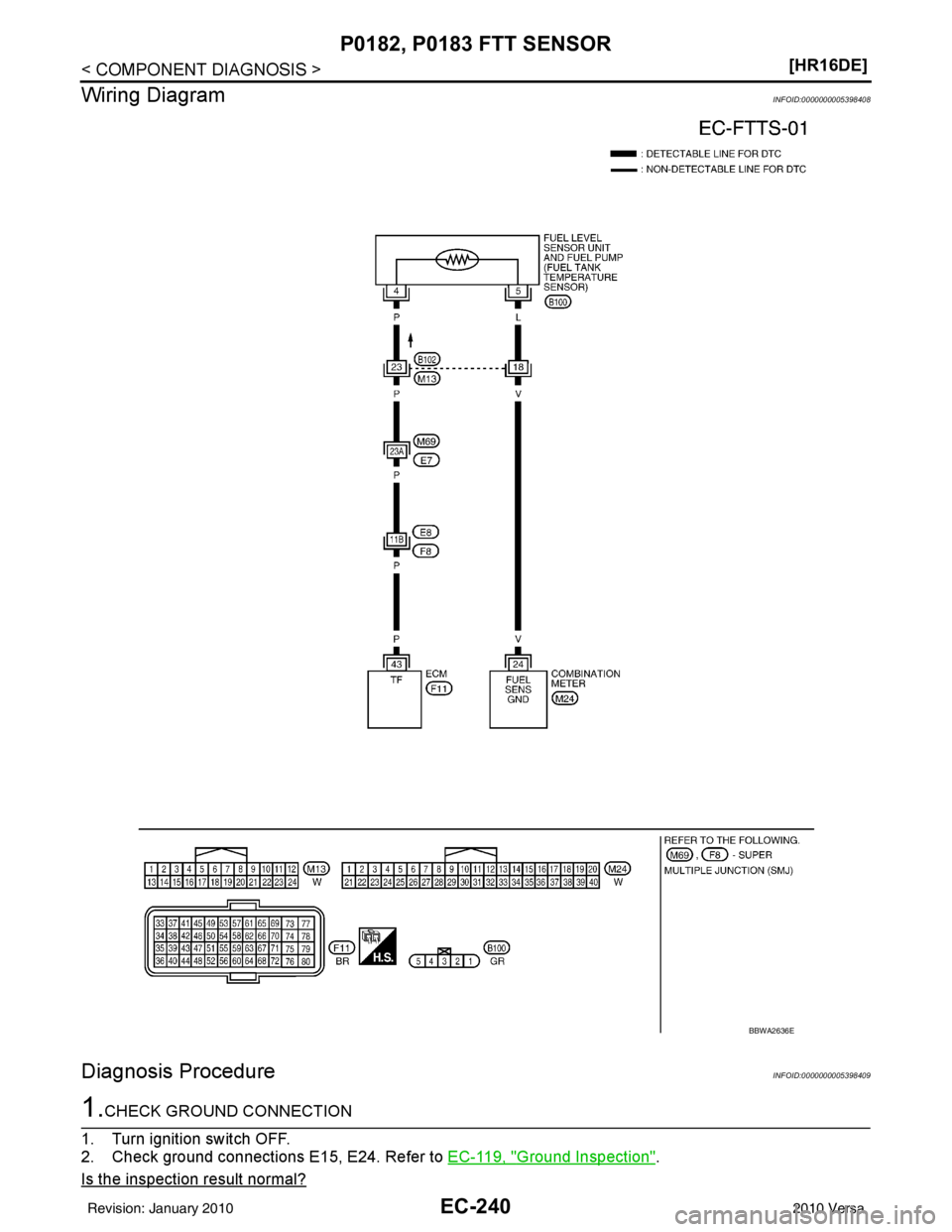

Wiring Diagram
