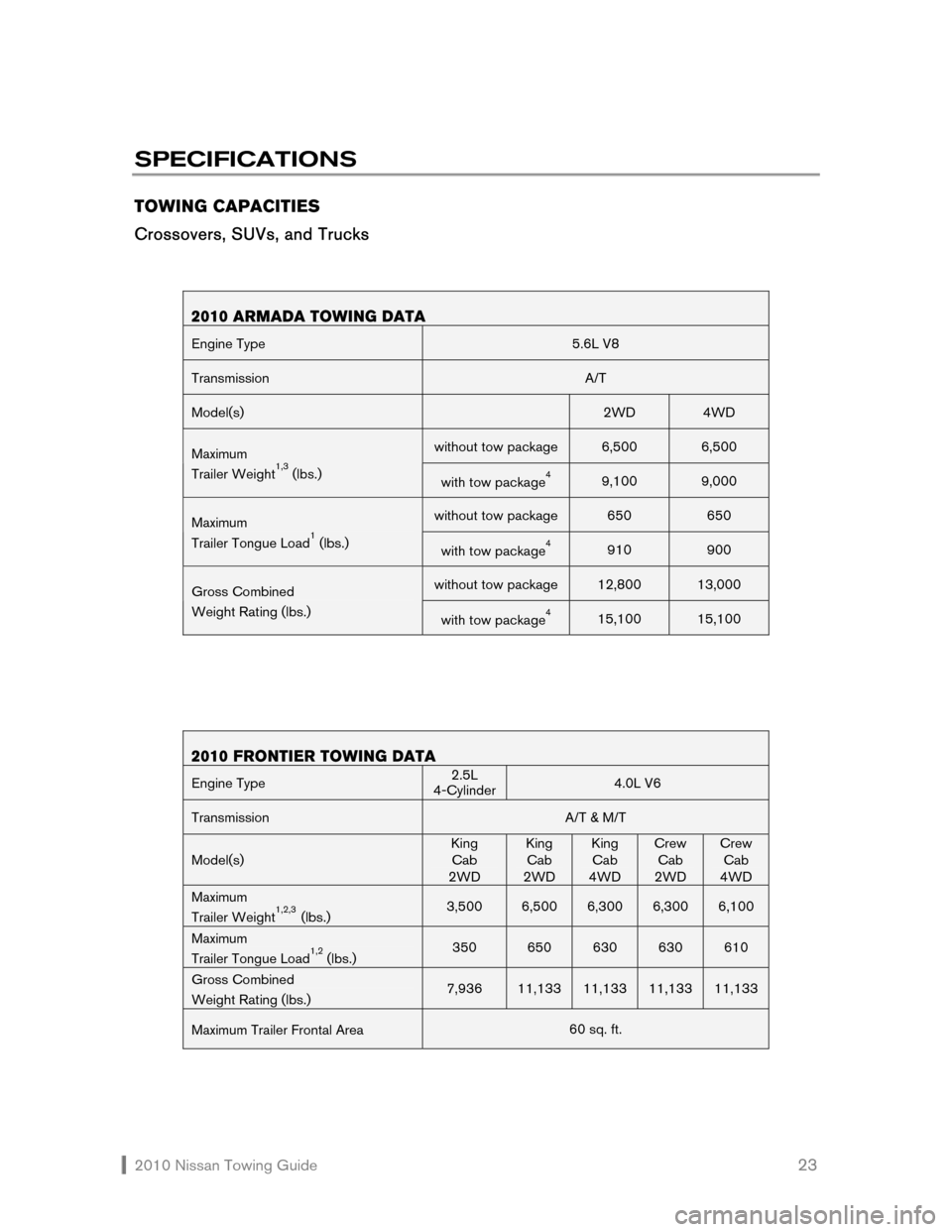

2010 Nissan Towing Guide 23
SPECIFICATIONS
TOWING CAPACITIES
Crossovers, SUVs, and Trucks
2010 ARMADA TOWING DATA
Engine Type 5.6L V8
Transmission A/T
Model(s) 2WD 4WD
without tow package 6,500 6,500 Maximum
Trailer Weight1,3 (lbs.) with tow package4 9,100 9,000
without tow package 650 650 Maximum
Trailer Tongue Load1 (lbs.) with tow package4 910 900
without tow package 12,800 13,000 Gross Combined
Weight Rating (lbs.) with tow package4 15,100 15,100
2010 FRONTIER TOWING DATA
Engine Type 2.5L
4-Cylinder 4.0L V6
Transmission A/T & M/T
Model(s)
King
Cab
2WD
King
Cab
2WD
King
Cab
4WD
Crew
Cab
2WD
Crew
Cab
4WD
Maximum
Trailer Weight1,2,3 (lbs.) 3,500 6,500 6,300 6,300 6,100
Maximum
Trailer Tongue Load1,2 (lbs.) 350 650 630 630 610
Gross Combined
Weight Rating (lbs.) 7,936 11,133 11,133 11,133 11,133
Maximum Trailer Frontal Area 60 sq. ft.

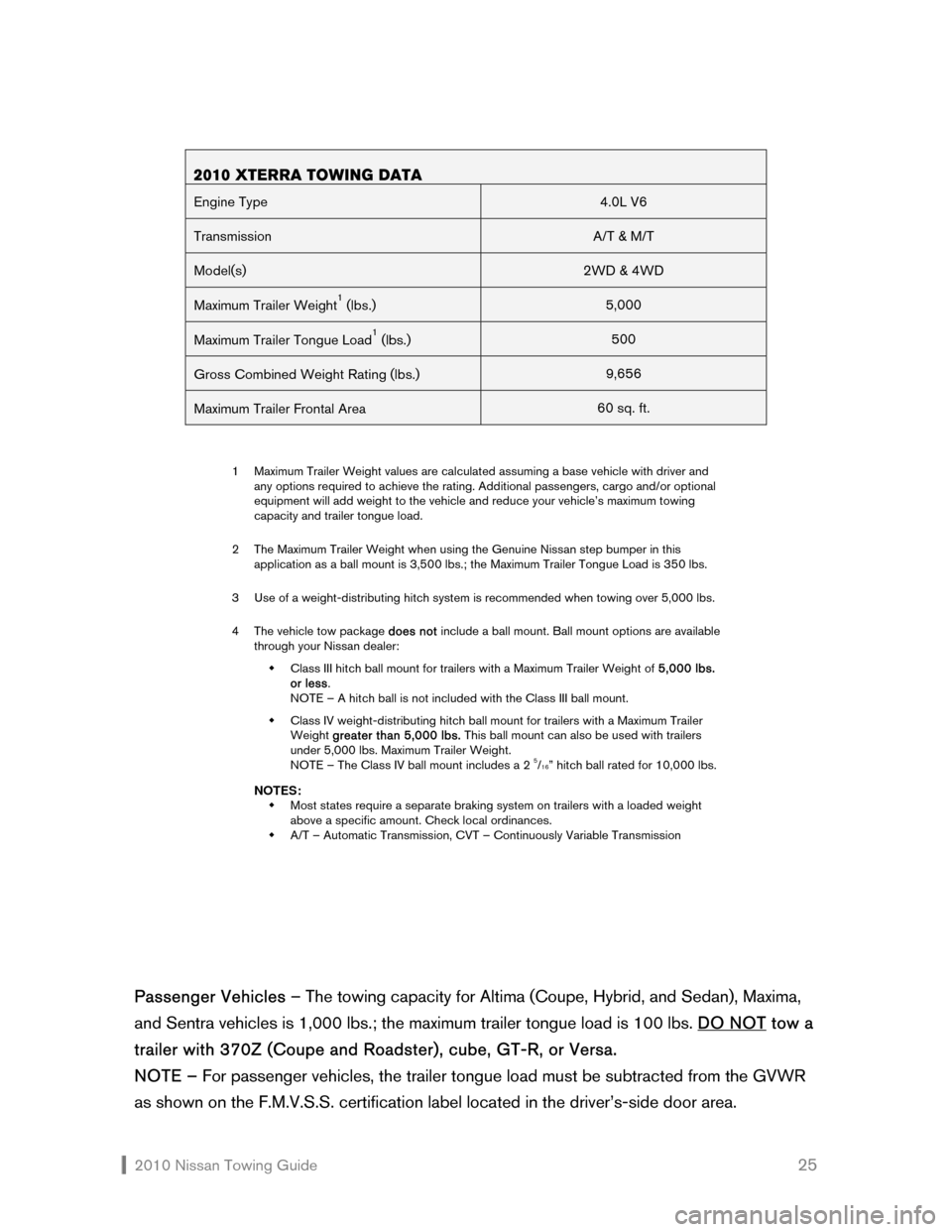

2010 Nissan Towing Guide 25
Passenger Vehicles – The towing capacity for Altima (Coupe, Hybrid, and Sedan), Maxima,
and Sentra vehicles is 1,000 lbs.; the maximum trailer tongue load is 100 lbs. DO NOT
tow a
trailer with 370Z (Coupe and Roadster), cube, GT-R, or Versa.
NOTE – For passenger vehicles, the trailer tongue load must be subtracted from the GVWR
as shown on the F.M.V.S.S. certification label located in the driver’s-side door area.
2010 XTERRA TOWING DATA
Engine Type 4.0L V6
Transmission A/T & M/T
Model(s) 2WD & 4WD
Maximum Trailer Weight1 (lbs.) 5,000
Maximum Trailer Tongue Load1 (lbs.) 500
Gross Combined Weight Rating (lbs.) 9,656
Maximum Trailer Frontal Area 60 sq. ft.
1 Maximum Trailer Weight values are calculated assuming a base vehicle with driver and
any options required to achieve the rating. Additional passengers, cargo and/or optional
equipment will add weight to the vehicle and reduce your vehicle’s maximum towing
capacity and trailer tongue load.
2 The Maximum Trailer Weight when using the Genuine Nissan step bumper in this
application as a ball mount is 3,500 lbs.; the Maximum Trailer Tongue Load is 350 lbs.
3 Use of a weight-distributing hitch system is recommended when towing over 5,000 lbs.
4 The vehicle tow package does not include a ball mount. Ball mount options are available
through your Nissan dealer:
Š Class III hitch ball mount for trailers with a Maximum Trailer Weight of 5,000 lbs.
or less.
NOTE – A hitch ball is not included with the Class III ball mount.
Š Class IV weight-distributing hitch ball mount for trailers with a Maximum Trailer
Weight greater than 5,000 lbs. This ball mount can also be used with trailers
under 5,000 lbs. Maximum Trailer Weight.
NOTE – The Class IV ball mount includes a 2
5/16” hitch ball rated for 10,000 lbs. NOTES:
Š Most states require a separate braking system on trailers with a loaded weight
above a specific amount. Check local ordinances.
Š A/T – Automatic Transmission, CVT – Continuously Variable Transmission
