2010 Nissan Towing Guide 21 the hood. Never remove the radiator cap when the radiator is hot. If the cap is removed
under these conditions, hot water/coolant under high pressure may spurt out, possibly
causing serious injury.

5. As soon as the engine has cooled to its normal operating temperature, visually inspect the
drive belts for damage or looseness. A loose belt reduces water pump efficiency. Be
careful to keep your hands, hair, jewelry, and clothing clear of the running drive belt and
other moving parts when inspecting the engine and radiator. Also check to see if the
cooling fan is running, and inspect the water pump, radiator, and radiator hoses for leaks.
Keep in mind, too, that if your vehicle is equipped with an electric fan motor, it may start
without warning any time the coolant temperature is high. If you find leaking coolant, a
loose or missing drive belt, or an inoperable fan, turn off the engine immediately.

6. If no leaks are apparent and all other components appear to be operating properly with
the engine cooled to its normal operating temperature, check the coolant level in the
reservoir tank with the engine running. Add coolant to the reservoir tank if needed. At this
point, if repairs are required, go to the nearest Nissan dealer. See the IN CASE OF
EMERGENCY section of your vehicle owner’s manual for additional information on
overheating.
NOTE – All Nissan vehicles have an engine protection mode, which helps reduce the chance
of engine damage if the engine coolant reaches a specified temperature. See your vehicle
owner’s manual for details.


TOWING
GLOSSARY
5TH WHEEL
HITCH Located just forward of the rear axle centerline, this hitch uses a king pin to
serve as the pivot point for the trailer.

BALL MOUNT A bar that holds the hitch ball and is inserted into the hitch receiver. Also
commonly called a drawbar.

BREAKAWAY SWITCH A safety device using a trailer battery that automatically applies the trailer’s
brakes if it should accidentally become separated from the tow vehicle.
A breakaway switch may be used with both electric or surge trailer brake
systems.

BUMPER HITCH A reinforced bumper designed to accommodate a hitch ball.

2010 Nissan Towing Guide 23
SPECIFICATIONS

TOWING CAPACITIES
Crossovers, SUVs, and Trucks





















2010 ARMADA TOWING DATA
Engine Type 5.6L V8
Transmission A/T
Model(s) 2WD 4WD
without tow package 6,500 6,500 Maximum
Trailer Weight1,3 (lbs.) with tow package4 9,100 9,000
without tow package 650 650 Maximum
Trailer Tongue Load1 (lbs.) with tow package4 910 900
without tow package 12,800 13,000 Gross Combined
Weight Rating (lbs.) with tow package4 15,100 15,100
2010 FRONTIER TOWING DATA
Engine Type 2.5L
4-Cylinder 4.0L V6
Transmission A/T & M/T
Model(s)
King
Cab
2WD
King
Cab
2WD
King
Cab
4WD
Crew
Cab
2WD
Crew
Cab
4WD
Maximum
Trailer Weight1,2,3 (lbs.) 3,500 6,500 6,300 6,300 6,100
Maximum
Trailer Tongue Load1,2 (lbs.) 350 650 630 630 610
Gross Combined
Weight Rating (lbs.) 7,936 11,133 11,133 11,133 11,133
Maximum Trailer Frontal Area 60 sq. ft.

2010 Nissan Towing Guide 24

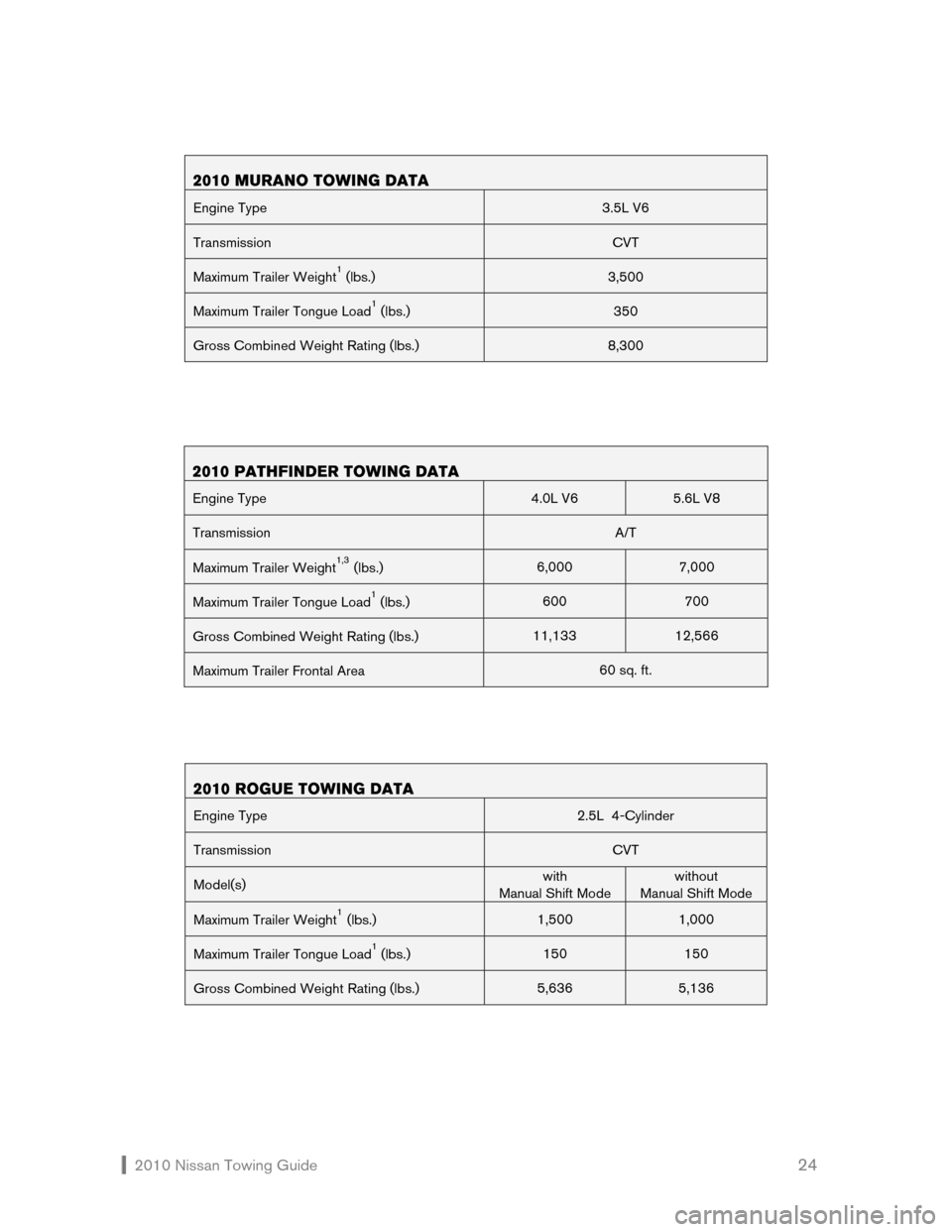

2010 MURANO TOWING DATA
Engine Type 3.5L V6
Transmission CVT
Maximum Trailer Weight1 (lbs.) 3,500
Maximum Trailer Tongue Load1 (lbs.) 350
Gross Combined Weight Rating (lbs.) 8,300
2010 PATHFINDER TOWING DATA
Engine Type 4.0L V6 5.6L V8
Transmission A/T
Maximum Trailer Weight1,3 (lbs.) 6,000 7,000
Maximum Trailer Tongue Load1 (lbs.) 600 700
Gross Combined Weight Rating (lbs.) 11,133 12,566
Maximum Trailer Frontal Area 60 sq. ft.
2010 ROGUE TOWING DATA
Engine Type 2.5L 4-Cylinder
Transmission CVT
Model(s) with
Manual Shift Mode
without
Manual Shift Mode
Maximum Trailer Weight1 (lbs.) 1,500 1,000
Maximum Trailer Tongue Load1 (lbs.) 150 150
Gross Combined Weight Rating (lbs.) 5,636 5,136

2010 Nissan Towing Guide 25







































Passenger Vehicles – The towing capacity for Altima (Coupe, Hybrid, and Sedan), Maxima,
and Sentra vehicles is 1,000 lbs.; the maximum trailer tongue load is 100 lbs. DO NOT
tow a
trailer with 370Z (Coupe and Roadster), cube, GT-R, or Versa.
NOTE – For passenger vehicles, the trailer tongue load must be subtracted from the GVWR
as shown on the F.M.V.S.S. certification label located in the driver’s-side door area.

2010 XTERRA TOWING DATA
Engine Type 4.0L V6
Transmission A/T & M/T
Model(s) 2WD & 4WD
Maximum Trailer Weight1 (lbs.) 5,000
Maximum Trailer Tongue Load1 (lbs.) 500
Gross Combined Weight Rating (lbs.) 9,656
Maximum Trailer Frontal Area 60 sq. ft.
1 Maximum Trailer Weight values are calculated assuming a base vehicle with driver and
any options required to achieve the rating. Additional passengers, cargo and/or optional
equipment will add weight to the vehicle and reduce your vehicle’s maximum towing
capacity and trailer tongue load.

2 The Maximum Trailer Weight when using the Genuine Nissan step bumper in this
application as a ball mount is 3,500 lbs.; the Maximum Trailer Tongue Load is 350 lbs.

3 Use of a weight-distributing hitch system is recommended when towing over 5,000 lbs.

4 The vehicle tow package does not include a ball mount. Ball mount options are available
through your Nissan dealer:
Š Class III hitch ball mount for trailers with a Maximum Trailer Weight of 5,000 lbs.
or less.
NOTE – A hitch ball is not included with the Class III ball mount.
Š Class IV weight-distributing hitch ball mount for trailers with a Maximum Trailer
Weight greater than 5,000 lbs. This ball mount can also be used with trailers
under 5,000 lbs. Maximum Trailer Weight.
NOTE – The Class IV ball mount includes a 2
5/16” hitch ball rated for 10,000 lbs. NOTES:
Š Most states require a separate braking system on trailers with a loaded weight
above a specific amount. Check local ordinances.
Š A/T – Automatic Transmission, CVT – Continuously Variable Transmission
