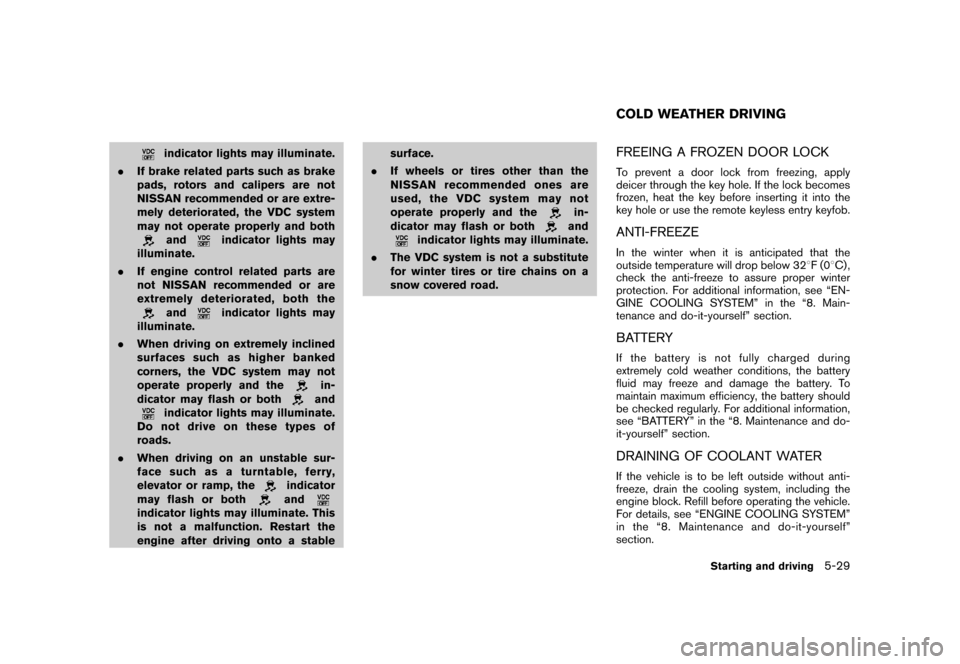

Black plate (233,1)
Model "Z12-D" EDITED: 2009/ 9/ 17
indicator lights may illuminate.
. If brake related parts such as brake
pads, rotors and calipers are not
NISSAN recommended or are extre-
mely deteriorated, the VDC system
may not operate properly and bothand
indicator lights may
illuminate.
. If engine control related parts are
not NISSAN recommended or are
extremely deteriorated, both the
and
indicator lights may
illuminate.
. When driving on extremely inclined
surfaces such as higher banked
corners, the VDC system may not
operate properly and the
in-
dicator may flash or bothand
indicator lights may illuminate.
Do not drive on these types of
roads.
. When driving on an unstable sur-
face such as a turntable, ferry,
elevator or ramp, the
indicator
may flash or bothand
indicator lights may illuminate. This
is not a malfunction. Restart the
engine after driving onto a stable surface.
. If wheels or tires other than the
NISSAN recommended ones are
used, the VDC system may not
operate properly and the
in-
dicator may flash or bothand
indicator lights may illuminate.
. The VDC system is not a substitute
for winter tires or tire chains on a
snow covered road.
FREEING A FROZEN DOOR LOCKTo prevent a door lock from freezing, apply
deicer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the
key hole or use the remote keyless entry keyfob.ANTI-FREEZEIn the winter when it is anticipated that the
outside temperature will drop below 32 8F(0 8C) ,
check the anti-freeze to assure proper winter
protection. For additional information, see “EN-
GINE COOLING SYSTEM” in the “8. Main-
tenance and do-it-yourself” section.BATTERYIf the battery is not fully charged during
extremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery should
be checked regularly. For additional information,
see “BATTERY” in the “8. Maintenance and do-
it-yourself” section.DRAINING OF COOLANT WATERIf the vehicle is to be left outside without anti-
freeze, drain the cooling system, including the
engine block. Refill before operating the vehicle.
For details, see “ENGINE COOLING SYSTEM”
in the “8. Maintenance and do-it-yourself”
section.COLD WEATHER DRIVING
Starting and driving
5-29
Black plate (3,1)

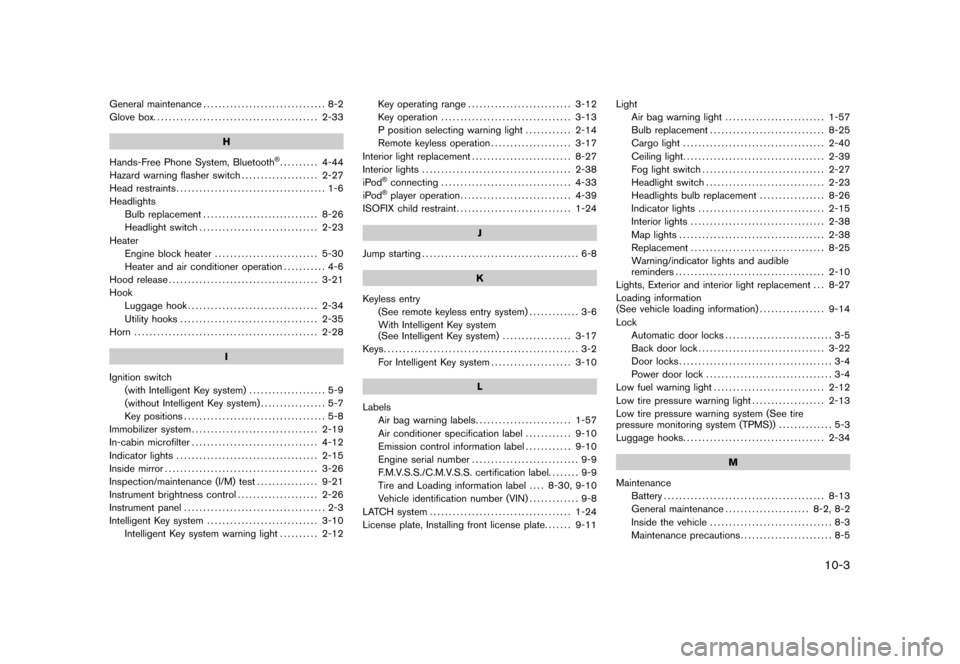

General maintenance................................ 8-2
Glove box. .......................................... 2-33
H
Hands-Free Phone System, Bluetooth
®.......... 4-44
Hazard warning flasher switch .................... 2-27
Head restraints ....................................... 1-6
Headlights Bulb replacement .............................. 8-26
Headlight switch ............................... 2-23
Heater Engine block heater ........................... 5-30
Heater and air conditioner operation ........... 4-6
Hood release ....................................... 3-21
Hook Luggage hook .................................. 2-34
Utility hooks .................................... 2-35
Horn ................................................ 2-28
I
Ignition switch (with Intelligent Key system) .................... 5-9
(without Intelligent Key system) ................. 5-7
Key positions ..................................... 5-8
Immobilizer system ................................. 2-19
In-cabin microfilter ................................. 4-12
Indicator lights ..................................... 2-15
Inside mirror ........................................ 3-26
Inspection/maintenance (I/M) test ................ 9-21
Instrument brightness control ..................... 2-26
Instrument panel ..................................... 2-3
Intelligent Key system ............................. 3-10
Intelligent Key system warning light .......... 2-12Key operating range
........................... 3-12
Key operation .................................. 3-13
P position selecting warning light ............ 2-14
Remote keyless operation ..................... 3-17
Interior light replacement .......................... 8-27
Interior lights ....................................... 2-38
iPod
®connecting .................................. 4-33
iPod®player operation ............................. 4-39
ISOFIX child restraint .............................. 1-24
J
Jump starting ......................................... 6-8
K
Keyless entry (See remote keyless entry system) ............. 3-6
With Intelligent Key system
(See Intelligent Key system) .................. 3-17
Keys................................................... 3-2 For Intelligent Key system ..................... 3-10
L
Labels Air bag warning labels ......................... 1-57
Air conditioner specification label ............ 9-10
Emission control information label ............ 9-10
Engine serial number ............................ 9-9
F.M.V.S.S./C.M.V.S.S. certification label. ....... 9-9
Tire and Loading information label .... 8-30, 9-10
Vehicle identification number (VIN) ............. 9-8
LATCH system ..................................... 1-24
License plate, Installing front license plate. ...... 9-11Light
Air bag warning light .......................... 1-57
Bulb replacement .............................. 8-25
Cargo light ..................................... 2-40
Ceiling light ..................................... 2-39
Fog light switch ................................ 2-27
Headlight switch ............................... 2-23
Headlights bulb replacement ................. 8-26
Indicator lights ................................. 2-15
Interior lights ................................... 2-38
Map lights ...................................... 2-38
Replacement ................................... 8-25
Warning/indicator lights and audible
reminders ....................................... 2-10
Lights, Exterior and interior light replacement . . . 8-27
Loading information
(See vehicle loading information) ................. 9-14
Lock Automatic door locks ............................ 3-5
Back door lock ................................. 3-22
Door locks ........................................ 3-4
Power door lock ................................. 3-4
Low fuel warning light ............................. 2-12
Low tire pressure warning light ................... 2-13
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) .............. 5-3
Luggage hooks ..................................... 2-34
M
Maintenance Battery .......................................... 8-13
General maintenance ...................... 8-2, 8-2
Inside the vehicle ................................ 8-3
Maintenance precautions ........................ 8-5
10-3
Model "Z12-D" EDITED: 2009/ 9/ 17
Black plate (4,1)
10-4

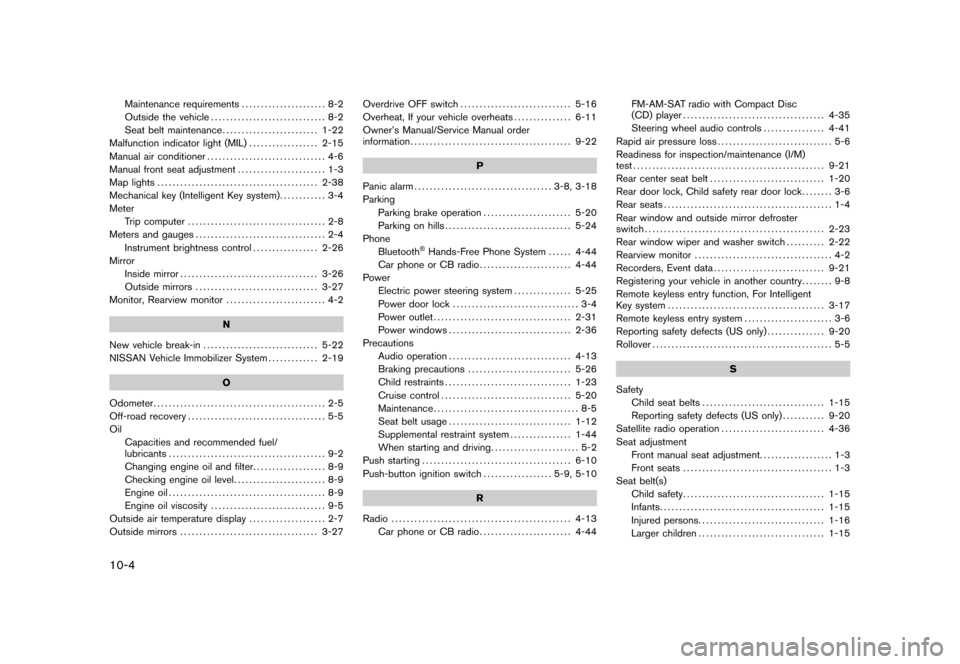

Maintenance requirements...................... 8-2
Outside the vehicle .............................. 8-2
Seat belt maintenance ......................... 1-22
Malfunction indicator light (MIL) .................. 2-15
Manual air conditioner ............................... 4-6
Manual front seat adjustment ....................... 1-3
Map lights .......................................... 2-38
Mechanical key (Intelligent Key system) ............ 3-4
Meter Trip computer .................................... 2-8
Meters and gauges .................................. 2-4
Instrument brightness control ................. 2-26
Mirror Inside mirror .................................... 3-26
Outside mirrors ................................ 3-27
Monitor, Rearview monitor .......................... 4-2
N
New vehicle break-in .............................. 5-22
NISSAN Vehicle Immobilizer System ............. 2-19
O
Odometer ............................................. 2-5
Off-road recovery .................................... 5-5
Oil Capacities and recommended fuel/
lubricants ......................................... 9-2
Changing engine oil and filter ................... 8-9
Checking engine oil level ........................ 8-9
Engine oil ......................................... 8-9
Engine oil viscosity .............................. 9-5
Outside air temperature display .................... 2-7
Outside mirrors .................................... 3-27 Overdrive OFF switch
............................. 5-16
Overheat, If your vehicle overheats ............... 6-11
Owner’s Manual/Service Manual order
information .......................................... 9-22
P
Panic alarm .................................... 3-8, 3-18
Parking Parking brake operation ....................... 5-20
Parking on hills ................................. 5-24
Phone Bluetooth
®Hands-Free Phone System ...... 4-44
Car phone or CB radio ........................ 4-44
Power Electric power steering system ............... 5-25
Power door lock ................................. 3-4
Power outlet .................................... 2-31
Power windows ................................ 2-36
Precautions Audio operation ................................ 4-13
Braking precautions ........................... 5-26
Child restraints ................................. 1-23
Cruise control .................................. 5-20
Maintenance ...................................... 8-5
Seat belt usage ................................ 1-12
Supplemental restraint system ................ 1-44
When starting and driving ....................... 5-2
Push starting ....................................... 6-10
Push-button ignition switch .................. 5-9, 5-10
R
Radio ............................................... 4-13
Car phone or CB radio ........................ 4-44 FM-AM-SAT radio with Compact Disc
(CD) player
..................................... 4-35
Steering wheel audio controls ................ 4-41
Rapid air pressure loss .............................. 5-6
Readiness for inspection/maintenance (I/M)
test .................................................. 9-21
Rear center seat belt .............................. 1-20
Rear door lock, Child safety rear door lock ........ 3-6
Rear seats ............................................ 1-4
Rear window and outside mirror defroster
switch ............................................... 2-23
Rear window wiper and washer switch .......... 2-22
Rearview monitor .................................... 4-2
Recorders, Event data ............................. 9-21
Registering your vehicle in another country ........ 9-8
Remote keyless entry function, For Intelligent
Key system ......................................... 3-17
Remote keyless entry system ....................... 3-6
Reporting safety defects (US only) ............... 9-20
Rollover ............................................... 5-5
S
Safety Child seat belts ................................ 1-15
Reporting safety defects (US only) ........... 9-20
Satellite radio operation ........................... 4-36
Seat adjustment Front manual seat adjustment. .................. 1-3
Front seats ....................................... 1-3
Seat belt(s) Child safety ..................................... 1-15
Infants ........................................... 1-15
Injured persons ................................. 1-16
Larger children ................................. 1-15
