2010 NISSAN ARMADA wiper fluid

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-4
Speedometer and odometer .....................2-5
Tachometer ....................................2-6
Engine coolant temperature gauge ...............2-6
Fuel gauge . . ..................................2-7
Engine oil pressure gauge .......................2-8
Voltmeter ......................................2-8
Automatic transmission fluid temperature
gauge .........................................2-9
Compass display (if so equipped) ...................2-9
Compass display .............................. 2-10
Zone variation change procedure ................2-11
Warning/indicator lights and audible reminders ......2-13
Checking bulbs ............................... 2-13
Warning lights ................................ 2-14
Indicator lights ................................ 2-18
Audible reminders ............................. 2-20
Vehicle Information Display ........................2-21
How to use the Vehicle Information Display .......2-21
Security systems ................................. 2-25
Vehicle security system ......................... 2-25
NISSAN vehicle immobilizer system .............2-27Windshield wiper and washer switch
...............2-28
Switch operation .............................. 2-28
Rear window wiper and washer switch ..............2-29
Rear window and outside mirror defroster switch .....2-30
Headlight and turn signal switch ....................2-30
Headlight control switch ........................ 2-30
Daytime running light system (Canada only) ......2-32
Instrument brightness control ...................2-33
Turn signal switch ............................. 2-33
Fog light switch (if so equipped) ................2-33
Hazard warning flasher switch .....................2-34
Horn ............................................ 2-34
Heated seat (if so equipped) .......................2-35
Heated steering wheel (if so equipped) .............2-35
Vehicle Dynamic Control (VDC) OFF switch .........2-36
Rear sonar system

off switch (if so equipped) ........2-36
Front and rear sonar system off switch
(if so equipped) .................................. 2-37
Tow mode switch ................................. 2-38
Power outlet ..................................... 2-38
Storage ......................................... 2-40
Instrument panel storage trays ..................2-40
Console box .................................. 2-40
REVIEW COPY—2010 Armada(wzw)
Owners Manual (owners)—USA_English (nna)
03/09/09—tbrooks

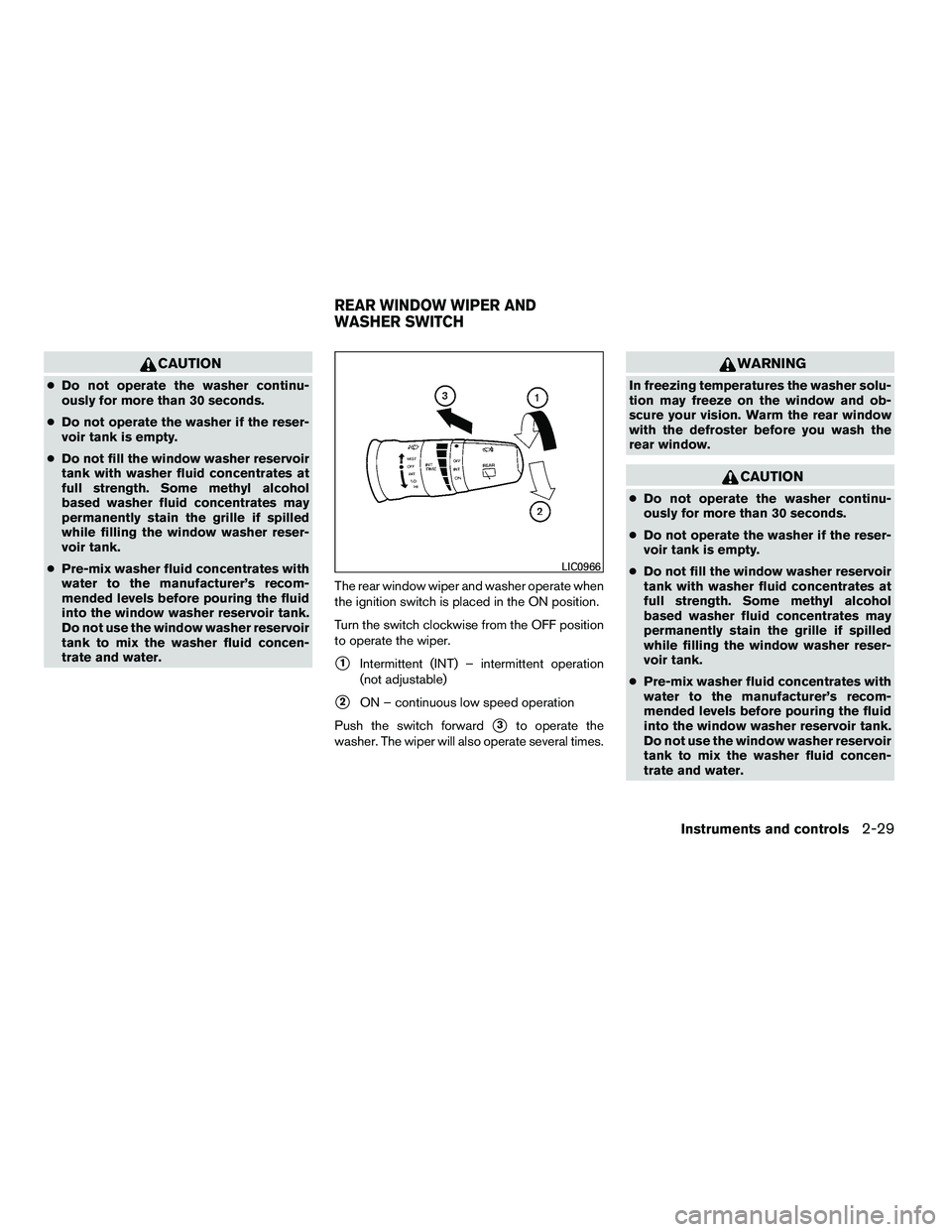

CAUTION
●Do not operate the washer continu-
ously for more than 30 seconds.
● Do not operate the washer if the reser-
voir tank is empty.
● Do not fill the window washer reservoir
tank with washer fluid concentrates at
full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the window washer reser-
voir tank.
● Pre-mix washer fluid concentrates with
water to the manufacturer’s recom-
mended levels before pouring the fluid
into the window washer reservoir tank.
Do not use the window washer reservoir
tank to mix the washer fluid concen-
trate and water. The rear window wiper and washer operate when
the ignition switch is placed in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
1Intermittent (INT) – intermittent operation
(not adjustable)
2ON – continuous low speed operation
Push the switch forward
3to operate the
washer. The wiper will also operate several times.

For details, see “Changing engine coolant” in the
“Maintenance and do-it-yourself” section of this
manual.
TIRE EQUIPMENT
1. SUMMER tires have a tread designed toprovide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your ve-
hicle on snowy or icy roads, NISSAN recom-
mends the use of MUD & SNOW or ALL
SEASON TIRES on all four wheels. Please
consult a NISSAN dealer for the tire type,
size, speed rating and availability informa-
tion.
2. For additional traction on icy roads, studded tires may be used. However, some U.S.
states and Canadian provinces prohibit their
use. Check local, state and provincial laws
before installing studded tires.
Skid and traction capabilities of studded
snow tires on wet or dry surfaces may be
poorer than that of non-studded snow tires. 3. Tire chains may be used. For details see “Tire chains” in the “Maintenance and do-it-
yourself” section of this manual.
SPECIAL WINTER EQUIPMENT
It is recommended that the following items be
carried in the vehicle during winter:
● A scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades.
● A sturdy, flat board to be placed under the
jack to give it firm support.
● A shovel to dig the vehicle out of snowdrifts.
● Extra window washer fluid to refill the reser-
voir tank.
DRIVING ON SNOW OR ICE

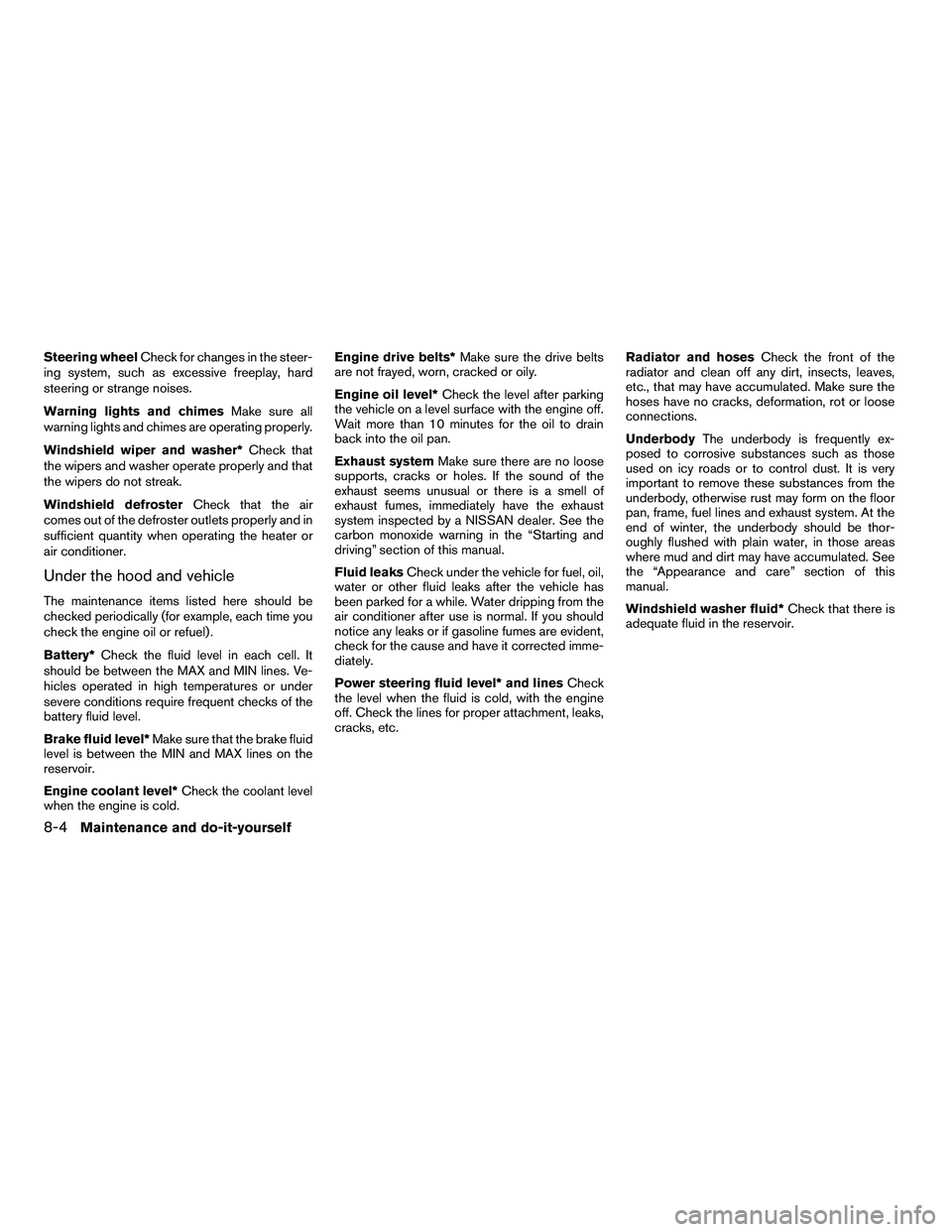

Steering wheelCheck for changes in the steer-
ing system, such as excessive freeplay, hard
steering or strange noises.
Warning lights and chimes Make sure all
warning lights and chimes are operating properly.
Windshield wiper and washer* Check that
the wipers and washer operate properly and that
the wipers do not streak.
Windshield defroster Check that the air
comes out of the defroster outlets properly and in
sufficient quantity when operating the heater or
air conditioner.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time you
check the engine oil or refuel) .
Battery* Check the fluid level in each cell. It
should be between the MAX and MIN lines. Ve-
hicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.
Brake fluid level* Make sure that the brake fluid
level is between the MIN and MAX lines on the
reservoir.
Engine coolant level* Check the coolant level
when the engine is cold. Engine drive belts*
Make sure the drive belts
are not frayed, worn, cracked or oily.
Engine oil level* Check the level after parking
the vehicle on a level surface with the engine off.
Wait more than 10 minutes for the oil to drain
back into the oil pan.
Exhaust system Make sure there are no loose
supports, cracks or holes. If the sound of the
exhaust seems unusual or there is a smell of
exhaust fumes, immediately have the exhaust
system inspected by a NISSAN dealer. See the
carbon monoxide warning in the “Starting and
driving” section of this manual.
Fluid leaks Check under the vehicle for fuel, oil,
water or other fluid leaks after the vehicle has
been parked for a while. Water dripping from the
air conditioner after use is normal. If you should
notice any leaks or if gasoline fumes are evident,
check for the cause and have it corrected imme-
diately.
Power steering fluid level* and lines Check
the level when the fluid is cold, with the engine
off. Check the lines for proper attachment, leaks,
cracks, etc. Radiator and hoses
Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure the
hoses have no cracks, deformation, rot or loose
connections.
Underbody The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances from the
underbody, otherwise rust may form on the floor
pan, frame, fuel lines and exhaust system. At the
end of winter, the underbody should be thor-
oughly flushed with plain water, in those areas
where mud and dirt may have accumulated. See
the “Appearance and care” section of this
manual.
Windshield washer fluid* Check that there is
adequate fluid in the reservoir.
8-4Maintenance and do-it-yourself
REVIEW COPY—2010 Armada (wzw)
Owners Manual (owners)—USA_English (nna)
02/18/09—debbie


Changing engine oil filter..........8-10
Checking engine oil level ..........8-8
Engine oil ...................8-8
Engine oil and oil filter recommendation . .9-6
Engine oil pressure low/engine coolant
temperature high warning light .......2-15
Engine oil viscosity ..............9-6
Outside mirror control .............3-34
Outside mirrors .................3-34
Overheat If your vehicle overheats ..........6-10
Owner’s manual order form ..........9-33
Owner’s manual/service manual order
information ....................9-33
P
Parking Parking brake operation ..........5-17
Parking/parking on hills ...........5-27
Pedal position adjustment ...........3-30
Personal lights .................2-57
Phone, Bluetooth hands-free system . . . .4-92,
4-107
Power Power door locks ...............3-6
Power outlet .................2-38
Power rear windows ............2-52
Power steering fluid .............8-11
Power steering system ...........5-28
Power vent windows ............2-53
Power windows ...............2-50
Rear power windows ............2-52
Precautions Maintenance precautions ..........8-5 On-pavement and off-road driving
precautions
..................5-3
Precautions on child restraints . . .1-32, 1-40,
1-45, 1-50
Precautions on seat belt usage ......1-21
Precautions on supplemental restraint
system ....................1-53
Precautions when starting and driving . . .5-2
Pre-tensioner seat belt system .........1-66
Programmable features ..........4-9, 4-26
Push starting ..................6-10
R
Radio Car phone or

CB radio...........4-92
Compact Disc (CD) changer .......4-50
FM/AM/SAT radio with compact disc (CD)
changer ...................4-47
FM/AM/SAT radio with compact disc (CD)
player ....................4-55
Rear audio controls .............4-75
Steering wheel audio control switch. . . .4-73
Readiness for inspection maintenance (I/M)
test ........................9-31
Rear audio controls ...............4-75
Rear center seat belt ..............1-27
Rear power windows ..............2-52
Rear seat air conditioner ............4-38
Rear sonar system ...............5-31
Rear sonar system off switch .........2-36
Rear window and outside mirror defroster
switch ......................2-30
Rear window wiper and washer switches . . .2-29
RearView Monitor ................4-33 Recorders
Event data ..................9-32
Refrigerant recommendation ..........9-7
Registering your vehicle in another country . .9-10
Remote controller (See NISSAN mobile
entertainment system) .............4-79
Remote keyless entry system ..........3-7
Reporting safety defects (US only) ......9-31
Resetting the fuel economy ........4-5, 4-21
Roof rack ....................2-49
S
Safety Child safety rear door lock ..........3-7
Child seat belts . . . .1-32, 1-40, 1-45, 1-50
Reporting safety defects (US only) . . . .9-31
Screen (See NISSAN mobile entertainment
system) .....................4-79
Seat adjustment Front manual seat adjustment ........1-2
Front power seat adjustment ........1-4
Second row bench seats ..........1-6
Second row captain’s chair .........1-5
Third row power folding seats .......1-20
Seat belt Child safety .................1-31
Infants and small children .........1-31
Injured Person............... .1-24
Larger

children ...............1-32
Precautions on seat belt usage ......1-21
Pregnant women ..............1-24
Pre-tensioner seat belt system .......1-66
Rear center seat belt ............1-27
Seat belt extenders .............1-30
10-5
REVIEW COPY—2010 Armada(wzw)
Owners Manual (owners)—USA_English (nna)
03/09/09—tbrooks


Seat belt maintenance...........1-30
Seat belts ..................1-21
Shoulder belt height adjustment ......1-29
Three-point type with retractor .......1-24
Seat belt warning light .............2-18
Seatback pockets ................2-42
Seats Adjustment ..................1-2
Automatic drive positioner .........3-36
Front seats ..................1-2
Heated seats ................2-35
Manual front seat adjustment ........1-2
Second row captain’s chair adjustment .....1-5
Security indicator light .............2-19
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-27, 3-4, 5-12
Self-adjusting brakes ..............8-22
Service manual order form ...........9-33
Servicing air conditioner ............4-39
Setting button ...............4-9, 4-26
Shift lock release ................5-16
Shifting Automatic transmission ...........5-15
Shoulder belt height adjustment ........1-29
Side air bag system (See supplemental side air
bag, curtain and rollover air bag systems). . .1-65
Sonar Front system .................5-32
Rear system .................5-31
Spark plug replacement ............8-16
Speedometer ...................2-5
SRS warning label ...............1-67
Starting Before starting the engine .........5-12
Jump starting .................6-8
Precautions when starting and driving . . .5-2 Push starting
................6-10
Starting the engine .............5-12
Startup screen .................4-20
Steering Heated steering wheel ...........2-35
Power steering

fluid .............8-11
Power steering system ...........5-28
Tilting steering wheel ............3-30
Steering wheel audio control switch ......4-73
Stop light ....................8-30
Storage .....................2-40
Overhead storage compartment ......2-43
Storage bin ................2-43, 2-47
Storage tray ...................2-40
Sun visors ....................3-31
Sunglasses case ................2-41
Sunglasses holder ...............2-41
Sunroof .....................2-54
Supplemental air bag warning labels .....1-67
Supplemental air bag warning light . . .1-68, 2-18
Supplemental front impact air bag system . .1-61
Supplemental restraint system Information and warning labels .......1-67
Precautions on supplemental restraint
system ....................1-53
Supplemental restraint system
(Supplemental air bag system) .........1-53
Switch Autolight switch ...............2-31
Automatic power window switch .....2-52
Fog light switch ...............2-33
Hazard warning flasher switch .......2-34
Headlight and turn signal switch ......2-30
Headlight control switch ..........2-30
Ignition switch ................5-9
Power door lock switch ...........3-6 Rear sonar system off switch
.......2-36
Rear window and outside mirror defroster
switch ....................2-30
Rear window wiper and washer
switches ...................2-29
Turn signal switch ..............2-33
Vehicle dynamic control (VDC) off
switch ....................2-36
Windshield wiper and washer switch . . .2-28
T
Tachometer ....................2-6
Temperature gauge Engine coolant temperature gauge .....2-6
Engine oilpressure

low/engine coolant
temperature high warning light .......2-15
Theft (NISSAN vehicle immobilizer system) ,
engine start .............2-27, 3-4, 5-12
Third row power folding seats .........1-20
Three-way catalyst ................5-2
Tilting steering wheel ..............3-30
Tire Flat tire ....................6-2
Spare tire ...................6-3
Tire and Loading Information label .....9-12
Tire chains ..................8-41
Tire placard .................9-12
Tire pressure ................8-34
Tire rotation .................8-41
Tires of 4-wheel drive ............8-43
Types of tires ................8-40
Uniform tire quality grading .........9-29
Wheels and tires ..............8-34
Wheel/tire size ................9-9
10-6
REVIEW COPY—2010 Armada(wzw)
Owners Manual (owners)—USA_English (nna)
03/09/09—tbrooks


Tire pressureLow tire pressure warning light ......2-16
Tire pressure display ...........4-6, 4-22
Tire Pressure Monitoring System (TPMS) . . .5-3
Tire rotation maintenance reminder . . .4-6, 4-22
Top tether strap child restraint .........1-37
Tow mode switch ................2-38
Towing 2-wheel drive models ............6-12
4-wheel drive models ............6-13
Flat towing ..................9-28
Tow truck towing ..............6-11
Towing load/specification .........9-20
Trailer towing ................9-17
Transceiver HomeLink Universal Transceiver .....2-58
Transmission Driving with automatic transmission . . . .5-14
Travel (See registering your vehicle in another
country) .....................9-10
Trip odometer ...................2-5
Turn signal switch ................2-33
U
Uniform tire quality grading ...........9-29
V
Vanity mirror ...................3-31
Variable voltage control system ........8-15
Vehicle dimensions and weights ........9-9
Vehicle dynamic control (VDC) off switch. . .2-36
Vehicle dynamic control (VDC) system . . . .5-30 Vehicle electronic system
........4-13, 4-29
Vehicle identification ..............9-10
Vehicle identification number (VIN)
(Chassis number) ................9-10
Vehicle identification number (VIN) plate . . .9-10
Vehicle loading information ...........9-13
Vehicle recovery .............6-13, 6-14
Vehicle security system .............2-25
Vehicle security system
(NISSAN vehicle immobilizer system) ,
engine start .............2-27, 3-4, 5-12
Ventilators ....................4-35
Visors ......................3-31
Voice recognition system ...........4-118
Voltmeter .....................2-8
W
Warning 4WD warning light............

.2-16
Air bag warning light .........1-68, 2-18
Anti-lock brake warning light ........2-14
Battery charge warning light ........2-15
Brake warning light .............2-14
Engine oil pressure low/engine coolant
temperature high warning light .......2-15
Hazard warning flasher switch .......2-34
Low fuel warning light . . . .2-16, 2-18, 2-24
Low tire pressure warning light ......2-16
Low washer fluid warning light .......2-24
Passenger air bag and status light .....1-62
Seat belt warning light ...........2-18
Vehicle security system ...........2-25
Warning labels (for SRS) ..........1-67 Warning/indicator lights and audible
reminders
..................2-13
Warning lights ..................2-13
Washer switch Rear window wiper and washer
switches ...................2-29
Windshield wiper and washer switch . . .2-28
Weights (See dimensions and weights) . . . .9-9
Wheels and tires ................8-34
Wheel/tire size ..................9-9
When traveling or registering your vehicle in
another country .................9-10
Window washer fluid ..............8-13
Windows Locking passengers’ windows .......2-51
Manual vent windows ............2-53
Power rear windows ............2-52
Power vent windows ............2-53
Power windows ...............2-50
Rear power windows ............2-52
Windshield wiper and washer switch .....2-28
Wiper Rear window wiper and washer
switches ...................2-29
Windshield wiper and washer switch . . .2-28
Wiper blades ................8-19
10-7
REVIEW COPY—2010 Armada (wzw)
Owners Manual (owners)—USA_English (nna)
03/09/09—tbrooks
