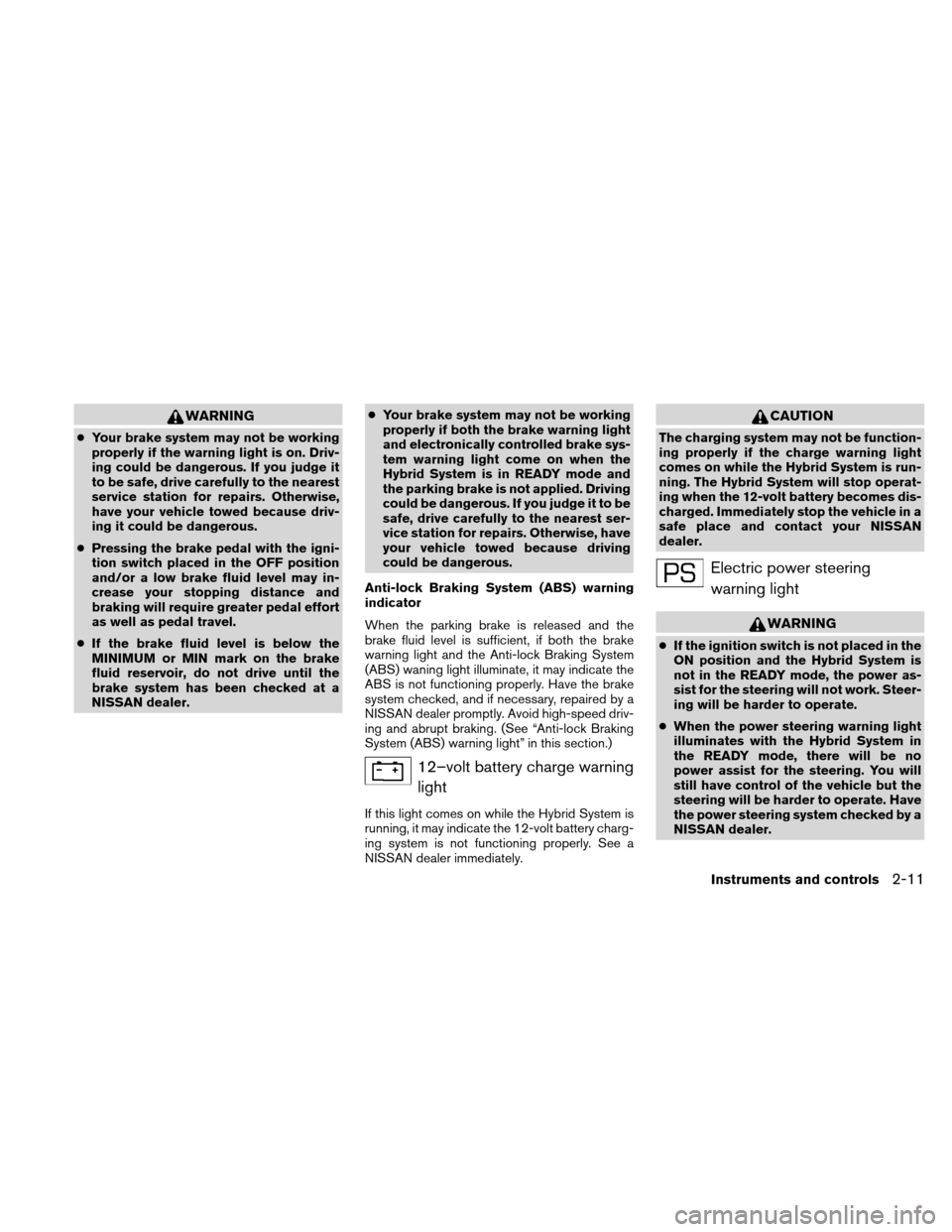

WARNING
●Your brake system may not be working
properly if the warning light is on. Driv-
ing could be dangerous. If you judge it
to be safe, drive carefully to the nearest
service station for repairs. Otherwise,
have your vehicle towed because driv-
ing it could be dangerous.
● Pressing the brake pedal with the igni-
tion switch placed in the OFF position
and/or a low brake fluid level may in-
crease your stopping distance and
braking will require greater pedal effort
as well as pedal travel.
● If the brake fluid level is below the
MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer. ●
Your brake system may not be working
properly if both the brake warning light
and electronically controlled brake sys-
tem warning light come on when the
Hybrid System is in READY mode and
the parking brake is not applied. Driving
could be dangerous. If you judge it to be
safe, drive carefully to the nearest ser-
vice station for repairs. Otherwise, have
your vehicle towed because driving
could be dangerous.
Anti-lock Braking System (ABS) warning
indicator
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) waning light illuminate, it may indicate the
ABS is not functioning properly. Have the brake
system checked, and if necessary, repaired by a
NISSAN dealer promptly. Avoid high-speed driv-
ing and abrupt braking. (See “Anti-lock Braking
System (ABS) warning light” in this section.)
12–volt battery charge warning light
If this light comes on while the Hybrid System is
running, it may indicate the 12-volt battery charg-
ing system is not functioning properly. See a
NISSAN dealer immediately.
CAUTION
The charging system may not be function-
ing properly if the charge warning light
comes on while the Hybrid System is run-
ning. The Hybrid System will stop operat-
ing when the 12-volt battery becomes dis-
charged. Immediately stop the vehicle in a
safe place and contact your NISSAN
dealer.
Electric power steering
warning light
WARNING
● If the ignition switch is not placed in the
ON position and the Hybrid System is
not in the READY mode, the power as-
sist for the steering will not work. Steer-
ing will be harder to operate.
● When the power steering warning light
illuminates with the Hybrid System in
the READY mode, there will be no
power assist for the steering. You will
still have control of the vehicle but the
steering will be harder to operate. Have
the power steering system checked by a
NISSAN dealer.
Instruments and controls2-11

(1) This device may not cause harmful in-
terference, and (2) this device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion of the device.
CHANGES OR MODIFICATIONS NOT EX-
PRESSLY APPROVED BY THE PARTY RE-
SPONSIBLE FOR COMPLIANCE COULD
VOID THE USER’S AUTHORITY TO OPER-
ATE THE EQUIPMENT.
Security indicator light
The security indicator light blinks whenever the
ignition switch is placed in the LOCK, OFF or
ACC position. This function indicates the
NISSAN Vehicle Immobilizer System is opera-
tional.
If the NISSAN Vehicle Immobilizer System is mal-
functioning, the light will remain on while the
ignition switch is placed in the ON position.If the light still remains on and/or the Hy-
brid System will not start, see a NISSAN
dealer for NISSAN Vehicle Immobilizer
System service as soon as possible. Please
bring all registered keys that you have
when visiting your NISSAN dealer for ser-
vice.
LIC0474
Instruments and controls2-27

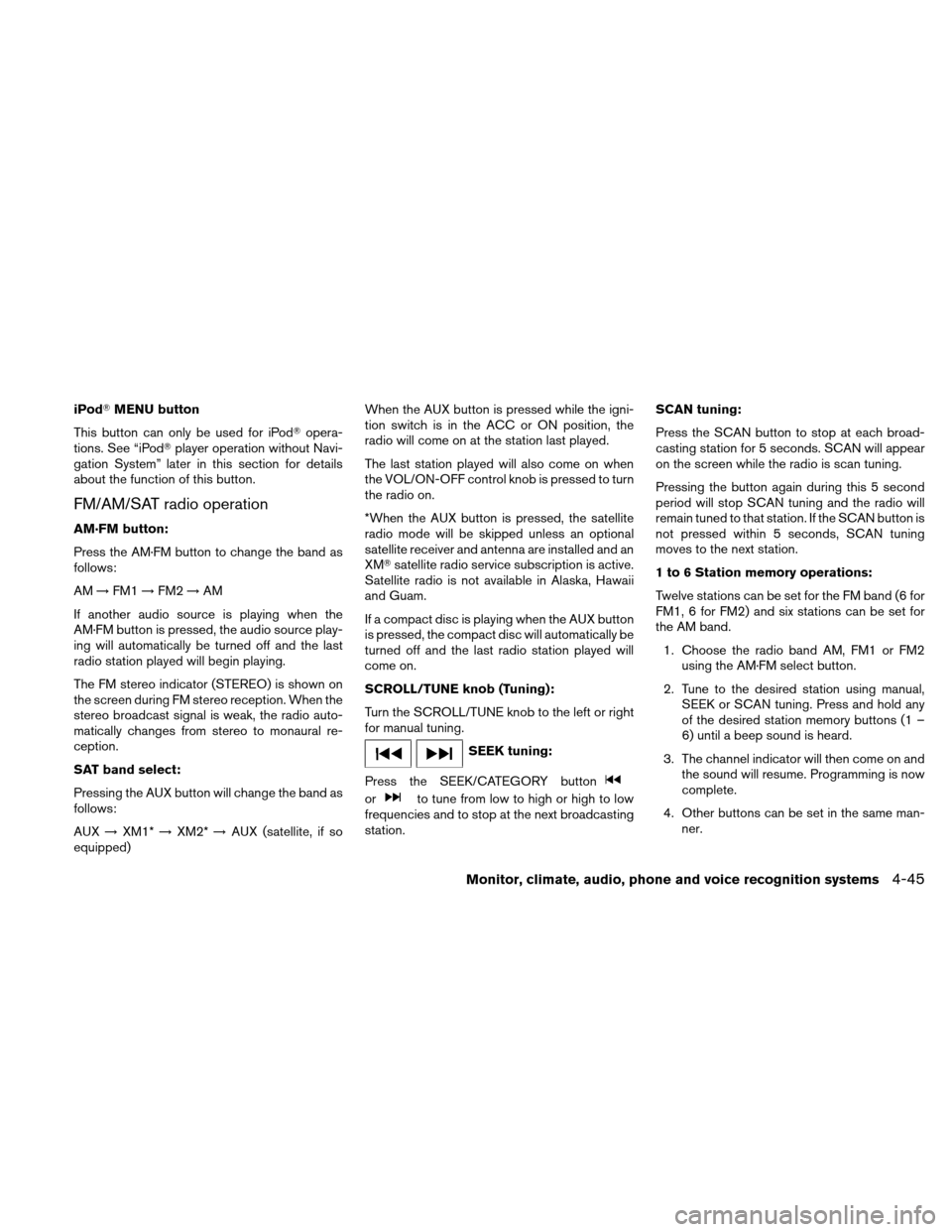

iPodMENU button
This button can only be used for iPod opera-
tions. See “iPod player operation without Navi-
gation System” later in this section for details
about the function of this button.
FM/AM/SAT radio operation
AM·FM button:
Press the AM·FM button to change the band as
follows:
AM →FM1 →FM2 →AM
If another audio source is playing when the
AM·FM button is pressed, the audio source play-
ing will automatically be turned off and the last
radio station played will begin playing.
The FM stereo indicator (STEREO) is shown on
the screen during FM stereo reception. When the
stereo broadcast signal is weak, the radio auto-
matically changes from stereo to monaural re-
ception.
SAT band select:
Pressing the AUX button will change the band as
follows:
AUX →XM1* →XM2* →AUX (satellite, if so
equipped) When the AUX button is pressed while the igni-
tion switch is in the ACC or ON position, the
radio will come on at the station last played.
The last station played will also come on when
the VOL/ON-OFF control knob is pressed to turn
the radio on.
*When the AUX button is pressed, the satellite
radio mode will be skipped unless an optional
satellite receiver and antenna are installed and an
XM
satellite radio service subscription is active.
Satellite radio is not available in Alaska, Hawaii
and Guam.
If a compact disc is playing when the AUX button
is pressed, the compact disc will automatically be
turned off and the last radio station played will
come on.
SCROLL/TUNE knob (Tuning):
Turn the SCROLL/TUNE knob to the left or right
for manual tuning.
SEEK tuning:
Press the SEEK/CATEGORY button
orto tune from low to high or high to low
frequencies and to stop at the next broadcasting
station. SCAN tuning:
Press the SCAN button to stop at each broad-
casting station for 5 seconds. SCAN will appear
on the screen while the radio is scan tuning.
Pressing the button again during this 5 second
period will stop SCAN tuning and the radio will
remain tuned to that station. If the SCAN button is
not pressed within 5 seconds, SCAN tuning
moves to the next station.
1 to 6 Station memory operations:
Twelve stations can be set for the FM band (6 for
FM1, 6 for FM2) and six stations can be set for
the AM band.
1. Choose the radio band AM, FM1 or FM2 using the AM·FM select button.
2. Tune to the desired station using manual, SEEK or SCAN tuning. Press and hold any
of the desired station memory buttons (1 –
6) until a beep sound is heard.
3. The channel indicator will then come on and the sound will resume. Programming is now
complete.
4. Other buttons can be set in the same man- ner.
Monitor, climate, audio, phone and voice recognition systems4-45

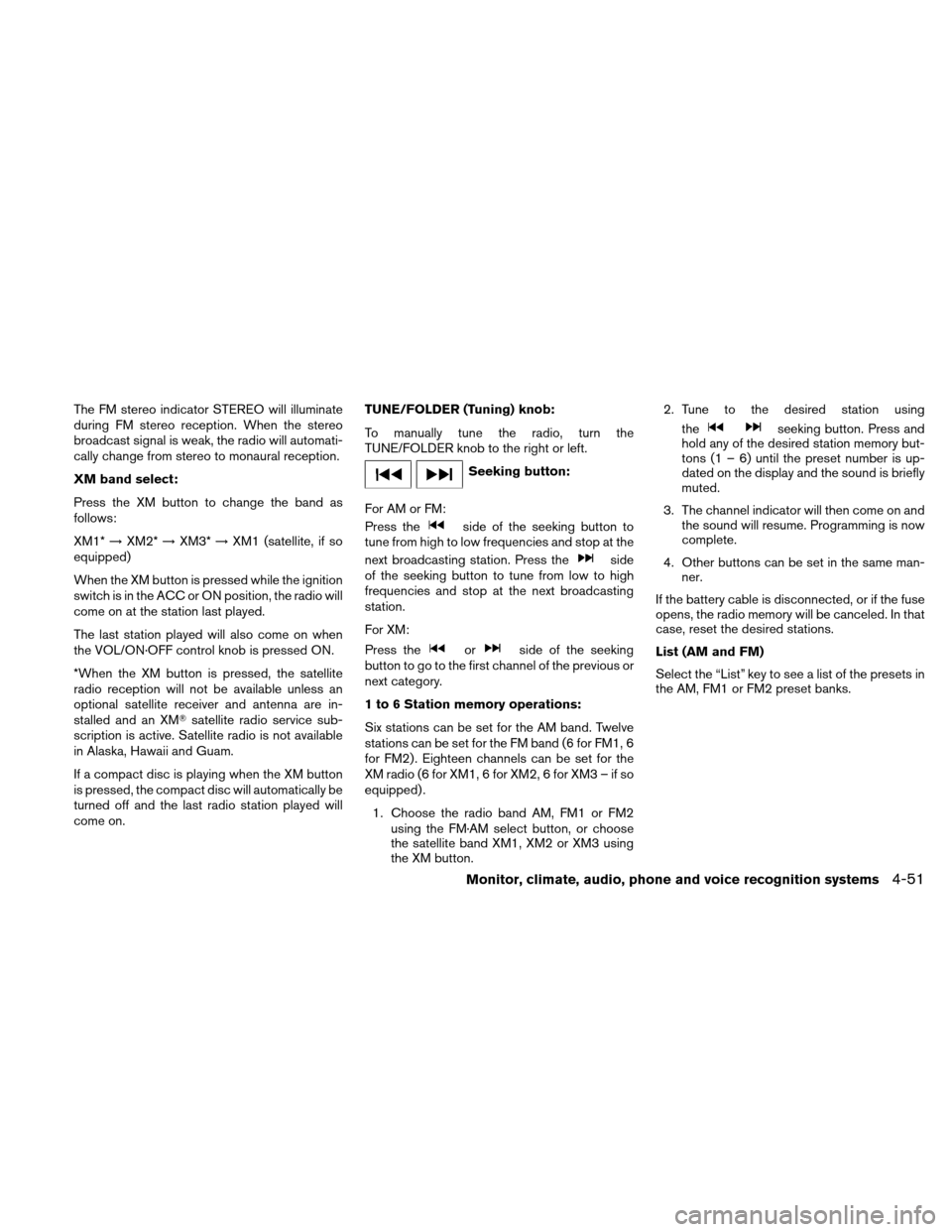

The FM stereo indicator STEREO will illuminate
during FM stereo reception. When the stereo
broadcast signal is weak, the radio will automati-
cally change from stereo to monaural reception.
XM band select:
Press the XM button to change the band as
follows:
XM1*→XM2* →XM3* →XM1 (satellite, if so
equipped)
When the XM button is pressed while the ignition
switch is in the ACC or ON position, the radio will
come on at the station last played.
The last station played will also come on when
the VOL/ON·OFF control knob is pressed ON.
*When the XM button is pressed, the satellite
radio reception will not be available unless an
optional satellite receiver and antenna are in-
stalled and an XM satellite radio service sub-
scription is active. Satellite radio is not available
in Alaska, Hawaii and Guam.
If a compact disc is playing when the XM button
is pressed, the compact disc will automatically be
turned off and the last radio station played will
come on. TUNE/FOLDER (Tuning) knob:
To manually tune the radio, turn the
TUNE/FOLDER knob to the right or left.
Seeking button:
For AM or FM:
Press the
side of the seeking button to
tune from high to low frequencies and stop at the
next broadcasting station. Press the
side
of the seeking button to tune from low to high
frequencies and stop at the next broadcasting
station.
For XM:
Press the
orside of the seeking
button to go to the first channel of the previous or
next category.
1 to 6 Station memory operations:
Six stations can be set for the AM band. Twelve
stations can be set for the FM band (6 for FM1, 6
for FM2) . Eighteen channels can be set for the
XM radio (6 for XM1, 6 for XM2, 6 for XM3 – if so
equipped) .
1. Choose the radio band AM, FM1 or FM2 using the FM·AM select button, or choose
the satellite band XM1, XM2 or XM3 using
the XM button. 2. Tune to the desired station using
the
seeking button. Press and
hold any of the desired station memory but-
tons (1 – 6) until the preset number is up-
dated on the display and the sound is briefly
muted.
3. The channel indicator will then come on and the sound will resume. Programming is now
complete.
4. Other buttons can be set in the same man- ner.
If the battery cable is disconnected, or if the fuse
opens, the radio memory will be canceled. In that
case, reset the desired stations.
List (AM and FM)
Select the “List” key to see a list of the presets in
the AM, FM1 or FM2 preset banks.
Monitor, climate, audio, phone and voice recognition systems4-51

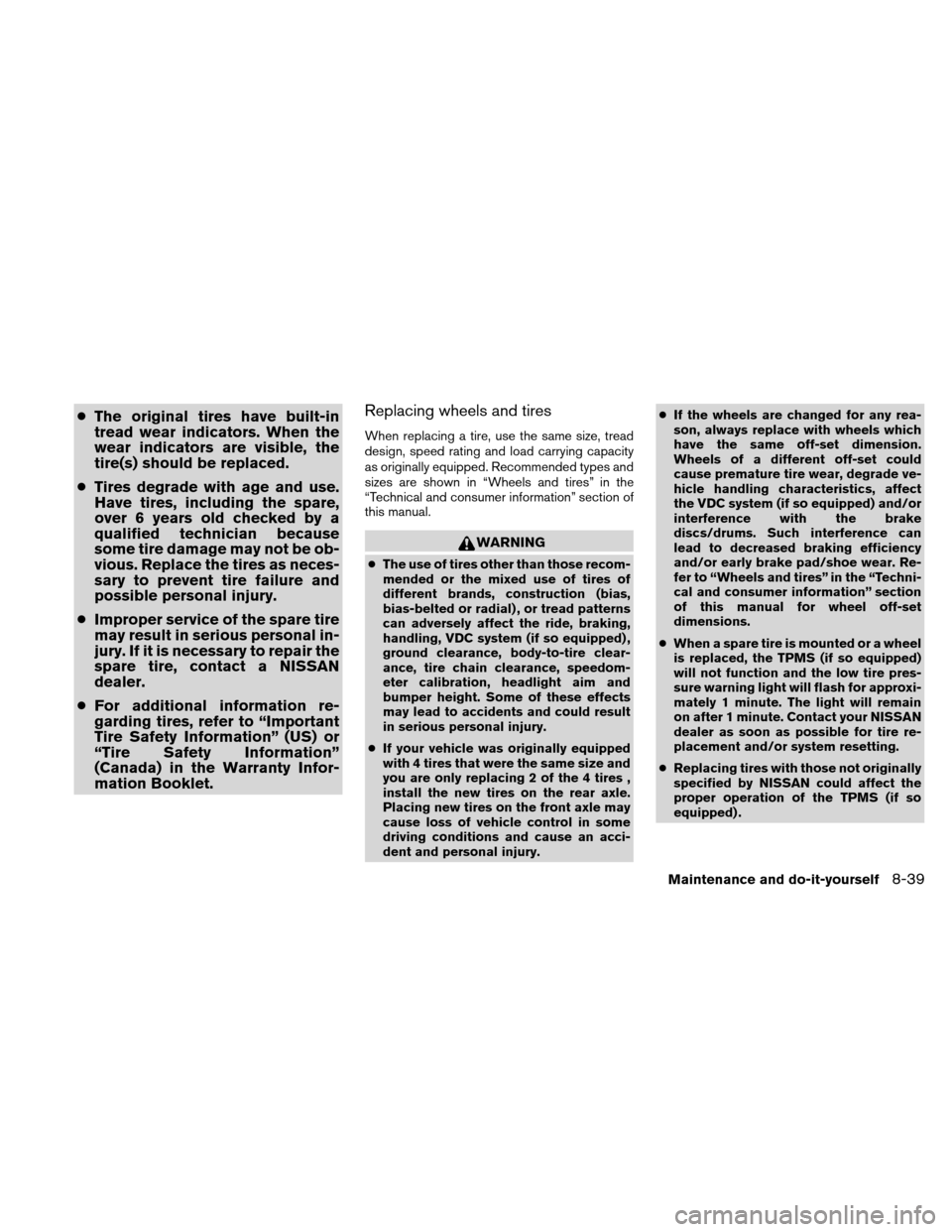

●The original tires have built-in
tread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.
● Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician because
some tire damage may not be ob-
vious. Replace the tires as neces-
sary to prevent tire failure and
possible personal injury.
● Improper service of the spare tire
may result in serious personal in-
jury. If it is necessary to repair the
spare tire, contact a NISSAN
dealer.
● For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.Replacing wheels and tires
When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. Recommended types and
sizes are shown in “Wheels and tires” in the
“Technical and consumer information” section of
this manual.
WARNING
● The use of tires other than those recom-
mended or the mixed use of tires of
different brands, construction (bias,
bias-belted or radial) , or tread patterns
can adversely affect the ride, braking,
handling, VDC system (if so equipped) ,
ground clearance, body-to-tire clear-
ance, tire chain clearance, speedom-
eter calibration, headlight aim and
bumper height. Some of these effects
may lead to accidents and could result
in serious personal injury.
● If your vehicle was originally equipped
with 4 tires that were the same size and
you are only replacing 2 of the 4 tires ,
install the new tires on the rear axle.
Placing new tires on the front axle may
cause loss of vehicle control in some
driving conditions and cause an acci-
dent and personal injury. ●
If the wheels are changed for any rea-
son, always replace with wheels which
have the same off-set dimension.
Wheels of a different off-set could
cause premature tire wear, degrade ve-
hicle handling characteristics, affect
the VDC system (if so equipped) and/or
interference with the brake
discs/drums. Such interference can
lead to decreased braking efficiency
and/or early brake pad/shoe wear. Re-
fer to “Wheels and tires” in the “Techni-
cal and consumer information” section
of this manual for wheel off-set
dimensions.
● When a spare tire is mounted or a wheel
is replaced, the TPMS (if so equipped)
will not function and the low tire pres-
sure warning light will flash for approxi-
mately 1 minute. The light will remain
on after 1 minute. Contact your NISSAN
dealer as soon as possible for tire re-
placement and/or system resetting.
● Replacing tires with those not originally
specified by NISSAN could affect the
proper operation of the TPMS (if so
equipped) .
Maintenance and do-it-yourself8-39

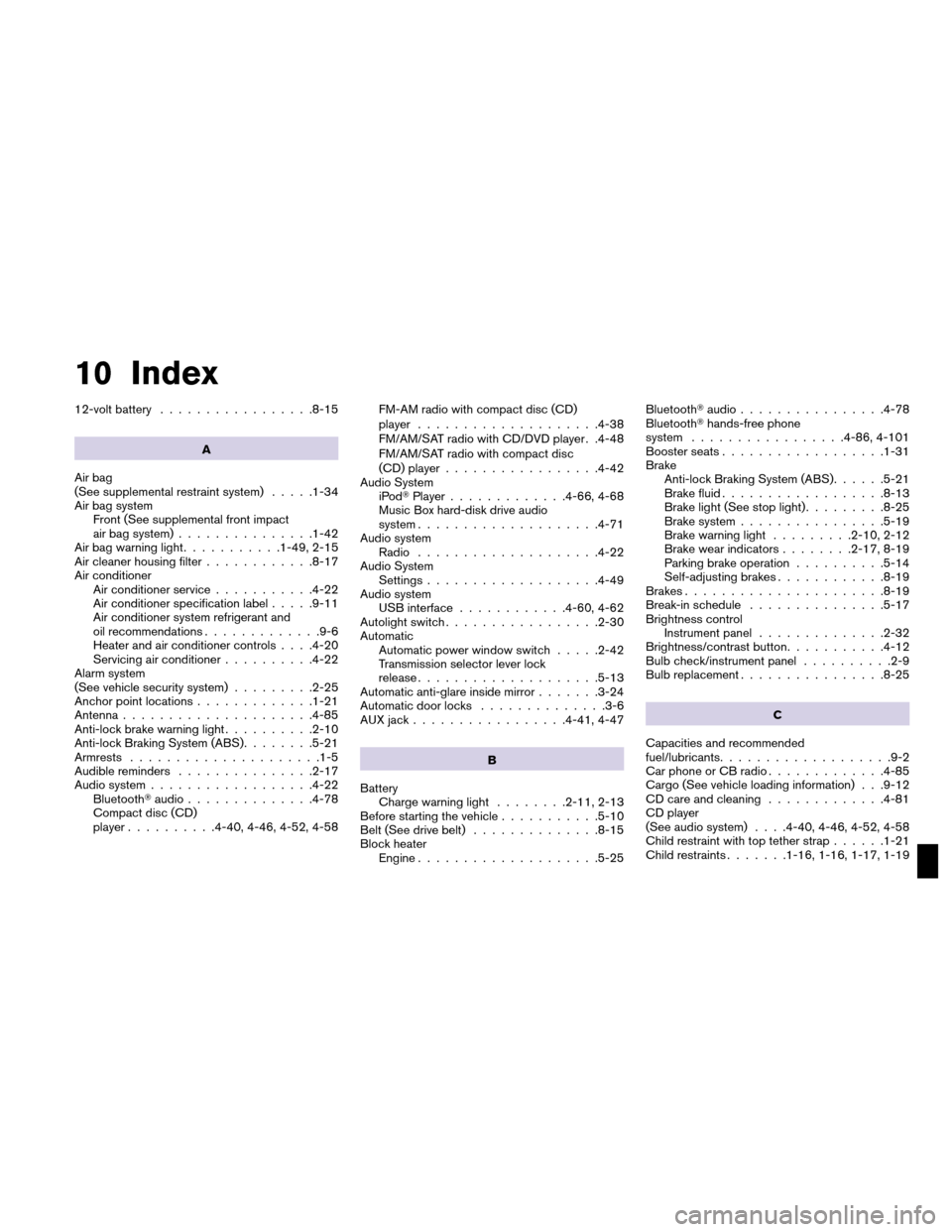

10 Index
12-volt battery.................8-15
A
Air bag
(See supplemental restraint system) .....1-34
Air bag system Front (See supplemental front impact
air bag system) ...............1-42
Air bag warning light ...........1-49, 2-15
Air cleaner housing filter ............8-17
Air conditioner Air conditioner service ...........4-22
Air conditioner specification label .....9-11
Air conditioner system refrigerant and
oil recommendations .............9-6
Heater and air conditioner controls . . . .4-20
Servicing air conditioner ..........4-22
Alarm system
(See vehicle security system) .........2-25
Anchor point locations .............1-21
Antenna .....................4-85
Anti-lock brake warning light ..........2-10
Anti-lock Braking System (ABS) ........5-21
Armrests .....................1-5
Audible reminders ...............2-17
Audio system ..................4-22
Bluetooth audio..............4-78
Compact disc (CD)
player ..........4-40, 4-46, 4-52, 4-58 FM-AM radio with compact disc (CD)
player
....................4-38
FM/AM/SAT radio with CD/DVD player . .4-48
FM/AM/SAT radio with compact disc
(CD) player .................4-42
Audio System iPod Player .............4-66, 4-68
Music Box hard-disk drive audio
system ....................4-71
Audio system Radio ....................4-22
Audio System Settings ...................4-49
Audio system USB interface ............4-60, 4-62
Autolight switch .................2-30
Automatic Automatic power window switch .....2-42
Transmission selector lever lock
release ....................5-13
Automatic
anti-glare inside mirror .......3-24
Automatic door locks ..............3-6
AUX jack .................4-41, 4-47
B
Battery Charge warning light ........2-11, 2-13
Before starting the vehicle ...........5-10
Belt (See drive belt) ..............8-15
Block heater Engine ....................5-25 Bluetooth
audio................4-78
Bluetooth hands-free phone
system .................4-86, 4-101
Booster seats ..................1-31
Brake Anti-lock Braking System (ABS) ......5-21
Brake fluid ..................8-13
Brake light (See stop light) .........8-25
Brake system ................5-19
Brake warning light .........2-10, 2-12
Brake wear indicators ........2-17, 8-19
Parking brake operation ..........5-14
Self-adjusting brakes ............8-19
Brakes ......................8-19
Break-in schedule ...............5-17
Brightness control Instrument panel ..............2-32
Brightness/contrast button ...........4-12
Bulb check/instrument panel ..........2-9
Bulb replacement ................8-25
C
Capacities and recommended
fuel/lubricants ...................9-2
Car phone or CB radio .............4-85
Cargo (See vehicle loading information) . . .9-12
CD care and cleaning .............4-81
CD player
(See audio system) . . . .4-40, 4-46, 4-52, 4-58
Child restraint with top tether strap ......1-21
Child restraints .......1-16,
1-16, 1-17, 1-19

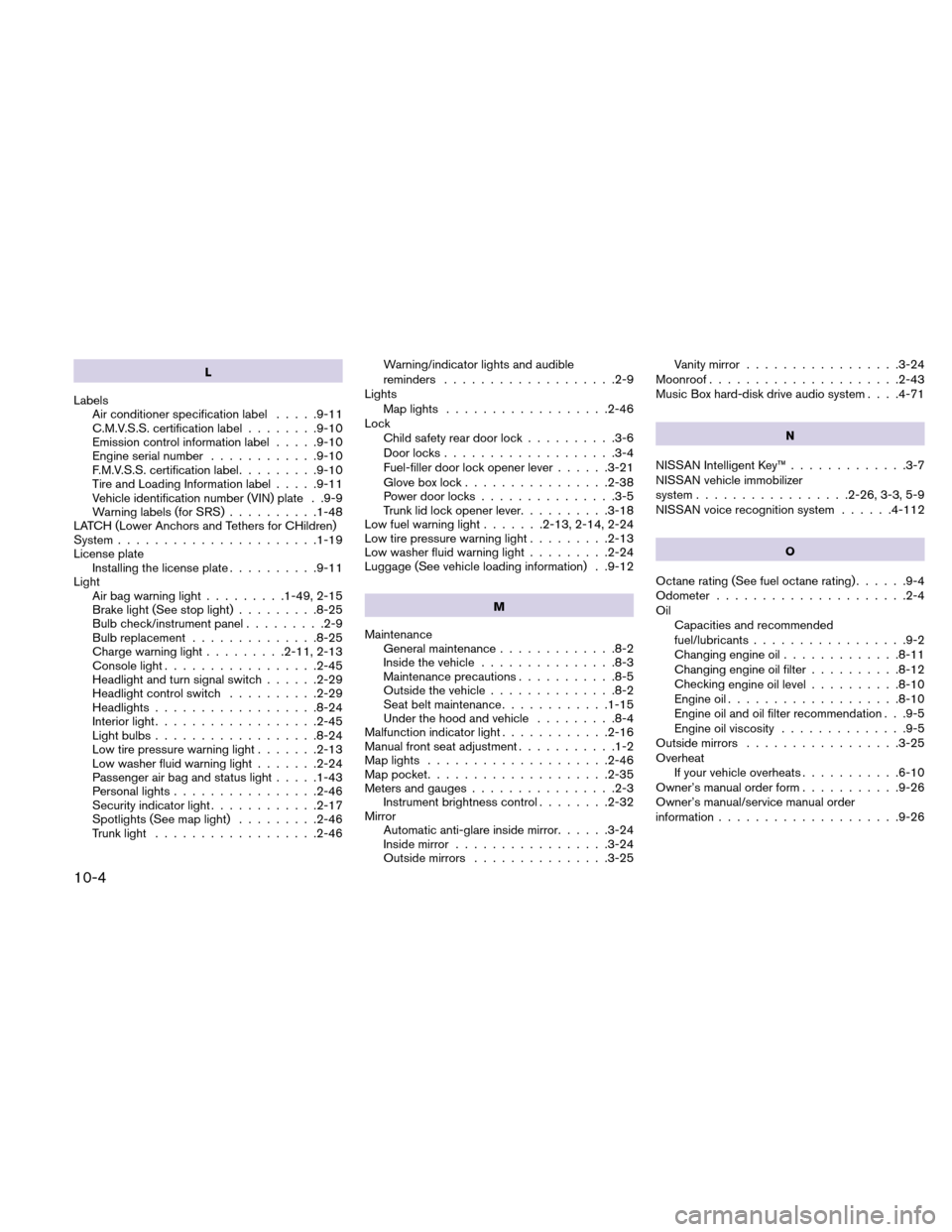

L
Labels Air conditioner specification label .....9-11
C.M.V.S.S. certification label ........9-10
Emission control information label .....9-10
Engine serial number ............9-10
F.M.V.S.S. certification label .........9-10
Tire and Loading Information label .....9-11
Vehicle identification number (VIN) plate . .9-9
Warning labels (for SRS) ..........1-48
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-19
License plate Installing the license plate ..........9-11
Light Air bag warning light .........1-49, 2-15
Brake light (See stop light) .........8-25
Bulb check/instrument panel .........2-9
Bulb replacement ..............8-25
Charge warning light .........2-11, 2-13
Console light .................2-45
Headlight and turn signal switch ......2-29
Headlight control switch ..........2-29
Headlights ..................8-24
Interior light ..................2-45
Light bulbs ..................8-24
Low tire pressure warning light .......2-13
Low washer fluid warning light .......2-24
Passenger air bag and status light .....1-43
Personal lights ................2-46
Security indicator light ............2-17
Spotlights (See map light) .........2-46
Trunk light ..................2-46 Warning/indicator lights and audible
reminders
...................2-9
Lights Map lights ..................2-46
Lock Child safety rear door lock ..........3-6
Door locks ...................3-4
Fuel-filler door lock opener lever ......3-21
Glove

box lock ................2-38
Power door locks ...............3-5
Trunk lid lock opener lever ..........3-18
Low fuel warning light .......2-13, 2-14, 2-24
Low tire pressure warning light .........2-13
Low washer fluid warning light .........2-24
Luggage (See vehicle loading information) . .9-12
M
Maintenance General maintenance .............8-2
Inside the vehicle ...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-15
Under the hood and vehicle .........8-4
Malfunction indicator light ............2-16
Manual front seat adjustment ...........1-2
Map lights ....................2-46
Map pocket ....................2-35
Meters and gauges ................2-3
Instrument brightness control ........2-32
Mirror Automatic anti-glare inside mirror ......3-24
Inside mirror .................3-24
Outside mirrors ...............3-25 Vanity mirror
.................3-24
Moonroof .....................2-43
Music Box hard-disk drive audio system . . . .4-71
N
NISSAN Intelligent Key™ .............3-7
NISSAN vehicle immobilizer
system .................2-26, 3-3, 5-9
NISSAN voice recognition system ......4-112
O
Octane rating (See fuel octane rating) ......9-4
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-11
Changing engine oil filter ..........8-12
Checking
engine oil level ..........8-10
Engine oil ...................8-10
Engine oil and oil filter recommendation . . .9-5
Engine oil viscosity ..............9-5
Outside mirrors .................3-25
Overheat If your vehicle overheats ...........6-10
Owner’s manual order form ...........9-26
Owner’s manual/service manual order
information ....................9-26
10-4

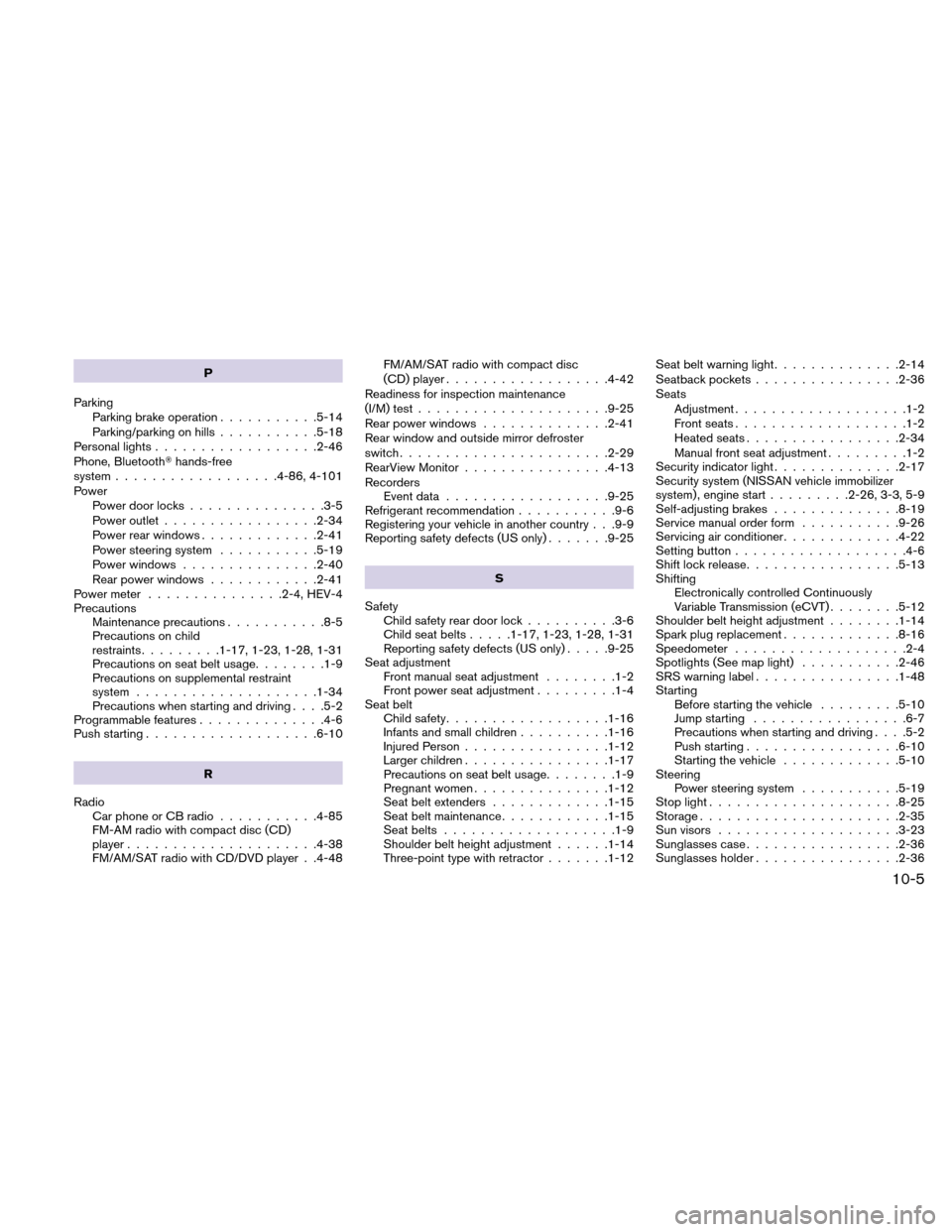

P
Parking Parking brake operation ...........5-14
Parking/parking on hills ...........5-18
Personal lights ..................2-46
Phone, Bluetooth hands-free
system ..................4-86, 4-101
Power Power door locks ...............3-5
Power outlet .................2-34
Power rear windows .............2-41
Power steering system ...........5-19
Power windows ...............2-40
Rear power windows ............2-41
Power meter ...............2-4, HEV-4
Precautions Maintenance precautions ...........8-5
Precautions on child
restraints .........1-17, 1-23, 1-28, 1-31
Precautions on seat belt usage ........1-9
Precautions on supplemental restraint
system ....................1-34
Precautions when starting and driving . . . .5-2
Programmable features ..............4-6
Push starting ...................6-10
R
Radio Car phone or CB radio ...........4-85
FM-AM radio with compact disc (CD)
player .....................4-38
FM/AM/SAT radio with CD/DVD player . .4-48 FM/AM/SAT radio with compact disc
(CD) player
..................4-42
Readiness for inspection maintenance
(I/M) test .....................9-25
Rear power windows ..............2-41
Rear window and outside mirror defroster
switch .......................2-29
RearView Monitor ................4-13
Recorders Event data ..................9-25
Refrigerant recommendation ...........9-6
Registering your vehicle in another country . . .9-9
Reporting safety defects (US only) .......9-25
S
Safety Child safety rear door lock ..........3-6
Child seat belts .....1-17,
1-23, 1-28, 1-31
Reporting safety defects (US only) .....9-25
Seat adjustment Front manual seat adjustment ........1-2
Front power seat adjustment .........1-4
Seat belt Child safety ..................1-16
Infants and small children ..........1-16
Injured Person ................1-12
Larger children ................1-17
Precautions on seat belt usage ........1-9
Pregnant women ...............1-12
Seat belt extenders .............1-15
Seat belt maintenance ............1-15
Seat belts ...................1-9
Shoulder belt height adjustment ......1-14
Three-point type with retractor .......1-12Seat belt warning light
..............2-14
Seatback pockets ................2-36
Seats Adjustment ...................1-2
Front seats ...................1-2
Heated seats .................2-34
Manual front seat adjustment .........1-2
Security indicator light ..............2-17
Security system (NISSAN vehicle immobilizer
system) , engine start .........2-26, 3-3, 5-9
Self-adjusting brakes ..............8-19
Service manual order form ...........9-26
Servicing air conditioner .............4-22
Setting button ...................4-6
Shift lock release .................5-13
Shifting Electronically controlled Continuously
Variable Transmission (eCVT) ........5-12
Shoulder belt height adjustment ........1-14
Spark plug replacement .............8-16
Speedometer ...................2-4
Spotlights (See map light) ...........2-46
SRS

warning label ................1-48
Starting Before starting the vehicle .........5-10
Jump starting .................6-7
Precautions when starting and driving . . . .5-2
Push starting .................6-10
Starting the vehicle .............5-10
Steering Power steering system ...........5-19
Stop light .....................8-25
Storage ......................2-35
Sun visors ....................3-23
Sunglasses case .................2-36
Sunglasses holder ................2-36
10-5
