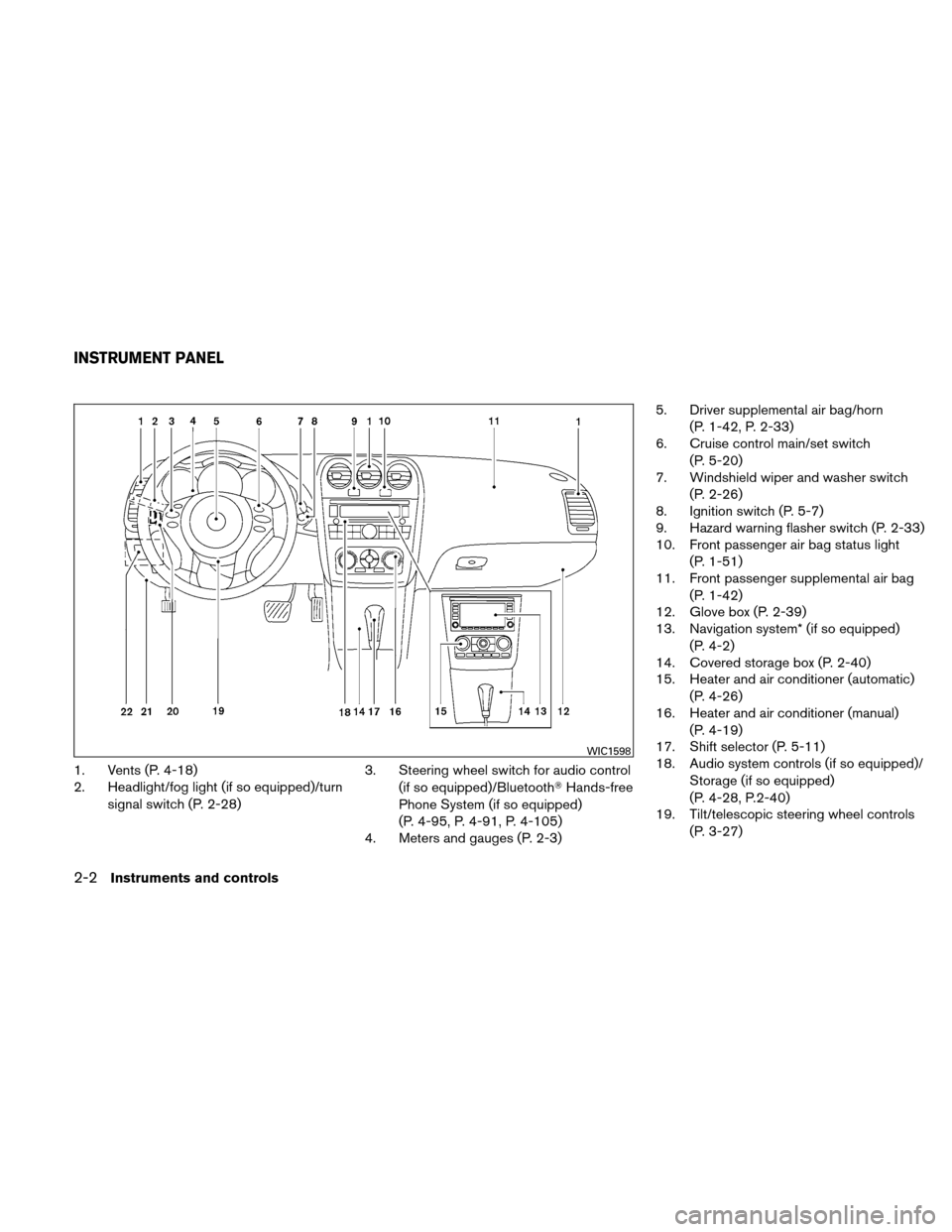

2010 NISSAN ALTIMA COUPE steering

1. Vents (P. 4-18)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-28) 3. Steering wheel switch for audio control
(if so equipped)/Bluetooth Hands-free
Phone System (if so equipped)
(P. 4-95, P. 4-91, P. 4-105)
4. Meters and gauges (P. 2-3) 5. Driver supplemental air bag/horn
(P. 1-42, P. 2-33)
6. Cruise control main/set switch
(P. 5-20)
7. Windshield wiper and washer switch
(P. 2-26)
8. Ignition switch (P. 5-7)
9. Hazard warning flasher switch (P. 2-33)
10. Front passenger air bag status light
(P. 1-51)
11. Front passenger supplemental air bag
(P. 1-42)
12. Glove box (P. 2-39)
13. Navigation system* (if so equipped)
(P. 4-2)
14. Covered storage box (P. 2-40)
15. Heater and air conditioner (automatic)
(P. 4-26)
16. Heater and air conditioner (manual)
(P. 4-19)
17. Shift selector (P. 5-11)
18. Audio system controls (if so equipped)/
Storage (if so equipped)
(P. 4-28, P.2-40)
19. Tilt/telescopic steering wheel controls
(P. 3-27)
WIC1598
INSTRUMENT PANEL
2-2Instruments and controls

TPMS malfunction:
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
placed in the ON position. The light will remain on
after the 1 minute. Have the system checked by a
NISSAN dealer.
For additional information, see “Tire Pressure
Monitoring System (TPMS)” in the “Starting and
driving” section and “Tire pressure” in the “Main-
tenance and do-it-yourself” section.
WARNING
●If the light does not illuminate with the
ignition switch placed in the ON posi-
tion, have the vehicle checked by a
NISSAN dealer as soon as possible. ●
If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may per-
manently damage the tires and increase
the likelihood of tire failure. Serious ve-
hicle damage could occur and may lead
to an accident and could result in serious
personal injury. Check the tire pressure
for all four tires. Adjust the tire pressure
to the recommended COLD tire pressure
shown on the Tire and Loading Informa-
tion label located in the driver’s door
opening to turn the low tire pressure
warning light OFF. If the light still illumi-
nates while driving after adjusting the
tire pressure, a tire may be flat. If you
have a flat tire, replace it with a spare tire
as soon as possible.
● When a spare tire is mounted or a wheel
is replaced tire pressure will not be in-
dicated, the TPMS will not function and
the low tire pressure warning light will
flash for approximately 1 minute. The
light will remain on after 1 minute. Con-
tact your NISSAN dealer as soon as
possible for tire replacement and/or
system resetting. ●
Replacing tires with those not originally
specified by NISSAN could affect the
proper operation of the TPMS.
CAUTION
● The TPMS is not a substitute for the
regular tire pressure check. Be sure to
check the tire pressure regularly.
● If the vehicle is being driven at speeds
of less than 16 MPH (25 km/h) , the
TPMS may not operate correctly.
● Be sure to install the specified size of
tires to the 4 wheels correctly.
Master warning light
This light comes on when various vehicle infor-
mation display warnings appear.
Seat belt warning light and
chime
The light and chime remind you to fasten your
seat belts. The light illuminates whenever the
ignition switch is placed in the ON or START
position and remains illuminated until the driver’s
seat belt is fastened. At the same time, the chime
sounds for about 6 seconds unless the driver’s
seat belt is securely fastened.
Instruments and controls2-13

The vehicle information display1is located on
the bottom of the speedometer. It displays such
items as:
● Intelligent Key operation information
● some indicators and warnings
● other information
For details about the Intelligent Key, see
“NISSAN Intelligent Key™” in the “Pre-driving
checks and adjustments” section.HOW TO USE THE VEHICLE
INFORMATION DISPLAY
Press thebutton, located on the instru-
ment panel just behind the steering wheel, to
display the following modes:
MPG→ MPG/MPH →Time/Miles →Range →
Exterior Temperature →Setting →Warning Fuel Economy mode
The fuel economy mode can be selected to dis-
play the instant fuel economy since the last reset.
WIC1102LIC1103LIC1093
VEHICLE INFORMATION DISPLAY
Instruments and controls2-17

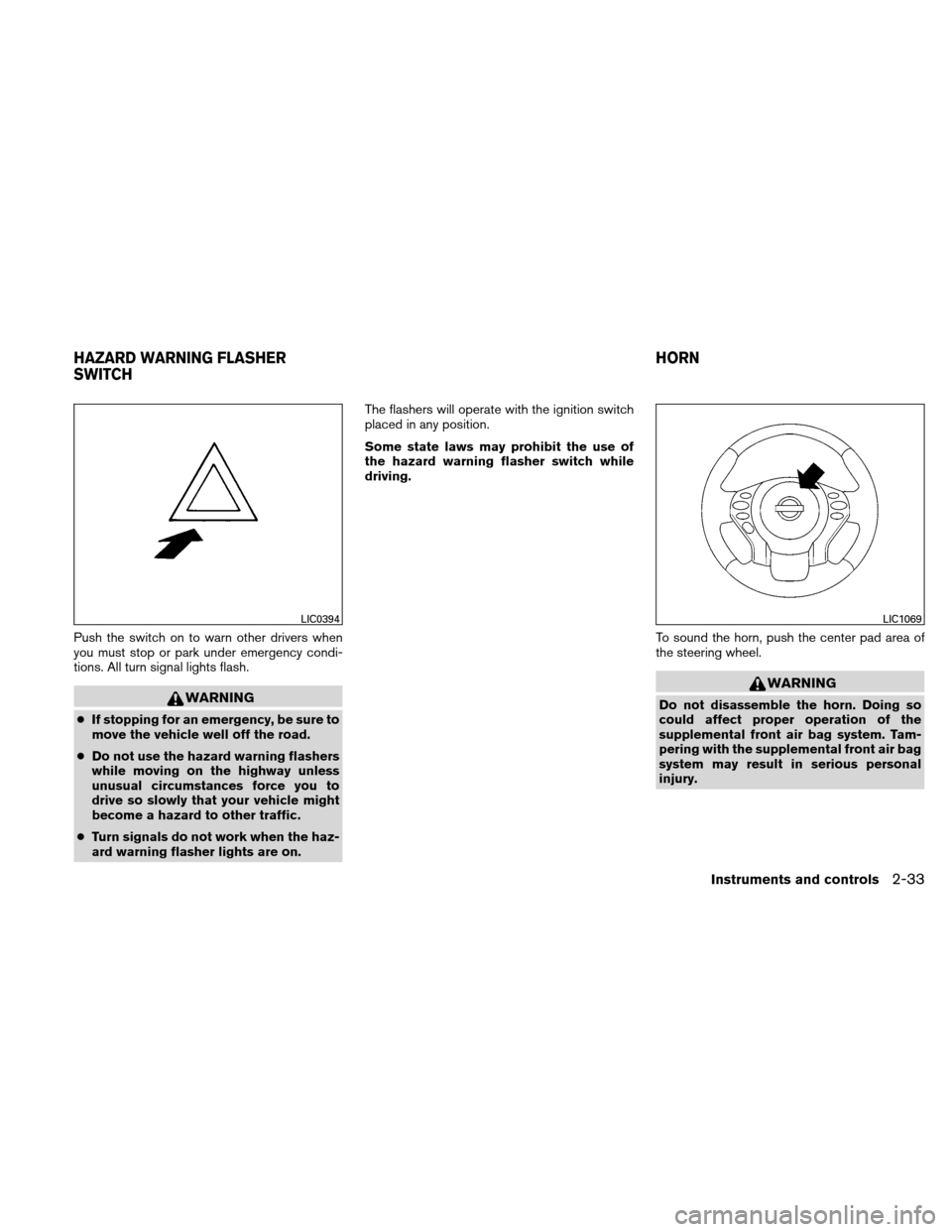

Push the switch on to warn other drivers when
you must stop or park under emergency condi-
tions. All turn signal lights flash.
WARNING
●If stopping for an emergency, be sure to
move the vehicle well off the road.
● Do not use the hazard warning flashers
while moving on the highway unless
unusual circumstances force you to
drive so slowly that your vehicle might
become a hazard to other traffic.
● Turn signals do not work when the haz-
ard warning flasher lights are on. The flashers will operate with the ignition switch
placed in any position.
Some state laws may prohibit the use of
the hazard warning flasher switch while
driving.
To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system. Tam-
pering with the supplemental front air bag
system may result in serious personal
injury.
LIC0394LIC1069
HAZARD WARNING FLASHER
SWITCH HORN
Instruments and controls2-33

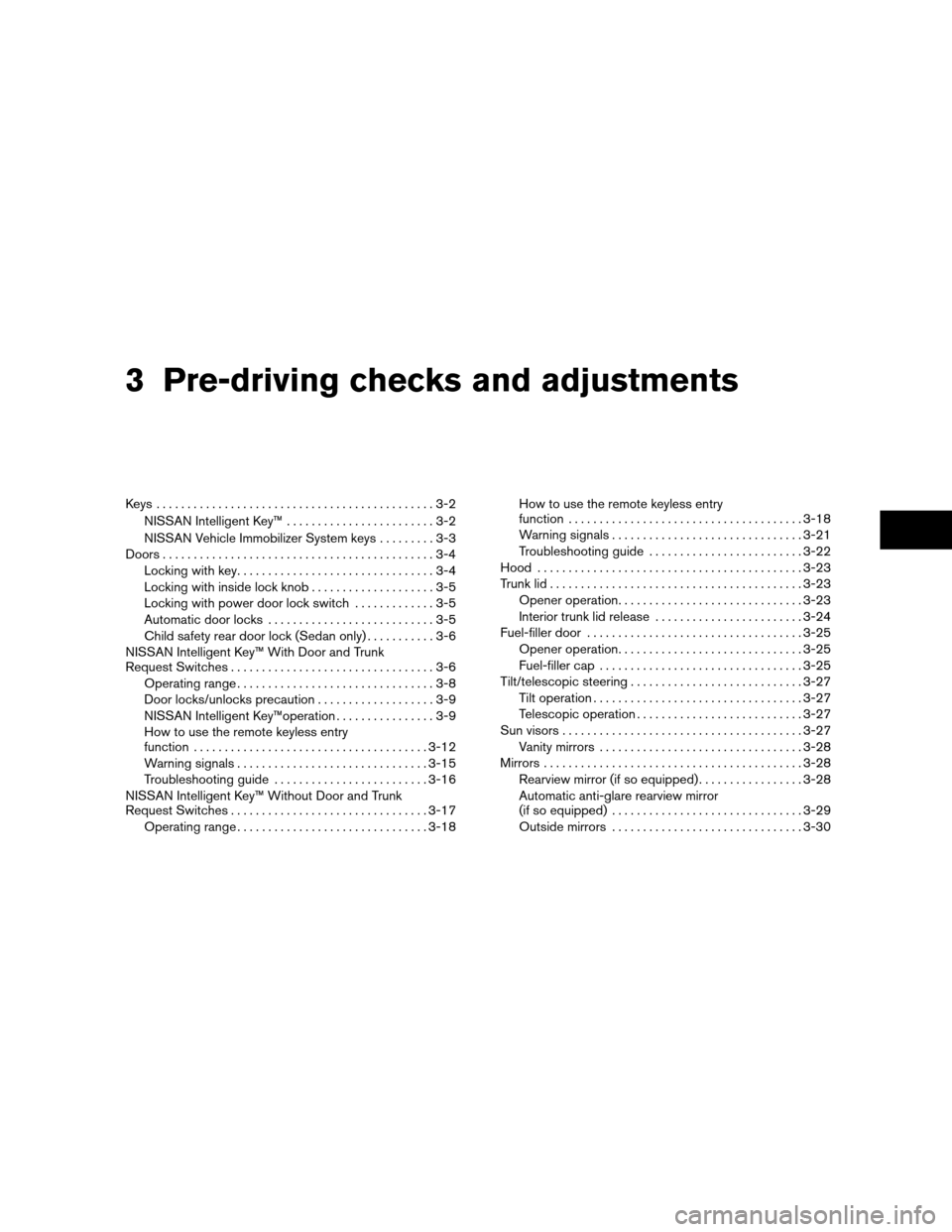

3 Pre-driving checks and adjustments
Keys .............................................3-2NISSAN Intelligent Key™ ........................3-2
NISSAN Vehicle Immobilizer System keys .........3-3
Doors ............................................3-4
Locking with key ................................3-4
Locking with inside lock knob . ...................3-5
Locking with power door lock switch .............3-5
Automatic door locks . . .........................3-5
Child safety rear door lock (Sedan only) ...........3-6
NISSAN Intelligent Key™ With Door and Trunk
Request Switches .................................3-6
Operating range ................................3-8
Door locks/unlocks precaution ...................3-9
NISSAN Intelligent Key™operation ................3-9
How to use the remote keyless entry
function ...................................... 3-12
Warning signals ............................... 3-15
Troubleshooting guide ......................... 3-16
NISSAN Intelligent Key™ Without Door and Trunk
Request Switches ................................ 3-17
Operating range ............................... 3-18How to use the remote keyless entry
function
...................................... 3-18
Warning signals ............................... 3-21
Troubleshooting guide ......................... 3-22
Hood ........................................... 3-23
Trunk lid ......................................... 3-23
Opener operation .............................. 3-23
Interior trunk lid release ........................ 3-24
Fuel-filler door ................................... 3-25
Opener operation .............................. 3-25
Fuel-filler cap ................................. 3-25
Tilt/telescopic steering ............................ 3-27
Tilt operation .................................. 3-27
Telescopic operation ........................... 3-27
Sun visors ....................................... 3-27
Vanity mirrors ................................. 3-28
Mirrors .......................................... 3-28
Rearview mirror (if so equipped) .................3-28
Automatic anti-glare rearview mirror
(if so equipped) ............................... 3-29
Outside mirrors ............................... 3-30

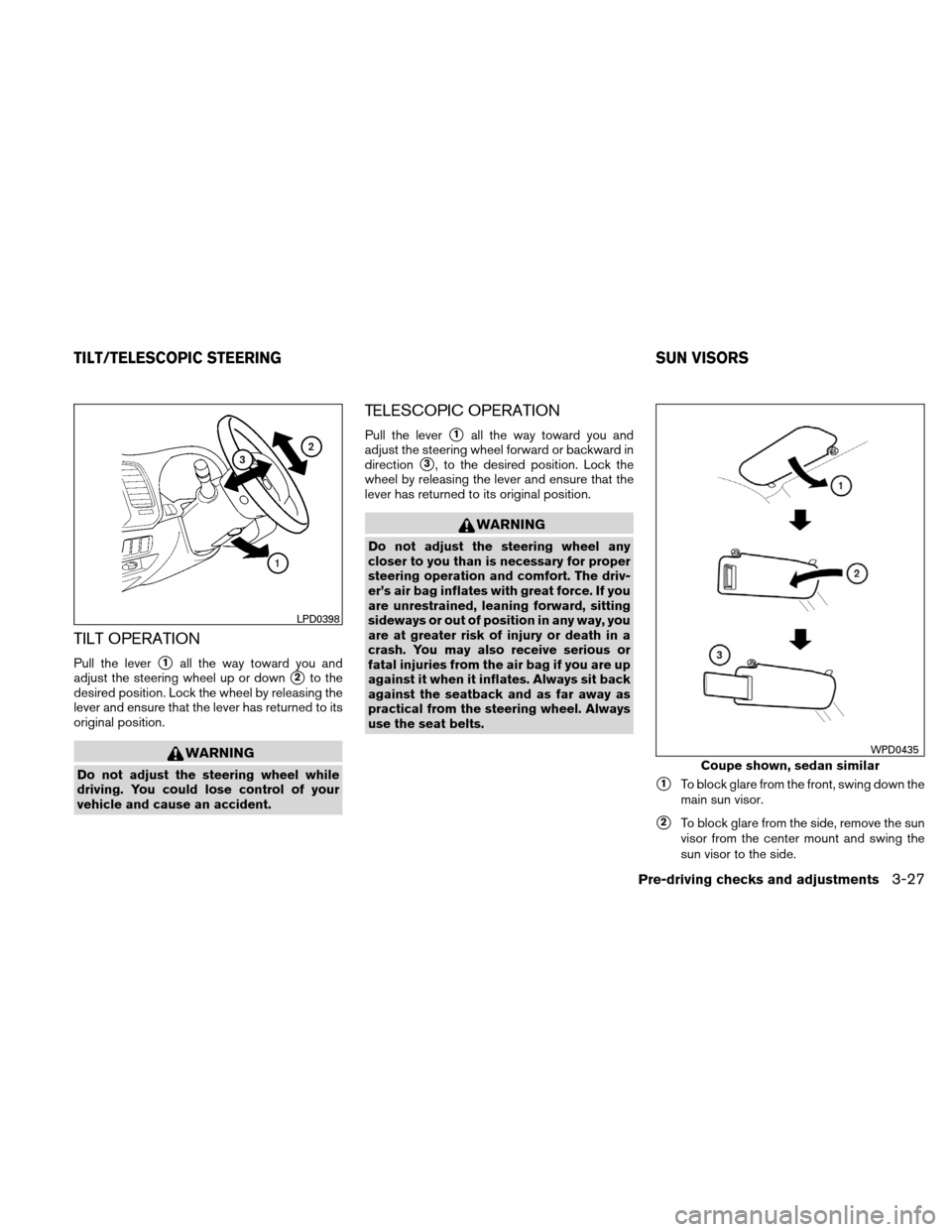

TILT OPERATION
Pull the lever1all the way toward you and
adjust the steering wheel up or down
2to the
desired position. Lock the wheel by releasing the
lever and ensure that the lever has returned to its
original position.
WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
TELESCOPIC OPERATION
Pull the lever1all the way toward you and
adjust the steering wheel forward or backward in
direction
3, to the desired position. Lock the
wheel by releasing the lever and ensure that the
lever has returned to its original position.
WARNING
Do not adjust the steering wheel any
closer to you than is necessary for proper
steering operation and comfort. The driv-
er’s air bag inflates with great force. If you
are unrestrained, leaning forward, sitting
sideways or out of position in any way, you
are at greater risk of injury or death in a
crash. You may also receive serious or
fatal injuries from the air bag if you are up
against it when it inflates. Always sit back
against the seatback and as far away as
practical from the steering wheel. Always
use the seat belts.
1To block glare from the front, swing down the
main sun visor.
2To block glare from the side, remove the sun
visor from the center mount and swing the
sun visor to the side.
LPD0398
Coupe shown, sedan similar
WPD0435
TILT/TELESCOPIC STEERING SUN VISORS
Pre-driving checks and adjustments3-27

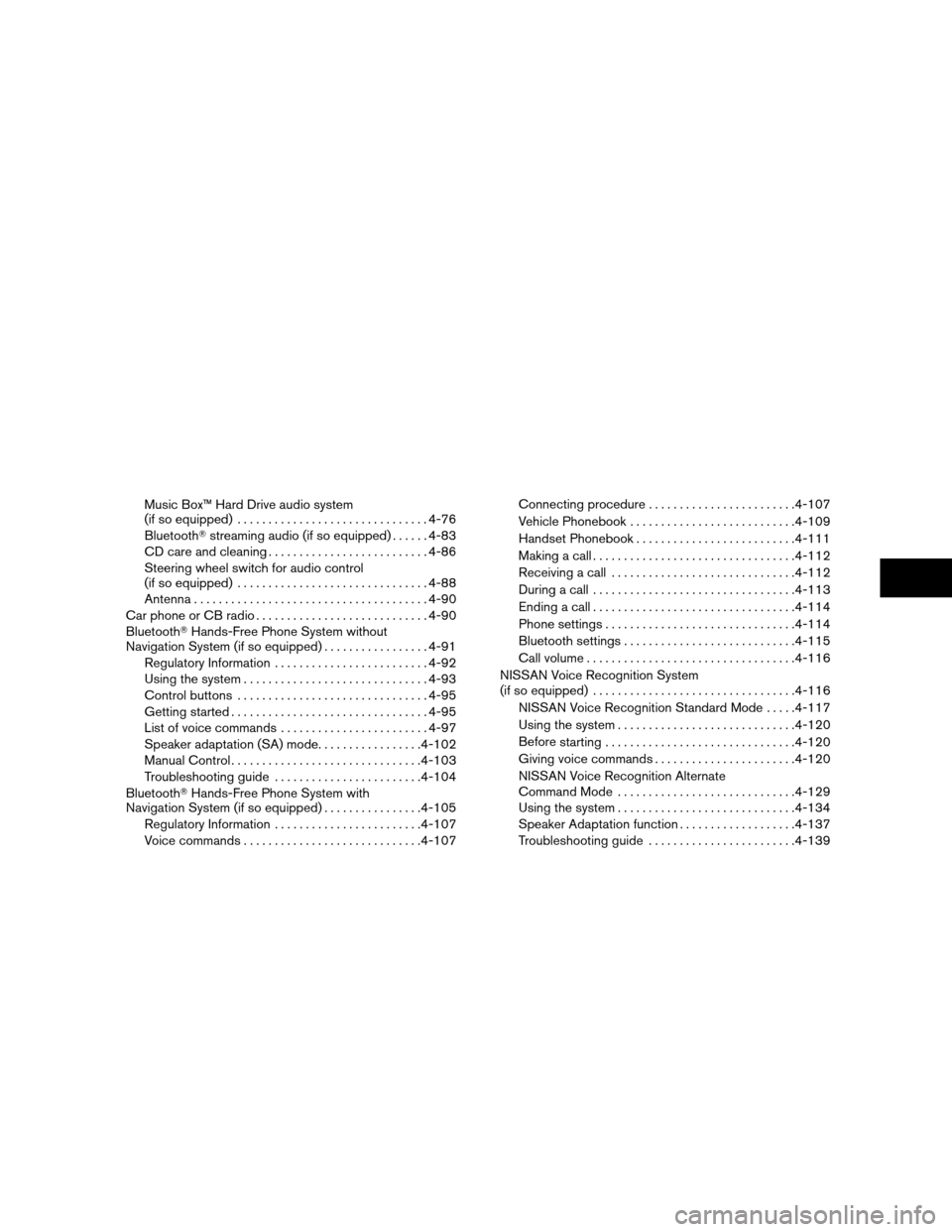

Music Box™ Hard Drive audio system
(if so equipped)............................... 4-76
Bluetooth streaming audio (if so equipped) ......4-83
CD care and cleaning .......................... 4-86
Steering wheel switch for audio control
(if so equipped) ............................... 4-88
Antenna ...................................... 4-90
Car phone or CB radio ............................ 4-90
Bluetooth Hands-Free Phone System without
Navigation System (if so equipped) .................4-91
Regulatory Information . ........................ 4-92
Using the system .............................. 4-93
Control buttons ............................... 4-95
Getting started ................................ 4-95
List of voice commands ........................ 4-97
Speaker adaptation (SA) mode................. 4-102
Manual Control ............................... 4-103
Troubleshooting guide . ....................... 4-104
Bluetooth Hands-Free Phone System with
Navigation System (if so equipped) ................4-105
Regulatory Information . ....................... 4-107
Voice commands ............................. 4-107Connecting procedure
........................ 4-107
Vehicle Phonebook ........................... 4-109
Handset Phonebook .......................... 4-111
Making a call ................................. 4-112
Receiving a call .............................. 4-112
During a call ................................. 4-113
Ending a call ................................. 4-114
Phone settings ............................... 4-114
Bluetooth settings ............................ 4-115
Call volume .................................. 4-116
NISSAN Voice Recognition System
(if so equipped) ................................. 4-116
NISSAN Voice Recognition Standard Mode .....4-117
Using the system ............................. 4-120
Before
starting ............................... 4-120
Giving voice commands ....................... 4-120
NISSAN Voice Recognition Alternate
Command Mode ............................. 4-129
Using the system ............................. 4-134
Speaker Adaptation function ...................4-137
Troubleshooting guide . . . .....................4-139

When theorside of the seeking
button is pressed for more than 1.5 seconds
while the iPod is playing, the iPod will play
while fast forwarding or rewinding. When the
button is released, the iPod will return to the
normal play speed.
Scrolling menus:
While navigating long lists of artists, albums or
songs in the music menu, it is possible to scroll
the list by the first letter. To activate letter index-
ing, touch and hold the page up/down arrows on
the touchscreen.
To exit the scrolling by letter mode, perform one of
the following:● Push the ENTER switch on the steering
wheel.
● Do not touch the controls for 2 seconds.MUSIC BOX™ HARD DRIVE AUDIO
SYSTEM (if so equipped)
The Music Box Hard Drive audio system can
store songs from CDs being played. The system
has a 9.3 gigabyte (GB) storage capacity and
can record up to 200 hours (approximately 2,900
songs) .
The following CDs can be recorded in the Music
Box Hard Drive audio system:
● CDs without MP3/WMA files.
● Hybrid Compact Disc Digital Audio (Hybrid
CD-DA) specification in Super Audio CDs.
● Compact Disc Digital Audio (CD-DA) speci-
fication in CD-Extras.
● First session of multisession disc.
Extreme temperature conditions [below 4°F
(20°C) and above 158°F (70°C)] could affect
the performance of the hard-disk.
NOTE:
If the hard drive needs to be replaced due
to a malfunction, all stored music data will
be erased.
LHA1399
4-76Monitor, climate, audio, phone and voice recognition systems
