2010 NISSAN ALTIMA COUPE bulb

Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause undes-
ired operation of the device.HEADLIGHTS
Replacing the xenon headlight bulb (if
so equipped)
WARNING
HIGH VOLTAGE
When xenon headlights are on, they pro-
duce a high voltage. To prevent an electric
shock, never attempt to modify or disas-
semble. Always have your xenon head-
lights replaced at a NISSAN dealer. For
additional information, see “Headlight
and turn signal switch” in the “Instru-
ments and controls” section.
Replacing the halogen headlight bulb
The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb. Be-
cause the headlight assembly must be removed
from the vehicle for bulb replacement, see your
NISSAN dealer.
CAUTION
●Aiming is not necessary after replacing
the bulb. When aiming adjustment is
necessary, contact a NISSAN dealer. ●
Do not leave the headlight assembly
open without a bulb installed for a long
period of time. Dust, moisture, smoke,
etc. entering the headlight body may
affect bulb performance. Remove the
bulb from the headlight assembly just
before a replacement bulb is installed.
● Only touch the base when handling the
bulb. Never touch the glass envelope.
Touching the glass could significantly
affect bulb life and/or headlight
performance.
● High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.
● Use the same number and wattage as
shown in the chart.
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is not
a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
LIGHTS
Maintenance and do-it-yourself8-27

FRONT PARK/TURN/SIDEMARKER
LIGHT
Bulb replacement requires the removal of the
headlight assembly. If replacement is required,
see your NISSAN dealer.
EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.*1
Headlight assembly *2
Low (Halogen) 55H11
Low (Xenon) 35D2R
High 65H9
Park 5WY5W
Park/Turn 8/273457NAK
Sidemarker Sedan 5WY5W
Coupe 5W5W
Front fog light (if so equipped) *
255 H11
Step light —194
Rear combination light Tail/Stop 8/273157K
Turn 273156
Backup (reversing) Sedan 16921LF
Coupe 13912
License plate light *
25 W5W
High-mounted stop light *2
Inside (coupe) —LED
Inside (sedan) 18921
Spoiler (if so equipped) —LED
Front map light 8U89
Rear personal light 8U88
Trunk light 3.4158
Vanity mirror light —HTU–14v
Glove box light *
2——
*1Always check with the Parts Department at a NISSAN dealer for the latest parts information.
*
2See a NISSAN dealer for assistance.
8-28Maintenance and do-it-yourself

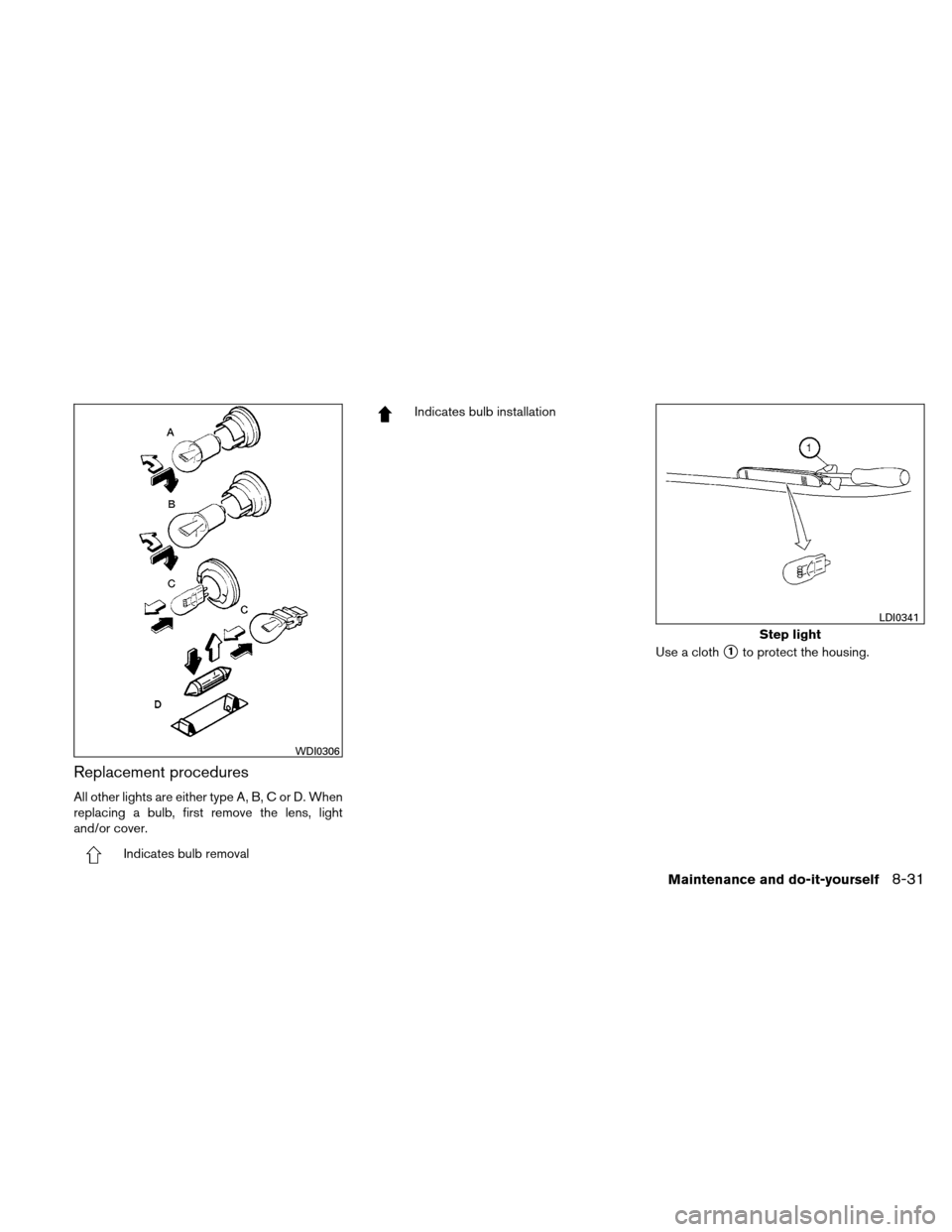

Replacement procedures
All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, light
and/or cover.
Indicates bulb removal
Indicates bulb installationUse a cloth
1to protect the housing.
WDI0306
Step light
LDI0341
Maintenance and do-it-yourself8-31

Rear combination light
To access the bulbs in the rear combination light:
1Remove the fasteners. Carefully push back
the carpet.
2Remove the 2 nuts and pull out the rear
combination light.
3Rotate the bulb(s) counterclockwise and
pull out to remove:
ATurn signal light
BSidemarker light
CTail/stop light
DBackup light
WDI0635
Maintenance and do-it-yourself8-33

10 Index
A
Air bag (See supplemental restraint
system) .....................1-42
Air bag system Front (See supplemental front impact
air bag system) ...............1-50
Air bag warning light ...........1-57, 2-14
Air cleaner housing filter ............8-19
Air conditioner Air conditioner operation ..........4-21
Air conditioner service ...........4-28
Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-6
Heater and air conditioner
controls ................4-19, 4-26
Servicing air conditioner ..........4-28
Air flow charts ..................4-22
Alarm system
(See vehicle security system) .........2-24
Anchor point locations .............1-28
Antenna .....................4-90
Anti-lock brake warning light ..........2-11
Anti-lock Braking System (ABS) ........5-25
Armrests .....................1-11
Audible reminders ...............2-16
Audio system ..................4-28
Bluetooth audio..............4-83
Compact disc (CD)
player ..........4-46, 4-52, 4-58, 4-64 FM-AM radio with compact disc (CD)
player
....................4-44
FM/AM/SAT radio with CD/DVD player . .4-54
FM/AM/SAT radio with compact disc (CD)
player ....................4-48
Audio System iPod Player .............4-72, 4-74
Music Box hard-disk drive audio
system ....................4-76
Audio system Radio ....................4-28
Audio System Settings ...................4-55
Audio system USB interface ............4-66, 4-68
Autolight switch .................2-30
Automatic Automatic power window switch .....2-43
T
ransmission shift selector lock release . .5-15
Automatic anti-glare inside mirror .......3-29
Automatic door locks ..............3-5
AUX jack .................4-47, 4-53
B
Battery ......................8-15
Charge warning light ............2-11
Before starting the engine ............5-9
Belt (See drive belt) ..............8-18
Block heater Engine ....................5-29
Bluetooth audio................4-83 Bluetooth
hands-free phone
system .................4-91, 4-105
Booster seats ..................1-39
Brake Anti-lock Braking System (ABS) ......5-25
Brake fluid ..................8-14
Brake light (See stop light) .........8-28
Brake system ................5-24
Brake warning light .............2-11
Brake wear indicators ........2-16, 8-22
Parking brake operation ..........5-19
Self-adjusting brakes ............8-22
Brakes ......................8-22
Break-in schedule ...............5-21
Brightness control Instrument panel ..............2-32
Brightness/contrast button ...........4-12
Bulb check/instrument panel ..........2-10
Bulb replacement ................8-28
C
Capacities and recommended
fuel/lubricants ...................9-2
Car phone or CB radio .............4-90
Cargo (See vehicle loading information) . . .9-13
CD care and cleaning .............4-86
CD player
(See audio system) . . . .4-46, 4-52, 4-58, 4-64
Child restraint with top tether strap ......1-28
Child
restraints .......1-22, 1-23, 1-24, 1-26

Engine serial number............9-10
F.M.V.S.S. certification label .........9-10
Tire and Loading Information label .....9-11
Vehicle identification number (VIN) plate . .9-9
Warning labels (for SRS) ..........1-56
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-26
License plate Installing the license plate ..........9-12
Light Air bag warning light .........1-57, 2-14
Brake light (See stop light) .........8-28
Bulb check/instrument panel ........2-10
Bulb replacement ..............8-28
Charge warning light ............2-11
Console light .................2-47
Fog light switch ...............2-32
Headlight and turn signal switch ......2-28
Headlight control switch ..........2-29
Headlights ..................8-27
Interior light ..................2-46
Light bulbs ..................8-27
Low tire pressure warning light .......2-12
Low windshield-washer fluid warning
light ......................2-23
Passenger air bag and status light .....1-51
Personal lights ................2-48
Security indicator light ............2-15
Spotlights (See map light) .........2-48
Trunk light ..................2-48
Warning/indicator lights and audible
reminders ...................2-10
Lights Map lights ..................2-48 Lock
Child safety rear door lock ..........3-6
Door locks ...................3-4
Fuel-filler door lock opener lever ......3-25
Glove box lock ................2-39
Power door locks ...............3-5
Trunk lid lock opener lever ..........3-23
Low

fuel warning light ..........2-13, 2-23
Low tire pressure warning light .........2-12
Low windshield-washer fluid warning light . . .2-23
Luggage (See vehicle loading information) . .9-13
M
Maintenance General maintenance .............8-2
Inside the vehicle ...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-21
Under the hood and vehicle .........8-4
Malfunction indicator light ............2-15
Manual front seat adjustment ...........1-2
Map lights ....................2-48
Map pocket ....................2-36
Meters and gauges ................2-3
Instrument brightness control ........2-32
Mirror Automatic anti-glare inside mirror ......3-29
Inside mirror .................3-28
Outside mirrors ...............3-30
Vanity mirror .................3-28
Moonroof .....................2-44
Music Box hard-disk drive audio system . . . .4-76 N
NISSAN Intelligent Key™ ............3-17
NISSAN vehicle immobilizer system . . .2-25, 3-3
NISSAN voice recognition system ......4-116
O
Octane rating (See fuel octane rating) ......9-4
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-10
Changing engine oil filter ..........8-12
Checking engine oil level ...........8-9
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-5
Engine oil viscosity ..............9-5
Outside mirrors .................3-30
Overheat If
your vehicle overheats ...........6-10
Owner’s manual order form ...........9-27
Owner’s manual/service manual order
information ....................9-27
P
Parking Parking brake operation ...........5-19
Parking/parking on hills ...........5-23
Personal lights ..................2-48
Phone, Bluetooth hands-free
system ..................4-91, 4-105
10-4
