2010 MITSUBISHI LANCER RALLIART sunroof

Overview
Interior
N00100300916
Adjustable seat belt shoulder
anchor (for front seats) P.2-20
Seat belts P.2-14
Supplemental restraint system - side airbag
(for front seats) P.2-51Front seats P.2-3Sun visors P.3-268
Vanity mirror P.3-268 Inside rearview mirror P.3-77
Head restraints P.2-10 Window lock switch P.3-70
Power window
switches P.3-67Power door lock
switch (if so
equipped) P.3-55 Electric remote-
controlled out-
side mirror switch
P.3-79Dome light (Front)/Reading lights
(if so equipped) P.3-274, 7-59, 7-86Sunroof switch
(if so equipped)
P. 3 - 7 1
Hands-free Bluetooth
® cellular phone interface system
with voice recognition microphone (if so equipped)
P.3-237
Bottle holder (for front seat) P.3-283
BK0102103US.book 6 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Overview
Outside (Front)
N00100601062
[Except for vehicles with high intensity discharge
headlights type]
Front turn-signal lights P.3-225, 7-56, 7-71
Front side-marker and
parking lights P.3-217,
7-56, 7-69
Headlights, low beam
P.3-217, 7-56, 7-59
Headlights, high beam P.3-217, 7-56, 7-62[For vehicles with high intensity discharge head-
lights type]
Headlights, low/high beam
P.3-217, 7-56
Daytime running lights P.7-56, 7-64 Except for RALLIART
Windshield wiper and washer
P.3-228
Engine compartment P.7-7
Engine hood P.7-4Sunroof (if so equipped) P.3-71
Fuel tank filler
P.1-4
Outside rearview mirrors P.3-79
Side turn-signal lights P.3-225, 7-56
Front fog lights (if so equipped) P.3-227, 7-56, 7-73Locking and unlocking P.3-52
Keyless entry system (if so equipped) P.3-9
F.A.S.T.-key (Free-hand Advanced Security
Transmitter) (if so equipped) P.3-16
Front turn-signal lights P.3-225, 7-56, 7-71
Front side-marker and
parking lights P.3-217,
7-56, 7-69
BK0102103US.book 9 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Overview
Sunroof (if so equipped) P.3-71
Windshield wiper and washer
P.3-228
Engine compartment P.7-7
Engine hood P.7-4Locking and unlocking P.3-52
Keyless entry system P.3-9
F.A.S.T.-key (Free-hand Advanced
Security Transmitter) (if so equipped) P.3-16
Fuel tank filler
P.1-4
Outside rearview mirrors P.3-79
Side turn-signal lights P.3-225, 7-56
Front fog lights P.3-227, 7-56, 7-76
[Except for vehicles with high intensity discharge
headlights type][For vehicles with high intensity discharge head-
lights type] RALLIART
Front turn-signal lights P.3-225, 7-56, 7-71
Front side-marker and
parking lights P.3-217,
7-56, 7-69
Headlights, low beam
P.3-217, 7-56, 7-59
Headlights, high beam P.3-217, 7-56, 7-62Headlights, low/high beam
P.3-217, 7-56
Daytime running lights P.7-56, 7-64 Front turn-signal lights P.3-225, 7-56, 7-71
Front side-marker and
parking lights P.3-217,
7-56, 7-69
BK0102103US.book 10 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . 3- 5
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 9
Free-hand Advanced Security Transmitter
(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 52
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 55
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . 3- 58
Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 59
Inside emergency trunk lid release . . . . . . . . . . . . . . . . . . . . . . 3- 62
Theft-alarm system (if so equipped) . . . . . . . . . . . . . . . . . . . . . 3- 63
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 67
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 71
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 74
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 76
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 3- 77
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 79
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 81
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 84
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . 3- 85
Turbocharger operation (if so equipped) . . . . . . . . . . . . . . . . . . 3- 90
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 91
Continuously variable transmission (CVT) (if so equipped). . . 3- 93
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 105
All-wheel drive system (if so equipped) . . . . . . . . . . . . . . . . . . 3- 125
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . 3- 126
ACD (Active center differential system) (if so equipped) . . . . 3- 128
Limited-slip differential (if so equipped) . . . . . . . . . . . . . . . . . 3- 131
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 131
Hill start assist (vehicles with Twin Clutch SST) . . . . . . . . . . . 3- 133Anti-lock braking system (if so equipped) . . . . . . . . . . . . . . . . . 3- 134
Active Stability Control (ASC) (if so equipped) . . . . . . . . . . . . 3- 138
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 143
Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 143
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . 3- 152
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 158
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 162
Indicator light, warning light,
and information screen display list . . . . . . . . . . . . . . . . . . . . 3- 197
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Combination headlights and dimmer switch . . . . . . . . . . . . . . . 3- 217
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . 3- 224
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 225
Hazard warning flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 226
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 227
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 228
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . 3- 235
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 236
Hands-free Bluetooth
® cellular phone interface
system with voice recognition (if so equipped) . . . . . . . . . . 3- 237
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 270
Cigarette lighter (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 3- 271
12 V power outlet (if so equipped). . . . . . . . . . . . . . . . . . . . . . . 3- 272
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 274
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 277
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 282
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 283
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 284
Coat hook (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 284
BK0102103US.book 1 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-71
3
What to do if you hear wind buffeting when driv-
ing
N00551400014
Wind buffeting can be described as the perception of pressure
on the ears or a booming or rumbling sound. Your vehicle may
exhibit wind buffeting when driving with one or both rear door
windows down or partially opened. This is a normal occur-
rence that can be minimized. If the buffeting occurs with the
rear door windows open, open the front door windows as well
as the rear door windows to minimize the condition.
Sunroof
(if so equipped)
N00511000555
The sunroof can be opened and closed with the ignition switch
in the “ON” position.
WARNING
!
Do not stick your head, hands or anything else in the
sunroof opening.
Before operating the sunroof, make sure that noth-
ing can be trapped (head, hands, fingers, etc.).
Never leave a child (or other person who is incapa-
ble of safely operating the sunroof switch) alone in
the vehicle.
BK0102103US.book 71 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-72 Features and controls
3
To open Press the switch (1), the sunroof automatically opens and the
sunroof will stop several centimeters this side of the full open
position. Press the switch (1) again, and the sunroof will be
fully open.
To stop the moving sunroof, press the switch. NOTE
The sunroof stops just before reaching the fully open posi-
tion. If the vehicle is driven with the sunroof in this posi-
tion, wind buffeting is lower than with the sunroof fully
open.To closePress the switch (3), the sunroof automatically closes.
To stop the moving sunroof, press the switch.To tilt up When the switch (2) is pressed, the rear edge of sunroof raises
for ventilation. To tilt down Press the switch (3). Timer functionThe sunroof can be operated when the ignition switch is in the
“ON” position. The sunroof can be opened or closed for a 30
seconds period after the ignition switch is turned to the “ACC”
or “LOCK”. However, once the driver’s door or the front pas-
senger’s door is opened, the sunroof cannot be operated until
the ignition switch is turned on again.
Safety mechanism If a hand or head is trapped in the closing sunroof opening, the
safety mechanism will cause the sunroof to re-open automati-
cally. The opened sunroof will become operational again after
a few seconds.
If the safety mechanism is activated 5 or more times consecu-
tively, normal closing of the sunroof will be aborted. To return
the sunroof to normal operation:
1. Press the switch (2) repeatedly until the sunroof moves
into the tilt up position.
2. Once the tilt up position has been reached, press again and
hold the switch (2) for at least 3 seconds.
3. After pressing the switch (1) to perform full opening,
press the switch (3) to fully close the sunroof.NOTE
The safety mechanism can be activated if the driving con-
ditions or other circumstances cause the sunroof to be sub-
jected to a physical shock similar to that caused by a
trapped hand or head.

Avoid stopping the sunroof before it reaches the opening
or closing end during operations. If this should acciden-
tally be allowed to happen, repeat the process from step 1.
BK0102103US.book 72 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-73
3
4. The sunroof should now operate in the normal manner.
SunshadeThe sunshade can be opened or closed manually while the
sunroof is closed.
When the sunroof is opened, the sunshade will also open auto-
matically.
CAUTION
!
The safety mechanism is deactivated just before the
sunroof closes. This allows the sunroof to close com-
pletely. Therefore be especially careful that fingers
are not trapped in the sunroof opening.
The safety mechanism is deactivated while the
switch (3) is pressed. Therefore be especially careful
that fingers are not trapped in the sunroof opening.
Do not deliberately trap your hands or head in
order to activate the safety mechanism.
Personal injury and malfunction of the sunroof
could result.
CAUTION
!
Do not attempt to close the sunshade when the
sunroof is opened.
Be careful that hands are not trapped when closing
the sunshade.
BK0102103US.book 73 ページ ２００９年１０月２６日　月曜日　午後１時３８分

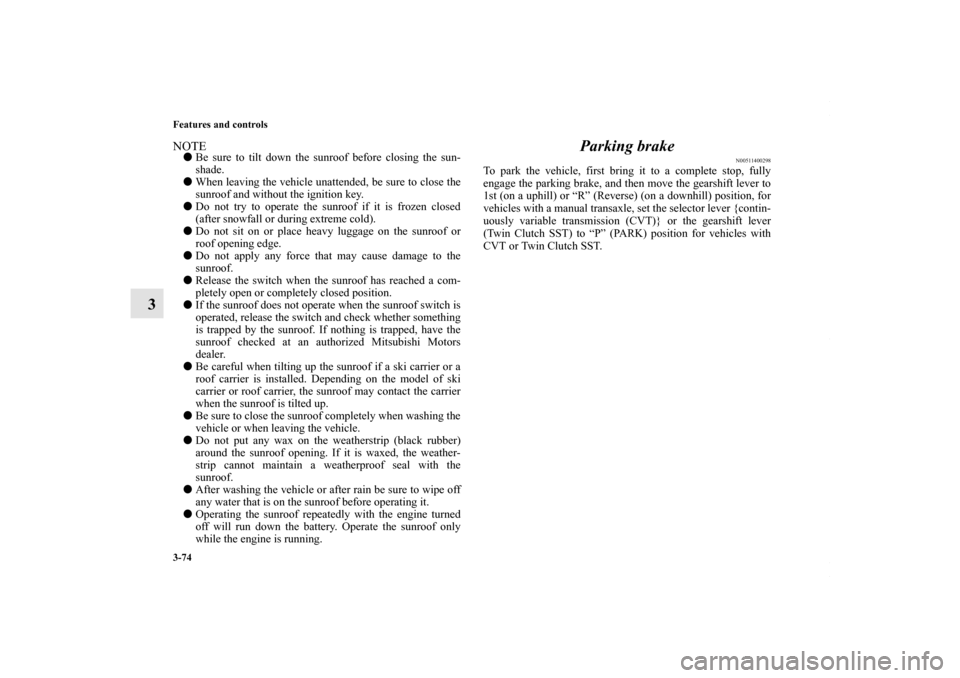

3-74 Features and controls
3
NOTE
Be sure to tilt down the sunroof before closing the sun-
shade.

When leaving the vehicle unattended, be sure to close the
sunroof and without the ignition key.

Do not try to operate the sunroof if it is frozen closed
(after snowfall or during extreme cold).

Do not sit on or place heavy luggage on the sunroof or
roof opening edge.

Do not apply any force that may cause damage to the
sunroof.

Release the switch when the sunroof has reached a com-
pletely open or completely closed position.

If the sunroof does not operate when the sunroof switch is
operated, release the switch and check whether something
is trapped by the sunroof. If nothing is trapped, have the
sunroof checked at an authorized Mitsubishi Motors
dealer.

Be careful when tilting up the sunroof if a ski carrier or a
roof carrier is installed. Depending on the model of ski
carrier or roof carrier, the sunroof may contact the carrier
when the sunroof is tilted up.

Be sure to close the sunroof completely when washing the
vehicle or when leaving the vehicle.

Do not put any wax on the weatherstrip (black rubber)
around the sunroof opening. If it is waxed, the weather-
strip cannot maintain a weatherproof seal with the
sunroof.

After washing the vehicle or after rain be sure to wipe off
any water that is on the sunroof before operating it.

Operating the sunroof repeatedly with the engine turned
off will run down the battery. Operate the sunroof only
while the engine is running.
Parking brake
N00511400298
To park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the gearshift lever to
1st (on a uphill) or “R” (Reverse) (on a downhill) position, for
vehicles with a manual transaxle, set the selector lever {contin-
uously variable transmission (CVT)} or the gearshift lever
(Twin Clutch SST) to “P” (PARK) position for vehicles with
CVT or Twin Clutch SST.
BK0102103US.book 74 ページ ２００９年１０月２６日　月曜日　午後１時３８分
