2010 MITSUBISHI LANCER RALLIART ESP

Features and controls
3-103
3
Sports mode display
N00538800082
In sports mode, the currently selected shift range is displayed
on the information screen in the multi-information display.NOTE
While driving in sports mode, the sports mode display
may change to show “D” and shifting in sports mode may
no longer be possible.
This indicates that controls to drive in the “D” position are
operating normally in order to lower the temperature of
the continuously variable transmission (CVT) fluid; it
does not indicate a malfunction. Once the temperature of
the continuously variable transmission (CVT) fluid drops,
shifting in the sports mode will be possible again.
Operation of the CVT
N00514500274
CAUTION
!
Before selecting a position with the engine running
and the vehicle stationary, fully depress the brake
pedal to prevent the vehicle from creeping.
Do not release the brakes until you are ready to
drive away. The vehicle will begin to move as soon as
the CVT is engaged, especially when the engine
speed is high (fast idle or air conditioning on).
Depress the brake pedal with the right foot.
Using the left foot could cause driver movement
delay in case of an emergency.
To prevent sudden acceleration, never run the
engine at high rpms when shifting from the “P”
(PARK) or “N” (NEUTRAL) position.
Operating the accelerator pedal while the other foot
is resting on the brake pedal will affect braking effi-
ciency and may cause premature wear of brake
pads.
Do not rev the engine with the brake pedal pressed
when the vehicle is stationary.
This can damage the CVT.
Also, when you depress the accelerator pedal while
holding down the brake pedal with the selector lever
in the “D” (DRIVE) position, the engine revolutions
may not rise as high as when performing the same
operation with the selector lever in the “N” (NEU-
TRAL) position.
BK0102103US.book 103 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-105
3
When the CVT makes no speed change
N00515300194
If the CVT does not shift while driving, or your vehicle does
not pick up enough speed when starting on an uphill slope,
there may be something unusual happening in the transmission,
causing a safety device to activate. Have your vehicle checked
at an authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.
1. If your vehicle has difficulty moving uphill, shift the
selector lever into “L” (LOW) position (except for vehi-
cles with sport mode) or 2nd shift range of the sports
mode.
This method might not work depending on the type of
transmission malfunction.
2. Once the vehicle is moving on a level road, move the
selector lever back to “D” (DRIVE) position.NOTE
When the warning display or the warning display
appears on the information screen in the multi-informa-
tion display, there could be a malfunction in the CVT.
Refer to “Continuously variable transmission (CVT):
Warning display” on page 3-99.
Twin Clutch SST
(Sportronic Shift Transmission)
(if so equipped)
N00539700059
The Twin Clutch SST is a transmission that, through integrated
control of the engine and transmission, is able to achieve both
the smooth shifting of an automatic transaxle and the accelera-
tion and fuel economy close to a manual transaxle. In addition,
the control mode can be selected from two types to suit the
driving conditions.
Together with manual shifting, the transmission is capable of
responding to a variety of driving circumstances.
Twin Clutch SST control mode → P. 3 - 1 1 3
Manual shift → P. 3 - 1 1 6
BK0102103US.book 105 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-124 Features and controls
3
Parking
N00541100018
To park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the gearshift lever to
the “P” (PARK) position.
What to do if the following occur with the Twin Clutch
SST
N00541200064
If there is a malfunction in the Twin Clutch SST or engine elec-
tronic control module, the following may occur.

Twin Clutch SST does not shift.

Vehicle cannot move.

Twin Clutch SST acceleration is slow.

Vehicle does not creep.

“Shift shock” is large.

Shifting occurs at higher engine speed.

Response is slow.
If any of these occurs, perform the following procedure.
When warning display is showing
The temperature of Twin Clutch SST fluid is high.
Refer to “Warning display” on page 3-110 and follow the
appropriate measures.
When the engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”) comes on or
blinking
There could be a malfunction in the engine electronic control
module.
Refer to “Engine malfunction indicator (“SERVICE ENGINE
SOON” or “Check engine light”)” on page 3-212 and follow
the appropriate measures.

Do not keep the vehicle in a stopped position on an
uphill slope by depressing the accelerator pedal
instead of the brake pedal.
The transmission may be damaged and an accident
may occur due to the following conditions.
• The Twin Clutch SST fluid temperature will rise
and can cause transmission damage.
• If the vehicle is kept in a stopped position by
depressing the accelerator pedal instead of the
brake pedal, the vehicle will vibrate or the
warning display will appear on the information
screen in the multi-information display to alert the
driver that the Twin Clutch SST fluid temperature
has risen.
After that, if the Twin Clutch SST fluid tempera-
ture rises even higher, the transmission protection
control will operate.
If this occurs, the vehicle may suddenly reverse as
if the gearshift lever was in the “N” (NEUTRAL)
position and cause an accident.
If the warning display appears or the transmis-
sion protection control operates, refer to “When
warning display is showing” on page 3-110.CAUTION
!
BK0102103US.book 124 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-128 Features and controls
3ACD (Active center differential system)
(if so equipped)
N00538500034
The ACD is a system that improves acceleration performance
and straight-ahead stability by regulating the differential limit-
ing action and power drive distribution of the center differen-
tial.NOTE
If the parking brake lever is pulled up while the vehicle is
moving, the center differential is designed to switch to a
free state condition which will allow the rear wheel to
lock easier.
ACD control mode
N00545400048
Select the control mode from the following three types to suit
the driving conditions.
CAUTION
!
Do not over-rely on the ACD. Even the ACD cannot
prevent the natural laws of physics from acting on
the vehicle. This system, like any other system, has
limits and cannot help you to maintain traction and
control of the vehicle in all circumstances. Reckless
driving can lead to accidents. It is the driver’s
responsibility to drive carefully. This means taking
into account the traffic, road and environmental
conditions.
Be sure to use tires that are the same specified size,
type, and brand, and have no difference in the
amount of wear for all four wheels. Otherwise, the
ACD may not work properly.
ACD control
mode
Operation
TA R M A CNormally, use this control mode. Use this
mode for paved roads.
GRAVELUse this control mode when driving on some-
what slippery road surfaces, such as wet road
surfaces and gravel roads.
SNOWUse this control mode when driving on slip-
pery road surfaces, such as snow-covered
roads.
BK0102103US.book 128 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-131
3 Limited-slip differential
(if so equipped)
N00517400069
A limited-slip differential is applied for rear wheel differential.
The features of this limited-slip differential are described
below:
Just as with a conventional differential, the wheel on one side
is allowed to turn at a different speed from the wheel on the
other side when the vehicle is cornering. The difference
between the limited-slip differential and a conventional differ-
ential is that if the wheel on one side of the vehicle loses trac-
tion, a greater amount of torque is applied to the wheel on the
other side to improve traction.NOTE
Even if there is a difference in the amount of traction the
wheels can get, if both of them are spinning, the limited-
slip differential will not be effective.
Service brake
N00517500262
Brake pedalOveruse of the brake can cause poor brake response and pre-
mature wear of the brake pads and linings.
When driving down a long or steep hill, use engine braking by
downshifting.
CAUTION
!
Never start the engine while one of the front or rear
wheels is jacked up and the other in contact with the
ground; doing so may cause the vehicle to jump for-
ward.
Continuously attempting to extract the vehicle from
snow, mud, etc. while using high engine rpm may
damage the limited-slip differential.
Using a compact spare wheel will adversely affect
the limited-slip differential; replace the compact
spare wheel with a standard size wheel as soon as
possible.
WARNING
!
Do not leave any objects near the brake pedal or let
a floor mat slide under it; doing so could prevent the
full pedal stroke that would be necessary in an emer-
gency. Make sure that the pedal can be operated
freely at all times. Make sure the floor mat is
securely held in place.
CAUTION
!
It is important not to drive the vehicle with your foot
resting on the brake pedal when braking is not
required. This practice can result in very high brake
temperatures, premature pad and lining wear, and
possible damage to the brakes.
BK0102103US.book 131 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-135
3
NOTE
After your vehicle is driven a short distance after starting
the engine, you will hear the sound coming from the
engine compartment. These are the normal sounds the
anti-lock braking system makes when performing a self-
check. It does not indicate a malfunction.

The anti-lock braking system can be used after the vehicle
has reached a speed over approximately 6 mph (10 km/h).
It stops working when the vehicle slows below approxi-
mately 3 mph (5 km/h).
Anti-lock braking system warning light / display
N00531600573
Warning light
Warning display type 1
Warning display type 2
If there is a malfunction in the system, the anti-lock braking
system warning light will come on and the warning display
will appear on the information screen in the multi-information
display.
Under normal conditions, the anti-lock braking system warning
light only comes on when the ignition switch is turned to the
“ON” position and goes off a few seconds later.
CAUTION
!
The anti-lock braking system cannot prevent acci-
dents. It is your responsibility to take safety precau-
tions and to drive carefully.
To prevent failure of the anti-lock braking system,
be sure all four wheels and tires are the same size
and the same type.
Never install a limited slip differential as the ABS
may not function normally.
Please consult an authorized Mitsubishi Motors
dealer.
BK0102103US.book 135 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-138 Features and controls
3Active Stability Control (ASC)
(if so equipped)
N00559100118
The Active Stability Control (ASC) takes overall control of the
anti-lock braking system, traction control function and skid
control function to help maintain the vehicle’s control and trac-
tion. Please read this section in conjunction with the page on
the anti-lock braking system, traction control function and skid
control function.
Anti-lock braking system (ABS) → P.3-134
Traction control function → P.3-139
Skid control function → P.3-139
Rear
CAUTION
!
Do not over-rely on the ASC. Even the ASC cannot
prevent the natural laws of physics from acting on
the vehicle. This system, like any other system, has
limits and cannot help you to maintain traction and
control of the vehicle in all circumstances. Reckless
driving can lead to accidents. It is the driver’s
responsibility to drive carefully, This means taking
into account the traffic, road and environmental
conditions.
Be sure to use the same specified type and size of tire
on all four wheels. Otherwise, the ASC may not
work properly.
Do not install any aftermarket limited slip differen-
tial (LSD) on your vehicle. The ASC may stop func-
tioning properly.
BK0102103US.book 138 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-143

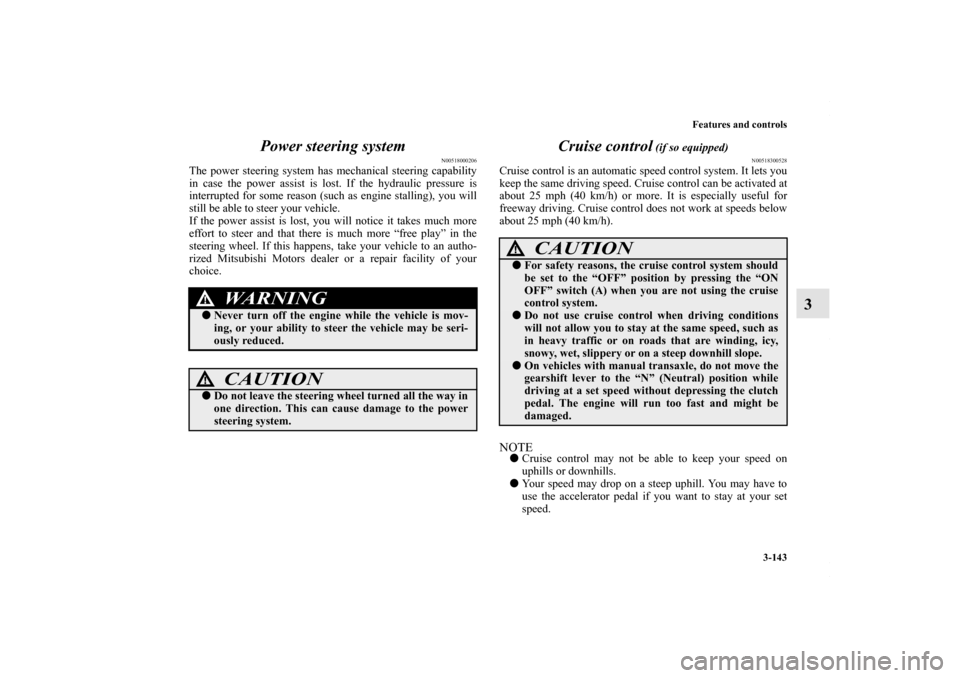

3 Power steering system
N00518000206
The power steering system has mechanical steering capability
in case the power assist is lost. If the hydraulic pressure is
interrupted for some reason (such as engine stalling), you will
still be able to steer your vehicle.
If the power assist is lost, you will notice it takes much more
effort to steer and that there is much more “free play” in the
steering wheel. If this happens, take your vehicle to an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice.
Cruise control
(if so equipped)
N00518300528
Cruise control is an automatic speed control system. It lets you
keep the same driving speed. Cruise control can be activated at
about 25 mph (40 km/h) or more. It is especially useful for
freeway driving. Cruise control does not work at speeds below
about 25 mph (40 km/h).NOTE
Cruise control may not be able to keep your speed on
uphills or downhills.

Your speed may drop on a steep uphill. You may have to
use the accelerator pedal if you want to stay at your set
speed.
WARNING
!
Never turn off the engine while the vehicle is mov-
ing, or your ability to steer the vehicle may be seri-
ously reduced.
CAUTION
!
Do not leave the steering wheel turned all the way in
one direction. This can cause damage to the power
steering system.
CAUTION
!
For safety reasons, the cruise control system should
be set to the “OFF” position by pressing the “ON
OFF” switch (A) when you are not using the cruise
control system.
Do not use cruise control when driving conditions
will not allow you to stay at the same speed, such as
in heavy traffic or on roads that are winding, icy,
snowy, wet, slippery or on a steep downhill slope.
On vehicles with manual transaxle, do not move the
gearshift lever to the “N” (Neutral) position while
driving at a set speed without depressing the clutch
pedal. The engine will run too fast and might be
damaged.
BK0102103US.book 143 ページ ２００９年１０月２６日　月曜日　午後１時３８分
