2010 MITSUBISHI LANCER language

3-162 Features and controls
3Multi-information display
N00555000122
[Except for vehicles equipped with the Twin Clutch SST]The multi-information display displays warnings, the odometer/trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, selector lever position, average and momentary fuel consumption, driving range, average speed,
instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch is
“OFF” position
W
i
th
i
g
ni
ti
on

swi
t
ch
i
s
“
ON”
p
os
it
i
on

{
Con
t
in
uou
sl
y
v
ar
ia
bl
e
t
ra
ns
mi
ss
io
n
(
CVT)
}
With ignition switch is “ON”
position (Manual transaxle)
Type 1 Type 2 Type 1 Type 2 Type 1 Type 2
1- Warning display screen (With ignition switch in the
“OFF” position) → P. 3-165
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P. 3-165
Interrupt display screen (With ignition switch in the “OFF”
position) → P. 3-168
3- Door ajar warning display screen (With ignition switch in the
“OFF” position) → P. 3-169
4- Warning display screen (With ignition switch in the “ON”
position) → P. 3-172
5- Active Stability Control (ASC) OFF display screen (if so
equipped) → P. 3-172
6- Information screen (With ignition switch in the “ON” posi-
tion) → P. 3-172
Interrupt display screen (With ignition switch in the “ON”
position) → P. 3-177
7- Fuel remaining display screen → P. 3-179
8- Outside temperature display screen → P. 3-179
9- Selector lever position display screen (CVT) → P. 3-178
BK0102103US.book 162 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-163
3
[For vehicles equipped with the Twin Clutch SST]The multi-information display displays warnings, the odometer/trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, Twin Clutch SST control mode, ACD control mode, gearshift lever position, average and momen-
tary fuel consumption, driving range, average speed, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch in the
“OFF” positionWith ignition switch in the
“ON” position
1- Warning display screen (With ignition switch in the
“OFF” position) →P.3-165
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P.3-165
Interrupt display screen (With ignition switch in the “OFF”
position) → P.3-168
3- Door ajar warning display screen (With ignition switch in
the “OFF” position) → P.3-169
4- ACD control mode display screen → P.3-179
5- Outside temperature display screen → P.3-179
6- Warning display screen (With ignition switch in the
“ON” position) → P.3-172
7- Information screen (With ignition switch in the “ON” posi-
tion) → P.3-172
Interrupt display screen (With ignition switch in the “ON”
position) → P.3-177
8- Fuel remaining display screen → P.3-179
9- Twin Clutch SST control mode display screen → P.3-179
10- Gearshift lever position display screen → P.3-178
11- Active Stability Control (ASC) OFF display screen
→ P. 3-141
BK0102103US.book 163 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-164 Features and controls
3
NOTE
The fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.

The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-165.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-200.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON” position)” on page 3-170.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-172.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-203.
Multi-information meter switch
N00555100080
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.
Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, odometer/trip odometer
(Type 1), service reminder, engine coolant temperature (Type
1), average and momentary fuel consumption, driving range,
and average speed and ACD control mode display (if so
equipped).
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.
BK0102103US.book 164 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-176 Features and controls
3
Auto reset mode

When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, these
calculations will be reset to zero.

When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
speed display will automatically reset. NOTE
The average speed display and the average fuel consump-
tion display can be reset separately in both auto reset
mode and manual reset mode.

“---” is displayed when the average fuel consumption can-
not be measured.

The initial (default) setting is “Auto reset mode”.

Average fuel consumption may vary depend on the driv-
ing conditions (road conditions, how you drive, etc.) The
actual fuel consumption may differ from the fuel con-
sumption displayed, so treat the fuel consumption dis-
played as just a rough guideline.

The average fuel consumption display memories for auto
reset mode and manual reset mode are erased if the battery
is disconnected.

The display setting can be changed to the preferred units
{mpg(US), mpg(UK), L/100 km or km/L}.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
Momentary fuel consumption displayWhile driving, the momentary fuel consumption is shown with
a bar graph.
When the momentary fuel consumption surpasses the average
fuel consumption, the momentary fuel consumption is dis-
played with a green bar graph. (Type 2)
Be conscious of maintaining the momentary fuel consumption
above the average fuel consumption, it can help you drive with
the better fuel consumption.NOTE
When the momentary fuel consumption cannot be mea-
sured, a bar graph is not shown.

The display setting can be changed to the preferred units
{mpg (US), mpg (UK), L/100 km or km/L}.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.

It is possible to cancel the green bar graph.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.Function setting screenThe “Display language”, “Temperature unit”, “Fuel consump-
tion unit”, and “Average fuel consumption and speed reset
method” settings can be modified as desired.
For further details, refer to “Changing the function settings
(With ignition switch in the “ON” position)” on page 3-184.
BK0102103US.book 176 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-185
3
NOTE
To return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).

If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections.
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-185.
Refer to “Changing the fuel consumption display unit” on
page 3-187.
Refer to “Changing the temperature unit” on page 3-189.
Refer to “Changing the display language” on page 3-190.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or the Hands-free Bluetooth
®
system to match the multi-information display (if so
equipped)” on page 3-191.
Refer to “Operation sound setting” on page 3-192.
Refer to “Changing the amount of time until “REST
REMINDER” is displayed” on page 3-193.
Refer to “Changing the turn-signal sound” on page 3-194.
Refer to “Changing the momentary fuel consumption dis-
play” on page 3-195.
Refer to “Returning to the factory settings” on page 3-
196.
Changing the reset mode for average fuel consumption
and average speed
N00557000067
You can change the mode condition for the average fuel con-
sumption and average speed display to “Auto reset” or “Man-
ual reset”.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
2. Lightly press the multi-information meter switch to select
“AVG” (average fuel consumption and average speed set-
ting).
BK0102103US.book 185 ページ ２００９年１０月２６日　月曜日　午後１時３８分

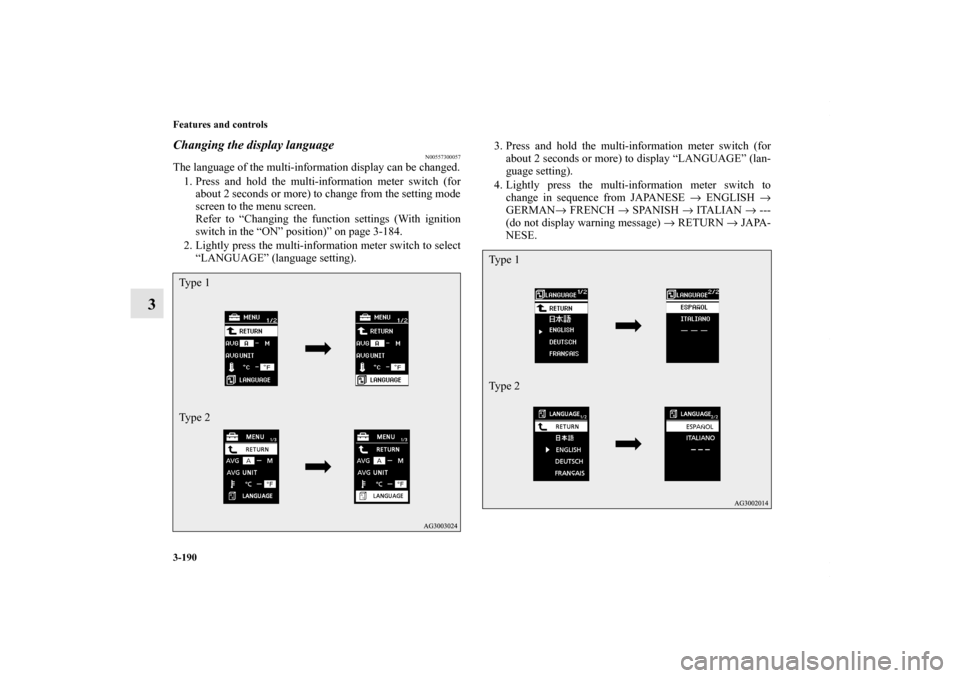

3-190 Features and controls
3
Changing the display language
N00557300057
The language of the multi-information display can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
2. Lightly press the multi-information meter switch to select
“LANGUAGE” (language setting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “LANGUAGE” (lan-
guage setting).
4. Lightly press the multi-information meter switch to
change in sequence from JAPANESE → ENGLISH →
GERMAN→ FRENCH → SPANISH → ITALIAN → ---
(do not display warning message) → RETURN → JAPA-
NESE.Type 1
Type 2
Type 1
Type 2
BK0102103US.book 190 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-191
3
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected language.NOTE
If the battery is disconnected, the memory of the language
setting is erased and is automatically set to ENGLISH.

If “---” is selected in the language setting, a warning mes-
sage is not displayed when there is a warning display or
interrupt display.Changing the language on Mitsubishi Multi-Communi-
cation System or the Hands-free Bluetooth
® system to
match the multi-information display
(if so equipped)
N00529800099
The language used in the Mitsubishi Multi-Communication
System (if so equipped) or the Hands-free Bluetooth
® cellular
phone interface system with voice recognition (if so equipped)
can be changed automatically to the same language as that
shown in the multi-information display.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.2. Lightly press the multi-information meter switch to select
“ ” (language cooperative control).
3. Every time the multi-information meter switch is pressed
for a long time, the setting will change as follows: A (lan-
guage cooperation: enabled) → M (language cooperation:
disabled) → A (language cooperation: enabled). The set-
ting is changed to the selected condition.
Type 1
Type 2
BK0102103US.book 191 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-192 Features and controls
3
NOTE
If the battery is disconnected, the memory of the language
cooperative control is erased and is automatically set to
“A” (language cooperation: enabled).

The language display modified with the language setting
can be switched in the following manner.
• When “A” (language cooperation: enabled) has been
selected with the language cooperative control, the lan-
guage for the Mitsubishi Multi-Communication System
(if so equipped) or the Hands-free Bluetooth
® cellular
phone interface system with voice recognition (if so
equipped) is automatically changed to the language
selected for the multi-information display.
• When “M” (language cooperation: disabled) has been
selected with the language cooperative control, the lan-
guage for the Mitsubishi Multi-Communication System
(if so equipped) or the Hands-free Bluetooth® cellular
phone interface system with voice recognition (if so
equipped) is not automatically changed to the language
selected for the multi-information display.
Operation sound setting
N00557400058
You can turn off the operation sounds of the multi-information
meter switch and rheostat meter illumination button.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
2. Lightly press the multi-information meter switch to select
“ ” (operation sound setting). Type 1
Type 2
BK0102103US.book 192 ページ ２００９年１０月２６日　月曜日　午後１時３８分
