2010 MITSUBISHI LANCER ESP

Features and controls
3-251
3
5. After the voice guide says “Calling at tion>,” the Hands-free Bluetooth
® cellular phone inter-
face system with voice recognition will make the call.
When the confirmation function is on, the system will
confirm whether or not the name of the recipient of the
call is correct. Answer “Yes.” to use that name.
If you want to change the name or location to call, answer
“No.” The system will return to Step 3.
Redialing
N00507800015
You can redial the last number called, based on the history of
dialed calls in the paired cellular phone.
Use the following procedure to redial.
1. Press the SPEECH button.
2. Say “Redial.”Emergency calls
N00507900032
You can make quick calls to “911” in the event of an emer-
gency. The simple process to call “911” is described below.
1. Press the SPEECH button.
2. Say “Emergency.”
The Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition will automatically dial “911.”
At this time, the system will confirm whether it should
call “911.” Answer “Yes” if it is ok to call “911.”
If you answer “No,” the voice recognition mode will be
deactivated without making the call.
NOTE
Depending on the region (country) in which the call is
made, emergency calls may not go through.
SEND function
N00508000027
During a call, press the SPEECH button to enter the voice rec-
ognition mode and then say “{number string} SEND” to gener-
ate a DTMF tone.
For example, if during a call you need to simulate the press of a
phone button as a response to an automated system, press the
SPEECH button and speak “1 2 3 4 pound SEND” and the
1234# will be sent on your cellular phone.Switching between hands-free mode and private
mode
N00508100028
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition can switch between Hands-free mode
(Hands-free calls) and private mode (calls using cellular
phone).
If you press the SPEECH button and say “Transfer call” during
a Hands-free call, you can stop the Hands-free mode and talk in
private mode.
To return to Hands-free mode, press the SPEECH button again
and say “Transfer call.”
BK0102103US.book 251 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-264 Features and controls
3
NineEnglish Nine -
Spanish Nueve -
French Neuf -
StarEnglish Star (*) -
Spanish Estrella (*) Asterisco (*)
French Étoile (*) -
PoundEnglish Pound (#) -
Spanish Número (#)Signo De Número
(#)
French Dièse (#) -
Spoken
Language
(English)English English -
Spanish Inglés -
French Anglais L’anglais
Spoken
Language
(Spanish)English Spanish -
Spanish Español -
French Espagnol L’espagnol
Spoken
Language
(French)English French -
Spanish Francés -
French Français L’françaisCommand
Language
Primary Command
Alternative
Commands
PHONE-
BOOK
NEW
ENTRYEnglishPhonebook New
Entry-
SpanishAgenda - Nueva
EntradaDirectorio
Telefonico Nueva
Entrada
FrenchRépertoire Nou-
velle InscriptionBottin Nouvelle
Fiche
PHONE-
BOOK
EDITEnglish Phonebook Edit -
Spanish Agenda - Editar -
French Répertoire Modifier -
PHONE-
BOOK
DELETEEnglish Phonebook Delete -
Spanish Agenda - Eliminar -
FrenchRépertoire Suppri-
merBottin Modifier
PHONE-
BOOK
ERASE
ALLEnglishPhonebook Erase
All-
SpanishAgenda - Borrar
To d o-
FrenchRépertoire Effacer
To u t-Command
Language
Primary Command
Alternative
Commands
BK0102103US.book 264 ページ ２００９年１０月２６日　月曜日　午後１時３８分

4-6 Driving safety
4
NOTE
As your vehicle is equipped with a tire pressure monitor-
ing system, there is a risk of damage to the tire inflation
pressure sensors when the tire is replaced on the rim. Tire
replacement should, therefore, be performed only by an
authorized Mitsubishi Motors dealer.

If you use new wheels with new tire inflation pressure
sensors, their ID codes must be programmed into the tire
pressure monitoring system. Refer to “Whenever the tires
and wheels are replaced with new ones” on page 3-156.
Braking
N00629500446
All the parts of the brake system are critical to safety. Have the
vehicle serviced by an authorized Mitsubishi Motors dealer or
a repair facility of your choice at regular intervals according to
the “WARRANTY AND MAINTENANCE MANUAL”.When brakes are wetCheck the brake system while driving at a low speed immedi-
ately after starting, especially when the brakes are wet, to con-
firm they work normally.
A film of water can be formed on the brake discs or brake
drums and prevent normal braking after driving in heavy rain
or through large puddles, or after the vehicle is washed. If this
occurs, dry the brakes out by driving slowly while lightly
depressing the brake pedal.When driving in cold weatherOn snowy roads, ice can form on the braking system, making
the brakes less effective. While driving in such conditions, pay
close attention to preceding and following vehicles and to the
condition of the road surface. From time to time, lightly
depress the brake pedal and check how effective the brakes are.When driving downhillIt is important to take advantage of the engine braking by shift-
ing to a lower gear while driving on steep downhill roads in
order to prevent the brakes from overheating.
BK0102103US.book 6 ページ ２００９年１０月２６日　月曜日　午後１時３８分

5-16 Comfort controls
5
Air conditioning switch
N00731000423
Push the switch, and the air conditioning compressor will turn
on. The air conditioning indicator light (A) will come on.
A sound will be made every time you push the switch.
Push the switch again and the air conditioning compressor will
stop and the indicator light (A) goes off.
NOTE
If a problem is detected in the air conditioning compres-
sor, the air conditioning indicator light (A) blinks. Press
the air conditioning switch once to turn it off, then once
more to turn it back on. If the air conditioning indicator
light (A) does not blink, there is no problem. If it does
blink, have it checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice.

Sometimes, for example after using a high-pressure car
wash, the condenser can get wet, and the air conditioning
indicator light (A) blinks temporarily. Wait for a while,
press the air conditioning switch once to turn the system
off, then once more to turn it back on. Once the water
evaporates, the blinking will stop.
CAUTION
!
When using the air conditioning, the idling speed
may slightly increase as the air conditioning com-
pressor is switched on/off automatically. Especially
for vehicles with a continuously variable transmis-
sion (CVT) or Twin Clutch SST, while the vehicle is
stationary, fully depress the brake pedal to prevent
the vehicle from creeping.
BK0102103US.book 16 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Comfort controls
5-25
5
Personalizing the air selection (Changing the function
setting)
N00702100028
You can change the following functions to match your prefer-
ence.

Enable automatic air control:
When the air conditioning operates, the air selection
switch will be automatically controlled.

Disable automatic air control:
Even when the air conditioning operates, the air selection
switch will not be automatically controlled.

Changing the settings
Press the air selection switch for about 10 seconds or
longer.
When the setting has changed, the system will beep and
the indicator light will flash.
• When the setting has changed from enabled to disabled,
the system will beep three times and the indicator will
flash three times.
• When the setting has changed from disabled to enabled,
the system will beep two times and the indicator light
will flash three times.NOTE
The factory setting is “Enable automatic air control”.

While the mode selection dial is set between “ ” and
“ ” position, the air selection will automatically change
to the outside air position, even if the system is set to
“Disable automatic air control”, in order to prevent win-
dows from fogging up.
Air conditioning switch
N00731000436
Push the switch, and the air conditioning compressor will turn
on. The air conditioning indicator light (A) will come on.
A sound will be made every time you push the switch.
Push the switch again and the air conditioning compressor will
stop and the indicator light (A) goes off.
CAUTION
!
When using the air conditioning, the idling speed
may slightly increase as the air conditioning com-
pressor is switched on/off automatically. Especially
for vehicles with a continuously variable transmis-
sion (CVT) or Twin Clutch SST, while the vehicle is
stationary, fully depress the brake pedal to prevent
the vehicle from creeping.
BK0102103US.book 25 ページ ２００９年１０月２６日　月曜日　午後１時３８分

5-36 Comfort controls
5
Air conditioning switch
N00737300297
Push the switch, and the air conditioning compressor will turn
on. The air conditioning indicator light (A) will come on.
A sound will be made every time you push the switch.
Push the switch again and the air conditioning compressor will
stop and the indicator light (A) goes off.
NOTE
If a problem is detected in the air conditioning compres-
sor, the air conditioning indicator light (A) blinks. Press
the air conditioning switch once to turn it off, then once
more to turn it back on. If the air conditioning indicator
light does not blink there is no problem. If it does blink,
have it checked at an authorized Mitsubishi Motors dealer
or a repair facility of your choice.

Sometimes, for example after using a high-pressure car
wash, the condenser can get wet, and the air conditioning
indicator light (A) blinks temporarily. Wait for a while,
press the air conditioning switch once to turn the system
off, then once more to turn it back on. Once the water
evaporates, the blinking will stop.
CAUTION
!
When using the air conditioning, the idling speed
may slightly increase as the air conditioning com-
pressor is switched on/off automatically. Especially
for vehicles with a continuously variable transmis-
sion (CVT) or Twin Clutch SST, while the vehicle is
stationary, fully depress the brake pedal to prevent
the vehicle from creeping.
BK0102103US.book 36 ページ ２００９年１０月２６日　月曜日　午後１時３８分

5-46 Comfort controls
5
Air conditioning switch
N00737300301
Push the switch, and the air conditioning compressor will turn
on. The air conditioning indicator light (A) will come on.
A sound will be made every time you push the switch.
Push the switch again and the air conditioning compressor will
stop and the indicator light (A) goes off.
NOTE
If a problem is detected in the air conditioning compres-
sor, the air conditioning indicator light (A) blinks. Press
the air conditioning switch once to turn it off, then once
more to turn it back on. If the air conditioning indicator
light does not blink there is no problem. If it does blink,
have it checked at an authorized Mitsubishi Motors dealer
or a repair facility of your choice.

Sometimes, for example after using a high-pressure car
wash, the condenser can get wet, and the air conditioning
indicator light (A) blinks temporarily. Wait for a while,
press the air conditioning switch once to turn the system
off, then once more to turn it back on. Once the water
evaporates, the blinking will stop.
CAUTION
!
When using the air conditioning, the idling speed
may slightly increase as the air conditioning com-
pressor is switched on/off automatically. Especially
for vehicles with a continuously variable transmis-
sion (CVT) or Twin Clutch SST, while the vehicle is
stationary, fully depress the brake pedal to prevent
the vehicle from creeping.
BK0102103US.book 46 ページ ２００９年１０月２６日　月曜日　午後１時３８分

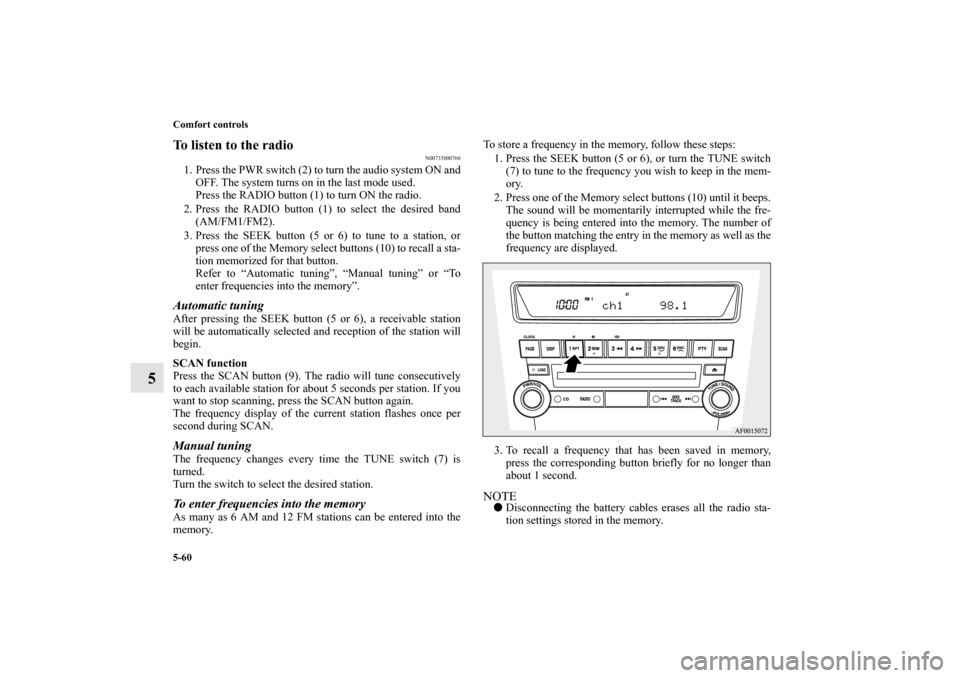

5-60 Comfort controls
5
To listen to the radio
N00735000766
1. Press the PWR switch (2) to turn the audio system ON and
OFF. The system turns on in the last mode used.
Press the RADIO button (1) to turn ON the radio.
2. Press the RADIO button (1) to select the desired band
(AM/FM1/FM2).
3. Press the SEEK button (5 or 6) to tune to a station, or
press one of the Memory select buttons (10) to recall a sta-
tion memorized for that button.
Refer to “Automatic tuning”, “Manual tuning” or “To
enter frequencies into the memory”.Automatic tuningAfter pressing the SEEK button (5 or 6), a receivable station
will be automatically selected and reception of the station will
begin.
SCAN function
Press the SCAN button (9). The radio will tune consecutively
to each available station for about 5 seconds per station. If you
want to stop scanning, press the SCAN button again.
The frequency display of the current station flashes once per
second during SCAN.Manual tuningThe frequency changes every time the TUNE switch (7) is
turned.
Turn the switch to select the desired station.To enter frequencies into the memoryAs many as 6 AM and 12 FM stations can be entered into the
memory.To store a frequency in the memory, follow these steps:
1. Press the SEEK button (5 or 6), or turn the TUNE switch
(7) to tune to the frequency you wish to keep in the mem-
ory.
2. Press one of the Memory select buttons (10) until it beeps.
The sound will be momentarily interrupted while the fre-
quency is being entered into the memory. The number of
the button matching the entry in the memory as well as the
frequency are displayed.
3. To recall a frequency that has been saved in memory,
press the corresponding button briefly for no longer than
about 1 second.
NOTE
Disconnecting the battery cables erases all the radio sta-
tion settings stored in the memory.
BK0102103US.book 60 ページ ２００９年１０月２６日　月曜日　午後１時３８分
