5-42 Comfort controls
5

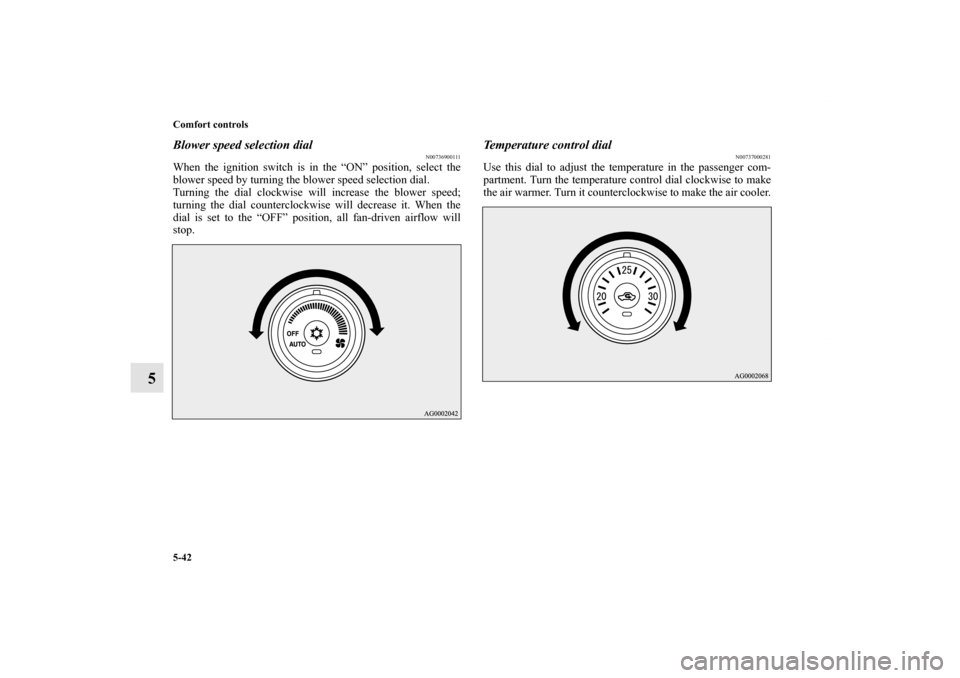

Blower speed selection dial
N00736900111
When the ignition switch is in the “ON” position, select the
blower speed by turning the blower speed selection dial.
Turning the dial clockwise will increase the blower speed;
turning the dial counterclockwise will decrease it. When the
dial is set to the “OFF” position, all fan-driven airflow will
stop.
Temperature control dial
N00737000281
Use this dial to adjust the temperature in the passenger com-
partment. Turn the temperature control dial clockwise to make
the air warmer. Turn it counterclockwise to make the air cooler.
BK0102103US.book 42 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Comfort controls
5-43
5
NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.

When the temperature is set to the highest or the lowest
setting under the AUTO operation, the air selection and
the air conditioning will be automatically changed as fol-
lows.
Also, if the air selection is operated manually after an
automatic changeover, manual operation will be selected.
• Quick Heating (When the temperature is set to the high-
est setting)
Outside air will be introduced and the air conditioning
will stop.
• Quick Cooling (When the temperature is set to the low-
est setting)
Inside air will be recirculated and the air conditioning
will operate.
The above indicates the factory settings. You can personalize
the air selection switch and air conditioning switch to match
your personal preferences.
Contact your Mitsubishi Motors dealer or a repair facility of
your choice for assistance.
Refer to “Personalizing the air conditioning switch (Changing
the function setting)” on page 5-47.
Refer to “Personalizing the air selection (Changing the func-
tion setting)” on page 5-45.
Mode selection dial
N00737100136
To change the amount of air flowing from the vents, turn the
mode selection dial. Refer to “Changing the mode selection”
on page 5-3.
BK0102103US.book 43 ページ ２００９年１０月２６日　月曜日　午後１時３８分

5-44 Comfort controls
5
Air selection switch
N00737200241
Normally, use the outside air position to keep the windshield
and side windows clear and to quickly remove fog or frost
from the windshield.
To change the air selection, simply press the air selection
switch. A sound will be made every time you press the switch.

Outside air {Indicator light (A) OFF}
Outside air is introduced into the passenger compartment.

Recirculated air {Indicator light (A) ON}
Air is recirculated inside the passenger compartment.When the air conditioning turns on, the air selection is con-
trolled automatically. When the air conditioning turns off, the
air selection automatically goes back to the outside air position.
If high cooling performance is desired, or if the outside air is
dusty or contaminated in some way, use the recirculation posi-
tion. Switch to the outside air position every now and then to
keep the windows from fogging up.
CAUTION
!
Using recirculated air for a long time may cause the
windows to fog up.
BK0102103US.book 44 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Comfort controls
5-45
5
Personalizing the air selection (Changing the function
setting)
N00760000050
You can change the following functions to match your prefer-
ence.

Enable automatic air control:
When the mode selection dial or the blower speed selec-
tion dial is set to the “AUTO” position, the air selection
switch will also be automatically controlled.

Disable automatic air control:
Even when the mode selection dial or the blower speed
selection dial is set to the “AUTO” position, the air selec-
tion switch will not be automatically controlled.

Changing the settings
Press the air selection switch for about 10 seconds or
longer.
When the setting has changed, the system will beep and
the indicator light will flash.
• When the setting has changed from enabled to disabled,
the system will beep three times and the indicator will
flash three times.
• When the setting has changed from disabled to enabled,
the system will beep two times and the indicator light
will flash three times.
NOTE
The factory setting is “Enable automatic air control”.

While the mode selection dial is set to the “ ” position,
the air selection will automatically change to the outside
air position, even if the system is set to “Disable auto-
matic air control”, in order to prevent windows from fog-
ging up.
BK0102103US.book 45 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Comfort controls
5-47
5
Personalizing the air conditioning switch (Changing
the function setting)
N00759800029
You can change the following functions to match your prefer-
ence.

Enable automatic air conditioning control:
When the mode selection dial or blower speed selection
dial has been set to the “AUTO” position or when the tem-
perature control dial has been set to the minimum temper-
ature, the air conditioning switch is automatically
controlled.

Disable automatic air conditioning control:
The air conditioning switch is not automatically con-
trolled, unless the air conditioning switch is used.

Changing the settings
Press the air conditioning switch for about 10 seconds or
longer.
When the setting has changed, the system will beep and
the indicator light will flash.
• When the setting has changed from enabled to disabled,
the system will beep three times and the indicator will
flash three times.
• When the setting has changed from disabled to enabled,
the system will beep two times and the indicator light
will flash three times.
NOTE
The factory setting is “Enable automatic air conditioning
control”.

While the mode selection dial is set to the “ ” position,
the air conditioning will run automatically, even if the sys-
tem is set to “Disable automatic air conditioning control”,
in order to prevent windows from fogging up.
BK0102103US.book 47 ページ ２００９年１０月２６日　月曜日　午後１時３８分

5-48 Comfort controls
5
Operating the air conditioning system (automatic
mode)
N00731700286
In normal conditions, use the system in the AUTO mode and
follow these procedures:
1. Set the blower speed selection dial to the “AUTO” posi-
tion.
2. Select the temperature control dial to the desired tempera-
ture. The temperature can be set within a range of around
18 to 32. The temperature will increase as the dial is
turned to the right.
3. Set the mode selection dial to the “AUTO” position.
The vents (except “ ”), recirculation/outside air, blower
speed, and ON/OFF of air conditioning will be controlled auto-
matically.
NOTE
Set the temperature at about 25 under normal conditions.

While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial. To prevent the windshield and windows from
fogging up, the vent mode will be changed to “ ” or
“ ” and the blower speed will be reduced.
BK0102103US.book 48 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Comfort controls
5-49
5
Operating the air conditioning system (manual
mode)
N00731800098
Blower speed and vent mode may be controlled manually by
setting the blower speed selection dial and the mode selection
dial to the desired positions. To return to automatic operation,
set the dials to the “AUTO” position.Defrosting or defogging (windshield, door windows)
N00732400408
To remove frost or mist from the windshield and door win-
dows, use the mode selection dial (“ ” or “ ”).For ordinary defrosting
Use this setting to keep the windshield and door windows clear
of mist, and to keep the leg area heated (when driving in rain or
snow).
1. Set the mode selection dial to the “ ” position.
2. Set the air selection switch (A) to the outside air position.
3. Select your desired blower speed by turning the blower
speed selection dial.
4. Select your desired temperature by turning the tempera-
ture control dial.
CAUTION
!
For safety, make sure you have a clear view through
all the windows.
BK0102103US.book 49 ページ ２００９年１０月２６日　月曜日　午後１時３８分

5-50 Comfort controls
5
For quick defrosting

1. Set the mode selection dial to the “ ” position.
2. Set your blower to the maximum speed.
3. Set the temperature to the highest position.
NOTE
While the mode selection dial is set to the “ ” position,
the air conditioning compressor will run automatically.
The outside air position will also be selected automati-
cally.

To defog quickly, direct the air flow from the side vents
toward the door windows.

When defrosting, do not set the temperature control dial to
the maximum cool position. This will blow cool air on the
window glass and fog it up.
