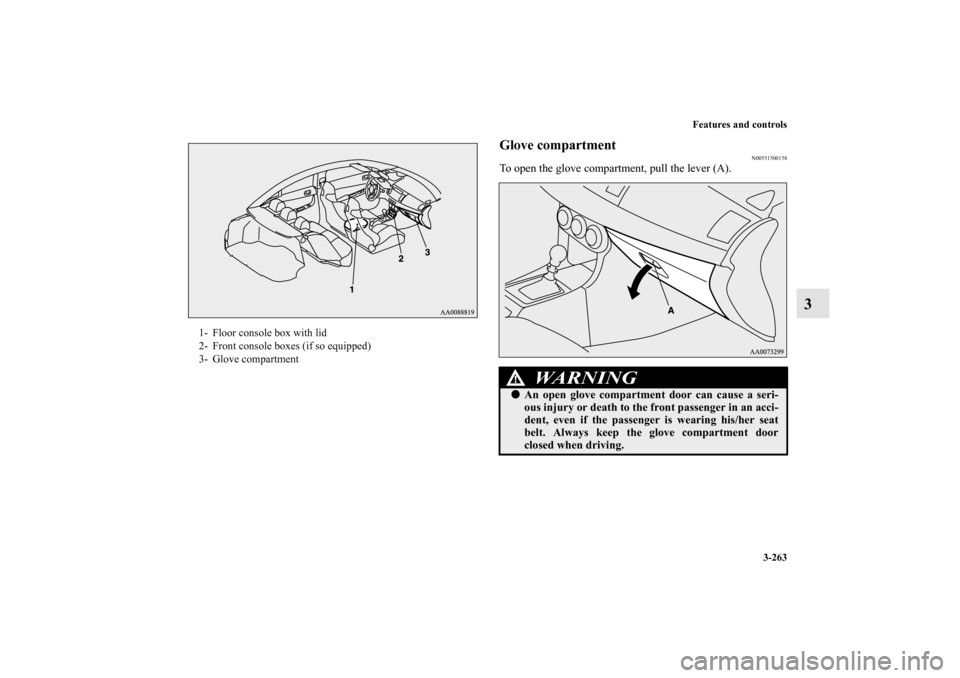

Page 348 of 594
Features and controls
3-263
3
Glove compartment
N00551500158
To open the glove compartment, pull the lever (A).
1- Floor console box with lid
2- Front console boxes (if so equipped)
3- Glove compartment
WA R N I N G
!
An open glove compartment door can cause a seri-
ous injury or death to the front passenger in an acci-
dent, even if the passenger is wearing his/her seat
belt. Always keep the glove compartment door
closed when driving.
BK0105501US.book 263 ページ 2009年8月10日 月曜日 午前10時32分
Page 349 of 594
3-264 Features and controls
3
Card holderThere is a card holder on the inside of the glove compartment.NOTE
Up to 2 cards will fit in the card holder.
Front console boxes
(if so equipped)
N00546400032
To open, push the lid.Upper boxNOTE
The Auxiliary Audio connector (RCA) or the Auxiliary
Video connector (RCA) is located in the front console
upper box (if so equipped). For details, refer to “To use
the external audio input function” on page 5-82.
BK0105501US.book 264 ページ 2009年8月10日 月曜日 午前10時32分
Page 350 of 594
Features and controls
3-265
3
Lower box
Floor console box with lid
N00551600205
To open the floor console box, lift the release lever (A) and
raise the lid.
CAUTION
!
Do not use the front console boxes as an ashtray.
This could cause a fire.
BK0105501US.book 265 ページ 2009年8月10日 月曜日 午前10時32分
Page 351 of 594
3-266 Features and controls
3
Tissue holderThe tissue holder (A) is located on the underside of the floor
console box lid.
Cup holder
N00527300289
For the front seatThe cup holder is located the middle of the floor console.
The cup holder is designed for holding cups or drink-cans
securely in its holes.Type 1
BK0105501US.book 266 ページ 2009年8月10日 月曜日 午前10時32分
Page 352 of 594
Features and controls
3-267
3
Type 2To use the cup holder, open up the lid.
For the rear seat
N00537000120
This cup holder is located in the rear seat arm rest (A).
Pull the rear arm rest down to use the cup holder.
CAUTION
!
Do not drink beverages while driving your vehicle.
This is distracting and could cause an accident.
BK0105501US.book 267 ページ 2009年8月10日 月曜日 午前10時32分
Page 353 of 594
3-268 Features and controls
3Bottle holder
N00502800036
NOTE
Make sure all lids are tightly closed when storing bever-
ages that are in plastic bottles, etc.
Some beverages may not be stored, depending on the size
and shape of the plastic bottles, etc.
There are bottle holders located on both sides of the front seats.
Assist grip
N00559000029
These grips are to support the body by hand while seated in the
vehicle.
CAUTION
!
Do not drink beverages while driving your vehicle.
This is distracting and could cause an accident.
Vibration and shaking while driving may cause bev-
erages to spill. Be very careful, as spilling hot bever-
ages could cause burns.
CAUTION
!
Do not use the assist grips when getting into or out
of the vehicle.
The assist grips could detach and cause an accident.
BK0105501US.book 268 ページ 2009年8月10日 月曜日 午前10時32分
Page 354 of 594
Features and controls
3-269
3 Coat hook
N00553600081
There is a coat hook on the rear seat assist grip of the driver’s
side.
WA R N I N G
!
Do not put a hanger or any heavy or pointed object
on the coat hook. If the curtain airbag was activated,
any such item could be propelled away with great
force and could prevent the curtain airbag from
inflating correctly. Hang clothes directly on the coat
hook (without using a hanger). Make sure there are
no heavy or sharp objects in the pockets of clothes
that you hang on the coat hook.
BK0105501US.book 269 ページ 2009年8月10日 月曜日 午前10時32分
Page 404 of 594
Comfort controls
5-35
5
To adjust the volume
N00712000365
Turn the VOL knob (2) clockwise to increase the volume;
counterclockwise to decrease the volume.
The status will be displayed in the display (3).NOTE
The volume control mode will shut off automatically if
either the radio or CD is selected, or if no adjustment is
made within about 2 seconds.
To adjust the tone
N00712100627
1. Press the SOUND switch (4) repeatedly to select the tone
or balance control to change. The order is: TYPE →
FIELD → BASS → MID → TREBLE → FADER →
BALANCE → Audio adjust mode OFF
QUICK ACCESS MODE
To access the sound customization features quickly, push
and hold the SOUND switch (4), then turn the switch
clockwise or counterclockwise to access your desired
sound customization setting. Release the switch to adjust
the setting.
BK0105501US.book 35 ページ 2009年8月10日 月曜日 午前10時32分
