It is recommended that the two front tires or two rear tires generally be
replaced as a pair.
The tire pressure sensors mounted in the wheels (originally installed on
your vehicle) are not designed to be used in aftermarket wheels.
The use of wheels or tires not recommended by Ford Motor Company
may affect the operation of your Tire Pressure Monitoring System.
If the TPMS indicator is flashing, your TPMS is malfunctioning. Your
replacement tire might be incompatible with your TPMS, or some
component of the TPMS may be damaged.
Safety practices
Driving habits have a great deal to do with your tire mileage and safety.
•Observe posted speed limits
•Avoid fast starts, stops and turns
•Avoid potholes and objects on the road
•Do not run over curbs or hit the tire against a curb when parking
WARNING:If your vehicle is stuck in snow, mud, sand, etc.,do
notrapidly spin the tires; spinning the tires can tear the tire and
cause an explosion. A tire can explode in as little as three to five
seconds.
WARNING:Do not spin the wheels at over 35 mph (56 km/h).
The tires may fail and injure a passenger or bystander.
Highway hazards
No matter how carefully you drive there’s always the possibility that you
may eventually have a flat tire on the highway. Drive slowly to the
closest safe area out of traffic. This may further damage the flat tire, but
your safety is more important.
If you feel a sudden vibration or ride disturbance while driving, or you
suspect your tire or vehicle has been damaged, immediately reduce your
speed. Drive with caution until you can safely pull off the road. Stop and
inspect the tires for damage. If a tire is under-inflated or damaged,
deflate it, remove wheel and replace it with your spare tire and wheel. If
you cannot detect a cause, have the vehicle towed to the nearest repair
facility or tire dealer to have the vehicle inspected.
Tires, Wheels and Loading
181
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

Note:If the system cannot be turned off, refer toMyKey™in theLocks
and Securitychapter for more information.
Keep the RSS sensors (located on the rear bumper/fascia) free
from snow, ice and large accumulations of dirt (do not clean the
sensors with sharp objects). If the sensors are covered, it will
affect the accuracy of the RSS.
If your vehicle sustains damage to the rear bumper/fascia, leaving
it misaligned or bent, the sensing zone may be altered causing
inaccurate measurement of obstacles or false alarms.
REARVIEW CAMERA SYSTEM (IF EQUIPPED)
The rearview camera system located
on the liftgate provides a video
image, which appears in the
rearview mirror or on the navigation
screen (if equipped), of the area
behind the vehicle. It adds
assistance to the driver while
reversing or reverse parking the
vehicle.
To use the camera, place the transmission in R (Reverse); an image will
display on the left portion of the rearview mirror or on the navigation
screen (if equipped). The area displayed on the screen may vary
according to the vehicle orientation and/or road condition.
•(1) Rear bumper
•(2) Red zone
•(3) Yellow zone
•(4) Green zone
•(5) Centerline of vehicle
Always use caution while backing.
Objects in the red zone are closest
to your vehicle and objects in the
green zone are further away. Objects
are getting closer to your vehicle as they move from the green zone to
the yellow or red zones.
Use the side mirrors and rearview mirror to get better coverage on both
sides and rear of the vehicle.
Driving
228
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

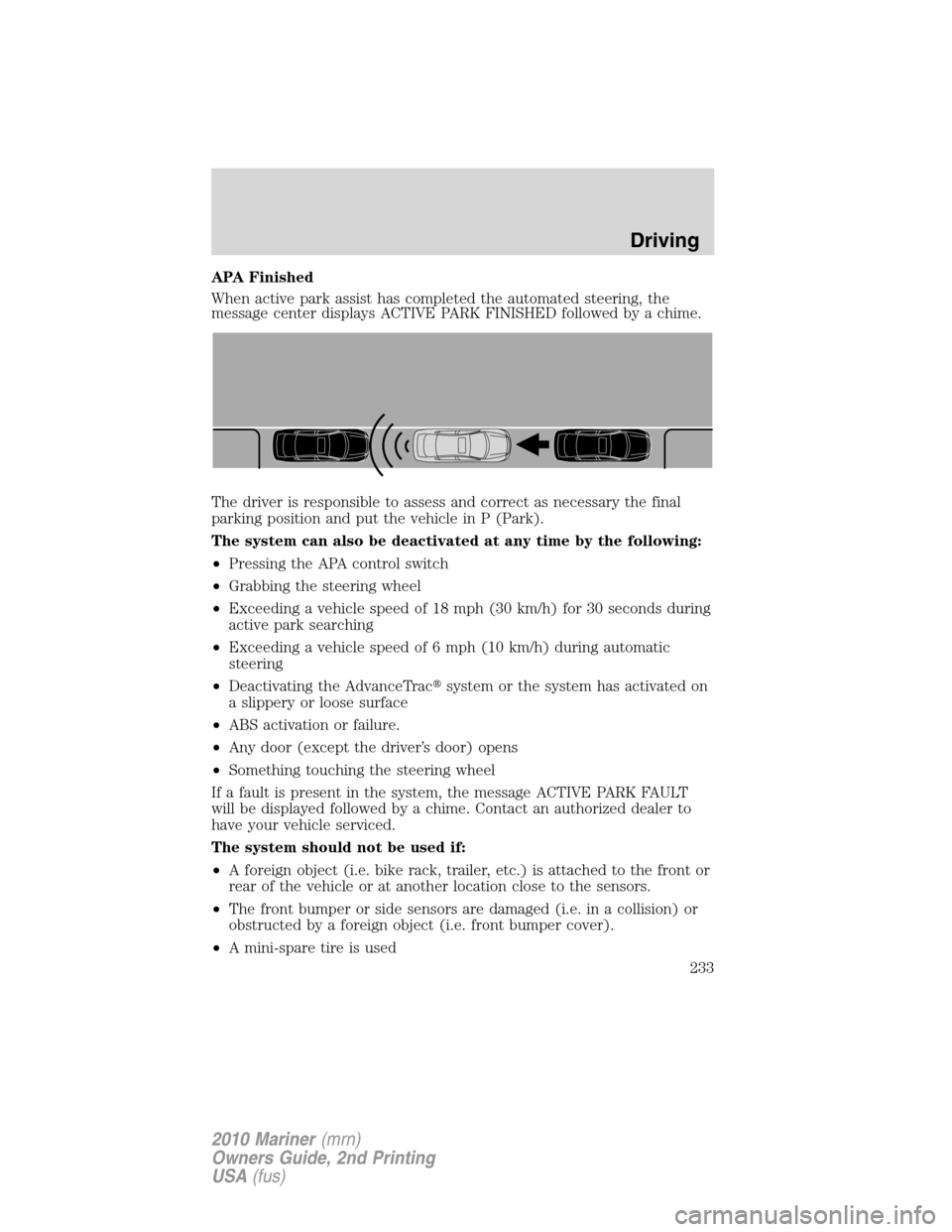

APA Finished
When active park assist has completed the automated steering, the
message center displays ACTIVE PARK FINISHED followed by a chime.
The driver is responsible to assess and correct as necessary the final
parking position and put the vehicle in P (Park).
The system can also be deactivated at any time by the following:
•Pressing the APA control switch
•Grabbing the steering wheel
•Exceeding a vehicle speed of 18 mph (30 km/h) for 30 seconds during
active park searching
•Exceeding a vehicle speed of 6 mph (10 km/h) during automatic
steering
•Deactivating the AdvanceTrac
system or the system has activated on
a slippery or loose surface
•ABS activation or failure.
•Any door (except the driver’s door) opens
•Something touching the steering wheel
If a fault is present in the system, the message ACTIVE PARK FAULT
will be displayed followed by a chime. Contact an authorized dealer to
have your vehicle serviced.
The system should not be used if:
•A foreign object (i.e. bike rack, trailer, etc.) is attached to the front or
rear of the vehicle or at another location close to the sensors.
•The front bumper or side sensors are damaged (i.e. in a collision) or
obstructed by a foreign object (i.e. front bumper cover).
•A mini-spare tire is used
Driving
233
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

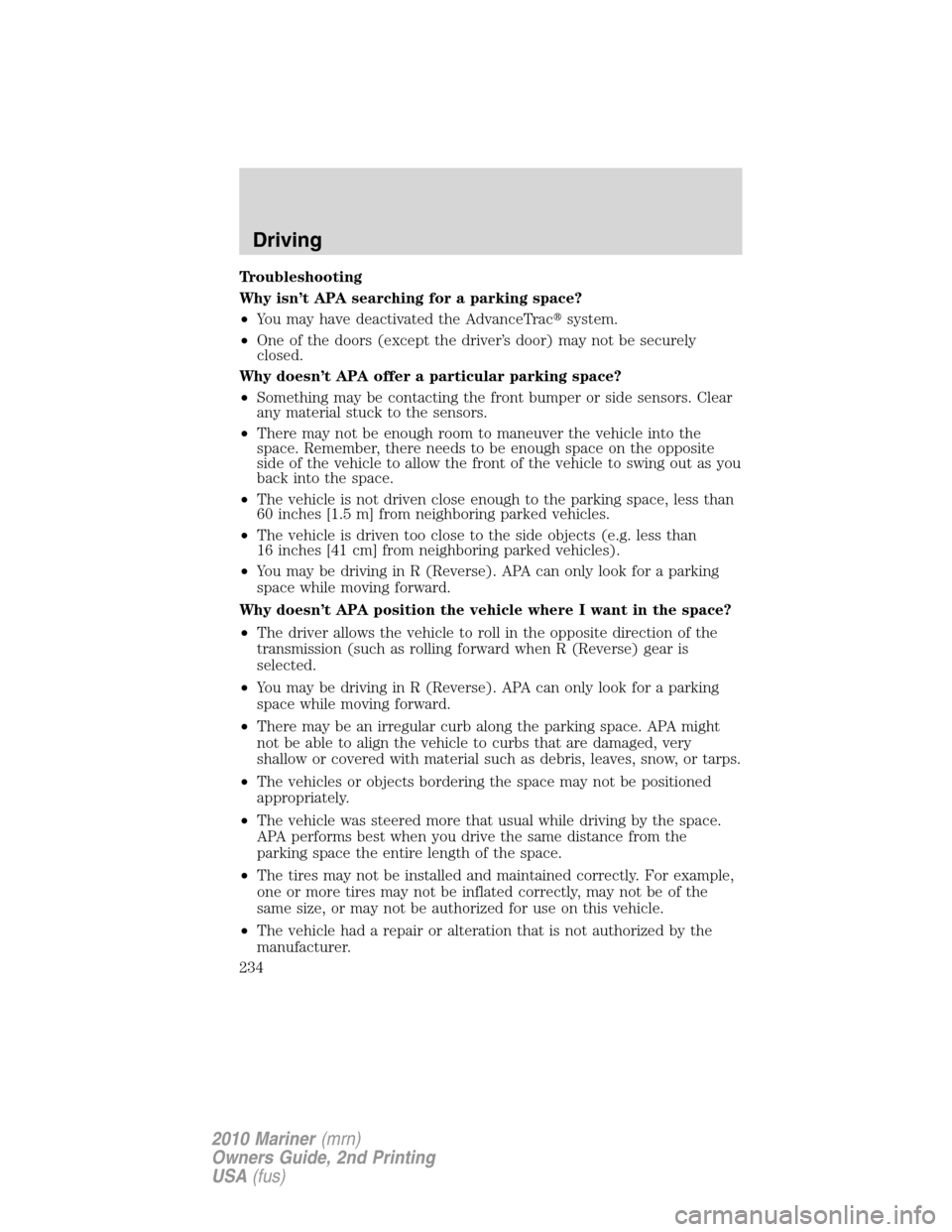

Troubleshooting
Why isn’t APA searching for a parking space?
•You may have deactivated the AdvanceTrac
system.
•One of the doors (except the driver’s door) may not be securely
closed.
Why doesn’t APA offer a particular parking space?
•Something may be contacting the front bumper or side sensors. Clear
any material stuck to the sensors.
•There may not be enough room to maneuver the vehicle into the
space. Remember, there needs to be enough space on the opposite
side of the vehicle to allow the front of the vehicle to swing out as you
back into the space.
•The vehicle is not driven close enough to the parking space, less than
60 inches [1.5 m] from neighboring parked vehicles.
•The vehicle is driven too close to the side objects (e.g. less than
16 inches [41 cm] from neighboring parked vehicles).
•You may be driving in R (Reverse). APA can only look for a parking
space while moving forward.
Why doesn’t APA position the vehicle where I want in the space?
•The driver allows the vehicle to roll in the opposite direction of the
transmission (such as rolling forward when R (Reverse) gear is
selected.
•You may be driving in R (Reverse). APA can only look for a parking
space while moving forward.
•There may be an irregular curb along the parking space. APA might
not be able to align the vehicle to curbs that are damaged, very
shallow or covered with material such as debris, leaves, snow, or tarps.
•The vehicles or objects bordering the space may not be positioned
appropriately.
•The vehicle was steered more that usual while driving by the space.
APA performs best when you drive the same distance from the
parking space the entire length of the space.
•The tires may not be installed and maintained correctly. For example,
one or more tires may not be inflated correctly, may not be of the
same size, or may not be authorized for use on this vehicle.
•The vehicle had a repair or alteration that is not authorized by the
manufacturer.
Driving
