2010 Mercury Mariner tow

Running out of fuel
Avoid running out of fuel because this situation may have an adverse
effect on powertrain components.
If you have run out of fuel:
•You may need to cycle the ignition from off to on several times after
refueling to allow the fuel system to pump the fuel from the tank to
the engine. On restarting, cranking time will take a few seconds longer
than normal.
•Normally, adding 1 gallon (3.8L) of fuel is enough to restart the
engine. If the vehicle is out of fuel and on a steep grade, more than
1 gallon (3.8L) may be required.
•The service engine soon
indicator may come on. For more
information on the service engine soon indicator, refer toWarning
lights and chimesin theInstrument Clusterchapter.
Refilling with a portable fuel container
With the Easy Fuel™ “no cap” fuel system, use the following directions
when filling from a portable fuel container:
WARNING:Do not insert the nozzle of portable fuel containers
or aftermarket funnels into the Easy Fuel™ system. This could
damage the fuel system and its seal, and may cause fuel to run onto
the ground instead of filling the tank, which could result in serious
personal injury.
WARNING:Do not try to pry open or push open the Easy
Fuel™ system with foreign objects. This could damage the fuel
system and its seal and cause injury to you or others.
When filling the vehicle’s fuel tank from a portable fuel container, use the
funnel included with the vehicle.
Maintenance and Specifications
310
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

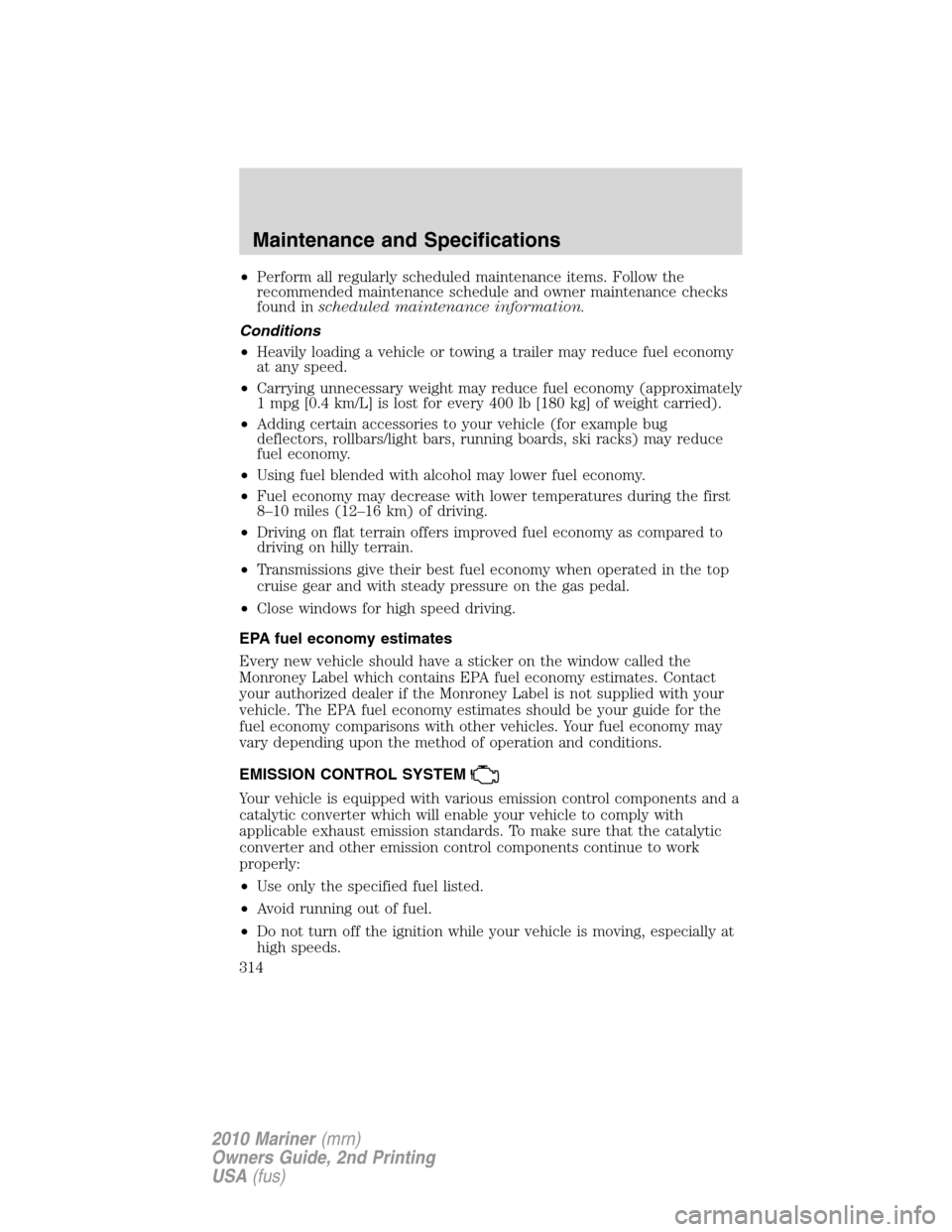

•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski racks) may reduce
fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
•Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
•Close windows for high speed driving.
EPA fuel economy estimates
Every new vehicle should have a sticker on the window called the
Monroney Label which contains EPA fuel economy estimates. Contact
your authorized dealer if the Monroney Label is not supplied with your
vehicle. The EPA fuel economy estimates should be your guide for the
fuel economy comparisons with other vehicles. Your fuel economy may
vary depending upon the method of operation and conditions.
EMISSION CONTROL SYSTEM
Your vehicle is equipped with various emission control components and a
catalytic converter which will enable your vehicle to comply with
applicable exhaust emission standards. To make sure that the catalytic
converter and other emission control components continue to work
properly:
•Use only the specified fuel listed.
•Avoid running out of fuel.
•Do not turn off the ignition while your vehicle is moving, especially at
high speeds.
Maintenance and Specifications
314
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

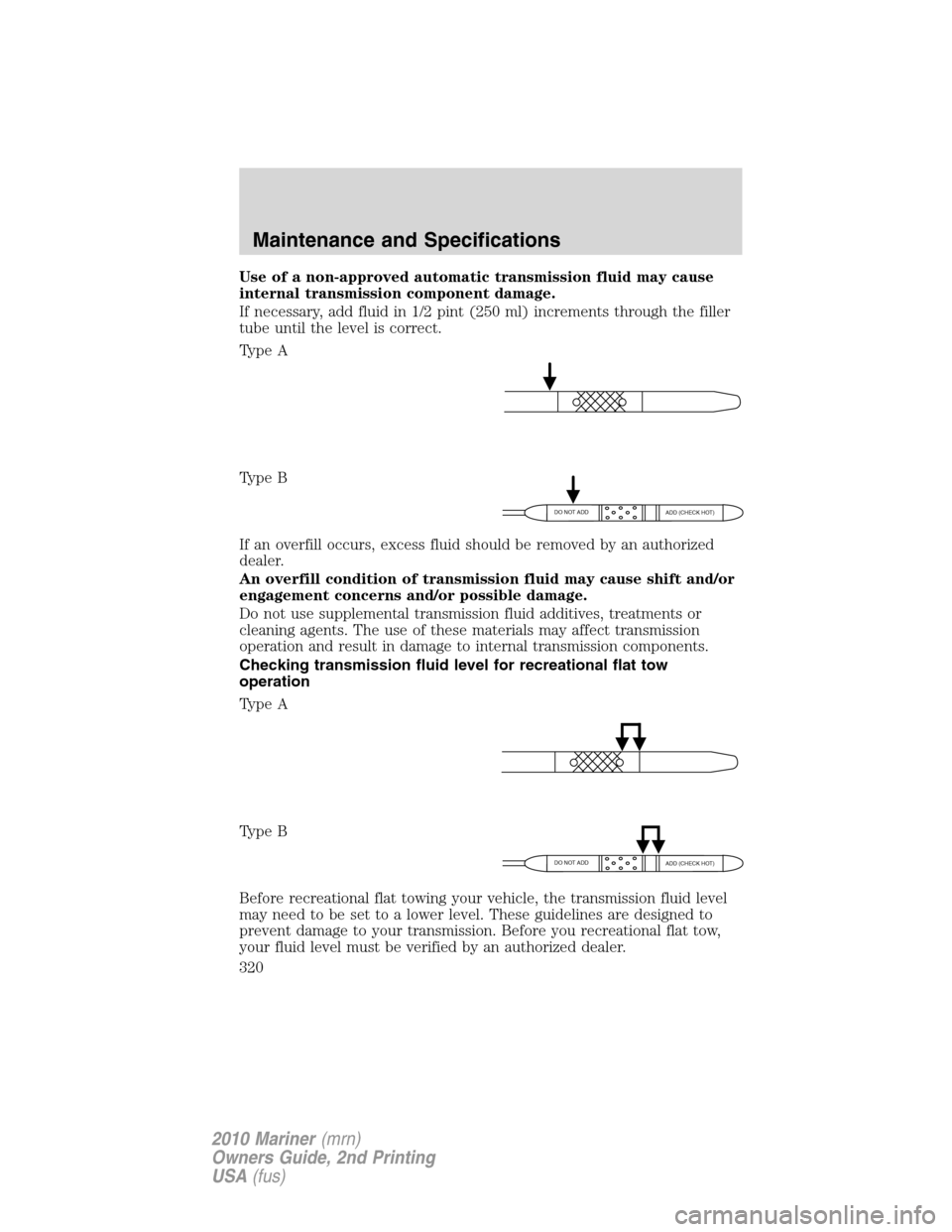

Use of a non-approved automatic transmission fluid may cause
internal transmission component damage.
If necessary, add fluid in 1/2 pint (250 ml) increments through the filler
tube until the level is correct.
Type A
Type B
If an overfill occurs, excess fluid should be removed by an authorized
dealer.
An overfill condition of transmission fluid may cause shift and/or
engagement concerns and/or possible damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
Checking transmission fluid level for recreational flat tow
operation
Type A
Type B
Before recreational flat towing your vehicle, the transmission fluid level
may need to be set to a lower level. These guidelines are designed to
prevent damage to your transmission. Before you recreational flat tow,
your fluid level must be verified by an authorized dealer.
DO NOT ADD
ADD (CHECK HOT)
DO NOT ADD
ADD (CHECK HOT)
Maintenance and Specifications
320
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

This fluid level is within the normal operating fluid range and does not
require that you have your fluid level readjusted after recreational flat
tow operation.
See theTires, Wheels and Loadingchapter for more information on
recreational flat towing.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the air filter element
listed. Refer toMotorcraft
part numbersin this chapter.
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
1. Release the clamps that secure the air filter housing cover.
•2.5L I4 engine
•3.0L V6 engine
2. Pull the air filter housing cover away.
3. Remove the air filter element from the air filter housing.
4. Wipe the air filter housing and cover clean to remove any dirt or
debris and to ensure good sealing.
Maintenance and Specifications
321
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

FORD ESP EXTENDED SERVICE PLANS
More than 30 million Ford, Lincoln, and Mercury owners have discovered
the powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask you dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare –Covers 113 components, and includes many high-tech
items.
BaseCare –Covers 84 components.
PowertrainCare –Covers 29 critical components.
Ford ESP is honored by all Ford, Lincoln and Mercury Dealers in
the U.S. and CanadaIt’s the only extended service plan authorized and
backed by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go.
•Factory-trained technicians.
•Genuine Ford and Motorcraft
Parts.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs,you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
Ford Extended Service Plan
331
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)

utility-type vehicles ....................6
Specification chart,
lubricants ...................................323
Speed control ..............................74
Starting a flex fuel vehicle .......210
Starting your
vehicle ........................207–208, 210
jump starting ..........................265
Steering wheel
controls ......................................77
tilting .........................................65
Stereo
CD-MP3 .....................................27
SYNC
..........................................44
T
Tilt steering wheel ......................65
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....189
Tires ...................................173–175
alignment ................................182
care ..........................................178
changing ..........................256, 258
checking the pressure ............178
inflating ...................................176
label .........................................188
replacing ..................................179
rotating ....................................182
safety practices .......................181
sidewall information ...............183
snow tires and chains ............193
spare tire .........................254, 256
terminology .............................175
tire grades ...............................174
treadwear ........................174, 178
Towing .......................................200recreational towing .................205
trailer towing ..........................200
wrecker ....................................270
Transmission .............................224
brake-shift interlock (BSI) ....222
fluid, checking and adding
(automatic) .............................317
fluid, refill capacities ..............323
lubricant specifications ..........323
Trunk ...........................................88
Turn signal ..................................56
U
Universal garage door opener ....80
USB port ......................................37
V
Vehicle Identification Number
(VIN) ..........................................327
Vehicle loading ..........................194
Ventilating your vehicle ...........211
W
Warning lights (see Lights) .......12
Washer fluid ..............................290
Water, Driving through .............243
Windows
power .........................................71
rear wiper/washer .....................65
Windshield washer fluid and
wipers ..........................................64
checking and adding fluid .....290
liftgate reservoir .....................290
replacing wiper blades ...291–292
Wrecker towing .........................270
Index
339
2010 Mariner(mrn)
Owners Guide, 2nd Printing
USA(fus)
