2010 MERCEDES-BENZ SPRINTER clock reset

Seat belt
Cleaning ......................................... 162Display message ............................ 206
Warning lamp .................................
196
Seat belts
Adjusting the height ......................... 35
Belt force limiters ............................ 35
Correct usage .................................. 33
Emergency Tensioning Devices ........ 35
Fastening ......................................... 34
Important safety guidelines .............32
Releasing ......................................... 35
Safety guidelines ............................. 37
Special seat belt retractor ............... 43
Warning lamp (function) ................... 35
Seat heating ......................................... 68
Malfunction .................................... 211
Selector lever position ...................... 114
Service indicator ............................... 167
Service products Bio-diesel ....................................... 153
Brake fluid ..................................... 159
Capacities ...................................... 287
Coolant .......................................... 160
Diesel Exhaust Fluid (DEF) ............. 155
Engine oil ....................................... 156
Fuel ................................................ 153
Fuel additive .................................. 154
Fuel additives ................................ 154
Power steering fluid ....................... 159
Refrigerant ..................................... 161
Transmission oil ............................. 158
Settings
Resetting all (vehicles with
steering wheel buttons) ................... 78
Resetting submenus (vehicles
with steering wheel buttons) ............ 79
Setting the clock
Vehicles without steering wheel
buttons ............................................ 73
Setting the date
Vehicles without steering wheel
buttons ............................................ 73
Vehicles with steering wheel
buttons ............................................ 82
Setting the time
Vehicles with steering wheel
buttons ............................................ 82Shift ranges
Automatic transmission .................114
Side impact air bag
.............................40
Side windows Resetting ......................................... 61
Sliding door .......................................... 56
Cleaning ......................................... 164
Closing assist ................................... 57
Snow chains ...................................... 255
Socket ................................................ 133
Spare wheel Bracket .......................................... 185
see Spare wheel ............................ 185
Wheel change ................................ 229
Speed
Setting, see Cruise control ............ 119
Speed limiter ..................................... 141
Speedometer ....................................... 71
Setting the unit (vehicles with
steering wheel buttons) ................... 80
SRS (Supplemental Restraint
System)
Indicator lamp .................................. 36
Introduction ..................................... 36
Standing lamp
Changing bulbs .............. 235, 236, 237
Starting the engine ........................... 109
Steering wheel ..................................... 69
Adjusting ......................................... 69
Buttons (vehicles with steering
wheel buttons) ................................. 74
With buttons .................................... 26
Stowage spaces and stowage
compartments ................................... 129
Eyeglasses compartment ............... 131
Glove box ....................................... 131
Paper holder .................................. 131
Stowage compartment above the
windshield ..................................... 130
Stowage compartment in the
center console ............................... 130
Stowage compartment in the
dashboard ...................................... 129
Stowage compartment in the
door ............................................... 13012
Index

Before driving off, make sure that the partition
sliding door is closed and that the lock is
engaged. G
Warning
Make sure that nobody can become trapped
as you close the partition sliding door.
Opening/closing the partition sliding
door from the cab X
To open: turn the key anti-clockwise 008A.
The sliding door is unlocked.
X Slide the sliding door to the stop in the
direction of arrow 0047

.
X To close: slide the sliding door in the
direction of arrow 0046 until it engages.
The sliding door can be locked using the
key.
Opening/closing the partition sliding
door from the load compartment X
To unlock: press the catch in the direction
of arrow 008A.
The sliding door is unlocked.
X Slide the sliding door to the stop in the
direction of arrow 0046.
X To close: slide the sliding door in the
direction of arrow 0047 until it engages. Opening/closing the windows
Side windows You can open and close the side windows
electrically.
Reset the side windows if there has been a
malfunction or an interruption in the voltage
supply (
Y page 61). G
Warning
Make sure that nobody can become trapped
between the side window and the door frame
when a side window is opened. Do not touch
or lean against the side window during the
opening procedure. You could become
trapped between the side window and the
door frame as the side window moves down.
If there is a risk of becoming trapped, release
the switch or pull the switch upwards to close
the side window again. G
Warning
Make sure that nobody can become trapped
as you close the side windows. If there is a
risk of somebody becoming trapped, release
the switch or push the switch again to reopen
the side window. 60
Opening and closing
Controls

Standard display
0046
Odometer
0047 Trip meter
008A Clock
0088 Outside temperature or digital
speedometer
0086 Fuel gauge ( Y page 72)
0087 Selector lever position or current shift
range with automatic transmission
Changing the standard display
X Turn the key to position 2 in the ignition
lock.
X Press the 007B menu button for longer than
one second.
The information shown in the display
changes from the outside temperature to
the digital speedometer.
Outside temperature display G
Warning
When the temperature displayed is just above
freezing point, the road surface may be icy,
especially in wooded
areas or on bridges. The
vehicle could skid if you fail to adapt your
driving style. Always adapt your driving style
and drive at a speed to suit the prevailing
weather conditions.
Changes in outside temperature are
displayed with a slight delay. Menus
Using the 0069, 006A, 007B or 0048 adjustment
buttons, you can select the following
functions: R
calls up the service due date
(Y page 167)
R checking the engine oil level
(Y page 171)
R preselecting/setting the auxiliary heating
switch-on time ( Y page 104)
R tire pressure monitor
R setting the time (Y

page 73)
R setting the date ( Y page 73)
R setting daytime running lamp mode
(Y page 74)
X To return to the standard display: press
the 007B menu button for longer than one
second.
or
X Do not press any button for 10 seconds.
The display accepts the changed settings.
Setting the time X
Turn the key to position 2 in the ignition
lock.
X Press the 007B menu button repeatedly until
the hours figure flashes.
X Press 0069 or 006A to set the hours.
X Press reset button 0048.
The minute display flashes.
X Press 0069 or 006A to set the minutes.
i If you keep the 0069 or 006A button pressed,
the value will change continuously.
Setting the date X
Turn the key to position 2 in the ignition
lock.
X Press the 007B menu button repeatedly until
the day flashes.
X Press 0069 or 006A to set the day.
X Press reset button 0048.
The month display flashes.
X Press 0069 or 006A to set the month. On-board computer without steering wheel buttons
73
Controls Z

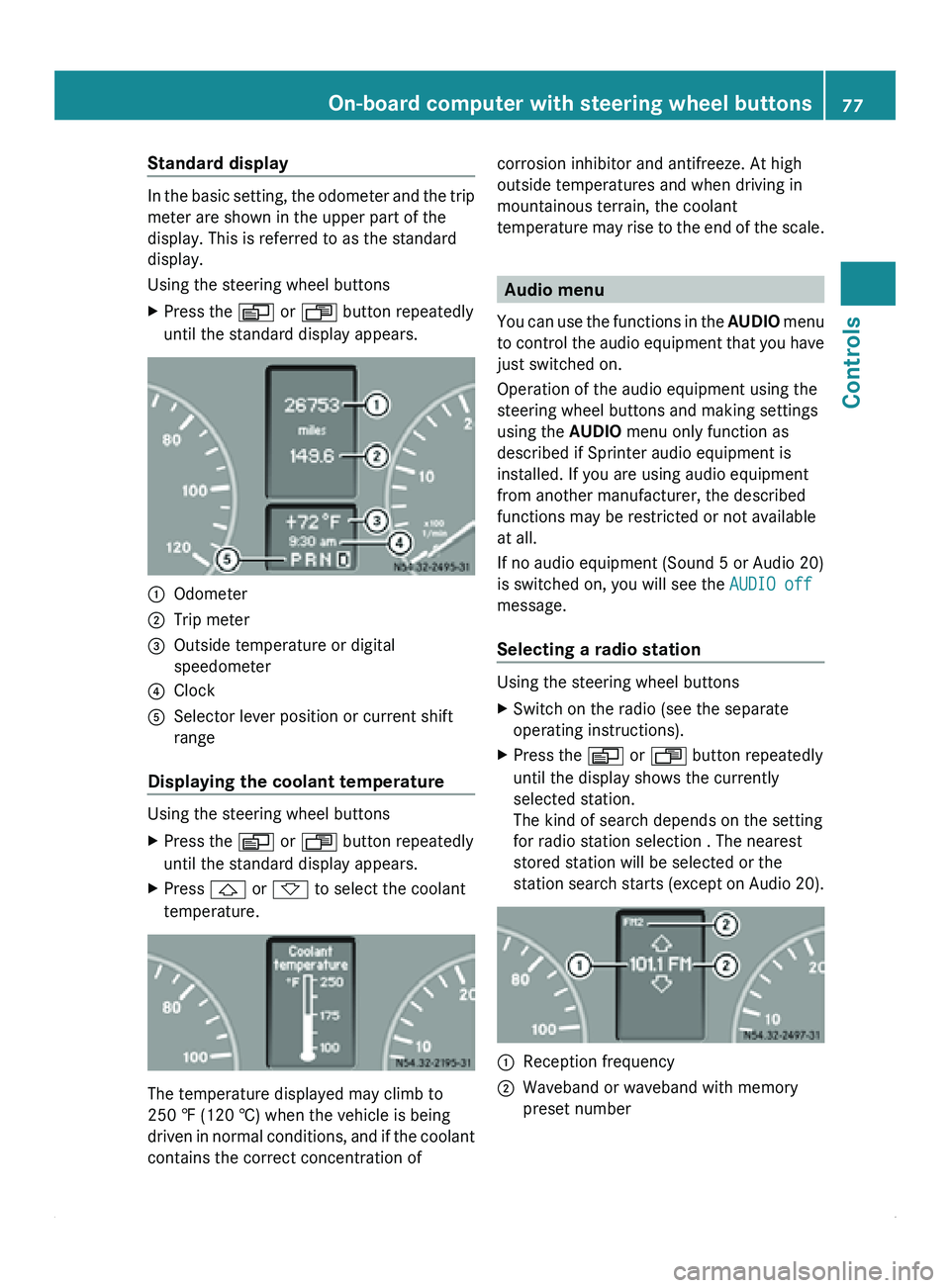

Standard display
In the basic setting, the odometer and the trip
meter are shown in the upper part of the
display. This is referred to as the standard
display.
Using the steering wheel buttons
X
Press the 0059 or 0058 button repeatedly
until the standard display appears. 0046
Odometer
0047 Trip meter
008A Outside temperature or digital
speedometer
0088 Clock
0086 Selector lever position or current shift
range
Displaying the coolant temperature Using the steering wheel buttons
X
Press the 0059 or 0058 button repeatedly
until the standard display appears.
X Press 0029 or 002D to select the coolant
temperature. The temperature displayed may climb to
250 ‡ (120 †) when the vehicle is being
driven
in
normal conditions, and if the coolant
contains the correct concentration of corrosion inhibitor and antifreeze. At high
outside temperatures and when driving in
mountainous terrain, the coolant
temperature may
rise

to the end of the scale. Audio menu
You can use

the functions in the AUDIO menu
to control the audio equipment that you have
just switched on.
Operation of the audio equipment using the
steering wheel buttons and making settings
using the AUDIO menu only function as
described if Sprinter audio equipment is
installed. If you are using audio equipment
from another manufacturer, the described
functions may be restricted or not available
at all.
If no audio equipment (Sound 5 or Audio 20)
is switched on, you will see the AUDIO off
message.
Selecting a radio station Using the steering wheel buttons
X
Switch on the radio (see the separate
operating instructions).
X Press the 0059 or 0058 button repeatedly
until the display shows the currently
selected station.
The kind of search depends on the setting
for radio station selection . The nearest
stored station will be selected or the
station search starts

(except on Audio 20). 0046
Reception frequency
0047 Waveband or waveband with memory
preset number On-board computer with steering wheel buttons
77
Controls Z

Using the steering wheel buttons
X
Press the 0059 or 0058 button repeatedly
until the Settings menu appears in the
display.
X Press the 0048 reset button for about three
seconds.
You will see a message in the display
prompting you to
press the 0048 reset button
again to confirm.
X Press the 0048 reset button again.
The functions of all submenus are reset to
the factory settings.
i If you do not press the 0048 reset button a
second time to confirm, the settings are
retained. The Settings menu appears
again after approximately five seconds.
For safety reasons, it is not possible to
reset all of the functions while the vehicle
is in motion. For example, the Hdlmp
mode function in the Lighting submenu
remains unchanged.
Resetting the functions of a submenu You can reset the functions of an individual
submenu to the factory settings.
Using the steering wheel buttons
X
Press the 0059 or 0058 button repeatedly
until the Settings menu appears in the
display.
X Press 0029 to switch to the submenu
selection.
X Press 005A or 005B to select a submenu.
X Press the 0048 reset button for about three
seconds.
You will see a message in the display
prompting you
to

press the 0048 reset button
again to confirm.
X Press the 0048 reset button again.
All functions of the submenu are reset to
the factory settings.
i If you do not press the 0048 reset button a
second time to confirm, the settings are retained. The Settings menu appears
again after approximately five seconds.
For safety reasons, it is not possible to
reset all of the functions while the vehicle
is in motion. For example, the Hdlmp
mode function in the
Lighting submenu
remains unchanged.
Submenus in the Settings menu Using the steering wheel buttons
X
Press the 0059 or 0058 button repeatedly
until the Settings menu appears in the
display.
X Press 0029 to switch to the submenu
selection.
You will see the collection of submenus.
There are more submenus than can be
displayed at the same time. X
Press 005A or 005B to select a submenu.
The submenu currently selected is
highlighted.
X Press 0029 to select the function within a
submenu.
X Change the setting by pressing 005A or
005B.
The changed setting is saved.
You can select the following submenus:
R Instrument cluster ( Y
page 80)
- Units and language settings
- Status bar settings
R Clock/Date (Y page 82) On-board computer with steering wheel buttons
79
Controls Z
