2010 MERCEDES-BENZ S600 Owner's Manual

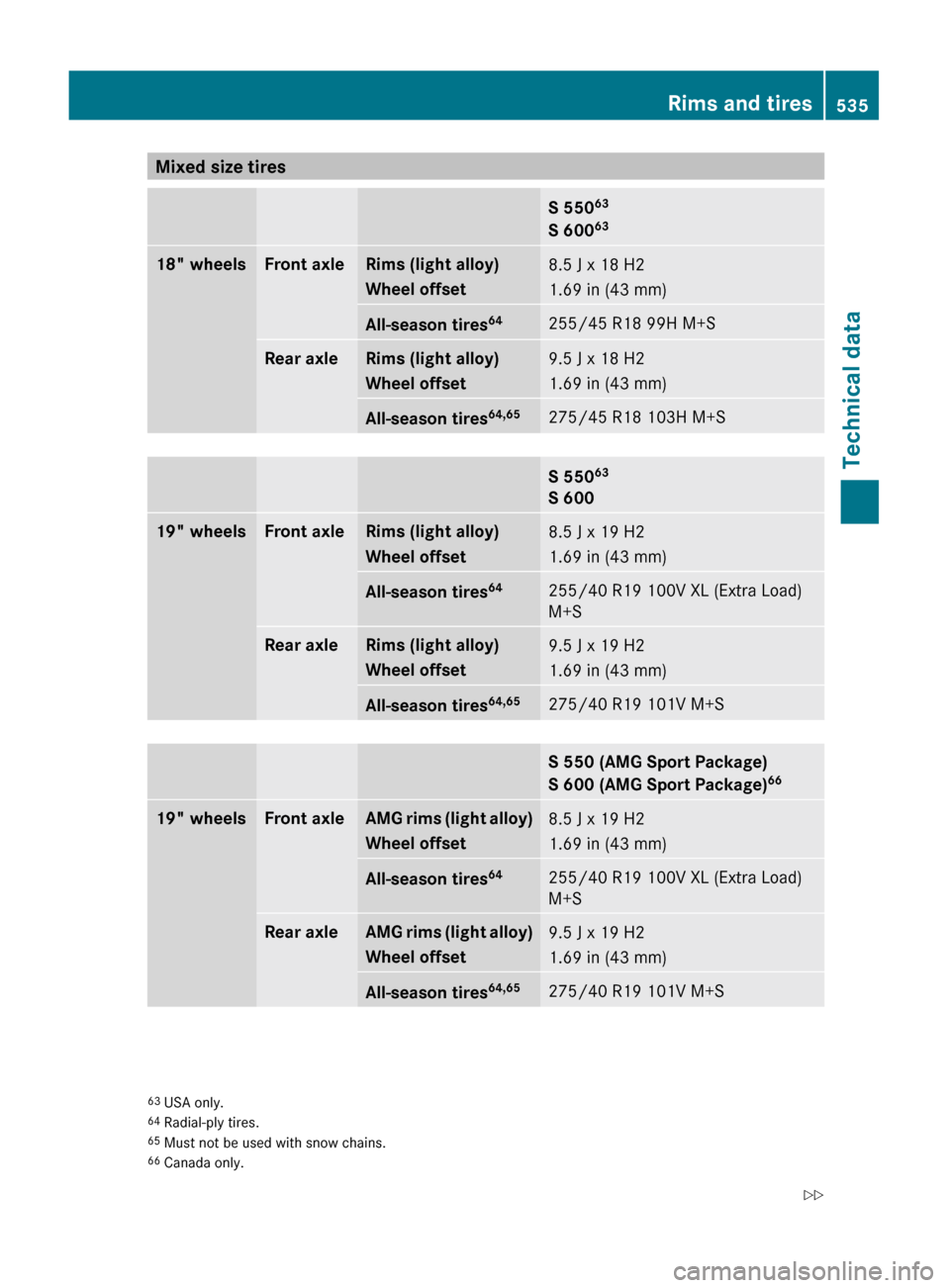

Mixed size tiresS 55063
S 600 6318" wheelsFront axleRims (light alloy)
Wheel offset8.5 J x 18 H2
1.69 in (43 mm)All-season tires 64255/45 R18 99H M+SRear axleRims (light alloy)
Wheel offset9.5 J x 18 H2
1.69 in (43 mm)All-season tires 64,65275/45 R18 103H M+SS 55063
S 60019" wheelsFront axleRims (light alloy)
Wheel offset8.5 J x 19 H2
1.69 in (43 mm)All-season tires 64255/40 R19 100V XL (Extra Load)
M+SRear axleRims (light alloy)
Wheel offset9.5 J x 19 H2
1.69 in (43 mm)All-season tires 64,65275/40 R19 101V M+SS 550 (AMG Sport Package)
S 600 (AMG Sport Package) 6619" wheelsFront axleAMG rims (light alloy)
Wheel offset8.5 J x 19 H2
1.69 in (43 mm)All-season tires 64255/40 R19 100V XL (Extra Load)
M+SRear axleAMG rims (light alloy)
Wheel offset9.5 J x 19 H2
1.69 in (43 mm)All-season tires 64,65275/40 R19 101V M+S63
USA only.
64 Radial-ply tires.
65 Must not be used with snow chains.
66 Canada only.Rims and tires535Technical data221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 535Z

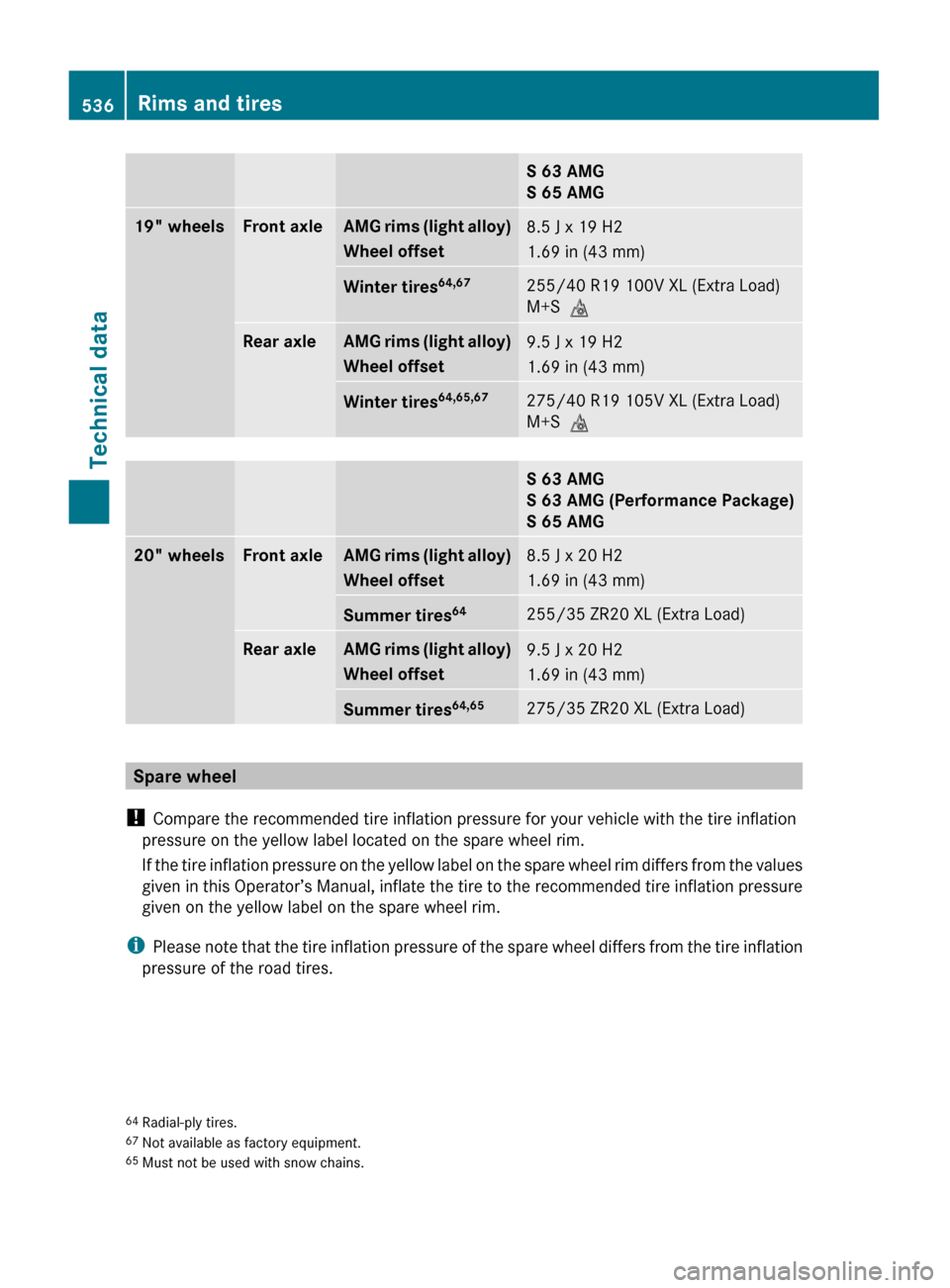

S 63 AMG
S 65 AMG19" wheelsFront axleAMG rims (light alloy)
Wheel offset8.5 J x 19 H2
1.69 in (43 mm)Winter tires 64,67255/40 R19 100V XL (Extra Load)
M+S iRear axleAMG rims (light alloy)
Wheel offset9.5 J x 19 H2
1.69 in (43 mm)Winter tires 64,65,67275/40 R19 105V XL (Extra Load)
M+S iS 63 AMG
S 63 AMG (Performance Package)
S 65 AMG20" wheelsFront axleAMG rims (light alloy)
Wheel offset8.5 J x 20 H2
1.69 in (43 mm)Summer tires 64255/35 ZR20 XL (Extra Load)Rear axleAMG rims (light alloy)
Wheel offset9.5 J x 20 H2
1.69 in (43 mm)Summer tires 64,65275/35 ZR20 XL (Extra Load)
Spare wheel
! Compare the recommended tire inflation pressure for your vehicle with the tire inflation
pressure on the yellow label located on the spare wheel rim.
If the tire inflation pressure on the yellow label on the spare wheel rim differs from the values
given in this Operator’s Manual, inflate the tire to the recommended tire inflation pressure
given on the yellow label on the spare wheel rim.
i Please note that the tire inflation pressure of the spare wheel differs from the tire inflation
pressure of the road tires.
64 Radial-ply tires.
67 Not available as factory equipment.
65 Must not be used with snow chains.536Rims and tiresTechnical data
221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 536

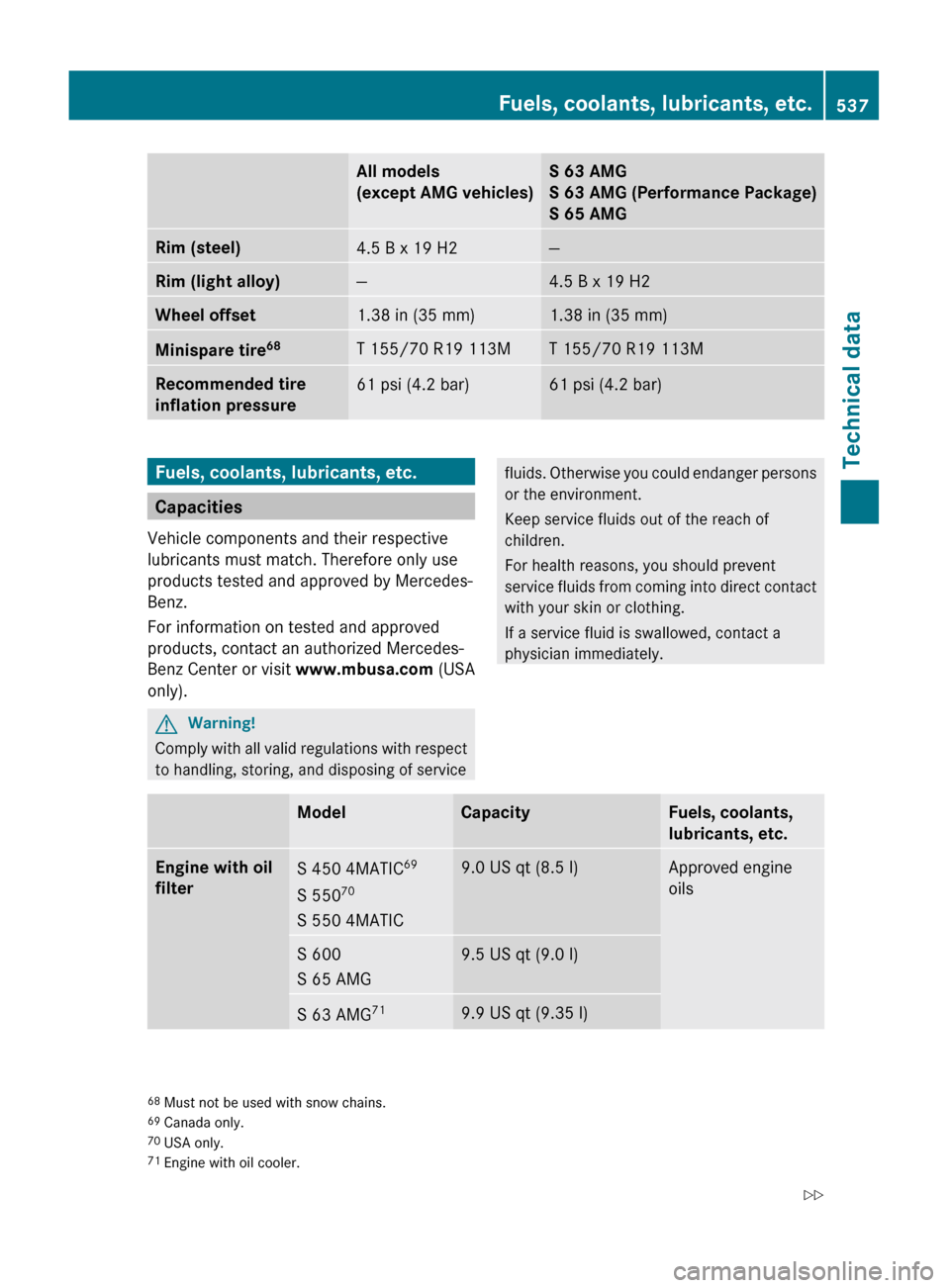

All models
(except AMG vehicles)S 63 AMG
S 63 AMG (Performance Package)
S 65 AMGRim (steel)4.5 B x 19 H2—Rim (light alloy)—4.5 B x 19 H2Wheel offset1.38 in (35 mm)1.38 in (35 mm)Minispare tire 68T 155/70 R19 113MT 155/70 R19 113MRecommended tire
inflation pressure61 psi (4.2 bar)61 psi (4.2 bar)Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by Mercedes-
Benz.
For information on tested and approved
products, contact an authorized Mercedes-
Benz Center or visit www.mbusa.com (USA
only).
GWarning!
Comply with all valid regulations with respect
to handling, storing, and disposing of service
fluids. Otherwise you could endanger persons
or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent
service fluids from coming into direct contact
with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.ModelCapacityFuels, coolants,
lubricants, etc.Engine with oil
filterS 450 4MATIC 69
S 550 70
S 550 4MATIC9.0 US qt (8.5 l)Approved engine
oilsS 600
S 65 AMG9.5 US qt (9.0 l)S 63 AMG 719.9 US qt (9.35 l)68
Must not be used with snow chains.
69 Canada only.
70 USA only.
71 Engine with oil cooler.Fuels, coolants, lubricants, etc.537Technical data221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 537Z

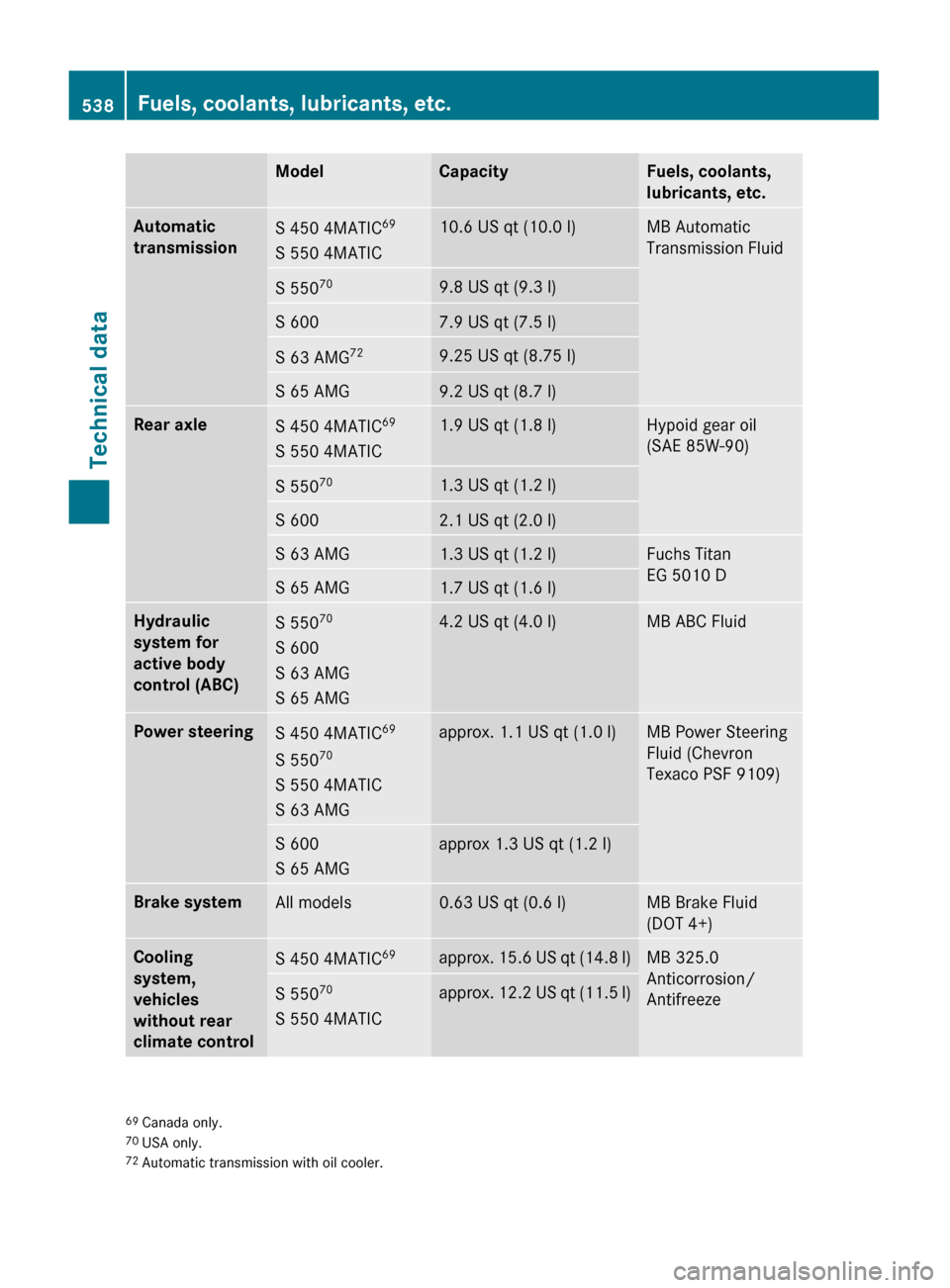

ModelCapacityFuels, coolants,
lubricants, etc.Automatic
transmissionS 450 4MATIC 69
S 550 4MATIC10.6 US qt (10.0 l)MB Automatic
Transmission FluidS 550 709.8 US qt (9.3 l)S 6007.9 US qt (7.5 l)S 63 AMG 729.25 US qt (8.75 l)S 65 AMG9.2 US qt (8.7 l)Rear axleS 450 4MATIC 69
S 550 4MATIC1.9 US qt (1.8 l)Hypoid gear oil
(SAE 85W-90)S 550 701.3 US qt (1.2 l)S 6002.1 US qt (2.0 l)S 63 AMG1.3 US qt (1.2 l)Fuchs Titan
EG 5010 DS 65 AMG1.7 US qt (1.6 l)Hydraulic
system for
active body
control (ABC)S 550 70
S 600
S 63 AMG
S 65 AMG4.2 US qt (4.0 l)MB ABC FluidPower steeringS 450 4MATIC 69
S 550 70
S 550 4MATIC
S 63 AMGapprox. 1.1 US qt (1.0 l)MB Power Steering
Fluid (Chevron
Texaco PSF 9109)S 600
S 65 AMGapprox 1.3 US qt (1.2 l)Brake systemAll models0.63 US qt (0.6 l)MB Brake Fluid
(DOT 4+)Cooling
system,
vehicles
without rear
climate controlS 450 4MATIC 69approx. 15.6 US qt (14.8 l)MB 325.0
Anticorrosion/
AntifreezeS 550 70
S 550 4MATICapprox. 12.2 US qt (11.5 l)69 Canada only.
70 USA only.
72 Automatic transmission with oil cooler.538Fuels, coolants, lubricants, etc.Technical data
221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 538

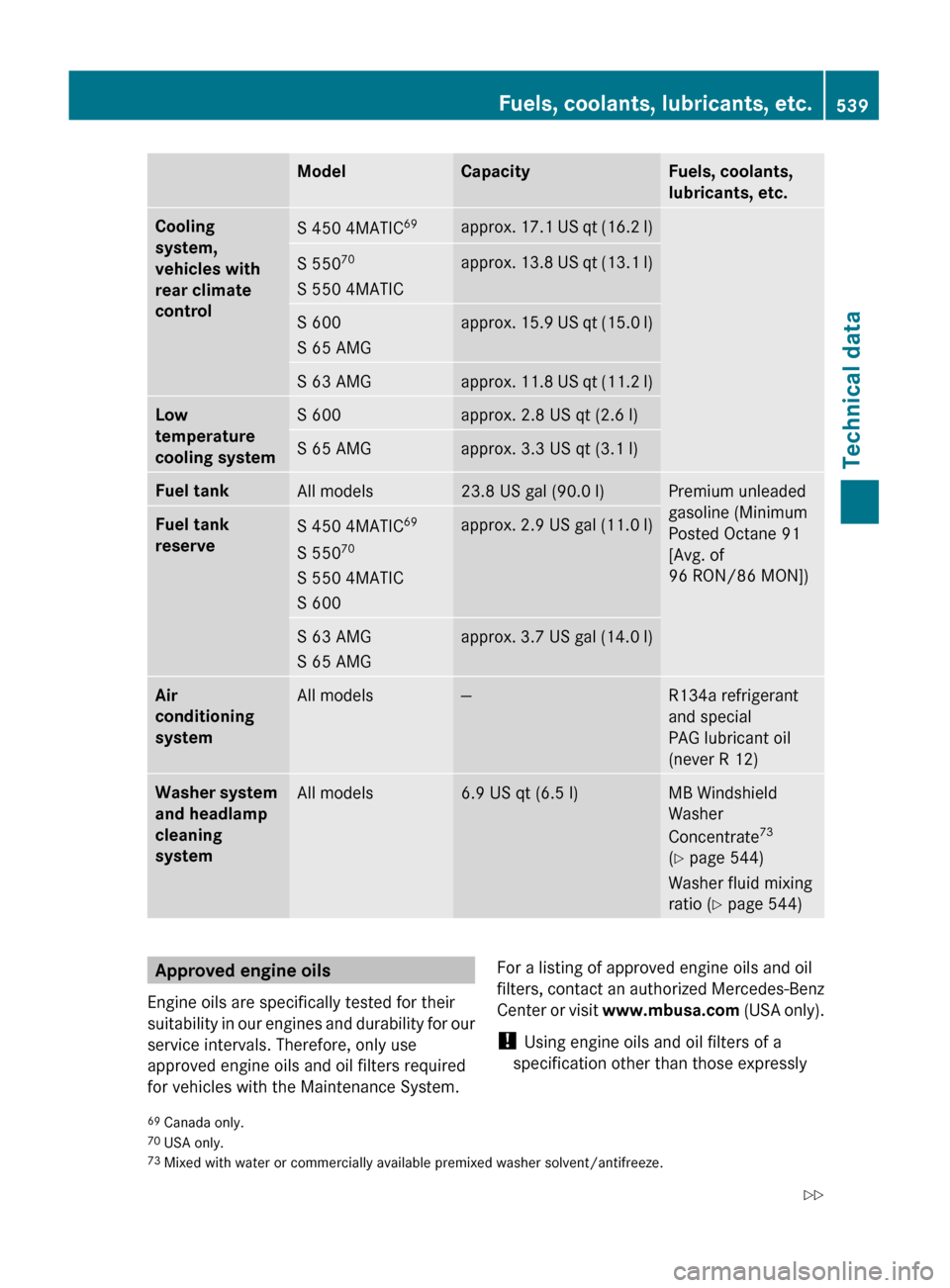

ModelCapacityFuels, coolants,
lubricants, etc.Cooling
system,
vehicles with
rear climate
controlS 450 4MATIC 69approx. 17.1 US qt (16.2 l)S 55070
S 550 4MATICapprox. 13.8 US qt (13.1 l)S 600
S 65 AMGapprox. 15.9 US qt (15.0 l)S 63 AMGapprox. 11.8 US qt (11.2 l)Low
temperature
cooling systemS 600approx. 2.8 US qt (2.6 l)S 65 AMGapprox. 3.3 US qt (3.1 l)Fuel tankAll models23.8 US gal (90.0 l)Premium unleaded
gasoline (Minimum
Posted Octane 91
[Avg. of
96 RON/86 MON])Fuel tank
reserveS 450 4MATIC 69
S 550 70
S 550 4MATIC
S 600approx. 2.9 US gal (11.0 l)S 63 AMG
S 65 AMGapprox. 3.7 US gal (14.0 l)Air
conditioning
systemAll models—R134a refrigerant
and special
PAG lubricant oil
(never R 12)Washer system
and headlamp
cleaning
systemAll models6.9 US qt (6.5 l)MB Windshield
Washer
Concentrate 73
( Y page 544)
Washer fluid mixing
ratio ( Y page 544)Approved engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for our
service intervals. Therefore, only use
approved engine oils and oil filters required
for vehicles with the Maintenance System.For a listing of approved engine oils and oil
filters, contact an authorized Mercedes-Benz
Center or visit www.mbusa.com (USA only).
! Using engine oils and oil filters of a
specification other than those expressly69 Canada only.
70 USA only.
73 Mixed with water or commercially available premixed washer solvent/antifreeze.Fuels, coolants, lubricants, etc.539Technical data221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 539Z

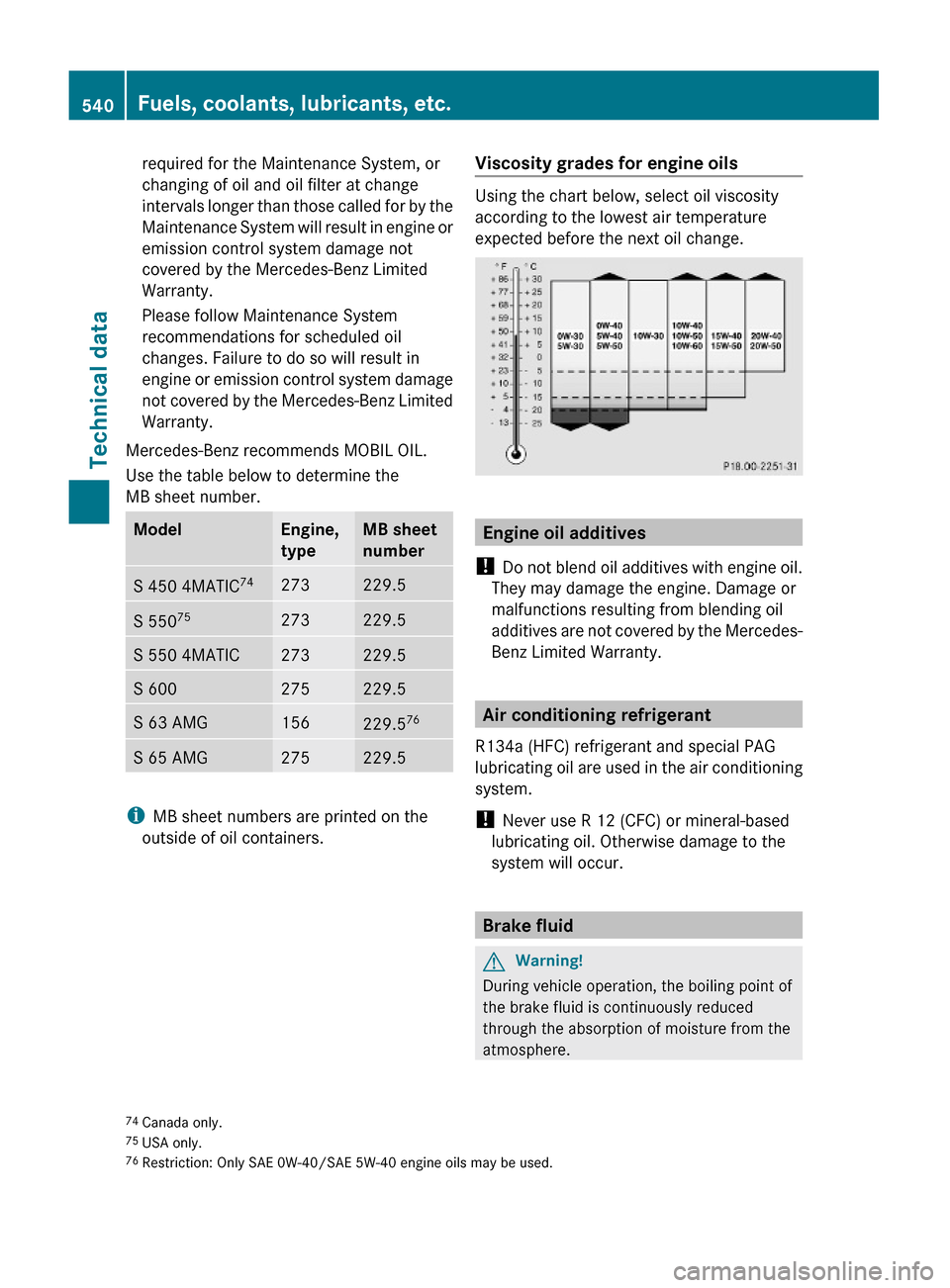

required for the Maintenance System, or
changing of oil and oil filter at change
intervals longer than those called for by the
Maintenance System will result in engine or
emission control system damage not
covered by the Mercedes-Benz Limited
Warranty.
Please follow Maintenance System
recommendations for scheduled oil
changes. Failure to do so will result in
engine or emission control system damage
not covered by the Mercedes-Benz Limited
Warranty.
Mercedes-Benz recommends MOBIL OIL.
Use the table below to determine the
MB sheet number.
ModelEngine,
type
MB sheet
number
S 450 4MATIC74273229.5S 55075273229.5S 550 4MATIC273229.5S 600275229.5S 63 AMG156229.576S 65 AMG275229.5
iMB sheet numbers are printed on the
outside of oil containers.
Viscosity grades for engine oils
Using the chart below, select oil viscosity
according to the lowest air temperature
expected before the next oil change.
Engine oil additives
! Do not blend oil additives with engine oil.
They may damage the engine. Damage or
malfunctions resulting from blending oil
additives are not covered by the Mercedes-
Benz Limited Warranty.
Air conditioning refrigerant
R134a (HFC) refrigerant and special PAG
lubricating oil are used in the air conditioning
system.
! Never use R 12 (CFC) or mineral-based
lubricating oil. Otherwise damage to the
system will occur.
Brake fluid
GWarning!
During vehicle operation, the boiling point of
the brake fluid is continuously reduced
through the absorption of moisture from the
atmosphere.
74Canada only.75USA only.76Restriction: Only SAE 0W-40/SAE 5W-40 engine oils may be used.
540Fuels, coolants, lubricants, etc.Technical data
221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 540

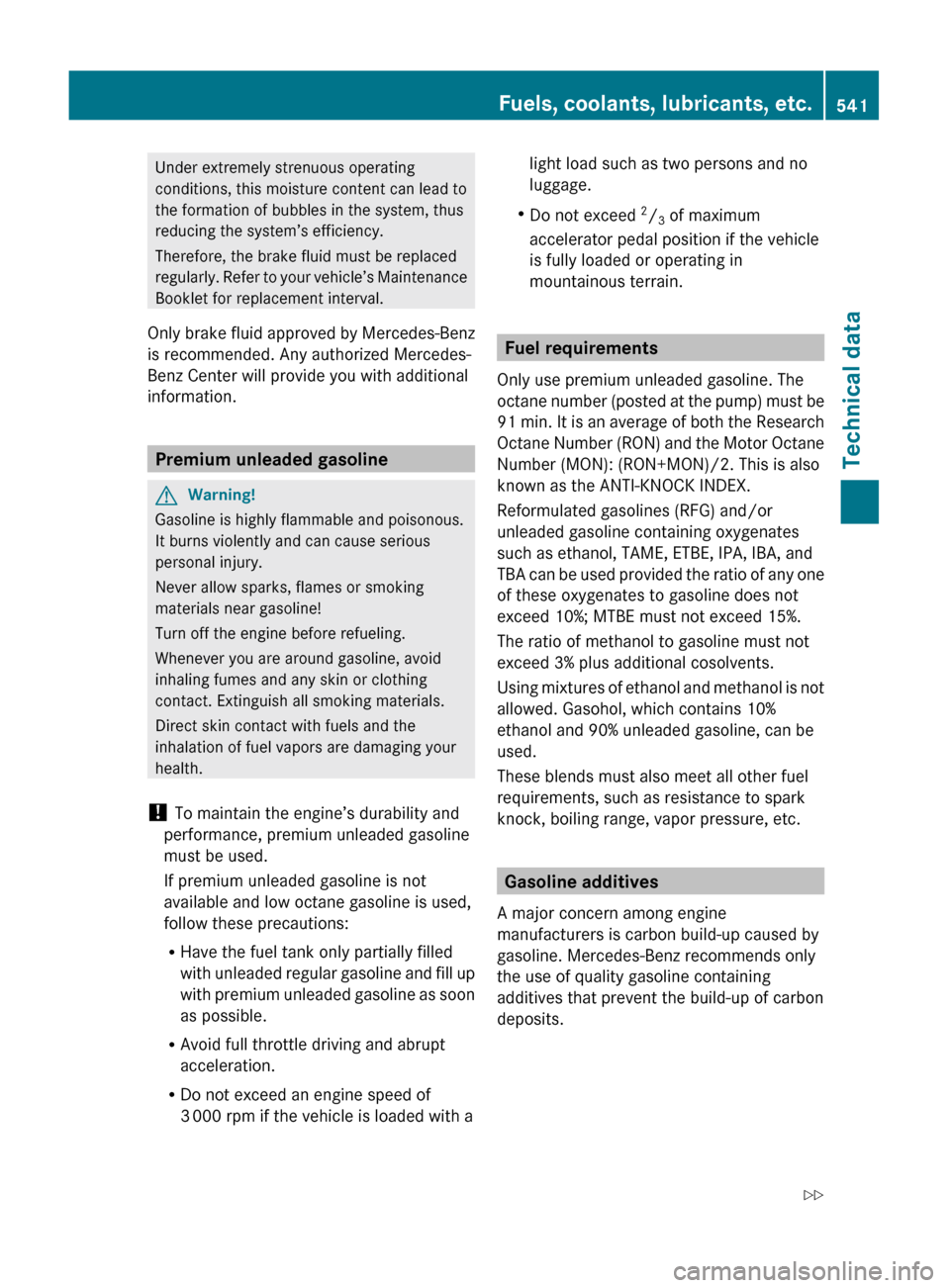

Under extremely strenuous operating
conditions, this moisture content can lead to
the formation of bubbles in the system, thus
reducing the system’s efficiency.
Therefore, the brake fluid must be replaced
regularly. Refer to your vehicle’s Maintenance
Booklet for replacement interval.
Only brake fluid approved by Mercedes-Benz
is recommended. Any authorized Mercedes-
Benz Center will provide you with additional
information.
Premium unleaded gasoline
GWarning!
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious
personal injury.
Never allow sparks, flames or smoking
materials near gasoline!
Turn off the engine before refueling.
Whenever you are around gasoline, avoid
inhaling fumes and any skin or clothing
contact. Extinguish all smoking materials.
Direct skin contact with fuels and the
inhalation of fuel vapors are damaging your
health.
! To maintain the engine’s durability and
performance, premium unleaded gasoline
must be used.
If premium unleaded gasoline is not
available and low octane gasoline is used,
follow these precautions:
R Have the fuel tank only partially filled
with unleaded regular gasoline and fill up
with premium unleaded gasoline as soon
as possible.
R Avoid full throttle driving and abrupt
acceleration.
R Do not exceed an engine speed of
3 000 rpm if the vehicle is loaded with a
light load such as two persons and no
luggage.
R Do not exceed 2
/ 3 of maximum
accelerator pedal position if the vehicle
is fully loaded or operating in
mountainous terrain.
Fuel requirements
Only use premium unleaded gasoline. The
octane number (posted at the pump) must be
91 min. It is an average of both the Research
Octane Number (RON) and the Motor Octane
Number (MON): (RON+MON)/2. This is also
known as the ANTI-KNOCK INDEX.
Reformulated gasolines (RFG) and/or
unleaded gasoline containing oxygenates
such as ethanol, TAME, ETBE, IPA, IBA, and
TBA can be used provided the ratio of any one
of these oxygenates to gasoline does not
exceed 10%; MTBE must not exceed 15%.
The ratio of methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of ethanol and methanol is not
allowed. Gasohol, which contains 10%
ethanol and 90% unleaded gasoline, can be
used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.
Gasoline additives
A major concern among engine
manufacturers is carbon build-up caused by
gasoline. Mercedes-Benz recommends only
the use of quality gasoline containing
additives that prevent the build-up of carbon
deposits.
Fuels, coolants, lubricants, etc.541Technical data221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 541Z

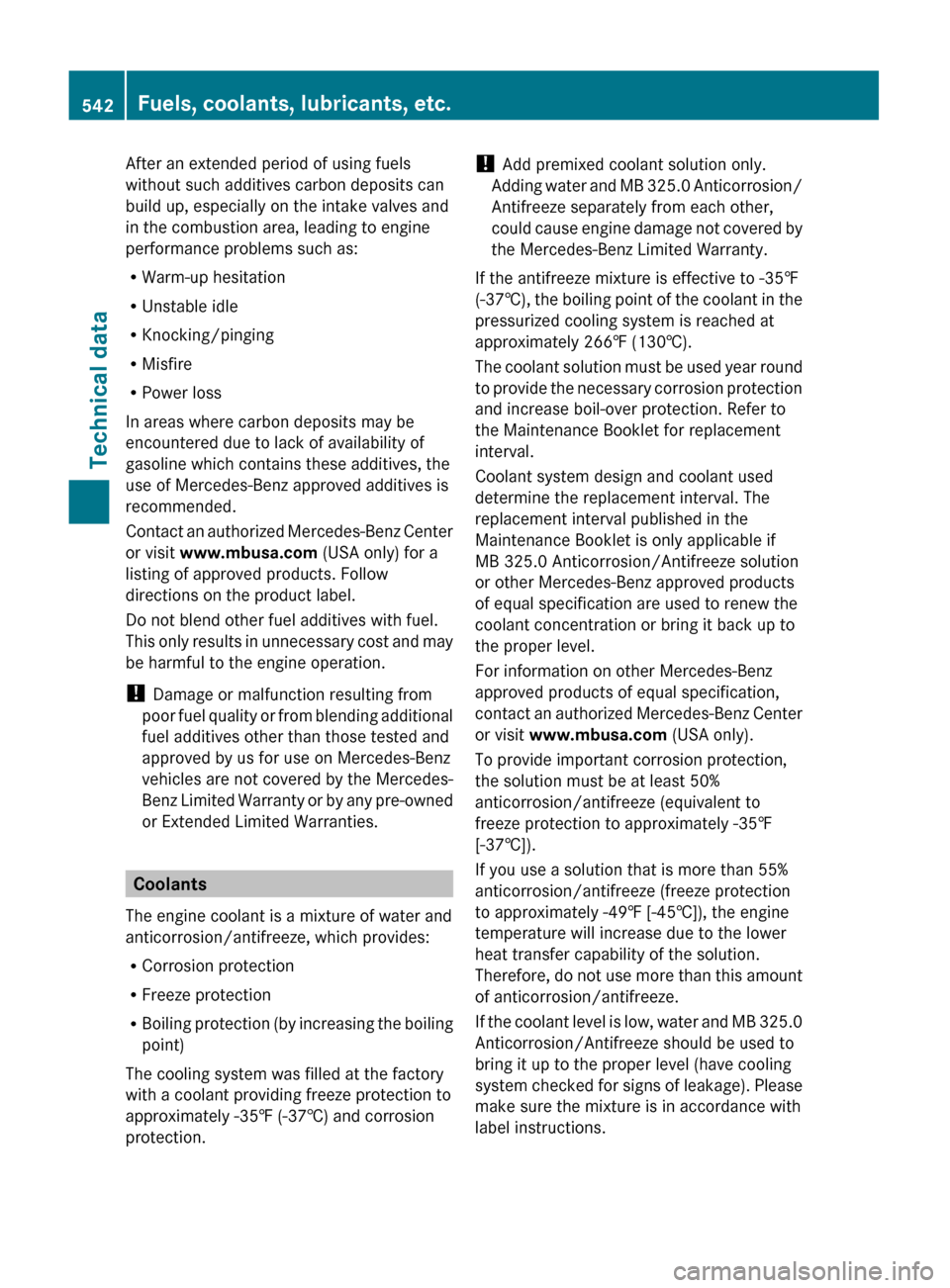

After an extended period of using fuels
without such additives carbon deposits can
build up, especially on the intake valves and
in the combustion area, leading to engine
performance problems such as:
R Warm-up hesitation
R Unstable idle
R Knocking/pinging
R Misfire
R Power loss
In areas where carbon deposits may be
encountered due to lack of availability of
gasoline which contains these additives, the
use of Mercedes-Benz approved additives is
recommended.
Contact an authorized Mercedes-Benz Center
or visit www.mbusa.com (USA only) for a
listing of approved products. Follow
directions on the product label.
Do not blend other fuel additives with fuel.
This only results in unnecessary cost and may
be harmful to the engine operation.
! Damage or malfunction resulting from
poor fuel quality or from blending additional
fuel additives other than those tested and
approved by us for use on Mercedes-Benz
vehicles are not covered by the Mercedes-
Benz Limited Warranty or by any pre-owned
or Extended Limited Warranties.
Coolants
The engine coolant is a mixture of water and
anticorrosion/antifreeze, which provides:
R Corrosion protection
R Freeze protection
R Boiling protection (by increasing the boiling
point)
The cooling system was filled at the factory
with a coolant providing freeze protection to
approximately -35‡ (-37†) and corrosion
protection.
! Add premixed coolant solution only.
Adding water and MB 325.0 Anticorrosion/
Antifreeze separately from each other,
could cause engine damage not covered by
the Mercedes-Benz Limited Warranty.
If the antifreeze mixture is effective to -35‡
(-37† ), the boiling point of the coolant in the
pressurized cooling system is reached at
approximately 266‡ (130†).
The coolant solution must be used year round
to provide the necessary corrosion protection
and increase boil-over protection. Refer to
the Maintenance Booklet for replacement
interval.
Coolant system design and coolant used
determine the replacement interval. The
replacement interval published in the
Maintenance Booklet is only applicable if
MB 325.0 Anticorrosion/Antifreeze solution
or other Mercedes-Benz approved products
of equal specification are used to renew the
coolant concentration or bring it back up to
the proper level.
For information on other Mercedes-Benz
approved products of equal specification,
contact an authorized Mercedes-Benz Center
or visit www.mbusa.com (USA only).
To provide important corrosion protection,
the solution must be at least 50%
anticorrosion/antifreeze (equivalent to
freeze protection to approximately -35‡
[-37†]).
If you use a solution that is more than 55%
anticorrosion/antifreeze (freeze protection
to approximately -49‡ [-45†]), the engine
temperature will increase due to the lower
heat transfer capability of the solution.
Therefore, do not use more than this amount
of anticorrosion/antifreeze.
If the coolant level is low, water and MB 325.0
Anticorrosion/Antifreeze should be used to
bring it up to the proper level (have cooling
system checked for signs of leakage). Please
make sure the mixture is in accordance with
label instructions.542Fuels, coolants, lubricants, etc.Technical data
221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 542
