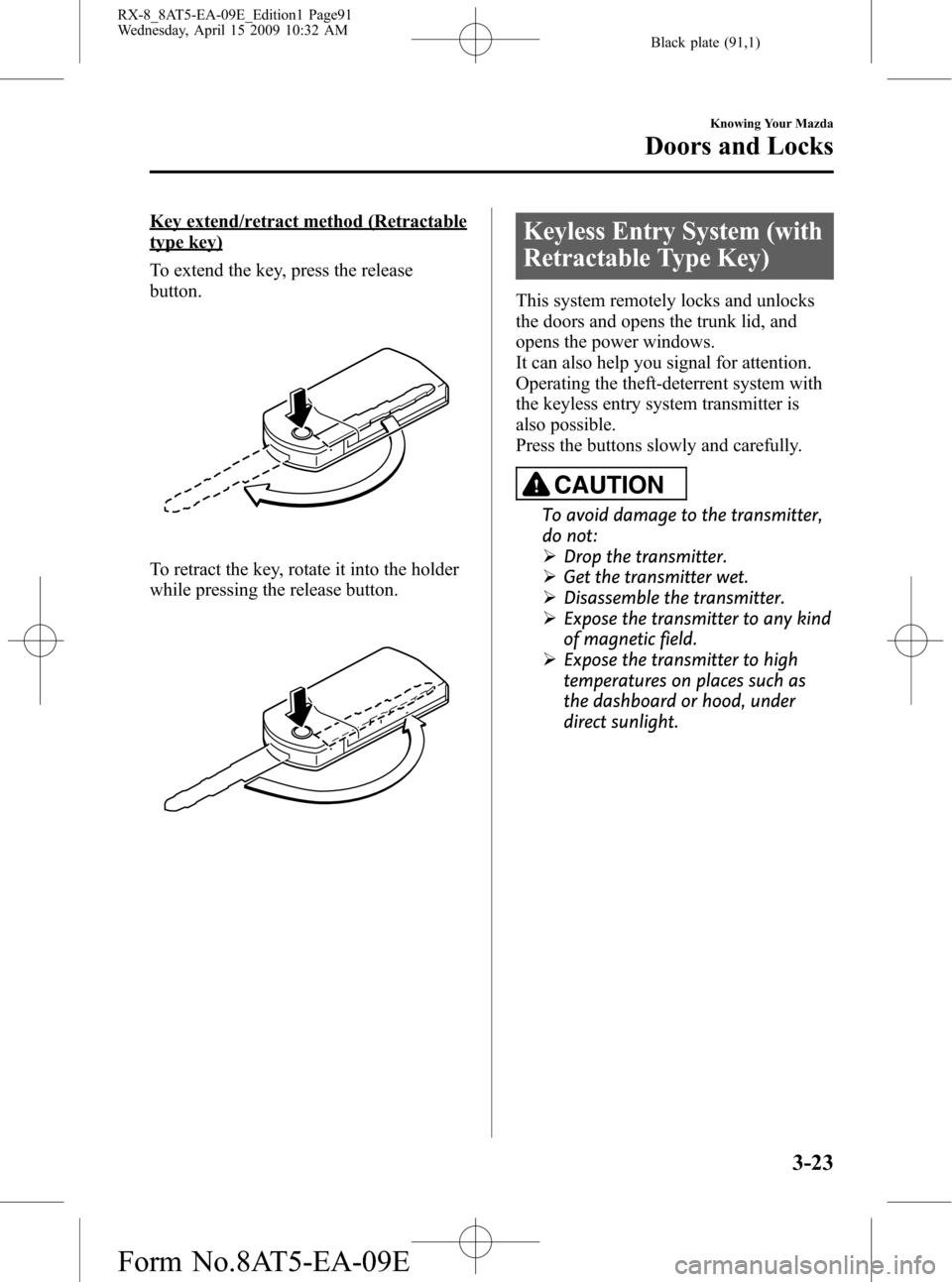

Key extend/retract method (Retractable
type key)
To extend the key, press the release
button.
To retract the key, rotate it into the holder
while pressing the release button.
Keyless Entry System (with
Retractable Type Key)
This system remotely locks and unlocks
the doors and opens the trunk lid, and
opens the power windows.
It can also help you signal for attention.
Operating the theft-deterrent system with
the keyless entry system transmitter is
also possible.
Press the buttons slowly and carefully.
CAUTION
To avoid damage to the transmitter,
do not:
ØDrop the transmitter.
ØGet the transmitter wet.
ØDisassemble the transmitter.
ØExpose the transmitter to any kind
of magnetic field.
ØExpose the transmitter to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
Knowing Your Mazda
Doors and Locks
3-23
RX-8_8AT5-EA-09E_Edition1 Page91
Wednesday, April 15 2009 10:32 AM
Form No.8AT5-EA-09E

Black plate (116,1)
Immobilizer System (with
Advanced Key)
The immobilizer system allows the engine
to start only with an advanced key the
system recognizes.
If someone attempts to start the engine
with an unrecognized advanced key, the
engine will not start, thereby helping to
prevent the theft of your vehicle.
If you have a problem with the
immobilizer system or the advanced key
(including auxiliary key), consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
ØTo avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
Do not allow the following when
starting the engine with the auxiliary
key due to an advanced key dead
battery or other malfunction.
Otherwise the signal from the
auxiliary key will not be received
correctly and the engine may not
start.
ØMetal parts of other keys or metal
objects touch the auxiliary key
grip.
ØSpare auxiliary keys or keys for
other vehicles equipped with an
immobilizer system touch or come
near the auxiliary key.
ØDevices for electronic purchases, or
security passage which touch or
come near the auxiliary key.
3-48
Knowing Your Mazda
Security System
RX-8_8AT5-EA-09E_Edition1 Page116
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (118,1)
NOTElThe engine may not start and the security
indicator light may illuminate or flash if the
advanced key is placed in an area where it
is difficult for the system to detect the
signal, such as on the dashboard, or in the
glove box. Move the advanced key to
another place, turn the ignition switch to
the LOCK position, and then restart the
engine.
lSignals from a TV or radio station, or from
a transceiver or a mobile telephone could
interfere with your immobilizer system. If
you are using the proper advanced key and
the engine fails to start, check the security
indicator light. If the indicator light is
flashing, turn the ignition switch to the
ACC or LOCK position and wait for a
while, then restart the engine. If it does not
start after 3 or more tries, contact an
Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If the
engine is shut off while the indicator light is
flashing, you will not be able to restart it.
lSince the electronic codes are reset when
repairing the immobilizer system, the
advanced key (including auxiliary key) are
needed. Bring all the advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer.
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.
3-50
Knowing Your Mazda
Security System
RX-8_8AT5-EA-09E_Edition1 Page118
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (119,1)
Immobilizer System
(without Advanced Key)
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
ØTo avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
When starting the engine do not
allow the following, as the engine
may not start due to the electronic
signal from the ignition key not being
transmitted correctly.
ØA key ring rests on the key grip.
ØMetal parts of other keys or metal
objects touch the key grip.
ØSpare keys or keys for other
vehicles equipped with an
immobilizer system touch or come
near the key grip.
ØDevices for electronic purchases, or
security passage which touch or
come near the key.
Knowing Your Mazda
Security System
3-51
RX-8_8AT5-EA-09E_Edition1 Page119
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (175,1)
If the warning light illuminates again even
after the tire pressures are adjusted, there
may be a tire puncture.
Vehicles with Instant Mobility System
(IMS) emergency flat tire repair kit
If an emergency tire repair is needed,
repair the punctured tire with the
emergency flat tire repair kit (page 7-5).
CAUTION
Do not use non-genuine tire sealant.
It may damage the tire pressure
sensor.
Vehicles with optional temporary spare
tire
If you have bought the optional temporary
spare tire, replace the punctured tire with
the temporary spare tire. Refer to the
manufacturer's instructions.
NOTE
A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used.
Warning light flashes
When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.
qSystem Error Activation
When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.
A system error activation may occur in
the following cases:
lWhen there is equipment or a device
near the vehicle using the same radio
frequency as that of the tire pressure
sensors.
lWhen a metallic device such as a non-
genuine navigation system is equipped
near the center of the dashboard, which
may block radio signals from the tire
pressure sensor to the receiver unit.
lWhen using the following devices in
the vehicle that may cause radio
interference with the receiver unit.
lA digital device such as a personal
computer.
lA current converter device such as a
DC-AC converter.
lWhen excess snow or ice adheres to
the vehicle, especially around the
wheels.
lWhen the tire pressure sensor batteries
are exhausted.
lWhen using a wheel with no tire
pressure sensor installed.
lWhen using tires with steel wire
reinforcement in the side walls.
lWhen using tire chains.
qTires and Wheels
CAUTION
When inspecting or adjusting the tire
air pressures, do not apply excessive
force to the stem part of the wheel
unit. The stem part could be
damaged.
Changing tires and wheels
The following procedure allows the
TPMS to recognize a tire pressure sensor's
unique ID signal code whenever tires or
wheels are changed, such as changing to
and from winter tires.
Driving Your Mazda
Starting and Driving
5-33
RX-8_8AT5-EA-09E_Edition1 Page175
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (177,1)
Meters and Gauges
When the ignition switch is in the ON position, the dashboard gauges illuminate.
Speedometer ...................................................................................................... page 5-36
Speed Unit Selector ........................................................................................... page 5-36
Odometer, Trip Meter and Trip Meter Selector .................................................. page 5-36
Tachometer ........................................................................................................ page 5-37
Engine Coolant Temperature Gauge .................................................................. page 5-38
Fuel Gauge ........................................................................................................ page 5-38
Driving Your Mazda
Instrument Cluster and Indicators
5-35
RX-8_8AT5-EA-09E_Edition1 Page177
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (180,1)
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine
damage.
NOTE
lThe beep sounds to indicate engine overrev
when the tachometer needle enters the
striped zone.
lThe display of the variable red zone in the
tachometer changes according to the
temperature of the engine coolant. To
protect the engine, when the engine coolant
temperature is low, the engine does not run
at high speeds. The fuel supply will be cut
at an rpm lower than the red zone.
qEngine Coolant Temperature Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle is near H, it indicates
overheating.
CAUTION
Driving with an overheated engine
can cause serious engine damage
(page 7-17).
qFuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition switch is in the ON position.
We recommend keeping the tank over 1/4
full. When the low fuel warning light
illuminates or when the needle is near E,
refuel as soon as possible.
Low fuel warning light
NOTElAfter refueling, it may require some time for
the needle to stabilize. In addition, the
needle may deviate while driving on a slope
or curve since the fuel moves in the tank.
lThe direction of the arrow () shows that
the fuel-filler lid is on the left side of the
vehicle.
qDashboard Illumination
Rotate the thumb wheel to adjust the
brightness of the instrument cluster and
other illuminations in the dashboard.
NOTE
lThe brightness of dashboard illuminations
(except instrument cluster) can be adjusted
when the headlight switch is in the
or
position.lThe brightness of the instrument cluster
illumination can be adjusted when the
headlight switch is in any position.
5-38
Driving Your Mazda
Instrument Cluster and Indicators
RX-8_8AT5-EA-09E_Edition1 Page180
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E

Black plate (181,1)
Bright
Dim
Canceling the illumination dimmer
When the headlight switch is in the
orposition, the illumination of the
instrument cluster and the information
display dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster or information display's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer and increase the illumination
intensity.
To cancel the illumination dimmer, rotate
the thumb wheel upward fully. You may
hear a click sound and the illumination
dimmer will be canceled.
NOTE
lThis symbol () indicates the thumb wheel
to adjust the brightness of the dashboard
illumination.
lIf the dashboard illumination switch is kept
at the illumination dimmer cancel position,
the instrument cluster and the information
display will not dim when the headlight
switch is turned to the
orposition
again.
Driving Your Mazda
Instrument Cluster and Indicators
5-39
RX-8_8AT5-EA-09E_Edition1 Page181
Wednesday, April 15 2009 10:33 AM
Form No.8AT5-EA-09E
