9. Turn the ignition switch from the ACCposition to the START position and
hold (up to 10 seconds at a time) until
the engine starts.
CAUTION
Do not try the starter for more than
10 seconds at a time. If the engine
stalls or fails to start, wait 10 seconds
before trying again. Otherwise, you
may damage the starter and drain
the battery.
10. After starting the engine, let it idle for about 10 seconds.
NOTE
lIn extremely cold weather or after the
vehicle has not been driven in several days,
let the engine warm up without operating
the accelerator.
lWhether the engine is cold or warm, it
should be started without use of the
accelerator.
Turning off the engine
1. Move the shift lever to the P position (Automatic transmission).
2. Turn the ignition switch from the ON position to the ACC position.
NOTE
When the engine is turned off and the ignition
switch it turned from the ACC position to the
LOCK position, the KEY indicator light
(green) flashes in the instrument cluster for
about 30 seconds if the battery power of the
advanced key is low. Replace the battery with a
new one.
Refer to Battery Replacement (page 3-7).
3. Push in the start knob from the ACC position and turn it to the LOCK
position.
CAUTION
When leaving the vehicle, make sure
the ignition switch is turned to the
LOCK position.
NOTE
lWhen turning the ignition switch to the
LOCK position, the ignition switch has to
be pushed in from the ACC position and
turned. Without being pushed in, the
ignition switch stops at the ACC position
and the vehicle battery may be discharged
if the ignition switch is left in the ACC
position. When leaving the vehicle, make
sure the ignition switch is turned to the
LOCK position.
lIf the vehicle is left with the ignition switch
not in the LOCK position, a beep sound is
heard and the indicator light flashes to
notify the driver.
Refer to Warning Beep (page 3-19).
3-14
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8AV1-EA-09F_Edition5 Page76
Friday, May 7 2010 9:15 AM
Form No.8AV1-EA-09F

Black plate (78,1)
NOTElBoth doors cannot be locked when either
door is open.
lConfirm that both doors are locked visually
or audibly by use of the double click.
Unlock button
To unlock the driver's door, press the
unlock button. A beep will be heard twice
and the hazard warning lights will flash
twice.
To unlock both doors, press the unlock
button again within 3 seconds and two
more beep sounds will be heard.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that both doors are unlocked.
(With theft-deterrent system)
The hazard warning lights only flash when the
theft deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
Refer to the theft-deterrent system on page
3-71.
NOTE
(Auto re-lock function)
After unlocking with the transmitter, both
doors will automatically lock and the hazard
warning light will flash if any of the following
operations are not performed within about 30
seconds. If your vehicle has a theft-deterrent
system, the hazard warning lights will flash for
confirmation.
lA door is opened.lThe auxiliary key is inserted into the
ignition switch.
lThe start knob is pressed.
Trunk button
To open the trunk, press the trunk button
for more than 1 second.
NOTE
(With power retractable hardtop)
The trunk lid can only be opened when the
power retractable hardtop is fully opened/
closed. Open/close the power retractable
hardtop completely before opening the trunk
lid.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether either door
is open or closed.
(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
NOTE
However, if the driver is too close to the
vehicle the panic button may not function.
(Turning off the alarm)
The alarm stops by pressing any button on
the transmitter.
3-16
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8AV1-EA-09F_Edition5 Page78
Friday, May 7 2010 9:15 AM
Form No.8AV1-EA-09F

Black plate (81,1)
Warning and Beep Sounds
qSystem Malfunction Warning Beep
If any malfunction occurs in the advanced
keyless function, the KEY warning light
(red) in the instrument cluster illuminates
continuously and beep sounds will be
heard.
CAUTION
If the KEY warning light (red) remains
illuminated, do not continue to drive
the vehicle with the advanced keyless
function. Park the vehicle in a safe
place and use the auxiliary key to
continue driving the vehicle. Have the
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Ignition Switch (page 5-2).
qStart Knob Not in LOCK
Warning Beep
If the start knob is in the ACC position
and the driver's door is opened, a
continuous beep sound will be heard to
notify the driver that the start knob has not
been returned to the LOCK position. In
this case, the keyless entry system does
not operate, the car cannot be locked, and
the battery will run down.
qAdvanced Key Removed from
Vehicle Warning Beep
Under the following conditions, a beep
sound will be heard and the KEY warning
light (red) will flash continuously when
the start knob has not been returned to the
LOCK position to notify the driver that
the advanced key has been removed. The
KEY warning light (red) will stop flashing
when the advanced key is back inside the
vehicle:
lThe start knob has not been returned to
the LOCK position, the driver's door is
open, and the advanced key is removed
from the vehicle. (A beep sound will be
heard 3 times.)
However the beep sound will be heard
continuously when the start knob is in
the ACC position and the door is open
due to the activation of the warning
beep sound indicating that the start
knob is not in the LOCK position.
lThe start knob has not been returned to
the LOCK position and all the doors
are closed after removing the advanced
key from the vehicle. (A beep sound
will be heard 6 times.)
NOTE
Because the advanced key utilizes low-intensity
radio waves, the Advanced Key Removed From
Vehicle Warning may activate if the advanced
key is carried together with a metal object or it
is placed in a poor signal reception area
within the vehicle.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-19
MX-5_8AV1-EA-09F_Edition5 Page81
Friday, May 7 2010 9:15 AM
Form No.8AV1-EA-09F

Black plate (100,1)
qOperating the Driver's Side
Power Window (Type B)
Manual opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Close
Open
Driver's window
Auto-opening
To fully open the window automatically,
press the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
q Operating the Passenger Power
Window (Type B)
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.
Close
Open
Passenger's window
q Opening the Power Windows
from Outsideí
Both power windows can be opened from
outside the vehicle after the doors are
closed.
NOTE
The power windows cannot be opened from
outside the vehicle under the following
condition:
lA door or the trunk lid is opened.lThe key is inserted into the ignition switch.l(With advanced key)
The start knob is in any position except
Lock.
3-38
Knowing Your Mazda
íSome models.
Doors and Locks
MX-5_8AV1-EA-09F_Edition5 Page100
Friday, May 7 2010 9:15 AM
Form No.8AV1-EA-09F

Black plate (101,1)

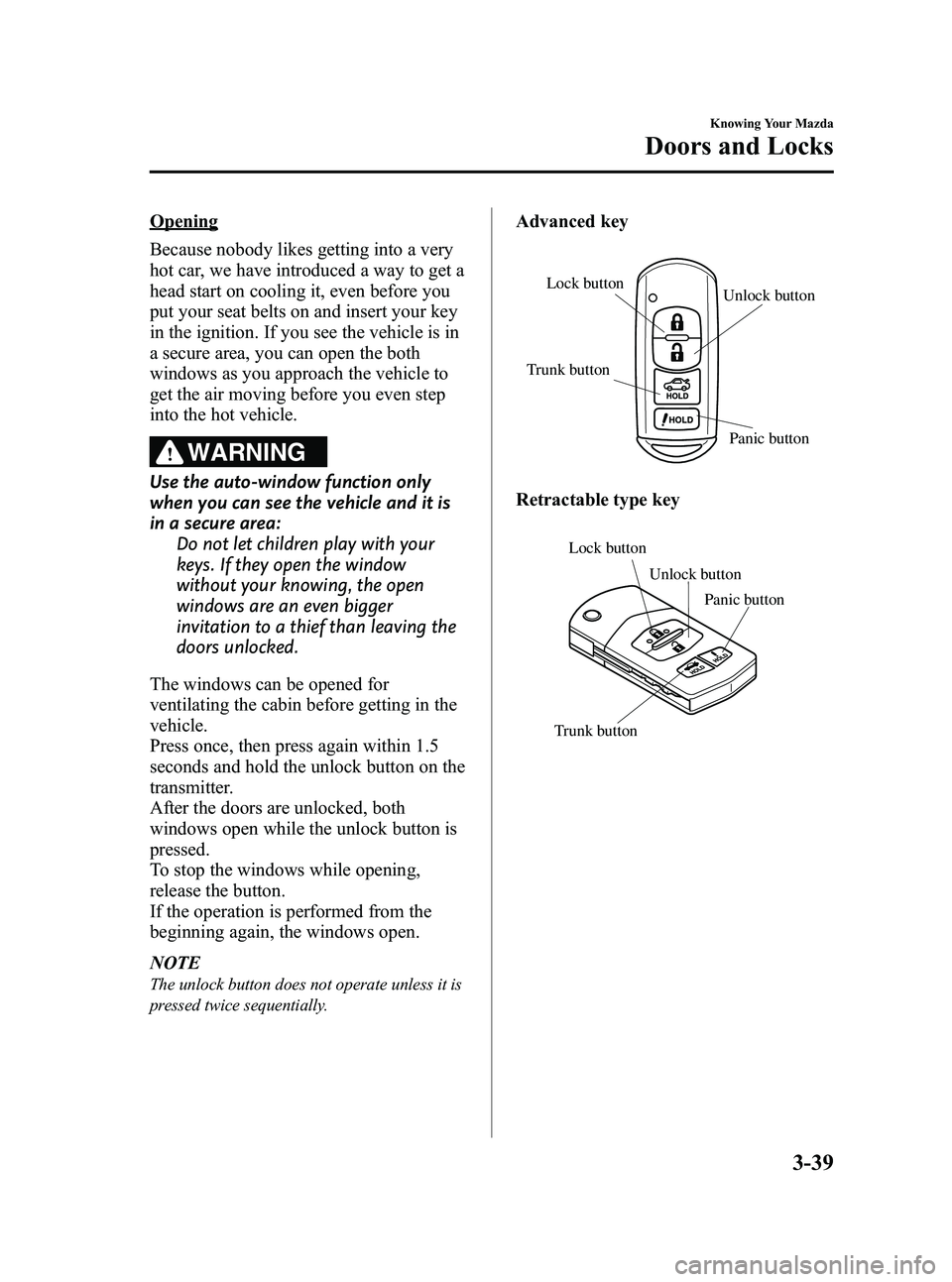

Opening
Because nobody likes getting into a very
hot car, we have introduced a way to get a
head start on cooling it, even before you
put your seat belts on and insert your key
in the ignition. If you see the vehicle is in
a secure area, you can open the both
windows as you approach the vehicle to
get the air moving before you even step
into the hot vehicle.
WARNING
Use the auto-window function only
when you can see the vehicle and it is
in a secure area:Do not let children play with your
keys. If they open the window
without your knowing, the open
windows are an even bigger
invitation to a thief than leaving the
doors unlocked.
The windows can be opened for
ventilating the cabin before getting in the
vehicle.
Press once, then press again within 1.5
seconds and hold the unlock button on the
transmitter.
After the doors are unlocked, both
windows open while the unlock button is
pressed.
To stop the windows while opening,
release the button.
If the operation is performed from the
beginning again, the windows open.
NOTE
The unlock button does not operate unless it is
pressed twice sequentially.
Advanced key
Lock button Unlock button
Trunk button
Panic button
Retractable type key
Lock buttonUnlock button
Trunk button Panic button
Knowing Your Mazda
Doors and Locks
3-39
MX-5_8AV1-EA-09F_Edition5 Page101
Friday, May 7 2010 9:15 AM
Form No.8AV1-EA-09F

Black plate (113,1)
qOpening the Power Retractable
Hardtop
1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Neutral.
3. Apply the parking brake with the brake pedal depressed.
4. Start the Engine.
NOTE
Do not open/close the hardtop with the engine
stopped. Otherwise the vehicle's battery power
could be depleted.
5. With the lock release button depressed, pull the top latch outward to unlock.
Lock release button
Top latch
6. Verify that the operation indicator light is illuminated and the lock is detached. 7. Press and hold the open button until the
hardtop opens completely.
NOTElWhen the open switch is pressed, a beep
sound is heard.
lThe hardtop keeps opening and the
operation indicator light flashes while the
open switch is pressed.
lIf the switch is released while the hardtop is
opening, the hardtop stops opening. If the
switch is pressed again, the hardtop
resumes opening.
8. The deck opens.
NOTE
If the windows are closed, the windows
automatically open partially when the deck
opens.
Knowing Your Mazda
Doors and Locks
3-51
MX-5_8AV1-EA-09F_Edition5 Page113
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (114,1)
9. The hardtop opens.
10. The hardtop retracts under the deck.
11. The deck closes.
NOTE
When the operation is finished, a beep sound is
heard and the operation indicator light turns
off.
qClosing the Power Retractable
Hardtop
1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Neutral.
3. Apply the parking brake with the brake pedal depressed.
4. Start the Engine.
NOTE
Do not open/close the hardtop with the engine
stopped. Otherwise the vehicle's battery power
could be depleted.
5. Press and hold the close button until the hardtop closes completely.
NOTElWhen the close switch is pressed, a beep
sound is heard.
lThe hardtop keeps closing and the
operation indicator light flashes while the
close switch is pressed.
lIf the switch is released while the hardtop is
closing, the hardtop stops closing. If the
switch is pressed again, the hardtop
resumes closing.
3-52
Knowing Your Mazda
Doors and Locks
MX-5_8AV1-EA-09F_Edition5 Page114
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F

Black plate (134,1)

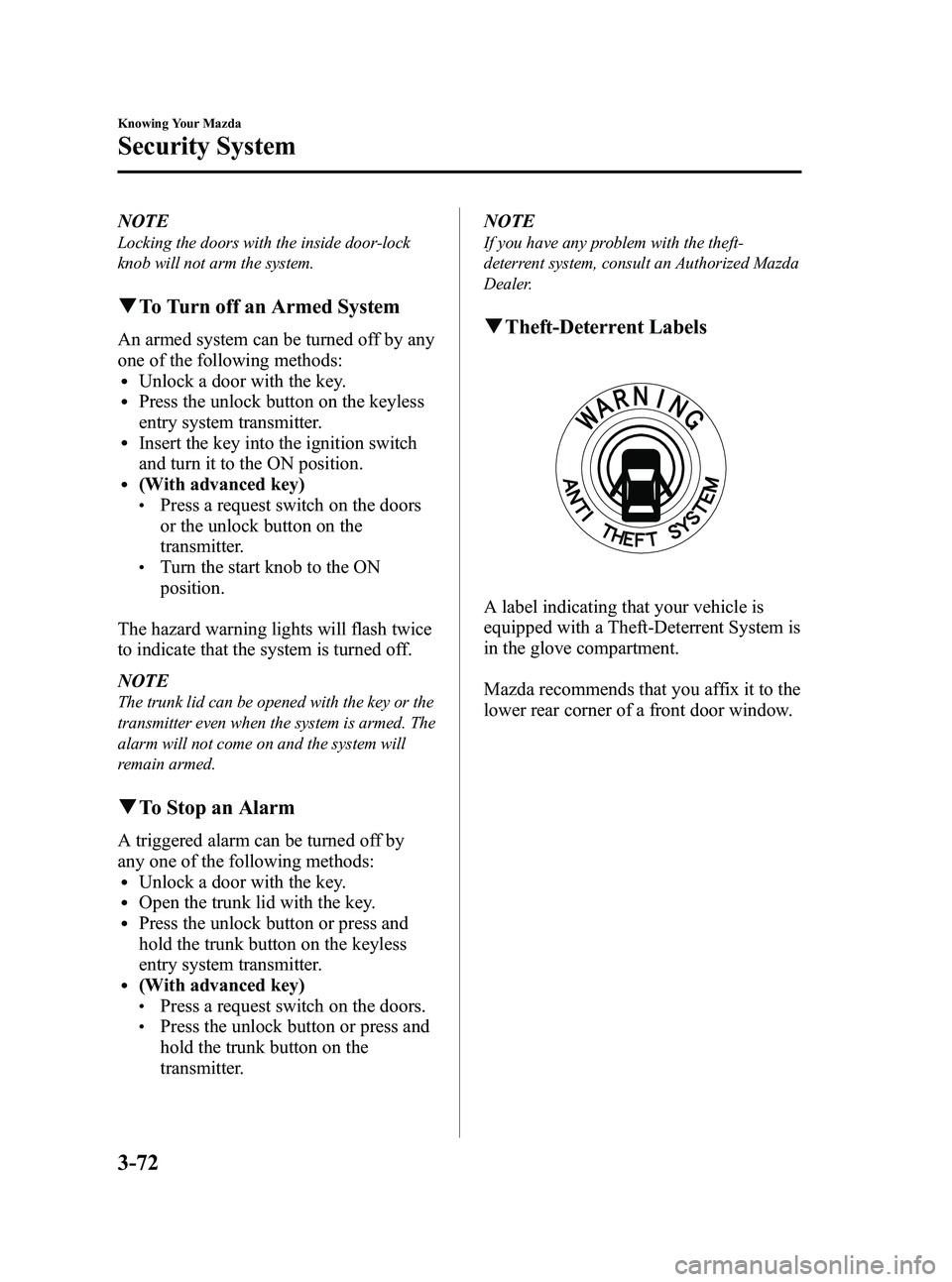

NOTE
Locking the doors with the inside door-lock
knob will not arm the system.
qTo Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door with the key.lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and turn it to the ON position.
l(With advanced key)lPress a request switch on the doors
or the unlock button on the
transmitter.
lTurn the start knob to the ON
position.
The hazard warning lights will flash twice
to indicate that the system is turned off.
NOTE
The trunk lid can be opened with the key or the
transmitter even when the system is armed. The
alarm will not come on and the system will
remain armed.
q To Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door with the key.lOpen the trunk lid with the key.lPress the unlock button or press and
hold the trunk button on the keyless
entry system transmitter.
l(With advanced key)lPress a request switch on the doors.lPress the unlock button or press and
hold the trunk button on the
transmitter. NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized Mazda
Dealer.
q
Theft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
3-72
Knowing Your Mazda
Security System
MX-5_8AV1-EA-09F_Edition5 Page134
Friday, May 7 2010 9:16 AM
Form No.8AV1-EA-09F
