qCapacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter
replacementExcept U.S.A. and Canada 4.55 L (4.81 US qt, 4.00 Imp qt)
U.S.A. and
Canada
6-speed manual
transmission
4.55 L (4.81 US qt, 4.00 Imp qt)
Except 6-speed manual
transmission 4.45 L (4.70 US qt, 3.92 Imp qt)
Without oil filter replacement 4.05 L (4.28 US qt, 3.56 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transmission oil 5-speed transmission
2.0 L (2.1 US qt, 1.8 Imp qt)
6-speed transmission 2.1 L (2.2 US qt, 1.8 Imp qt)
Automatic transmission fluid 7.4 L (7.8 US qt, 6.5 Imp qt)
Rear differential oil 0.7 L (0.7 US qt, 0.6 Imp qt)
Fuel tank 48.0 L
(12.7 US gal, 10.6 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Vehicle specification
Overall length With license plate holder
4,032 mm (158.7 in)
Without license plate holder 4,013 mm (158.0 in)
Overall width 1,720 mm (67.7 in)
Overall height Soft top
1,245 mm (49.0 in)
Hardtop 1,255 mm (49.4 in)
Front tread 1,490 mm (58.7 in)
Rear tread 1,495 mm (58.9 in)
Wheelbase 2,330 mm (91.7 in)
qWeights
(Manual transmission)
Item Weight
Without power retractable hardtop With power retractable
hardtop
GVWR (Gross Vehicle Weight Rating) 1,396 kg (3,078 lbs) 1,416 kg (3,122 lbs)
GAWR (Gross Axle Weight Rating) Front 714 kg (1,574 lbs) 714 kg (1,574 lbs)
Rear 682 kg (1,504 lbs) 702 kg (1,548 lbs)
Specifications
10-5
MX-5_8AV1-EA-09F_Edition5 Page435
Friday, May 7 2010 9:18 AM
Form No.8AV1-EA-09F

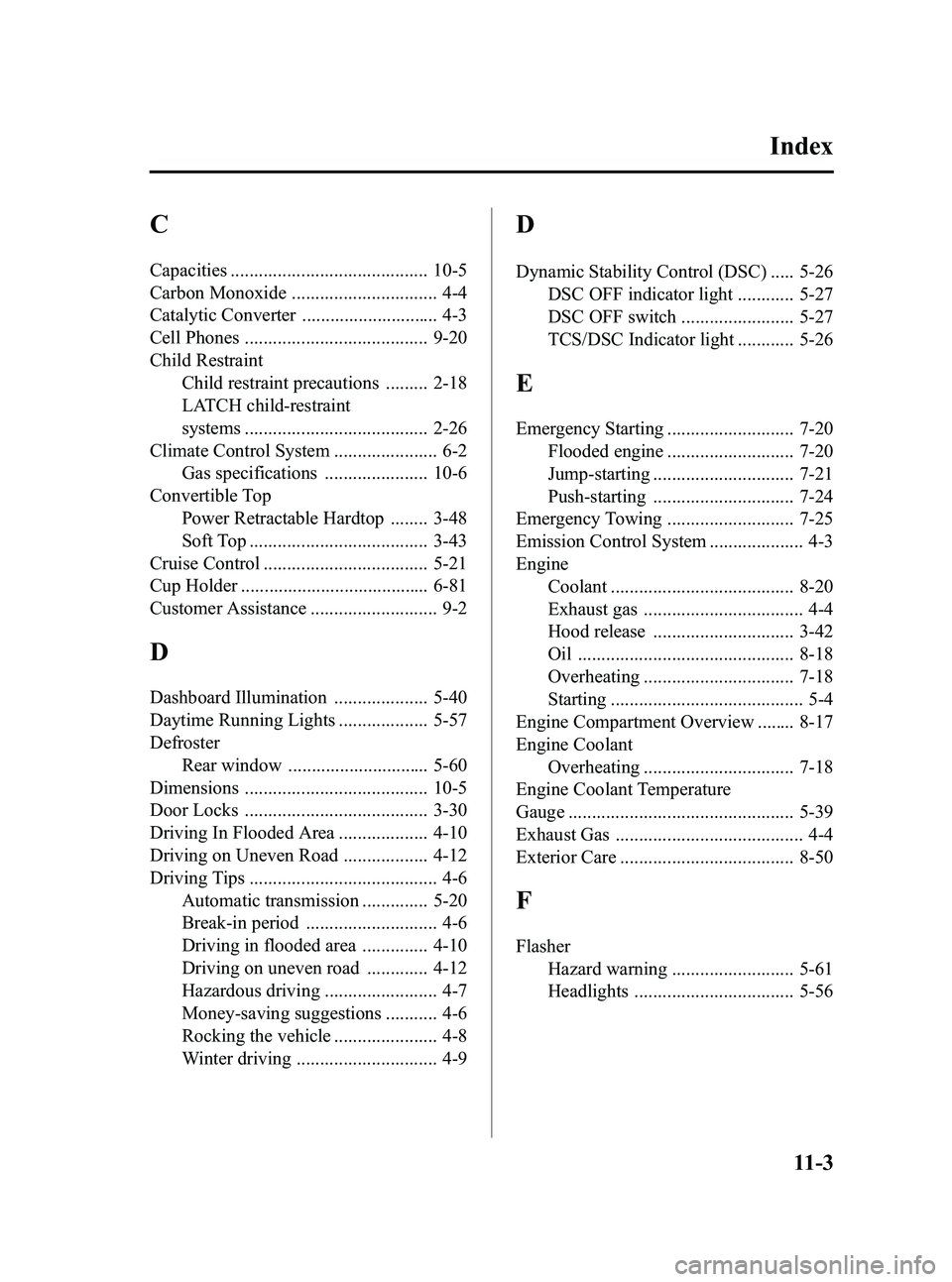

Black plate (441,1)
