To change the seatback angle, press the
front or rear side of the reclining switch.
Release the switch at the desired position.
qHeight Adjustment (Driver's Seat)
To adjust the seat height, move the switch
up or down.
qSeat Position Memoryí
The driver's seat position memory
function allows you to program a desired
seat position. The personalized positions
can be easily activated with the simple
touch of a button. The programmed
positions can also be activated when
unlocking the doors using a programmed
advanced key/retractable type key.
Seat positions for up to three people can
be programmed into the memory using
the three available programming buttons.
CAUTION
When activating the seat position, do
not place your hands or fingers
around the seat bottom. The seat
moves to the desired position
automatically, and if your hands or
fingers are placed around the seat
bottom, it could cause injury.
NOTE
lOnly operate the seat memory function
while the vehicle is parked.
lVehicle maintenance or other reasons
requiring the vehicle battery to be
disconnected will result in the seat position
memory being erased.
In this case, re-program the seat positions.
Programming
1. Adjust the seat to the desired position.
For each seat position adjustment
method refer to the following pages:
Seat Slide (page 2-5)
Seat Recline (page 2-5)
Height Adjustment (page 2-6)
2-6
Essential Safety Equipment
íSome models.
Seats
CX-9_8AU2-EA-09G_Edition5 Page18
Thursday, May 6 2010 4:51 PM
Form No.8AU2-EA-09G

Black plate (19,1)
2. Press the SET button followed by one
of the programming buttons (1, 2, or 3)
within about 5 seconds. A beep sound
is heard after the programming is
completed.
SET button
NOTE
If the programming button (1, 2, or 3) you
have selected is already programmed, it will be
overwritten with the new setting.
Activating the seat to a pre-
programmed position
1. Shift the selector lever to the P
position.
2. Press the programming button (1, 2, or
3) that you selected when
programming your seat position. A
beep sound is heard after the
adjustment to the programmed position
is completed.
NOTE
lWhen the ignition switch is in the ACC or
OFF position, a pre-programmed seat
position can be activated regardless of the
selector lever position.
lIf the seat is already adjusted to the
position you are activating, the seat does
not move, however, a beep sound is heard
to confirm that the adjustment operation is
completed.
Activating the seat position when
unlocking with an advanced key/
retractable type key
Your desired seat position can be
activated when unlocking the doors.
Perform the following procedure using the
advanced key/retractable type key.
1. Adjust the seat to the desired position.
2. Turn the ignition switch to the LOCK
position.
3. Press the SET button next to the
programming buttons and then the
unlock button on the advanced key/
retractable type key you want to
program within about 5 seconds. A
beep sound is heard when the operation
is completed.
When the driver's door is unlocked using
a programmed advanced key/retractable
type key, the seat is activated to a
programmed position if the driver's door
is opened within about 40 seconds. A
beep sound is heard after the adjustment
to the programmed position is completed.
Essential Safety Equipment
Seats
2-7
CX-9_8AU2-EA-09G_Edition5 Page19
Thursday, May 6 2010 4:51 PM
Form No.8AU2-EA-09G

Black plate (84,1)
Advanced Keysí
The advanced keyless functions (advanced keyless entry and start system) enables the
following operations while the advanced key is being carried (page 3-7).
lLocking/unlocking the doors and the liftgate without operating the key.lStarting the engine without operating the key.
Additional functions are available using the buttons on the advanced key.
Refer to Operation Using Advanced Key Functions on page 3-14.
lThe following operations are possible using the transmitter of the keyless entry system
from a distance (Lock/Unlock/Panic/Liftgateíbutton):lLocking/unlocking the doors and the liftgate.lOpening/closing the power liftgateí.lOpening the power windows and the moonroofí.lOperating the theft-deterrent systemí.lTurning on the alarm.lLocking/unlocking the doors or starting the engine using the auxiliary key.
WARNING
Do not leave the key in your vehicle with children and keep them in a place where
your children will not find or play with them:
Leaving children in a vehicle with the key is dangerous. This could result in someone
being badly injured or even killed. Children may find these new kinds of keys to be
an interesting toy to play with and could cause the power windows or other controls
to operate, or even make the vehicle move.
Radio waves from the advanced key may affect medical equipment such as
pacemakers:
Before using the advanced key near people who use medical equipment, ask the
medical equipment manufacturer or your physician if radio waves from the
advanced key will affect the equipment.
NOTE
lThe driver must carry the advanced key to ensure the system functions properly.lRefer to Immobilizer System (page 3-53) for information regarding keys and engine starting.l(With theft-deterrent system)
Refer to Theft-Deterrent System (page 3-61) for information regarding keys and the prevention of
vehicle and vehicle contents theft.
3-2
Knowing Your Mazda
íSome models.
Advanced Keyless Entry and Start System
CX-9_8AU2-EA-09G_Edition5 Page84
Thursday, May 6 2010 4:51 PM
Form No.8AU2-EA-09G

Black plate (87,1)

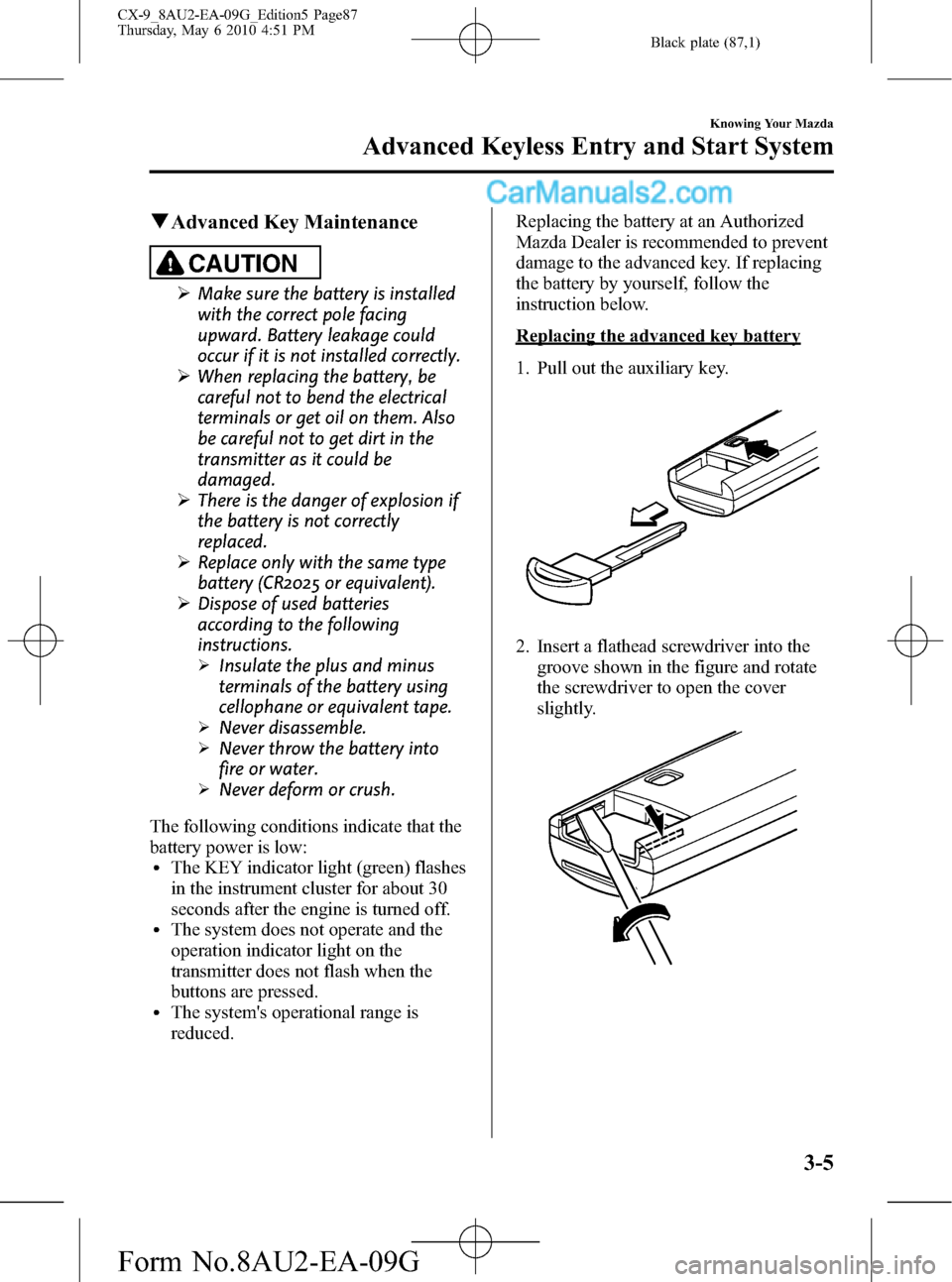

qAdvanced Key Maintenance
CAUTION
ØMake sure the battery is installed
with the correct pole facing
upward. Battery leakage could
occur if it is not installed correctly.
ØWhen replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also
be careful not to get dirt in the
transmitter as it could be
damaged.
ØThere is the danger of explosion if
the battery is not correctly
replaced.
ØReplace only with the same type
battery (CR2025 or equivalent).
ØDispose of used batteries
according to the following
instructions.
ØInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
ØNever disassemble.
ØNever throw the battery into
fire or water.
ØNever deform or crush.
The following conditions indicate that the
battery power is low:
lThe KEY indicator light (green) flashes
in the instrument cluster for about 30
seconds after the engine is turned off.
lThe system does not operate and the
operation indicator light on the
transmitter does not flash when the
buttons are pressed.
lThe system's operational range is
reduced.Replacing the battery at an Authorized
Mazda Dealer is recommended to prevent
damage to the advanced key. If replacing
the battery by yourself, follow the
instruction below.
Replacing the advanced key battery
1. Pull out the auxiliary key.
2. Insert a flathead screwdriver into the
groove shown in the figure and rotate
the screwdriver to open the cover
slightly.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-5
CX-9_8AU2-EA-09G_Edition5 Page87
Thursday, May 6 2010 4:51 PM
Form No.8AU2-EA-09G

Black plate (96,1)
Operation Using Advanced
Key Functions
qKeyless Entry System
This system uses the more traditional
keyless entry buttons to remotely lock and
unlock the doors and the liftgate, and
opens the power windows and the
moonroof.
It can also help you signal for attention.
Press the buttons slowly and carefully.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the
auxiliary key is in the ignition switch.
lWith the start knob installed in the LOCK
position, the system is fully operational. If
the ignition switch is not in the LOCK
position or the start knob is pushed in, the
system does not operate.
lAll doors and the liftgate cannot be locked
by pressing the lock button while any door
or the liftgate is open. The hazard warning
lights will also not flash.
lIf the transmitter does not operate when
pressing a button or the operational range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).
Transmitter
with power liftgate
Lock button
Unlock button
Power liftgate button
Operation indicator
light
Panic button
without power liftgate
Lock button
Unlock buttonOperation indicator light
Panic button
NOTE
The unlock button can be used to open the
power windows and the moonroof, but the lock
button cannot be used to close the power
windows and the moonroof.
Refer to the following pages:
Opening/Closing the Power Windows (page
3-44)
Opening/Closing the Moonroof (page 3-51)
The operation indicator light flashes when
the buttons are pressed.
3-14
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-9_8AU2-EA-09G_Edition5 Page96
Thursday, May 6 2010 4:51 PM
Form No.8AU2-EA-09G

Black plate (106,1)
Key extend/retract method (Retractable
type key)
To extend the key, press the release
button.
To retract the key, rotate it into the holder
while pressing the release button.
Keyless Entry Systemí
This system remotely locks and unlocks
the doors and the liftgate, and opens the
power windows and the moonroof.
It can also help you signal for attention.
Press the buttons slowly and carefully.
CAUTION
To avoid damage to the transmitter,
do not:
ØDrop the transmitter.
ØGet the transmitter wet.
ØDisassemble the transmitter.
ØExpose the transmitter to any kind
of magnetic field.
ØExpose the transmitter to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
3-24
Knowing Your Mazda
íSome models.
Doors and Locks
CX-9_8AU2-EA-09G_Edition5 Page106
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (107,1)
NOTElThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the key is
in the ignition switch.
lDoors and the liftgate can be locked by
pressing the lock button while any other
door or the liftgate is open. Also, the hazard
warning lights will not flash and the horn
will not sound.
lIf the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-27).
lAdditional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.
qTransmitter
Lock button
Unlock button
Panic button
Operation
indicator light
NOTE
The unlock button can be used to open the
power windows and the moonroof, but the lock
button cannot be used to close the power
windows and the moonroof.
Refer to the following pages:
Opening/Closing the Power Windows (page
3-44)
Opening/Closing the Moonroof (page 3-51)
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate, press
the lock button and the hazard warning
lights will flash once.
To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound and the
hazard warning lights will flash once.
Knowing Your Mazda
Doors and Locks
3-25
CX-9_8AU2-EA-09G_Edition5 Page107
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (109,1)
qTransmitter Maintenance
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
ØInstall the battery with the positive
pole (
) facing down. Battery
leakage could occur if it is not
installed correctly.
ØWhen replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also
be careful not to get dirt in the
transmitter as it could be
damaged.
ØThere is the danger of explosion if
the battery is not correctly
replaced.
ØReplace only with the same type
battery (CR1620 or equivalent).
ØDispose of used batteries
according to the following
instructions.
ØInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
ØNever disassemble.
ØNever throw the battery into
fire and/or water.
ØNever deform or crush.
Replacing the transmitter battery
1. Unfold the key (page 3-23).2. Insert a screwdriver into the slot and
push the tab to remove the key from
the transmitter.
Ta b
3. Insert a screwdriver into the slot and
gently pry open the transmitter.
4. Remove the battery.
A
Knowing Your Mazda
Doors and Locks
3-27
CX-9_8AU2-EA-09G_Edition5 Page109
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G
