2010 MAZDA MODEL CX-9 tires

Black plate (570,1)

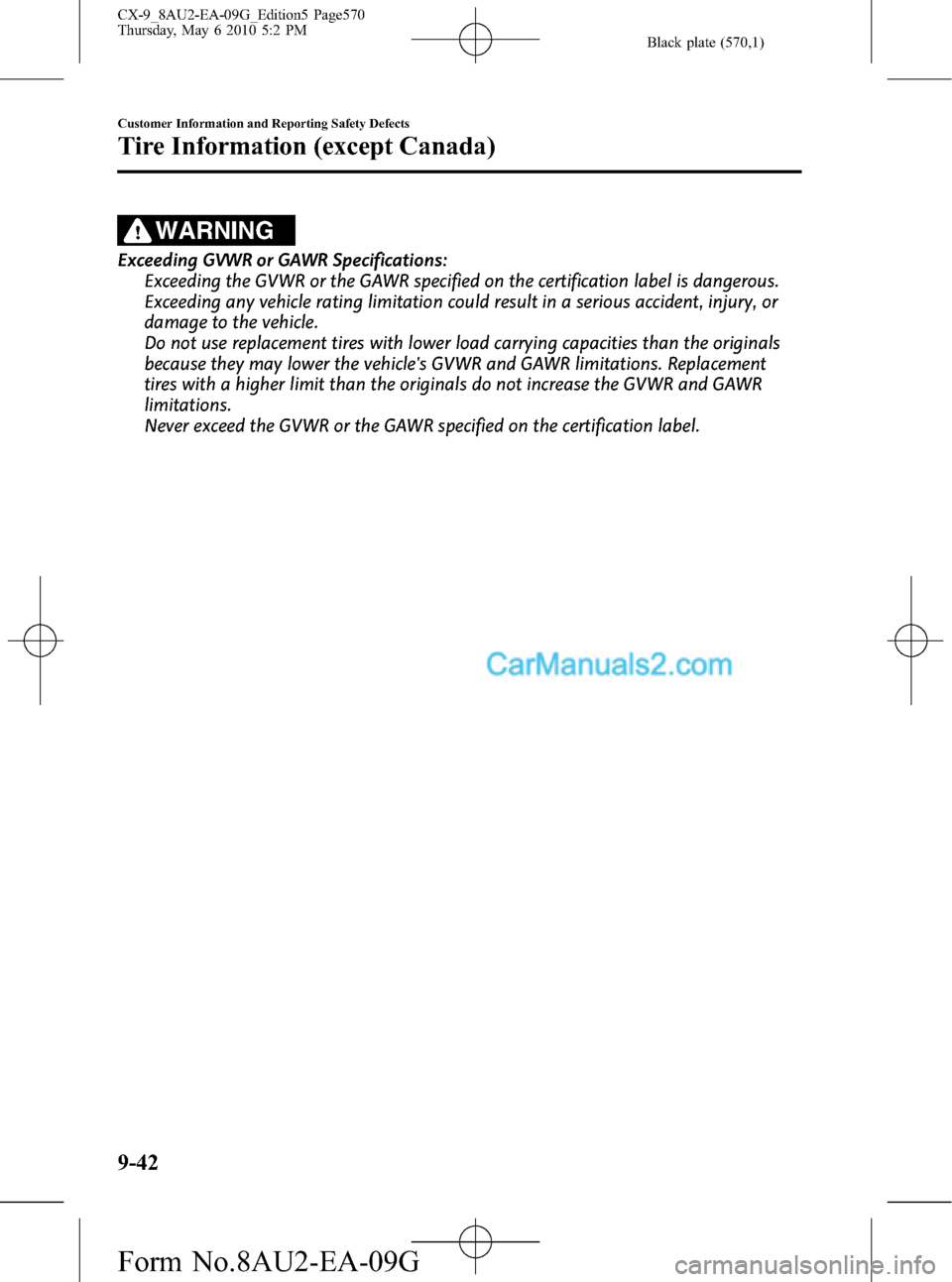

WARNING
Exceeding GVWR or GAWR Specifications:
Exceeding the GVWR or the GAWR specified on the certification label is dangerous.
Exceeding any vehicle rating limitation could result in a serious accident, injury, or
damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than the originals
because they may lower the vehicle's GVWR and GAWR limitations. Replacement
tires with a higher limit than the originals do not increase the GVWR and GAWR
limitations.
Never exceed the GVWR or the GAWR specified on the certification label.
9-42
Customer Information and Reporting Safety Defects
Tire Information (except Canada)
CX-9_8AU2-EA-09G_Edition5 Page570
Thursday, May 6 2010 5:2 PM
Form No.8AU2-EA-09G

Black plate (582,1)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R (SAE)
HeadlightsHigh beam 60 HB3 (HB3)
Low beamHalogen 55 H11 (H11)
Xenon fusion 35 D2S (D2S)
Front turn signal lights 21 WY21W (23CP)
Front side-marker lights 5 WY5W (3CP)
Parking lights 5 W5W (4CP)
Fog lights
í51 HB4 (#9006)
Side turn signal lights (Integrated with outside mirrors)íLED*1―(―)
High-mount brake light LED*1―(―)
Rear turn signal lights 21 WY21W (23CP)
Taillights/Brake lights LED
*1―(―)
Reverse lights 21 W21W (#7440)
License plate lights 5 W5W (4CP)
Rear side-marker lights 5 W5W (4CP)
*1 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulbCategory
Wattage ECE R
Overhead lights/Map lights (Front) 8―
Overhead light (Center) 10―
Overhead light (Rear) 10―
Courtesy lights 5 T10
Vanity mirror lights 2―
Luggage compartment light 10―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
10-6íSome models.
Specifications
CX-9_8AU2-EA-09G_Edition5 Page582
Thursday, May 6 2010 5:2 PM
Form No.8AU2-EA-09G

Black plate (591,1)
S
SRS Air Bags
Driver and front passenger occupant
classification system .................. 2-64
How the SRS air bags work ....... 2-57
Limitations to SRS air bag ......... 2-62
Monitoring and maintenance ..... 2-69
SRS air bag deployment
criteria ........................................ 2-61
Supplemental restraint system
(SRS) precautions ...................... 2-51
Supplemental restraint system
components ................................ 2-56
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-63
Horn ........................................... 5-74
Storage Compartments .................... 6-191
Armrest box ............................. 6-192
Cargo securing loops ................ 6-192
Cargo sub-compartment ........... 6-193
Center console .......................... 6-192
Coin box ................................... 6-192
Glove box ................................. 6-192
Overhead console ..................... 6-191
Rear coat hooks ........................ 6-194
Shopping bag hook .................. 6-193
Sunshade ........................................... 3-52
Sunvisors ........................................ 6-181
T
Tachometer ........................................ 5-41
Temporary Spare Tire ....................... 8-36
Theft-Deterrent System ..................... 3-61
Third-Row Seat ................................. 2-13
Tiedown
Hook .......................................... 7-20
Tire Information ................................ 9-24
T
Tire Pressure Monitoring System ...... 5-28
System error activation .............. 5-32
Tire pressure monitoring system
warning light .............................. 5-30
Tires and wheels ......................... 5-32
Tires
Flat Tire ........................................ 7-3
Inflation pressure ........................ 8-33
Replacement ............................... 8-35
Rotation ...................................... 8-34
Snow tires .................................. 4-10
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................. 4-11
Uniform tire quality grading system
(UTQGS) ................................... 9-22
Tool ..................................................... 7-3
Towing
Description ................................. 7-19
Emergency towing ..................... 7-19
Recreational towing ................... 7-22
Trailer towing
(Except Mexico) ......................... 4-14
Traction Control System (TCS) ........ 5-23
TCS OFF indicator light ............ 5-24
TCS OFF switch ........................ 5-25
TCS/DSC indicator light ............ 5-24
Trailer Towing .................................. 4-14
Trip Meter ......................................... 5-40
Turn and Lane-Change Signals ......... 5-65
V
Vanity Mirrors ................................. 6-181
Vehicle Information Labels ............... 10-2
Index
11-7
