“Updating channels XXX% complete”is
displayed when the SIRIUS channel map
is changed. If the“Updating channels
XXX% complete”display is not available,
“Updating channels”is displayed. If the
unit is initialized or the user contract
content is changed,“Updating channels.
Subscription Updated.”is displayed.
Updating could take as long as a few
minutes depending on the geographical
area. When the unit is in an initialized
state, channel 184 is displayed after the
display indicates“Updating channels
XXX% complete”. If the SIRIUS channel
map or the user contract content is
changed, the channel prior to the change
is displayed after“Updating channels
XXX% complete”is displayed. After the
initialization display, it may take as long
as ten seconds or more to receive channel
184.
NOTE
Do not perform the following operation while
“Updating”is displayed. Otherwise, the
updating procedure will be canceled.
lTurning off the audio powerlSwitching to other modeslTurning the ignition off
When the SIRIUS mode is switched to
another mode, or when the power is
turned off, the present channel which is
being received is stored as the last
channel.
Channel selection
Turning the manual tuning dial allows you
to select the desired receiving channel.
Channel up
Turn the manual tuning dial clockwise.
Channel down
Turn the manual tuning dial
counterclockwise.Unsubscribed channel
When a selected station has not been
subscribed to, the display indicates the
following:
“Call 888-539-7474”
“To Subscribe”
NOTE
When the subscription contract is canceled, all
of the channels including channel 184 appear
as unsubscribed.
Invalid channel
When a selected channel is not
broadcasting,“Invalid”is displayed.
NOTE
If the last channel selected has become
unavailable because of a channel update the
above indication is displayed until any button
is pressed.
Preset channel programming
1. Turn the manual tuning dial and select
the desired channel.
2. Press and hold selection button 2, 3, 4,
6, 7, or 8.
NOTE
Six stations can be stored in each bank,
SIRIUS1, SIRIUS2 and SIRIUS3 for
convenient access to your favorite stations.
Preset channel call-up
Press selection button 2, 3, 4, 6, 7, or 8.
NOTE
In the initial setting, all channels are preset to
184.
Category change
Press the category button (
,) and
select the desired category.
Interior Comfort
Audio System
6-51
CX-9_8AU2-EA-09G_Edition5 Page299
Thursday, May 6 2010 4:54 PM
Form No.8AU2-EA-09G

Black plate (300,1)
Category up
Press the category up button (
).
Category down
Press the category down button (
).
Every time the category up button (
)is
pressed, the category is changed over in
the order shown below.
At this time, the lowest (smallest-number)
channel within the category indicated is
received.
When the highest (or lowest) category is
reached, the category is changed over in
the order shown below.
Highest category→Lowest category→
XXX category
Category set (Category lock)
Press selection button 1 to lock the
category of the channel being received.
Press selection button 1 again to clear the
lock.
NOTE
A category can be set only when a channel
which belongs to a category is being received.
Channel selection within a category
To select a radio station in a set category,
turn the manual tuning dial.
NOTE
lThe channel number needs to be indicated
in the display to use the manual tuning dial
for this function.
lTo select a radio station other than one in a
set category, turn the manual tuning dial.
Scan tuning
Press the scan button (
)to
automatically sample stations. Scanning
stops at each station for about five
seconds. To hold a station, press the scan
button (
) again during this interval.NOTE
lUnsubscribed channels, invalid channels,
parental lock channels and channel 0 are
not subject to the scan, therefore these
channels will skip automatically.
lIf a category is set, scan channels in the
category. If a category is not set, scan all
channels.
Channel number, channel name,
category name, artist name, song titles
and information display
The information regarding the channel
which is currently being received is
displayed.
NOTE
lIf the entire title cannot be displayed,“...”
is added at the end to the part of the title
which can be displayed.
lIf a channel other than a parental-locked
channel is received, channel name,
category name, artist name, song title, and
information are displayed.
(Channel number display)
The channel number for the channel
currently being received is displayed.
(Channel name display)
lThe channel name for the channel
currently being received is displayed.
lA channel name may have a full title
and an abbreviated title. In this case,
the full title is displayed. If the channel
only has an abbreviated title, it is
displayed.
lIf there is no channel name,“No Ch
Name”is displayed.
(Category name display)
lThe category name for the channel
currently being received is displayed.
6-52
Interior Comfort
Audio System
CX-9_8AU2-EA-09G_Edition5 Page300
Thursday, May 6 2010 4:54 PM
Form No.8AU2-EA-09G

Black plate (301,1)
lA category name may have a full title
and an abbreviated title. In this case,
the full title is displayed. If the
category only has an abbreviated title,
it is displayed.
lIf there is no category name,“No
Category”is displayed.
(Artist name display)
lThe artist name for the channel
currently being received is displayed.
lIf there is no artist name,“No Artist”is
displayed.
(Song title display)
lThe song title for the channel currently
being received is displayed.
lIf there is no song title,“No Song”is
displayed.
(Information display)
lThe information for the channel
currently being received is displayed.
lIf there is no information,“No
Information”is displayed.
Instant replay
This function allows you to rewind and
replay the program that you were
previously or are currently listening to.
Press the Play/Pause button (
).
When the seek tuning button (
)is
pressed, playback starts from the
beginning of the current program.
When the seek tuning button (
)is
pressed twice, playback starts from the
beginning of the previous program.
Press and hold the seek tuning button
(
) to reverse the program while the
button is being pressed.
When the seek tuning button (
)is
pressed, playback starts from the
beginning of the next program.When the seek tuning button (
)is
pressed while the last program is being
played, the instant replay mode is
canceled.
Press and hold the seek tuning button
(
) to fast-forward the program while
the button is being pressed. When
pressing and holding the button until the
end of the program, the instant replay
mode is canceled.
When the Play/Pause button (
)is
pressed again, playback is paused, or
playback starts if it has been paused.
Instant replay (PAUSE)
If the Play/Pause button (
) is pressed
while the instant replay mode is off,
instant replay mode is turned on in a
paused condition (PAUSE). Press the
Play/Pause button (
) again to resume
playback from the point at which it was
paused.
Displaying the SIRIUS ID (ESN)
Method 1
Turn the manual tuning dial and select
channel 0 to display the twelve-digit
Electronic Serial Number (ESN) for the
SIRIUS tuner.
Method 2
1. Press selection button 5 to display the
settings screen.
2. Press selection button 5 again to
display the twelve-digit Electronic
Serial Number (ESN) for the SIRIUS
tuner.
(If the SIRIUS ID (ESN) for the tuner
does not display)
If“ESN Fail”is displayed, contact an
Authorized Mazda Dealer.
Interior Comfort
Audio System
6-53
CX-9_8AU2-EA-09G_Edition5 Page301
Thursday, May 6 2010 4:54 PM
Form No.8AU2-EA-09G

Black plate (302,1)
Parental lock
Parental lock, parental unlock, parental
lock ID change, and parental lock ID reset
can be set.
NOTE
lPress the return button () during
all the settings to return to the previous
display.
lTurn the manual tuning dial during the ID
code or master code input to select“CLR”,
and then press the enter button (
)to
delete an input number.
lIf there is no input for ten seconds during
the ID code or master code input, the
system returns to the settings screen.
lIf only a four-digit ID code or master code
is input,“OK”can be selected.
lIf the registered ID code has been forgotten,
reset the code in“Parental-lock ID reset”
to [0000].
Parental lock
If a channel is locked, the channel is
muted.
(Channel locking)
1. Turn the manual tuning dial to select
the desired channel.
(Registered ID code input preparation)
2. Press selection button 5 to display the
settings screen.
3. Press selection button 1 to display the
parental lock settings screen.
4.“Enter Pin”and“----”are displayed,
and input of the registered ID code is
possible.
(Registered ID code input)
5. Turn the manual tuning dial to select a
number and press the enter button
(
) to input the number.(Registered ID code input
confirmation)
6. After inputting the four digits, turn the
manual tuning dial and select“OK”,
and then press the enter button
(
) to confirm the four digits.
7. If the four digits match the registered
ID code,“Parental lock”appears and
mute is turned on.
If they do not match the registered ID
code,“Error”appears and then the
display returns to“----”.
Parental unlock
Channels locked using the parental lock
function can be unlocked.
(Channel unlocking)
1. Select a channel to be unlocked by
turning the manual tuning dial.
(Registered ID code input preparation)
2. Press selection button 5 to display the
settings screen.
3. Press selection button 2 to display the
parental unlock screen.
4.“Enter Pin”and“----”are displayed,
and input of the registered ID code is
possible.
(Registered ID code input)
5. Turn the manual tuning dial to select a
number and press the enter button
(
) to input the number.
(Registered ID code input
confirmation)
6. After inputting the four digits, turn the
manual tuning dial and select“OK”,
and then press the enter button
(
) to confirm the four digits.
6-54
Interior Comfort
Audio System
CX-9_8AU2-EA-09G_Edition5 Page302
Thursday, May 6 2010 4:54 PM
Form No.8AU2-EA-09G

Black plate (303,1)
7. If the four digits match the registered
ID code,“Parental unlock”appears and
mute is canceled.
If they do not match the registered ID
code,“Error”appears and then the
display returns to“----”.
Parental-lock ID change
When changing the ID code, the new ID
code is input after the previous one is
input first.
(Registered ID code input preparation)
1. Press selection button 5 to display the
settings screen.
2. Press selection button 3 to display the
ID code change screen.
3.“Enter Pin”and“----”are displayed,
and input of the registered ID code is
possible.
(Registered ID code input)
4. Turn the manual tuning dial to select a
number and press the enter button
(
) to input the number.
(Registered ID code input
confirmation)
5. After inputting the four digits, turn the
manual tuning dial and select“OK”,
and then press the enter button
(
) to confirm the four digits.
6. If the four digits match the registered
ID code,“Enter Pin”and“----”are
displayed.
If they do not match the registered ID
code,“Error”appears and then the
display returns to“----”.
(New ID code input)
7. Turn the manual tuning dial to select a
number and press the enter button
(
) to input the number.(New ID code input confirmation)
8. After inputting the four digits, turn the
manual tuning dial and select“OK”,
and then press the enter button
(
) to confirm the four digits.
9.“Pin Changed”appears to indicate that
the new ID code input has been
completed.
10. The display returns to its normal
display.
NOTE
Channels locked before changing the ID code
remain after changing the ID code. To unlock a
channel, input the changed ID code.
Parental-lock ID reset
If the registered ID code has been
forgotten, reset the ID code to the default
[0000] code.
(Master code input preparation)
1. Press selection button 5 to display the
settings screen.
2. Press selection button 4 to display the
ID code initial screen.
3.“Enter Pin”and“----”are displayed,
and input of the registered ID code is
possible.
(Master code input)
4. Turn the manual tuning dial to select a
number and then press the enter button
(
) to input the number.
Interior Comfort
Audio System
6-55
CX-9_8AU2-EA-09G_Edition5 Page303
Thursday, May 6 2010 4:54 PM
Form No.8AU2-EA-09G

Black plate (304,1)
NOTE
Master code:
The Master Code is used to initialize or re-
initialize the ID code in the event that the code
is not set to [0000] and/or the personalized ID
code is not known. The initialization process
resets the ID code to [0000]. The master code
can potentially defeat the intent of the security
of the parental lock if it is located by persons
not authorized by the owner to access certain
channels.
SIRIUS Satellite Radio Master Code: [0913]
(Master code input confirmation)
5. After inputting the four digits, turn the
manual tuning dial and select“OK”,
and then press the enter button
(
) to confirm the four digits.
6. If the four digits match the master
code,“Pin Cleared”appears.
If they do not match the master code,
“Error”appears and the display returns
to“----”.
7. The ID code returns to the default
[0000] code.
6-56
Interior Comfort
Audio System
CX-9_8AU2-EA-09G_Edition5 Page304
Thursday, May 6 2010 4:54 PM
Form No.8AU2-EA-09G

Black plate (306,1)
qOperating the In-Dash CD Changer
Folder down
buttonFolder up
button
Play/Pause button
Scan button Track down
button Track up
buttonFile dial
CD play buttonLoad buttonCD eject button
Selection
button 1Selection
button 3Selection
button 8
Selection
button 4Selection
button 7
Selection
button 5
Selection
button 6 Selection
button 2
Type Playable data
Music/MP3/WMA CD
player
lMusic data (CD-DA)lMP3/WMA file
NOTE
If a disc has both music data (CD-DA) and
MP3/WMA files, playback of the two or three
file types differs depending on how the disc
was recorded.
Inserting the CD
The CD must be label-side up when
inserting. The auto-loading mechanism
will set the CD and begin play.
NOTE
The CD will begin playback automatically
after insertion. A CD cannot be inserted while
the display reads“Please Wait”.
There will be a short lapse before play begins
while the player reads the digital signals on
the CD.
Normal CD insertion
1. Press the load button (
).
2. When“Please Insert a Disc”is
displayed, insert the CD.
Inserting CDs into desired tray number
1. Press and hold the load button (
).
2. Press the selection button for the
desired tray number while
“Please Wait”is displayed.
3. When“Please Insert a Disc”is
displayed, insert the CD.
NOTE
The CD cannot be inserted to the desired tray
number if the number is already occupied.
6-58
Interior Comfort
Audio System
CX-9_8AU2-EA-09G_Edition5 Page306
Thursday, May 6 2010 4:54 PM
Form No.8AU2-EA-09G

Black plate (307,1)

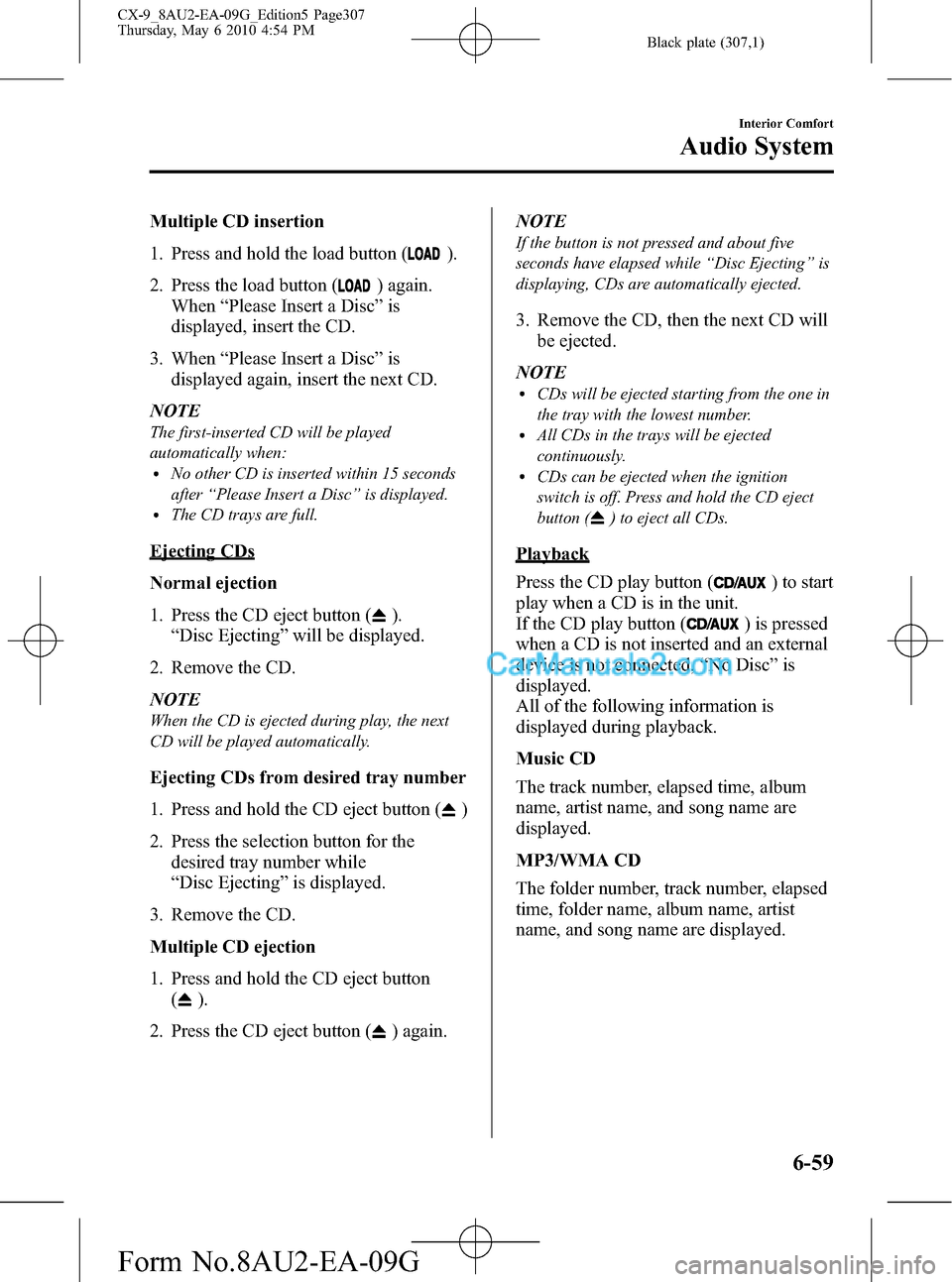

Multiple CD insertion
1. Press and hold the load button (
).
2. Press the load button (
) again.
When“Please Insert a Disc”is
displayed, insert the CD.
3. When“Please Insert a Disc”is
displayed again, insert the next CD.
NOTE
The first-inserted CD will be played
automatically when:
lNo other CD is inserted within 15 seconds
after“Please Insert a Disc”is displayed.
lThe CD trays are full.
Ejecting CDs
Normal ejection
1. Press the CD eject button (
).
“Disc Ejecting”will be displayed.
2. Remove the CD.
NOTE
When the CD is ejected during play, the next
CD will be played automatically.
Ejecting CDs from desired tray number
1. Press and hold the CD eject button (
)
2. Press the selection button for the
desired tray number while
“Disc Ejecting”is displayed.
3. Remove the CD.
Multiple CD ejection
1. Press and hold the CD eject button
(
).
2. Press the CD eject button (
) again.NOTE
If the button is not pressed and about five
seconds have elapsed while“Disc Ejecting”is
displaying, CDs are automatically ejected.
3. Remove the CD, then the next CD will
be ejected.
NOTE
lCDs will be ejected starting from the one in
the tray with the lowest number.
lAll CDs in the trays will be ejected
continuously.
lCDs can be ejected when the ignition
switch is off. Press and hold the CD eject
button (
) to eject all CDs.
Playback
Press the CD play button (
) to start
play when a CD is in the unit.
If the CD play button (
) is pressed
when a CD is not inserted and an external
device is not connected,“No Disc”is
displayed.
All of the following information is
displayed during playback.
Music CD
The track number, elapsed time, album
name, artist name, and song name are
displayed.
MP3/WMA CD
The folder number, track number, elapsed
time, folder name, album name, artist
name, and song name are displayed.
Interior Comfort
Audio System
6-59
CX-9_8AU2-EA-09G_Edition5 Page307
Thursday, May 6 2010 4:54 PM
Form No.8AU2-EA-09G
