Getting started
Navigation Setup
l
You can alter the map display conditions, the route guidance conditions and show the
system information.
nStop your vehicle before the following operations. Do not change the settings and destination locations while driving. Minimize the time
spent viewing the monitor screen and listening to the voice guidance while driving.
Operating the system will distract the driver from looking ahead of the vehicle and may
cause an accident.
Always stop the vehicle in a safe location and put the parking brake on before operating
the system.
Before Stepsselect
Warning
MENU
Open
[NAVIGATION SETUP] ( page 17)
( page 19)
( page 20)
( page 21)
( page 22)
( page 24)
0#8.87'$DQQMMo+9Þ9Ü9Ý9Ü9ݬ9âã“Ó

17
Getting started
Navigation Setup
Before Steps
select
select
User Settings
MENU
Open the
[USER SETTINGS]
screen
nMap Color
Select a screen color from the to options.
nMap Mode
lAuto : The display will automatically switch between Day and Night illumination mode when the headlights are
turned off and on respectively.
lDay :The display will be presented in Day illumination mode
regardless of whether the headlights are on or off.
lNight : The display will be presented in Night illumination mode regardless of whether the headlights are on or off.
nDistance
Select the distance unit from or .
nAverage Speed
Set the average speed for each road to be driven.
(This function sets the standard speed (average vehicle speed
for each route) used for calculating the estimated arrival time
when calculating the route time.)
: Average speed setting:Changes back to default
nRoad Restriction Warnings
The display of warnings during route guidance when passing
through areas with traffic restrictions can be turned on or off.
0#8.87'$DQQMMo+9Þ9Ü9Ý9Ü9ݬ9âã“Ó

18
RoutingAddress
Book
Getting started
Navigation Setup
Before Steps
select
select
User Settings
MENU
s
Open the
[USER SETTINGS]
screen
nArrival Time
The time which is displayed until reaching the destination or a
way point can be set as an estimated arrival time or the
remaining time.
Select to display the estimated arrival time, or to
display the remaining time.
nKeyboard Layout
The layout of input keys can be selected as or .
0#8.87'$DQQMMo+9Þ9Ü9Ý9Ü9ݬ9âã“Ó

19
Getting started
Navigation Setup

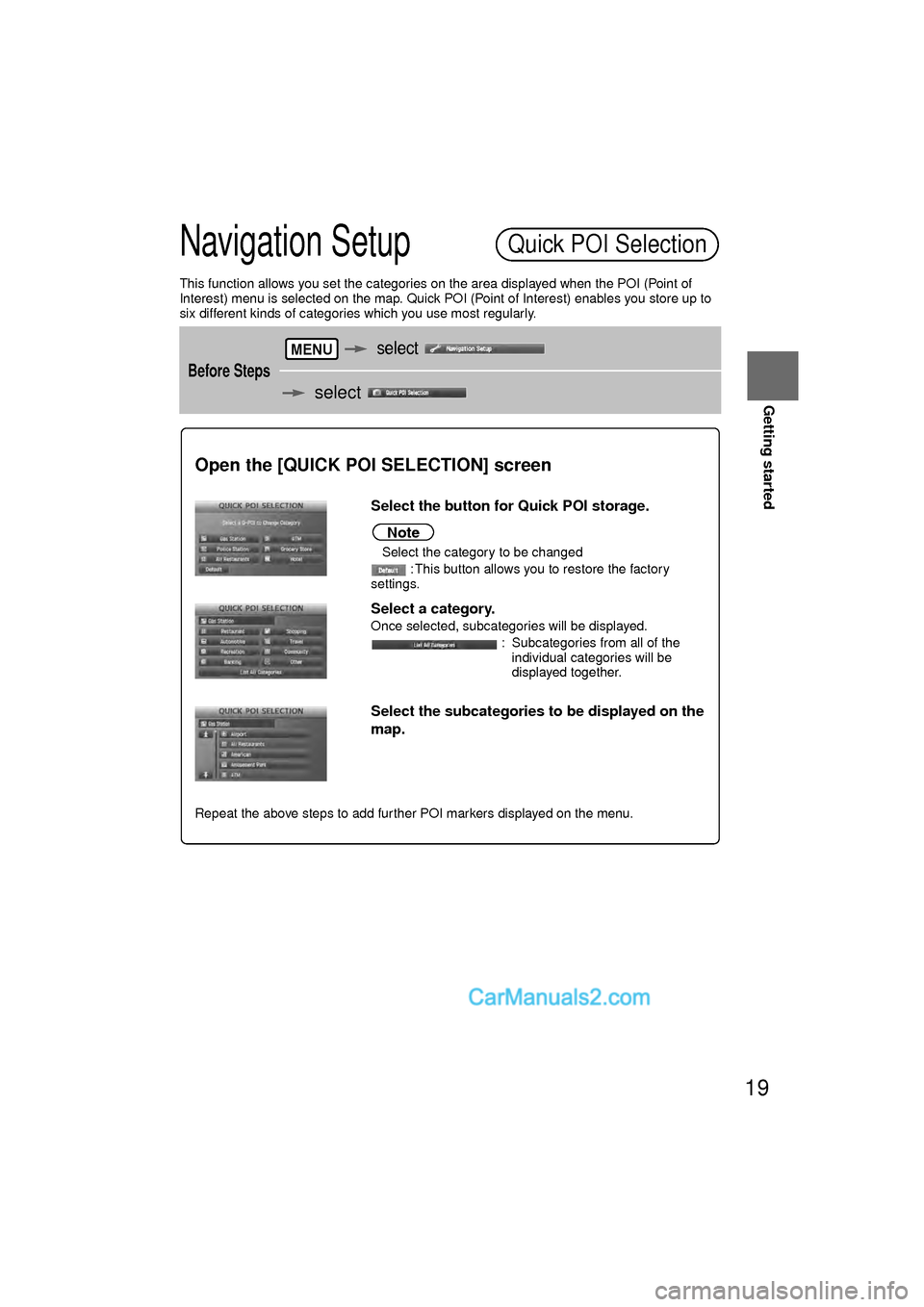

This function allows you set the categories on the area displayed when the POI (Point of
Interest) menu is selected on the map. Quick POI (Point of Interest) enables you store up to
six different kinds of categories which you use most regularly.
Before Steps
select
select
Quick POI Selection
MENU
Open the [QUICK POI SELECTION] screen
Select the button for Quick POI storage.
Note
lSelect the category to be changed
: This button allows you to restore the factory
settings.
Select a category.
Once selected, subcategories will be displayed.
: Subcategories from all of the individual categories will be
displayed together.
Select the subcategories to be displayed on the
map.
Repeat the above steps to add further POI markers displayed on the menu.
0#8.87'$DQQMMo+9Þ9Ü9Ý9Ü9ݬ9âã“Ó

21
Getting started
Navigation Setup
Before Steps
select
select
Map Configuration
MENU
Open the
[MAP
CONFIGURATION]
screen
nMAP Screen
Select single map display, dual map display or compass screen.
nTurn Guidance
Turn Arrow (on first screen)
While using route guidance, the
directions for the next intersection
where you have to turn are shown as
Turn Arrow in the upper right.
Tu r n L i s t
While using route guidance, the
directions for the next intersection
where you have to turn are shown as
Turn List.
Turn Arrow (on second screen)
While using route guidance, the
directions for the next intersection
where you have to turn are shown as
Tu r n A r r o w .
Note
Before a fork in the road, an enlarged diagram of the intersection automatically
appears in a second screen. This is to make route guidance even clearer.
nIntersection Detail
Select whether the Enlarged Intersection diagram screen is
displayed automatically.
nFreeway Information
Allows selection of whether the guidance screen is to be
displayed while driving on a Freeway.
Single map Dual mapCompass screen
0#8.87'$DQQMMo+9Þ9Ü9Ý9Ü9ݬ9âã“Ó

22
RoutingAddress
Book
Getting started
Navigation Setup
This function allows you to correct any error in the position or direction of your vehicle display.
Before Steps select
Adjusting Current Position and Direction
select
Open the [Calibrate Position] screen
Move to the correct position and select .
Use
or to adjust the direction in which you are
heading, and select .
Distance
This function automatically corrects any error in the display of the current
position that might occur after tire replacement.
select
You will have to drive about 10 km (6 miles) before distance correction is complete.
Map Vers
The map an
function.
select
Calibration
MENU
0#8.87'$DQQMMo+9Þ9Ü9Ý9Ü9ݬ9âã“Ó

24
RoutingAddress
Book
Getting started
Navigation Setup
This function replaces all the settings in the mobile navigation system with the initial default
settings.
[Default List]
Restore System Defaults
Before Steps
select
select
MENU
Open the [SYSTEM DEFAULTS] screen
Select .
All of your stored setting data will be deleted.
ItemInitial condition
USER SETTINGS
Map Color 1
Distance Miles
Average Speed (Residential) 25 MPH
Average Speed (Main street) 35 MPH
Average Speed (Freeway) 55 MPH
Road Restriction Warnings On
Arrival Time Time
Keyboard Layout ABC
QUICK POI SELECTION
Quick POI Selection A : Gas Station
B : ATM
C : Police Station
D : Grocery Store
E : All Restaurants
F : Hotel
LANGUAGE
Language English
MAP CONFIGURATION
Map Screen Single map
Turn Guidance Turn List
Intersection Detail On
Freeway Information Off
SET CLOCK
Auto Time Zone On
Daylight Saving Time Off
Display Type 12H
Clock on Navi screen OnItemInitial condition
ROUTE PREFERENCES
Toll roads Prefer
Freeway Prefer
Ferries Avoid
Restricted roads Avoid
Border Crossing Prefer
0#8.87'$DQQMMo+9Þ9Ü9Ý9Ü9ݬ9âã“Ó

25
Getting started
Screen Names and Functions
Note
lPerform the Navigation Setup before switching the Freeway Information screen on/off. ( page 21)
Screens Before Setting Route
(1) Map Orientation control( page 28)
(2) GPS (Global Positioning System) marker( page 65)(3) ClockClock will be displayed when you set up
Clock on Navigation Set Up On.
(4) Vehicle marker
Shows the current position and
direction of your vehicle.
(5) Scale display
Displays the scale of the map.
(6) Distance from current position Displays the distance from the current
position to the position pointed by .
(7) Street name at map scroll point Displays the street name at the point
scrolled to. (8) Destination/Memory point/Way point
setting button
The position indicated by the mark “ ” in the
scroll map is used as destination, memory
point or way point.
(9) Store Memory Point buttonStores markers on the map.
(10) POI (Point of Interest) Display button
( page 38)
(11) Zoom in ( page 28)
(12) Zoom out ( page 28)
(13) Screen setting button
Map Screen, Turn Guidance and Map
Color setting can be changed.
( page 17,21)
Screens During Route Guidance
(1) Distance and Time to Destination displayDisplays the time* and distance to the
destination or way point.
Selecting this will display the next and
further information on the way point or
time and distance to the destination.
(* Either required time or estimated time
arrival)
(2) Route display Shows the provided route as a thick
blue line. (3) Turn Arrow displayShows the direction to turn at the next
intersection and the distance to the
intersection.
(4) Route Preferences button( page 42)
MAP/VOICE
(4)
(3)(1)(7)
(8) (10)
(9)(5)(11)(12) MAP SCROLL
(6)
(13)
(2)
(4) (3)
(1)
(2)
