2010 MAZDA MODEL CX-7 clock

Black plate (427,1)
2. If you are changing the right row-beam
bulb, start the engine, turn the steering
wheel all the way to the right, and turn
off engine. If you are changing the left
row-beam bulb, turn the steering wheel
to the left.
3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then partially peel back the mudguard.
InstallationRemoval
4. Detach the electrical connector from
the bulb by pulling it to the rear.
5. Pull off the sealing cover.
6. Unhook the bulb retaining spring.7. Swing the retaining spring out and
away to free the bulb.
Sealing
cover
8. Carefully remove the bulb from the
socket by pulling it straight back.
9. Replace the bulb.
10. Install the new bulb in the reverse
order of removal.
NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Maintenance and Care
Owner Maintenance
8-43
CX-7_8AS7-EA-09E_Edition2 Page427
Friday, June 5 2009 2:27 PM
Form No.8AS7-EA-09E

Black plate (428,1)
Front side marker lights, Front turn
signal lights/Parking lights
1. Make sure the headlight switch is off.
2. If you are changing a bulb in the right
headlight unit, start the engine, turn the
steering wheel all the way to the right,
and turn off the engine. If you are
changing a bulb in the left headlight
unit, turn the steering wheel to the left.
3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then partially peel back the mudguard.
InstallationRemoval
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.
Front side marker lights
Front turn signal lights/Parking lights
6. Install the new bulb in the reverse order
of removal.
Fog lightsí
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Loosen the screws securing the fog
light cover.
3. Remove the fog light cover.
4. Loosen the screws securing the fog
light unit.
8-44
Maintenance and Care
íSome models.
Owner Maintenance
CX-7_8AS7-EA-09E_Edition2 Page428
Friday, June 5 2009 2:27 PM
Form No.8AS7-EA-09E

Black plate (429,1)
5. Remove the fog light unit.
6. Press the tab on the bulb socket and
disconnect the connector cord.
7. Rotate the bulb socket
counterclockwise as shown in the
figure and remove it.
8. Install the new bulb in the reverse order
of removal.
NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Brake lights/Taillights, Rear turn signal
lights, Reverse lights, Rear side-marker
lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
Rear side-marker lights
Maintenance and Care
Owner Maintenance
8-45
CX-7_8AS7-EA-09E_Edition2 Page429
Friday, June 5 2009 2:27 PM
Form No.8AS7-EA-09E

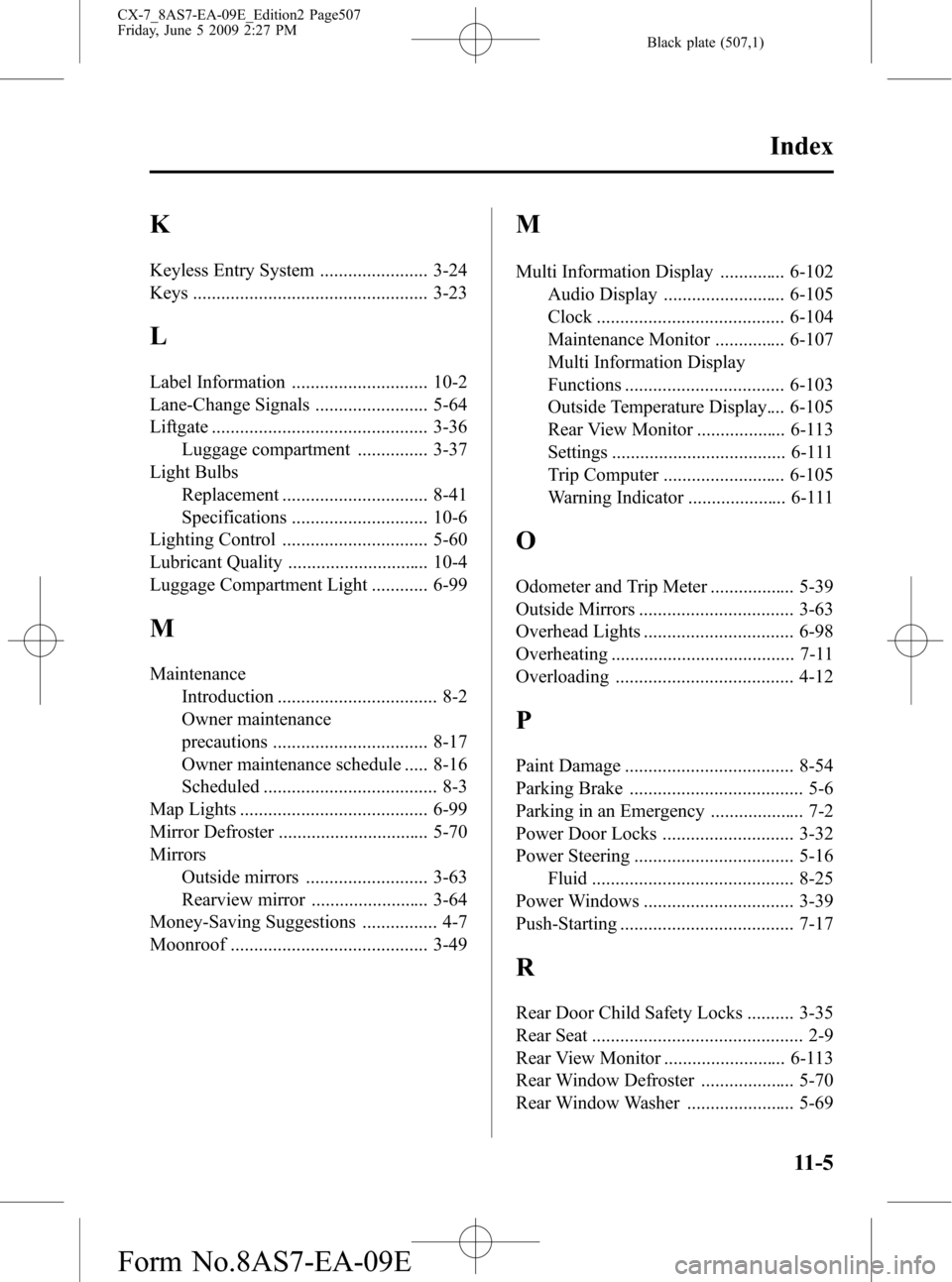

Black plate (507,1)
K
Keyless Entry System ....................... 3-24
Keys .................................................. 3-23
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-64
Liftgate .............................................. 3-36
Luggage compartment ............... 3-37
Light Bulbs
Replacement ............................... 8-41
Specifications ............................. 10-6
Lighting Control ............................... 5-60
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-99
M
Maintenance
Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-17
Owner maintenance schedule ..... 8-16
Scheduled ..................................... 8-3
Map Lights ........................................ 6-99
Mirror Defroster ................................ 5-70
Mirrors
Outside mirrors .......................... 3-63
Rearview mirror ......................... 3-64
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-49
M
Multi Information Display .............. 6-102
Audio Display .......................... 6-105
Clock ........................................ 6-104
Maintenance Monitor ............... 6-107
Multi Information Display
Functions .................................. 6-103
Outside Temperature Display.... 6-105
Rear View Monitor ................... 6-113
Settings ..................................... 6-111
Trip Computer .......................... 6-105
Warning Indicator ..................... 6-111
O
Odometer and Trip Meter .................. 5-39
Outside Mirrors ................................. 3-63
Overhead Lights ................................ 6-98
Overheating ....................................... 7-11
Overloading ...................................... 4-12
P
Paint Damage .................................... 8-54
Parking Brake ..................................... 5-6
Parking in an Emergency .................... 7-2
Power Door Locks ............................ 3-32
Power Steering .................................. 5-16
Fluid ........................................... 8-25
Power Windows ................................ 3-39
Push-Starting ..................................... 7-17
R
Rear Door Child Safety Locks .......... 3-35
Rear Seat ............................................. 2-9
Rear View Monitor .......................... 6-113
Rear Window Defroster .................... 5-70
Rear Window Washer ....................... 5-69
Index
11-5
