2010 MAZDA MODEL CX-7 lock

Black plate (416,1)

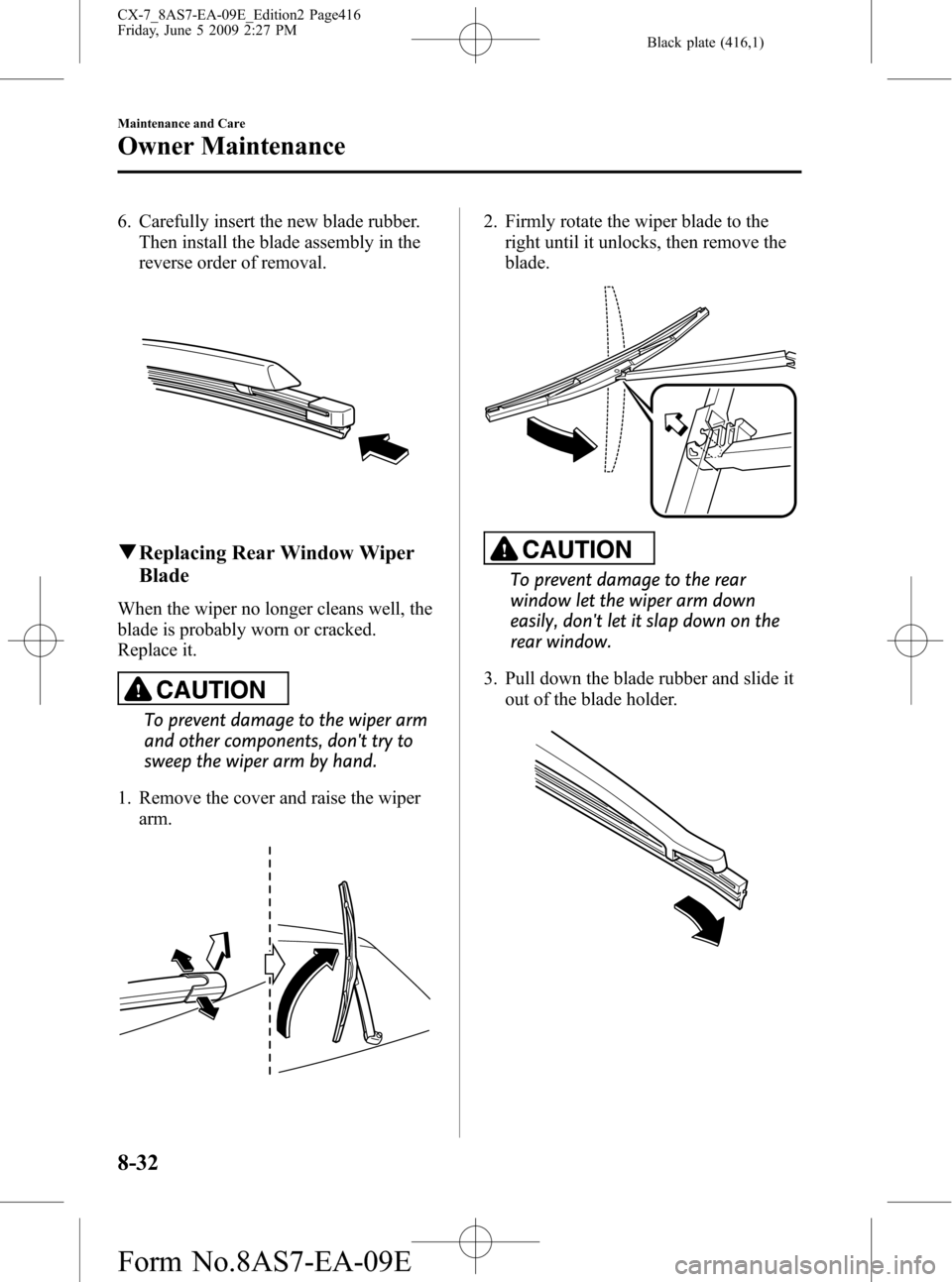

6. Carefully insert the new blade rubber.
Then install the blade assembly in the
reverse order of removal.
qReplacing Rear Window Wiper
Blade
When the wiper no longer cleans well, the
blade is probably worn or cracked.
Replace it.
CAUTION
To prevent damage to the wiper arm
and other components, don't try to
sweep the wiper arm by hand.
1. Remove the cover and raise the wiper
arm.
2. Firmly rotate the wiper blade to the
right until it unlocks, then remove the
blade.
CAUTION
To prevent damage to the rear
window let the wiper arm down
easily, don't let it slap down on the
rear window.
3. Pull down the blade rubber and slide it
out of the blade holder.
8-32
Maintenance and Care
Owner Maintenance
CX-7_8AS7-EA-09E_Edition2 Page416
Friday, June 5 2009 2:27 PM
Form No.8AS7-EA-09E

Black plate (426,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
qReplacing Exterior Light Bulbs
Replacing a headlight bulb
High-beam bulb
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the hood.3. Turn the socket and bulb assembly
counterclockwise and remove it.
Carefully remove the high-beam bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
4. Disconnect the bulb from the electrical
connector by pressing the tab on the
connector with your finger and pulling
the bulb upward.
5. Install the new bulb in the reverse order
of removal.
NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton of the
replacement bulb to dispose of the old bulb
promptly out of the reach of children.
Low-beam bulb
(Xenon fusion bulb)
You cannot replace the low beam bulbs by
yourself.
The bulbs must be replaced at an
Authorized Mazda Dealer.
(Halogen bulb)
1. Make sure the headlight switch is off.
8-42
Maintenance and Care
Owner Maintenance
CX-7_8AS7-EA-09E_Edition2 Page426
Friday, June 5 2009 2:27 PM
Form No.8AS7-EA-09E

Black plate (427,1)
2. If you are changing the right row-beam
bulb, start the engine, turn the steering
wheel all the way to the right, and turn
off engine. If you are changing the left
row-beam bulb, turn the steering wheel
to the left.
3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then partially peel back the mudguard.
InstallationRemoval
4. Detach the electrical connector from
the bulb by pulling it to the rear.
5. Pull off the sealing cover.
6. Unhook the bulb retaining spring.7. Swing the retaining spring out and
away to free the bulb.
Sealing
cover
8. Carefully remove the bulb from the
socket by pulling it straight back.
9. Replace the bulb.
10. Install the new bulb in the reverse
order of removal.
NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Maintenance and Care
Owner Maintenance
8-43
CX-7_8AS7-EA-09E_Edition2 Page427
Friday, June 5 2009 2:27 PM
Form No.8AS7-EA-09E

Black plate (428,1)
Front side marker lights, Front turn
signal lights/Parking lights
1. Make sure the headlight switch is off.
2. If you are changing a bulb in the right
headlight unit, start the engine, turn the
steering wheel all the way to the right,
and turn off the engine. If you are
changing a bulb in the left headlight
unit, turn the steering wheel to the left.
3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then partially peel back the mudguard.
InstallationRemoval
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.
Front side marker lights
Front turn signal lights/Parking lights
6. Install the new bulb in the reverse order
of removal.
Fog lightsí
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Loosen the screws securing the fog
light cover.
3. Remove the fog light cover.
4. Loosen the screws securing the fog
light unit.
8-44
Maintenance and Care
íSome models.
Owner Maintenance
CX-7_8AS7-EA-09E_Edition2 Page428
Friday, June 5 2009 2:27 PM
Form No.8AS7-EA-09E

Black plate (429,1)
5. Remove the fog light unit.
6. Press the tab on the bulb socket and
disconnect the connector cord.
7. Rotate the bulb socket
counterclockwise as shown in the
figure and remove it.
8. Install the new bulb in the reverse order
of removal.
NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Brake lights/Taillights, Rear turn signal
lights, Reverse lights, Rear side-marker
lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
Rear side-marker lights
Maintenance and Care
Owner Maintenance
8-45
CX-7_8AS7-EA-09E_Edition2 Page429
Friday, June 5 2009 2:27 PM
Form No.8AS7-EA-09E

Black plate (433,1)
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
Maintenance and Care
Owner Maintenance
8-49
CX-7_8AS7-EA-09E_Edition2 Page433
Friday, June 5 2009 2:27 PM
Form No.8AS7-EA-09E

Black plate (434,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 PCS――
2 BLOWER 40 A Blower motor
3 FUEL PUMP 30 A Fuel pump
4 FAN 2 40 A Cooling fan sub
5 IG KEY 1 40 A Ignition system
6 FAN 1 40 A Cooling fan main
7 P.SEAT (D) 30 A Power seat
8 INJ 1 30 A Injector
í
9 P.SEAT (P) 30 A Power seat
10 BOSE 30 A Bose®audio systemí
11 ENGINE 30 A Engine control system
12 D.LOCK 20 A Power door locks
13 P.WIND 30 A Power windows
14 IG KEY 2 40 A Ignition system
15 ABS 1 40 A ABS
16 ABS 2 20 A ABS
17 DSC――
8-50
Maintenance and Care
íSome models.
Owner Maintenance
CX-7_8AS7-EA-09E_Edition2 Page434
Friday, June 5 2009 2:27 PM
Form No.8AS7-EA-09E

Black plate (436,1)
Fuse block (Driver's side)
DESCRIPTIONFUSE
RAT-
INGPROTECTED COMPONENT
1 P.WIND 2 30 A Power windows
2 OUTLET 1 15 A Accessory Socket
3 P.MIR 7.5 A Power control mirror
4 OUTLET 2 15 A Accessory Socket
5 SCR――
6 WIPER 20 A Windshield wiper and washer
7 M.DEF 7.5 A Mirror defroster
í
8 P/ST/ENGBAR 3 7.5 A Air flow sensor, Power steering, EGR control valve
9 P.WIND 15 A Power windows
10 A/B 7.5 A Advance Restraint System
11 ENGINE 15 A Engine control system
12 METER 15 A Instrument cluster
13 ILLUMI 10 A Dashboard illumination
14 ROOM 15 A Audio system, Overhead light
15 R.FOG――
16 SIREN――
17 SEAT 20 A Seat warmer
í
18 A/C 10 A Air conditioner
8-52
Maintenance and Care
íSome models.
Owner Maintenance
CX-7_8AS7-EA-09E_Edition2 Page436
Friday, June 5 2009 2:27 PM
Form No.8AS7-EA-09E
