Black plate (7,1)

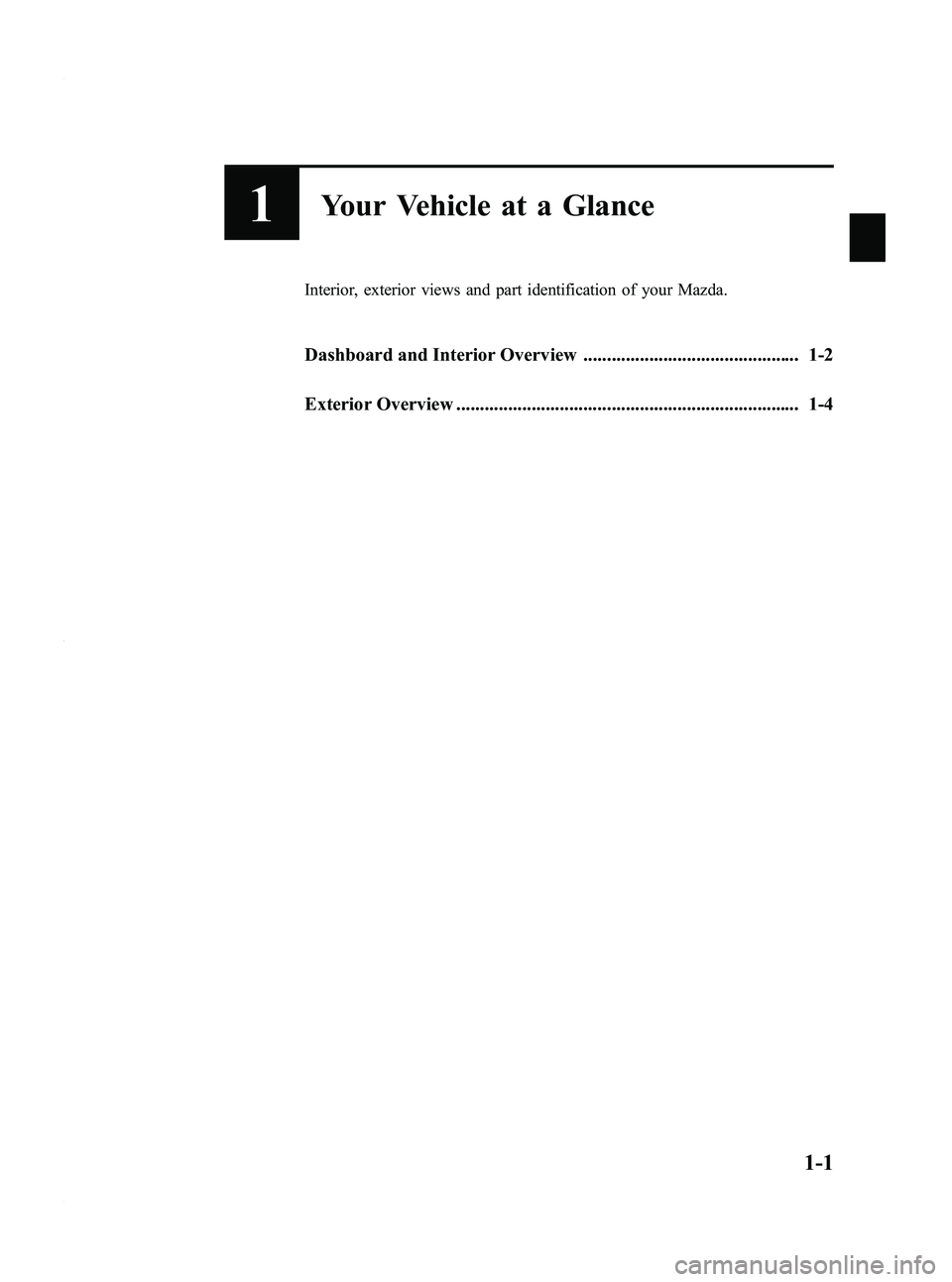

1Your Vehicle at a Glance
Interior, exterior views and part identification of your Mazda.
Dashboard and Interior Overview .............................................. 1-2
Exterior Overview ......................................................................... 1-4
1-1
Mazda5_8AU7-EA-09H_Edition4 Page7
Tuesday, March 30 2010 1:9 PM
Form No.8AU7-EA-09H

Black plate (8,1)
1-2
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Dashboard and Interior Overview
Mazda5_8AU7-EA-09H_Edition4 Page8
Tuesday, March 30 2010 1:9 PM
Form No.8AU7-EA-09H

Black plate (9,1)
Power window switches .................................................................................... page 3-15
Lighting control ................................................................................................. page 5-50
Turn and lane-change signals ............................................................................ page 5-53
Instrument cluster .............................................................................................. page 5-32
Air bags ............................................................................................................. page 2-38
Wiper and washer lever ..................................................................................... page 5-54
Hazard warning flasher switch .......................................................................... page 5-60
Information display ............................................................................................ page 6-67
Audio system ..................................................................................................... page 6-17
Climate control system ........................................................................................ page 6-2
Glove box .......................................................................................................... page 6-72
Rear ventilation system ..................................................................................... page 6-16
Cup holder ......................................................................................................... page 6-69
Parking brake ....................................................................................................... page 5-6
MT shift lever .................................................................................................... page 5-10
AT shift lever (Sport AT) ................................................................................... page 5-12
Ignition switch ..................................................................................................... page 5-2
Steering column release lever ............................................................................ page 3-27
Hood release handle .......................................................................................... page 3-18
Outside mirror switch ........................................................................................ page 3-27
Power window lock switch ................................................................................ page 3-16
Interior light ....................................................................................................... page 6-65
Seat belts ............................................................................................................ page 2-14
Sunvisor ............................................................................................................. page 6-65
Map light ........................................................................................................... page 6-66
Rearview mirror ................................................................................................. page 3-28
Vanity mirror ...................................................................................................... page 6-65
Front seats ............................................................................................................ page 2-2
Second-row seat ................................................................................................... page 2-5
Third-row seat ..................................................................................................... page 2-9
Navigation system (if equipped) .......................................... Refer to the separate manual
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3The equipment and installation position varies by vehicle
Mazda5_8AU7-EA-09H_Edition4 Page9
Tuesday, March 30 2010 1:9 PM
Form No.8AU7-EA-09H

Black plate (50,1)
Supplemental Restraint Systems (SRS) Precautions
The front and side supplemental restraint systems (SRS) include 6 air bags.Please verify
the air bags equipped on your vehicle by locating the “SRS AIRBAG ”location
indicators. These indicators are visible in the area where the air bags are installed.
The air bags are installed in the following locations:
lThe steering wheel hub (driver air bag)lThe front passenger dashboard (front passenger air bag)lThe outboard sides of the front seatbacks (side air bags)lThe front and rear window pillars, and the roof edge along both sides (curtain air bags)
These systems operate independently depending on the type of accident encountered; The
side and curtain air bags are not likely to deploy on both sides in the same accident because
a vehicle is not often hit from both sides. The side and curtain air bags and the frontal air
bag system will not normally deploy during the same type of accident unless a combination
of frontal and side impacts occur.
The air bag supplemental restraint systems are designed to provide supplemental protection
only in the front seats in certain situations and the rear outside passenger positions only in
same-side collisions, so seat belts are always important in the following ways:
Without seat belt usage, the air bags cannot provide adequate protection during an accident.
Seat belt usage is necessary to:
lKeep the occupant from being thrown into an inflating air bag.lReduce the possibility of injuries during an accident that is not designed for air bag
inflation, such as roll-over or rear impact.
lReduce the possibility of injuries in frontal or side collisions that are not severe enough
to activate the air bags.
lReduce the possibility of being thrown from your vehicle.lReduce the possibility of injuries to lower body and legs during an accident because the
air bags provide no protection to these parts of the body.
lHold the driver in a position which allows better control of the vehicle.
Children should be protected by a child-restraint system as stipulated by law in every state
and province. In certain states and provinces, laws vary on the size a child must be to use a
child-restraint system (page 2-25).
Carefully consider which child-restraint system is necessary for your child and follow the
installation directions in this Owner's Manual as well as the child-restraint system
manufacturer's instructions.
2-38
Essential Safety Equipment
SRS Air Bags
Mazda5_8AU7-EA-09H_Edition4 Page50
Tuesday, March 30 2010 1:9 PM
Form No.8AU7-EA-09H

Black plate (54,1)
Supplemental Restraint System Components
The supplemental restraint systems (SRS) have two basic subsystems:lThe air bag system with inflators and air bags.lThe electrical system with crash sensors and diagnostic module.
The air bags are mounted in the following locations:
lThe steering wheel hublThe front passenger dashboardlThe outboard sides of the front seatbackslThe front and rear window pillars, and the roof edge along both sides
The air bags are out of sight until activated.
Driver/Front passenger inflators and air bags
Crash sensors, and diagnostic module (SAS unit)
Front seat belt pretensioners (page 2-20)
Front air bag sensor
Side crash sensors
Air bag/front seat belt pretensioner system warning light
Side and curtain inflators and air bags
Front passenger air bag deactivation indicator light (page 2-44)
Front passenger seat weight sensors (page 2-44)
Front passenger seat weight sensor control module
2-42
Essential Safety Equipment
SRS Air Bags
Mazda5_8AU7-EA-09H_Edition4 Page54
Tuesday, March 30 2010 1:9 PM
Form No.8AU7-EA-09H

Black plate (66,1)
WARNING
Do not operate a vehicle with damaged
air bag/seat belt pretensioner system
components:Expended or damaged air bag/seat
belt pretensioner system components
must be replaced after any collision
which caused them to deploy or
damage them. Only a trained
Authorized Mazda Dealer can fully
evaluate these systems to see that
they will work in any subsequent
accident. Driving with an expended
or damaged air bag or pretensioner
unit will not afford you the necessary
protection in the event of any
subsequent accident which could
result in serious injury or death.
Do not remove interior air bag parts: Removing any components such as
the front seats, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along
the roof edge, containing air bag
parts or sensors is dangerous. These
parts contain essential air bag
components. The air bag could
accidentally activate and cause
serious injuries. Always have an
Authorized Mazda Dealer remove
these parts.
Dispose of the air bag properly: Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all
safety procedures are followed, injury
can result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle. NOTEIf it becomes necessary to have the components
or wiring system for the supplementary
restraint system modified to accommodate a
person with certain medical conditions in
accordance with a certified physician, contact
an Authorized Mazda Dealer, refer to
“
Customer Assistance (U.S.A.) ”(page 9-2).
2-54
Essential Safety Equipment
SRS Air Bags
Mazda5_8AU7-EA-09H_Edition4 Page66
Tuesday, March 30 2010 1:10 PM
Form No.8AU7-EA-09H

Black plate (69,1)
Key extend/retract method (Retractable
type key)
To extend the key, press the release
button.
To retract the key, rotate it into the holder
while pressing the release button.
Keyless Entry System
This system remotely locks and unlocks
the doors and the liftgate.
It can also help you signal for attention.
Press the buttons slowly and carefully.
CAUTION
To avoid damage to the transmitter,
do not:
ØDrop the transmitter.
Ø Get the transmitter wet.
Ø Disassemble the transmitter.
Ø Expose the transmitter to any kind
of magnetic field.
Ø Expose the transmitter to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the key is
in the ignition switch.
lDoors and the liftgate can be locked by
pressing the lock button while any other
door or the liftgate is open. However, the
hazard warning lights will not flash and the
horn will not sound.
lIf the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-6).
lAdditional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.
Knowing Your Mazda
Doors and Locks
3-3
Mazda5_8AU7-EA-09H_Edition4 Page69
Tuesday, March 30 2010 1:10 PM
Form No.8AU7-EA-09H

Black plate (88,1)
Immobilizer System
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
Ø To avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
When starting the engine do not
allow the following, as the engine
may not start due to the electronic
signal from the ignition key not being
transmitted correctly.
ØA key ring rests on the key grip.
ØMetal parts of other keys or metal
objects touch the key grip.
ØSpare keys or keys for other
vehicles equipped with an
immobilizer system touch or come
near the key grip.
ØDevices for electronic purchases, or
security passage which touch or
come near the key.
3-22
Knowing Your Mazda
Security System
Mazda5_8AU7-EA-09H_Edition4 Page88
Tuesday, March 30 2010 1:10 PM
Form No.8AU7-EA-09H
