2010 LINCOLN NAVIGATOR key

SERVICE RECOMMENDATIONS
To help you service your vehicle, we providescheduled maintenance
informationwhich makes tracking routine service easy.
If your vehicle requires professional service, your authorized dealer can
provide the necessary parts and service. Check yourWarranty
Guide/Customer Information Guideto find out which parts and
services are covered.
Use only recommended fuels, lubricants, fluids and service parts
conforming to specifications. Motorcraft parts are designed and built to
provide the best performance in your vehicle.
PRECAUTIONS WHEN SERVICING YOUR VEHICLE
•Do not work on a hot engine.
•Make sure that nothing gets caught in moving parts.
•Do not work on a vehicle with the engine running in an enclosed
space, unless you are sure you have enough ventilation.
•Keep all open flames and other lit material away from the battery and
all fuel related parts.
WARNING:Turn off the power running boards, if equipped,
before working under the vehicle, jacking or placing any object
under the vehicle. Never place your hand between the extended
running board and the vehicle. A moving running board may cause
injury.
Working with the engine off
1. Set the parking brake and ensure the gearshift is securely latched in P
(Park).
2. Turn off the engine and remove the key.
3. Block the wheels to prevent the vehicle from moving unexpectedly.
Maintenance and Specifications
335
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

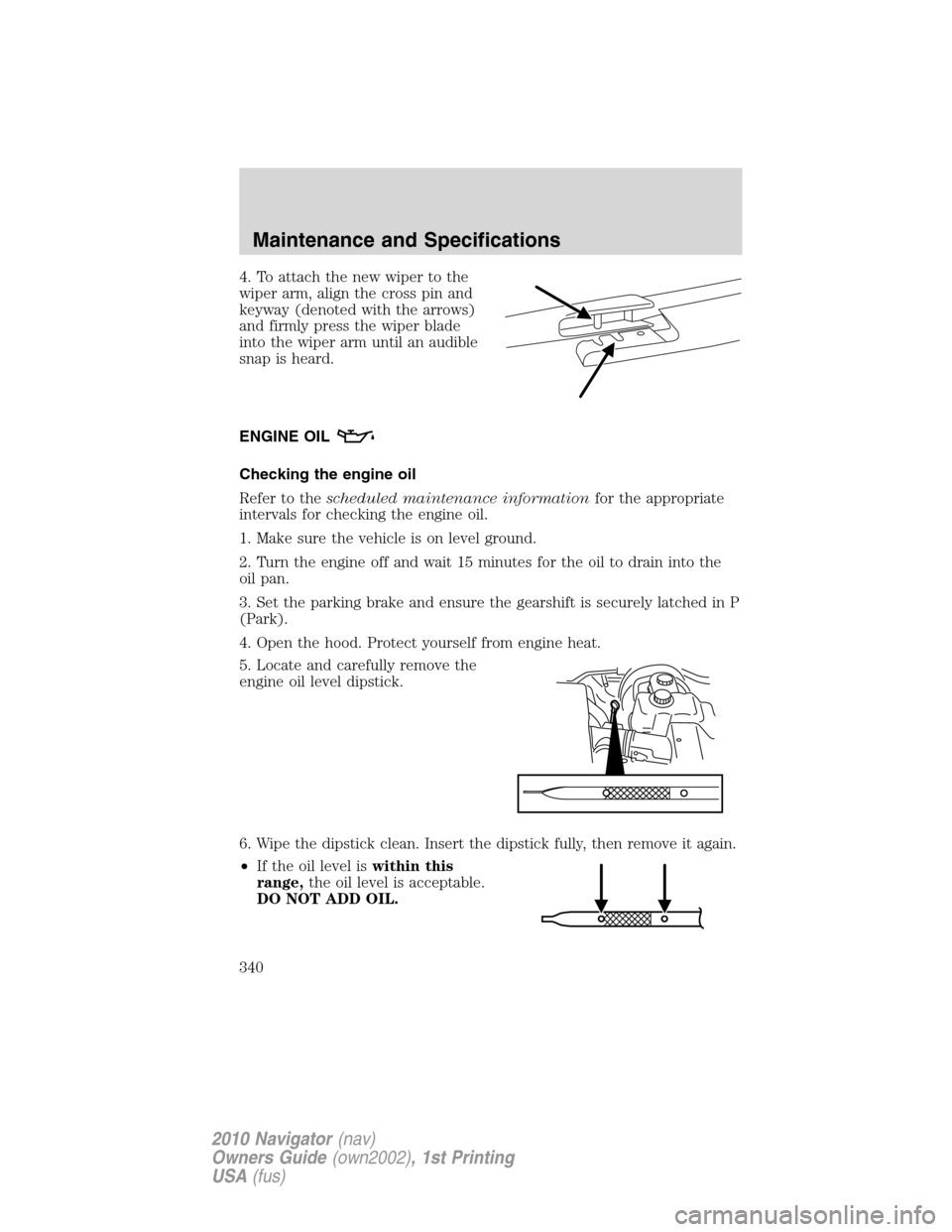

4. To attach the new wiper to the
wiper arm, align the cross pin and
keyway (denoted with the arrows)
and firmly press the wiper blade
into the wiper arm until an audible
snap is heard.
ENGINE OIL
Checking the engine oil
Refer to thescheduled maintenance informationfor the appropriate
intervals for checking the engine oil.
1. Make sure the vehicle is on level ground.
2. Turn the engine off and wait 15 minutes for the oil to drain into the
oil pan.
3. Set the parking brake and ensure the gearshift is securely latched in P
(Park).
4. Open the hood. Protect yourself from engine heat.
5. Locate and carefully remove the
engine oil level dipstick.
6. Wipe the dipstick clean. Insert the dipstick fully, then remove it again.
•If the oil level iswithin this
range,the oil level is acceptable.
DO NOT ADD OIL.
Maintenance and Specifications
340
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

If the service engine soonindicator is on or the bulb does not
work, the vehicle may need to be serviced. Refer to the On board
diagnostics (OBD-II) description in this chapter.
If the vehicle’s engine or transmission has just been serviced, or the
battery has recently run down or been replaced, the OBD-II system may
indicate that the vehicle is not ready for I/M testing. To determine if the
vehicle is ready for I/M testing, turn the ignition key to the on position
for 15 seconds without cranking the engine. If the service engine
soon
indicator blinks eight times, it means that the vehicle is not
ready for I/M testing; if the service engine soon
indicator stays on
solid, it means that the vehicle is ready for I/M testing.
The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by
20 minutes of stop-and-go driving with at least four 30-second idle
periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
POWER STEERING FLUID
Check the power steering fluid. Refer toscheduled maintenance
information.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be between the MIN
and MAX lines. Do not add fluid if the level is in this range.
Maintenance and Specifications
363
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

Event data recording ....................7
Exhaust fumes ..........................258
F
Fail safe cooling ........................349
Family entertainment system ....47
Fleet MyKey programming ......148
Flexible Fuel Vehicle (FFV) ....351
Fluid capacities .........................368
Fog lamps ....................................87
Four-Wheel Drive vehicles .......281
control trac .............................281
description ..............................282
driving off road .......................283
indicator light .........................281
preparing to drive your
vehicle .....................................270
Fuel ............................................351
calculating fuel
economy
............................21, 357
cap ...........................................353
capacity ...................................368
choosing the right fuel ...........354
comparisons with EPA fuel
economy estimates .................360
detergent in fuel .....................356
filler funnel .............................356
filling your vehicle with
fuel ...........................351, 353, 357
filter, specifications ........350, 367
fuel pump shut-off switch .....294
improving fuel economy ........357
octane rating ...........355, 371–372
quality ......................................355
running out of fuel .........312, 356
safety information relating to
automotive fuels .....................351Fuel - flex fuel vehicle
(FFV) .........................351, 354–355
Fuses ..................................295–296
G
Garage door opener ..................114
Gas cap (see Fuel cap) ............353
Gas mileage
(see Fuel economy) .................357
Gauges .........................................17
H
Hazard flashers .........................293
Headlamps ...................................86
aiming ........................................88
autolamp system .......................86
bulb specifications ....................92
daytime running lights .............87
flash to pass ..............................87
high beam .................................87
turning on and off ....................86
Homelink wireless control
system ........................................115
Hood ..........................................336
I
Ignition .......................254, 371–372
Illuminated visor mirror ...........100
Infant seats
(see Safety seats) .....................200
Inspection/maintenance (I/M)
testing ........................................362
Instrument panel
cleaning ...................................332
cluster ........................................12
Index
382
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

J
Jack ............................................303
positioning ...............................303
storage .....................................303
Jump-starting your vehicle ......313
K
Keyless entry system
autolock ...................................133
keypad .....................................143
locking and unlocking
doors ........................................144
programming entry code .......143
Keys ...................................132, 146
positions of the ignition .........254
L
Lamps
autolamp system .......................86
bulb replacement
specifications chart ..................92
daytime running light ...............87
fog lamps ...................................87
headlamps .................................86
headlamps, flash to pass ..........87
interior lamps .....................90, 93
replacing bulbs .........................96
LATCH anchors .........................204
Liftgate ..............................125, 139
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........261
Load limits .................................237
Loading instructions .................244
Locks
autolock ...................................133
childproof ................................137
doors ........................................133Lubricant specifications ...........368
Lug nuts ....................................311
Lumbar support, seats .............157
M
Message center ...........................19
english/metric button ...............25
system check button ................25
warning messages .....................26
Mirrors ...............................106–107
automatic dimming rearview
mirror ......................................106
fold away .................................107
heated ......................................108
programmable memory ..........140
signal .......................................108
Moon roof ..................................113
Motorcraft parts ................334, 367
MyKey ........................................148
N
Navigation system .......................78
O
Octane rating ............................355
Oil (see Engine oil) ..................340
P
Parental MyKey programming..148
Parking brake ............................262
Parts (see Motorcraft parts) ....367
Pedals (see Power adjustable
foot pedals) ...............................108
Power adjustable foot pedals ...108
Index
383
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

Power deployable running
boards ........................................109
Power distribution box
(see Fuses) .......................296, 299
Power door locks ......................133
Power liftgate ............................125
Power mirrors ...........................107
Power point ...............................103
Power steering ..................268–269
fluid, checking and adding ....363
fluid, refill capacity ................368
fluid, specifications .................368
Power Windows .........................104
Preparing to drive your
vehicle ........................................270
R
Radio ............................................30
Rear heated seats .....................169
Rear seat entertainment
system ..........................................47
Rear-view camera system .........279
Recommendations for
attaching safety restraints for
children ......................................198
Relays ........................................295
Remote entry system .......137–138
illuminated entry ....................142
locking/unlocking
doors ................................138–139
opening the trunk ...................139
panic alarm .............................140
replacement/additional
transmitters .............................141
replacing the batteries ...........141
Reverse sensing system ...........276Roadside assistance ..................292
Roll stability control .................263
S
Safety Belt Maintenance ..........214
Safety belts (see Safety
restraints) ..........173, 175, 177–180
Safety Canopy ...................190, 192
Safety defects, reporting ..........327
Safety
restraints ...........173, 175, 177–180
Belt-Minder
...........................182
extension assembly ................181
for adults .........................177–179
for children .............................196
safety belt maintenance .........214
warning light and chime ........182
Safety restraints - LATCH
anchors ......................................204
Safety seats for children ..........200
Safety Compliance
Certification Label ....................372
Satellite Radio Information ........44
Seats ..........................................154
child safety seats ....................200
climate control ........................161
heated ......................................169
memory seat ...................140, 159
SecuriCode keyless entry
system ........................................142
SecuriLock passive anti-theft
system ........................................144
Servicing your vehicle ..............335
Snowplowing .................................6
SOS Post Crash Alert ...............195
Index
384
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)
