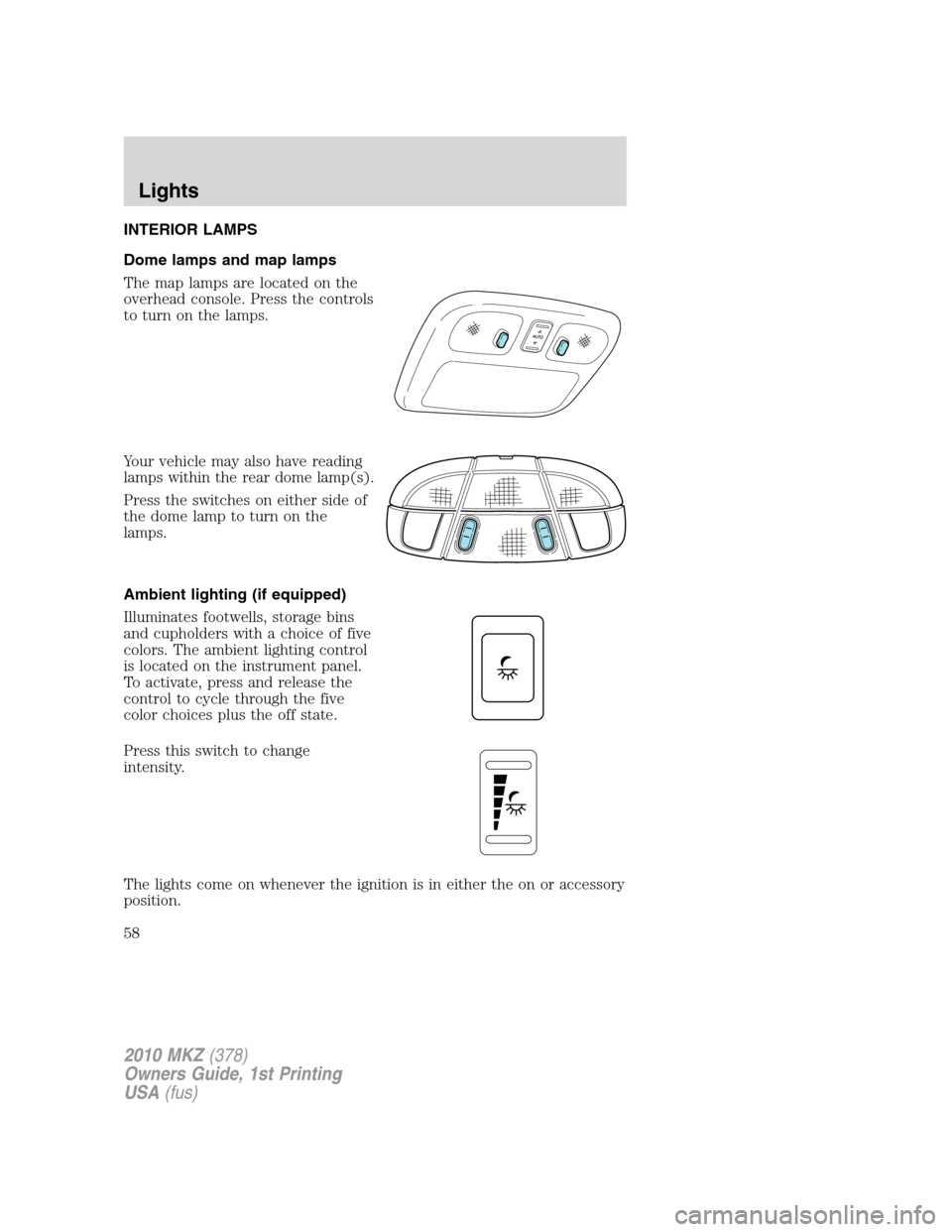

INTERIOR LAMPS
Dome lamps and map lamps
The map lamps are located on the
overhead console. Press the controls
to turn on the lamps.
Your vehicle may also have reading
lamps within the rear dome lamp(s).
Press the switches on either side of
the dome lamp to turn on the
lamps.
Ambient lighting (if equipped)
Illuminates footwells, storage bins
and cupholders with a choice of five
colors. The ambient lighting control
is located on the instrument panel.
To activate, press and release the
control to cycle through the five
color choices plus the off state.
Press this switch to change
intensity.
The lights come on whenever the ignition is in either the on or accessory
position.
2010 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Lights
58

Welcome and farewell lighting are included in the Lincoln white signature
color. The transition from signature color to ambient occurs when the
key is placed in the ignition and all doors are closed. Farewell lighting
occurs when the key is removed from the ignition and the driver door is
opened.
Note:The ambient color will stay on until after the ignition is placed in
the off position and either of the front doors are opened or the accessory
delay timer expires. At that time, the ambient color changes to the
signature color.
BULB REPLACEMENT
Lamp assembly condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
Examples of acceptable condensation are:
•Presence of thin mist (no streaks, drip marks or droplets)
•Fine mist covers less than 50% of the lens
Examples of unacceptable moisture (usually caused by a lamp water
leak) are:
•Water puddle inside the lamp
•Large water droplets, drip marks or streaks present on the interior of
the lens
Take your vehicle to dealer for service if any of the above conditions of
unacceptable moisture are present.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
2010 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Lights
59

2. To calibrate, press and hold the 7
and 9 radio preset buttons together
for approximately 10 seconds until
CAL appears. Release the buttons.
3. Slowly drive the vehicle in a
circle (less than 3 mph [5 km/h])
until the CAL display changes to the
direction value (N, S, E, W, etc.). It
may take up to five circles to
complete calibration.
4. The compass is now calibrated.
CENTER CONSOLE
Your vehicle may be equipped with a variety of console features. These
include:
1. Cup holders with ambient lighting
(if equipped). Slide the door open
to access the cup holders.
2. Utility compartment with aux jack
and USB port, a power point, and
removable coin holder inside and a
secondary storage bin (on hinges
inside utility compartment).
Note:Slide the arm rest to the
rearward position to open the utility
compartment
3. Sliding arm rest.
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
2010 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
72

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
10 15A Backlighting, Puddle lamps
11 10A AWD module
12 7.5A Memory modules, Memory
seat/mirrors switches
13 5A SYNC module
14 10A Electronic Finish Panel (EFP)
radio and climate control buttons
module, Navigation display, Center
information display, GPS module,
Ambient lighting
15 10A Climate control
16 15A Not used (Spare)
17 20A Door locks, Trunk release
18 20A Not used (Spare)
19 25A Not used (Spare)
20 15A On-Board Diagnostic connector
21 15A Fog lamps
22 15A Front sidemarker lamps, Park
lamps, License plate lamp
23 15A High beam headlamps
24 20A Horn
25 10A Demand lamps/power saver relay
26 10A Instrument cluster battery power
27 20A Ignition switch
28 5A Radio crank sense circuit
29 5A Instrument cluster ignition power
30 5A Not used (Spare)
31 10A Not used (Spare)
32 10A Restraint control module
33 10A Not used (Spare)
34 5A Not used (Spare)
2010 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
237

A
Accessory delay ..........................75
AdvanceTrac ..............................205
Air cleaner filter ...............300–301
Air conditioning ..........................45
automatic temperature
control system ..........................48
Airbag supplemental restraint
system ........................137, 146, 148
and child safety seats ............139
description ..............137, 146, 148
disposal ....................................152
driver airbag ....137, 139, 146, 149
indicator light .........145, 148, 151
operation .........137, 139, 146, 149
passenger
airbag ............. 137, 139, 146, 149
side airbag ...............................146
All Wheel Drive (AWD),
driving off road .........................226
Ambient mood/lighting ...............58
AM/FM .........................................29
Antifreeze (see Engine
coolant) .....................................280
Anti-lock brake system
(see Brakes) ......................203–204
Anti-theft system ..............103, 107
arming the system ..................107
disarming a triggered
system .....................................108
Audio system (see Radio) .........29
Automatic transmission
driving an automatic
overdrive .................................211
fluid, adding ............................298
fluid, checking ........................298
fluid, refill capacities ..............302fluid, specification ..................302
Selectshift (SST) ....................213
Auxiliary input jack (Line in) ....37
Axle
lubricant specifications ..........302
B
Battery .......................................278
acid, treating emergencies .....278
jumping a disabled battery ....248
maintenance-free ....................278
replacement, specifications ...301
servicing ..................................278
Belt-Minder.............................132
Blind Spot Information
System .......................................219
Booster seats .............................167
Brakes ........................................203
anti-lock ...........................203–204
anti-lock brake system (ABS)
warning light ...........................204
fluid, checking and adding ....298
fluid, refill capacities ..............302
fluid, specifications .................302
lubricant specifications ..........302
parking ....................................204
shift interlock ..........................210
Break-in period .............................6
Bulbs ............................................59
C
Capacities for refilling fluids ....302
CD ................................................29
Cell phone use ..............................8
Changing a tire .........................241
Child safety seats ......................156
