1-4. Opening and closing the windows and retractable hardtop
1
Before driving
■The power windows can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Door lock linked window operation
The power windows can be opened using the wireless remote control. (P. 4 0 )
■Front side window open/close function linked to rear side window operation
When a rear side window is opened, the adjacent front side window will also open
slightly. The front side window cannot be closed completely while the rear side win-
dow is open.
■Operating the power windows after turning the “ENGINE START STOP” switch
OFF
The power windows can be operated for ap proximately 45 seconds even after the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF. They cannot, however, be operated once either side door is opened.
■Jam protection function (front windows)
If an object becomes caught between the window and the body, window travel is
stopped and the window is opened slightly.
■Window operation during retractable hardtop operation
When the retractable hardtop is partiall y open (during opening or closing opera-
tion), the power window switches are disabled.
■Customization that can be configured at Lexus dealer
Settings of the linked wireless remote control operation can be changed.
(Customizable features  P. 5 6 4 )

95
1
1-6. Theft deterrent system
Before driving
Alarm
The system sounds the alarm and flashes the lights when forcible entry is
detected.
■ Triggering of the alarm
The alarm is triggered in the following situations.
●A locked door or trunk is unlocked or opened in any way other
than using the entry function, wi reless remote door lock function
or mechanical key with the alarm being set.
● The hood is opened with the alarm being set.
■ Setting the alarm system
If the retractable hardtop is
open, close it.
Close the doors, trunk and
hood, and lock both side doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
●Unlock the doors or trunk using the entry function, wireless
remote door lock function or mechanical key.
● Turn the “ENGINE START STOP” switch to ACCESSORY or
IGNITION ON mode. (The alarm will be deactivated or stopped
after a few seconds.)

364
3-7. Other interior features
■Programming a Rolling Code system (for U.S.A. owners)
If your device is Rolling Code eq uipped, follow the steps under the
heading “Programming the HomeLink
” before proceeding with the
steps listed below.
Locate the learn button on th e ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener motor.
Refer to the operation manual supplied with the garage door opener
motor for the location of the learn button.
Press the learn button.
Following this step, you have 30 se conds in which to initiate step 3
below.
Press and hold the vehicle's programmed HomeLink button for
2 seconds and release it. Repeat this step once again. The garage
door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should now recognize
the HomeLink
 signal and operate the garage door.
Repeat the steps above to prog ram another rolling code system
for any of the remaining HomeLink buttons.
■ Programming an entry gate (for U .S.A. owners)/Programming all
devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the sur-
face of the HomeLink
.
Keep the HomeLink indicator light in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cyc le) the device’s remote control
button for two seconds each until step 4 is complete.
When the indicator light on the HomeLink
 compatible trans-
ceiver start to flashing rapidly, release the buttons.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4

432
4-3. Do-it-yourself maintenance
■If the electronic key battery is discharged
The following symptoms may occur.
●The smart access system with push-button start and wireless remote control will
not function properly.
●The operational range is reduced.
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.
●Replace only with the same or equivalent type recommended by a Lexus dealer.
●Dispose of used batteries according to the local laws.
■When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer
can replace the battery for you.
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the remote control.
●Do not bend either of the battery terminals.

5
When trouble arises
507
5-2. Steps to take in an emergency
If the electronic key does not operate properly
Locking and unlocking the doors, unlocking the trunk and key linked functions
Doors
Remove the cover on the driver’s
door handle using the mechanical
key (P. 25) in order to perform
the following operations.
Locks both side doors
Unlocks the door
Turning the key rearward unlocks
the driver's door. Turning the key
once again unlocks the passenger’s
door.
Return the cover to the original
position after use.
If communication between the electron ic key and vehicle is interrupted
(  P. 32) or the electronic key cann ot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In su ch cases, the doors and trunk can be
opened or the engine can be started by following the procedure below.

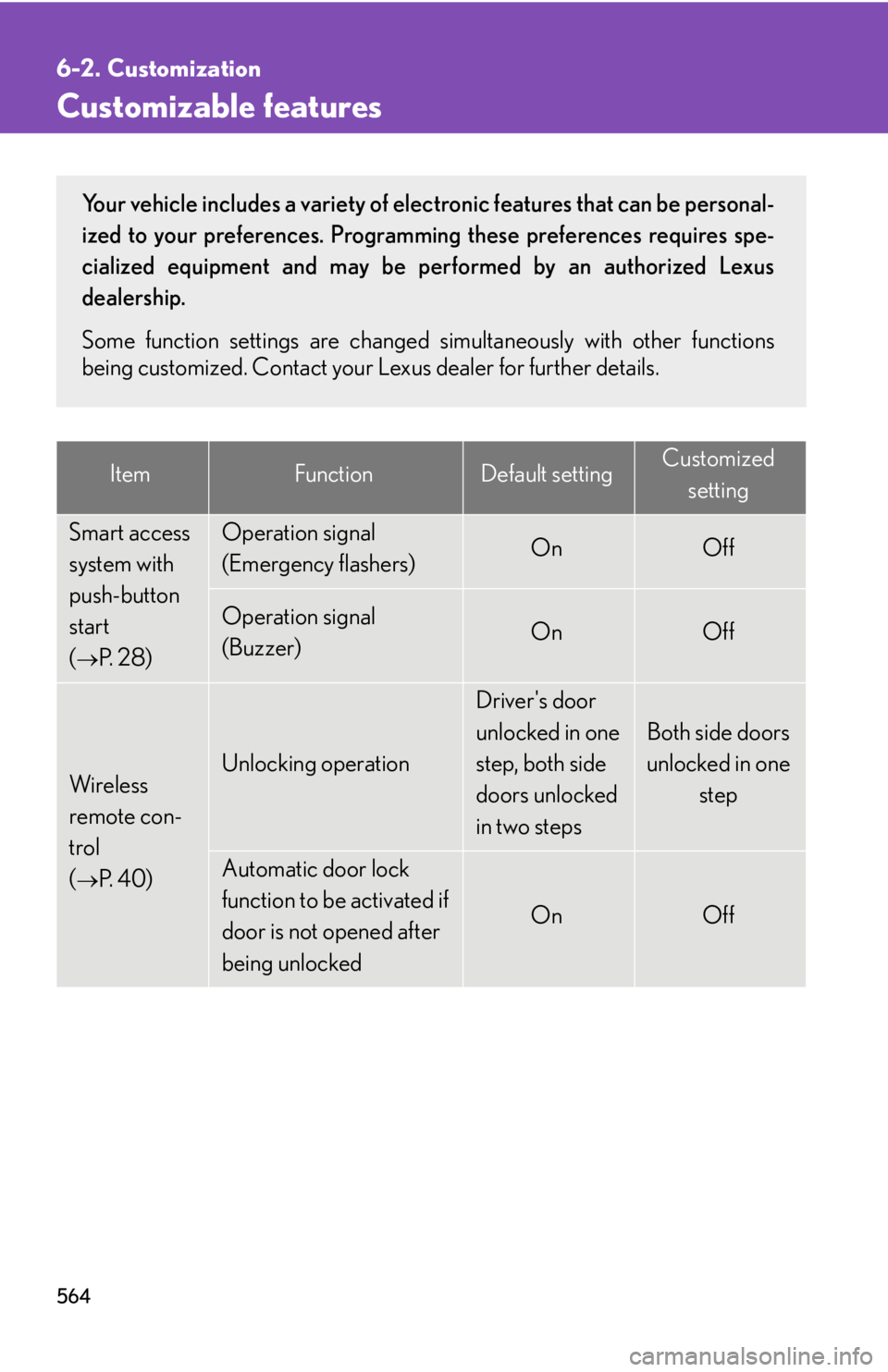

564
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Smart access
system with
push-button
start
(
P. 2 8 )
Operation signal
(Emergency flashers)OnOff
Operation signal
(Buzzer)OnOff
Wireless
remote con-
trol
(
P. 4 0 )
Unlocking operation
Driver's door
unlocked in one
step, both side
doors unlocked
in two steps
Both side doors
unlocked in one
step
Automatic door lock
function to be activated if
door is not opened after
being unlocked
OnOff
Your vehicle includes a variety of elec tronic features that can be personal-
ized to your preferences. Programming these preferences requires spe-
cialized equipment and may be performed by an authorized Lexus
dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Lexus dealer for further details.

584
Alphabetical index
Garage door opener .......................... 362
Gauges ...................................................... 160
Glove box ................................................340
Glove box light ....................................... 341
Hands-free system for mobile phone ...............................307
Hazard lights Switch ......................................................458
Head restraints Adjusting .................................................. 62
Headlight aim ......................................... 449
Headlight cleaner .................................. 183
Headlights Discharge headlight precautions .......................................456
Replacing light bulbs........................450
Switch ........................................................ 174
Wattage.................................................. 547
Heaters Seat heaters ..........................................355
Side mirror ............................................ 238
Hill-start assist control ......................... 210
Hood ..........................................................395
Hooks Cargo ......................................................359
Shopping bag ......................................359
Horn ............................................................ 159 I/M test .......................................................391
Identification
Engine ..................................................... 533
Vehicle.................................................... 533
Ignition switch ..........................................142
Illuminated entry system .................... 338
Indicator lights .........................................166
Initialization Items to initialize................................. 569
Inside rear view mirror ...........................74
Interior lights Interior lights ........................................ 338
Switch ...................................................... 339
Wattage ..................................................547
Jack Positioning a floor jack ................... 396
Vehicle-equipped jack....................492
Jack handle ............................................. 492
Keyless entry ............................................. 40
Keys Electronic key ......................................... 24
Engine switch ........................................ 142
If you lose your keys ........................506
If the electronic key does not operate properly............................ 507
Key number.............................................. 24
Keyless entry........................................... 40
Keys.............................................................. 24
Mechanical key ......................................25
Wireless remote control key.......... 40G
H
I
J
K

589
Alphabetical index
Warning buzzersBrake system ....................................... 469
Open door ............................................ 471
Seat belt reminder .............................. 471
Warning lights Anti-lock brake system .................. 470
Brake assist system .......................... 470
Brake system ....................................... 469
Charging system ............................... 469
Electric power steering warning light ..................................... 470
Low fuel level......................................... 471
Malfunction indicator lamp .......... 470
Master warning light .......................... 471
Open door ............................................. 471
Pre-collision system ......................... 470
Pretensioners ...................................... 470
Seat belt reminder light .................... 471
SRS airbags .......................................... 470
Tire pressure warning light.......................................................... 471
Warning messages Dynamic radar cruise control .........................479, 481
Engine oil level ......................................481
Engine oil maintenance....................481
Engine oil pressure........................... 478
Hood .........................................................481
Intuitive parking assist ...........479, 481
Open door .............................................481
Parking brake ........................................481
Pre-collision system ...............479, 481
Retractable hardtop ...............479, 481 Smart access system with
push-button start ........................... 488
Steering lock......................................... 479
Tire pressure warning system..................... 479, 481
Trunk ......................................................... 481
Washer fluid .......................................... 481
Washer Checking .................................................. 411
Preparing and checking before winter ....................................220
Switch........................................................ 178
Washing and waxing .......................... 380
Weight Cargo capacity .....................................216
Load limits ...............................................219
Weight.....................................................532
Wheels ...................................................... 426
Window glasses ...................................... 78
Window lock switch ............................... 78
Windows Power windows ..................................... 78
Rear window defogger...................238
Washer .................................................... 178
Windshield wipers................................. 178
Wireless remote control key Replacing the battery........................ 431
WMA disc ............................................... 257W
