2010 Lexus IS250 key

434
4-3. Do-it-yourself maintenance

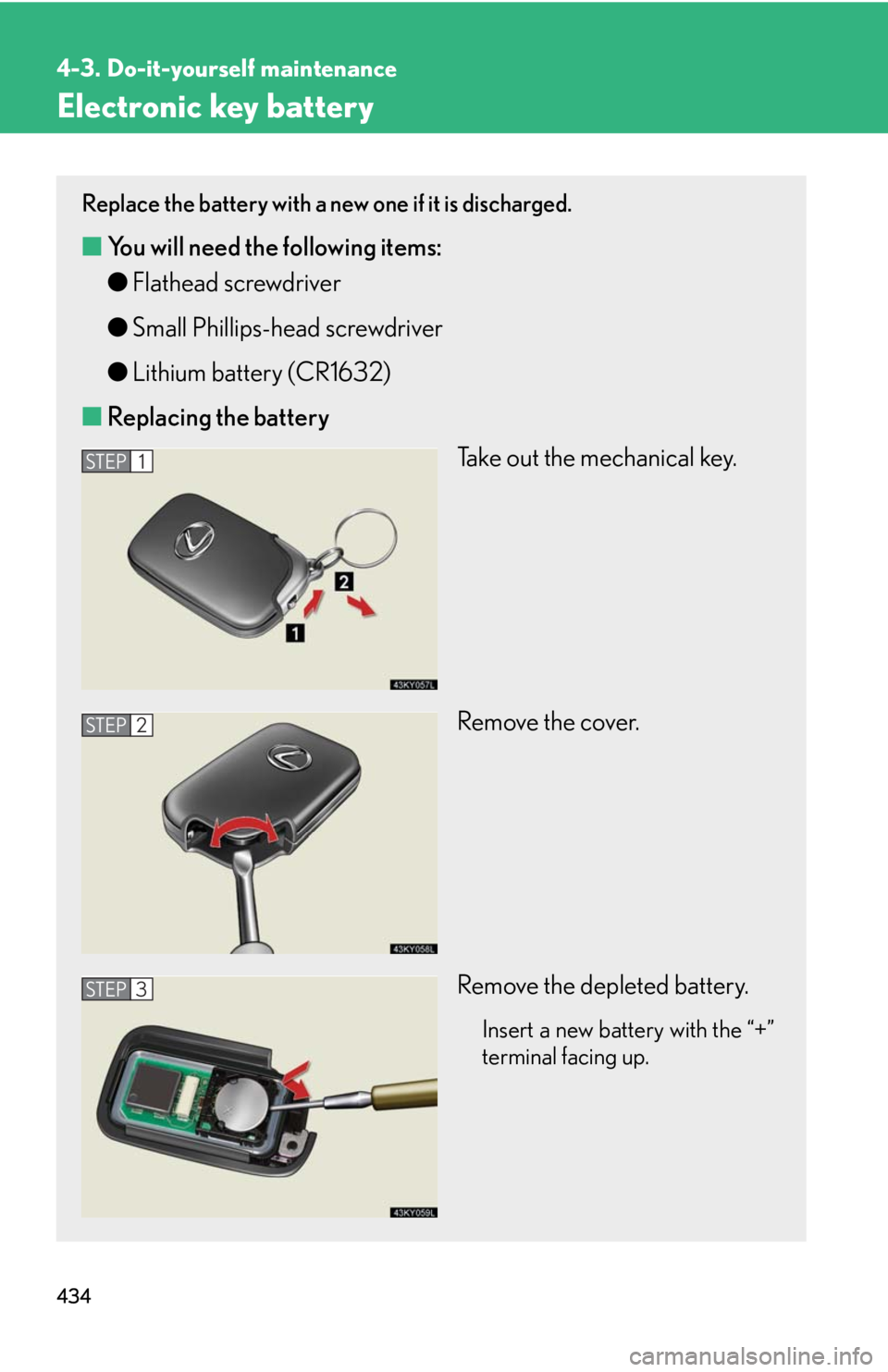

Electronic key battery
Replace the battery with a new one if it is discharged.
■You will need the following items:
●Flathead screwdriver
●Small Phillips-head screwdriver
●Lithium battery (CR1632)
■Replacing the battery
Take out the mechanical key.
Remove the cover.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
STEP1
STEP2
STEP3

435
4-3. Do-it-yourself maintenance
4
Maintenance and care
■If the electronic key battery is discharged
The following symptoms may occur.
●The smart access system with push-button start and wireless remote control will
not function properly.
●The operational range is reduced.
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.
●Replace only with the same or equivalent type recommended by a Lexus dealer.
●Dispose of used batteries according to the local laws.
■When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer
can replace the battery for you.
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the remote control.
●Do not bend either of the battery terminals.

When trouble arises5
459
5-1. Essential information
Emergency flashers............... 460
If your vehicle needs to
be towed.................................. 461
If you think something
is wrong .................................. 467
Fuel pump shut off
system ..................................... 468
Event data recorder .............. 4695-2. Steps to take in an
emergency
If a warning light turns
on or a warning buzzer
sounds... ................................... 471
If a warning message is
displayed................................ 480
If you have a flat tire............... 492
If the engine will not start ..... 501
If the shift lever cannot be
shifted from P ....................... 503
If you lose your keys .............. 504
If the electronic key does
not operate properly.......... 505
If the vehicle battery is
discharged ............................ 509
If your vehicle overheats ...... 512
If the vehicle becomes
stuck......................................... 515
If your vehicle has to be
stopped in an emergency ... 517

488
5-2. Steps to take in an emergency
Follow the correction procedures.
After taking the specified steps to correct the suspected problem, check
that the warning light turns off.
Interior
buzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
Once
(Comes on for 10 seconds.)
(Flashing)
Indicates that an
attempt was made
to start the engine
without the elec-
tronic key being
present, or the
electronic key was
not functioning
normally.
Start the engine
with the elec-
tronic key
present.
*
Once3 times
(Flashing)
Indicates that a
door other than
the driver’s door
has been opened
or closed with the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
outside of the
detection area.
Confirm the loca-
tion of the elec-
tronic key.

5
When trouble arises
489
5-2. Steps to take in an emergency
Interior
buzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
Once3 times
(Vehicles with an auto-
matic transmission)
(Flashing)
Indicates that the
driver’s door has
been opened or
closed with the
shift lever in P, the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
outside of the
detection area.
Tu r n t h e
“ENGINE START
STOP” switch
OFF or confirm
the location of the
electronic key.
OnceCon-
tinuous
(Displayed alternately)
(Vehicles with an auto-
matic transmission)
(Flashing)
Indicates that the
driver’s door has
been opened or
closed (with the
shift lever out of in
P, the “ENGINE
START STOP”
switch in any
mode other than
OFF and the elec-
tronic key outside
of the detection
area).
• Shift the shift
lever to P.
•Confirm the
location of the
electronic key.
Once
(Flashing)
Indicates that the
key battery is low.Replace the bat-
tery. (P. 4 3 4 )

5
When trouble arises
491
5-2. Steps to take in an emergency
*: If the engine does not start when the electronic key is inside the vehicle, the
electronic key battery may be depleted or there may be difficulties receiving the
signal from the key. (P. 3 2 )
Interior
buzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
Once
(Vehicles with an auto-
matic transmission)Indicates that the
electronic key
does not operate
properly.
P. 5 0 6

(Vehicles with an auto-
matic transmission)
Once
(Vehicles with a manual
transmission)Indicates that the
electronic key
does not operate
properly.
P. 5 0 6

(Vehicles with a manual
transmission)

504
5-2. Steps to take in an emergency
If you lose your keys
New genuine Lexus keys can be made by your Lexus dealer using the other
key and the key number stamped on your key number plate.

5
When trouble arises
505
5-2. Steps to take in an emergency
If the electronic key does not operate properly
Locking and unlocking the doors, unlocking the trunk and key linked functions
Doors
Remove the cover on the driver’s
door handle using the mechanical
key (P. 25) in order to perform
the following operations.
Locks all doors
Closes the windows/moon roof
(turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver's door. Turning the key
once again unlocks the other
doors.
Opens the windows/moon roof
(turn and hold)
Return the cover to the original
position after use.
If communication between the electronic key and vehicle is interrupted
(P. 32) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors and trunk can be
opened or the engine can be started by following the procedure below.
