2010 Lexus IS F key

TABLE OF CONTENTSIndex
10_IS F_U
2
1-1. Key informationKeys ...................................................... 22
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .......................... 26
Wireless remote control .............. 37
Doors.................................................... 39
Trunk..................................................... 43
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats .......................................... 47
Driving position memory (driver’s seat) ................................. 48
Seat position memory (front passenger’s seat) ............. 52
Head restraints................................. 54
Seat belts ............................................ 57
Steering wheel.................................. 64
Anti-glare inside rear view mirror ................................................ 66
Outside rear view mirrors ........... 67
1-4. Opening and closing the windows and moon roof
Power windows................................ 69
Moon roof ............................................ 71 1-5. Refueling
Opening the fuel tank cap........... 75
1-6. Theft deterrent system Engine immobilizer system ......... 78
Alarm................................................... 80
Theft prevention labels (U.S.A.) ............................................. 82
1-7. Safety information Correct driving posture ............... 83
SRS airbags ...................................... 85
Front passenger occupant classification system .................... 97
Child restraint systems ............... 102
Installing child restraints ............. 106
2-1. Driving procedures Driving the vehicle .......................... 116
Engine (ignition) switch .............. 124
Automatic transmission.............. 128
Turn signal lever............................. 136
Parking brake ................................. 137
Horn.................................................... 138
2-2. Instrument cluster Gauges and meters ..................... 139
Indicators and warning lights................................................. 143
1Before driving
2When driving

TABLE OF CONTENTSIndex
10_IS F_U
4
Setting a mobile phone ............... 291
Security and system setup ........ 296
Using the phone book............... 300
3-5. Using the interior lights Interior lights list........................... 306
• Interior lights .............................. 308
• Personal lights ........................... 308
3-6. Using the storage features List of storage features................ 310
• Glove box...................................... 310
• Console box ................................... 311
• Overhead console..................... 312
• Cup holders.................................. 313
• Bottle holders/door pockets ................................ 315
3-7. Other interior features Sun visors.......................................... 316
Vanity mirrors ................................. 317
Clock .................................................. 318
Satellite switches ........................... 319
Ashtrays ........................................... 322
Cigarette lighter ........................... 323
Power outlet ................................... 324
Seat heaters .................................... 325
Armrest ............................................ 327
Trunk storage extension........... 328
Coat hooks .................................... 330
Floor mat........................................... 331
Trunk features................................ 332
Garage door opener................. 335 Compass........................................... 341
Safety Connect ............................. 345
4-1. Maintenance and care Cleaning and protecting the vehicle exterior................... 354
Cleaning and protecting the vehicle interior .................... 357
4-2. Maintenance Maintenance requirements .... 360
General maintenance ................ 362
Emission inspection and maintenance (I/M)
programs ...................................... 365
4-3. Do-it-yourself maintenance Do-it-yourself service precautions .................................. 366
Hood.................................................. 369
Positioning a floor jack............... 370
Engine compartment.................. 372
Tires .................................................. 386
Tire inflation pressure................. 397
Wheels............................................... 401
Air conditioning filter................. 403
Electronic key battery ............... 406
Checking and replacing fuses ............................................... 408
Headlight aim................................. 422
4Maintenance and care

1
2
3
4
5
6
7
10_IS F_U
5
Light bulbs ....................................... 424
5-1. Essential information Emergency flashers.................... 430
If your vehicle needs to be towed ........................................ 431
If you think something is wrong ......................................... 437
Fuel pump shut off system ....... 438
Event data recorder.................... 439
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer sounds... ....... 441
If a warning message is displayed........................................ 451
If you have a flat tire..................... 465
If the engine will not start .......... 474
If the shift lever cannot be shifted from P .............................. 475
If you lose your keys .................... 476
If the electronic key does not operate properly ............... 477
If the vehicle battery is discharged .................................. 480
If your vehicle overheats .......... 483
If the vehicle becomes stuck............................................... 486 6-1. Specifications
Maintenance data (fuel, oil level, etc.).................... 488
Fuel information............................ 499
Tire information ........................... 502
6-2. Customization Customizable features ............... 514
6-3. Initialization Items to initialize ............................ 519
Reporting safety defects for U.S. owners........................... 522
Seat belt instructions for Canadian owners
(in French) .................................... 523
Abbreviation list .................................. 526
Alphabetical index.............................. 528
What to do if... ...................................... 538
5When trouble arises
6Vehicle specifications
7For owners
Index

10_IS F_U
19
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, impair judgment and reduce coordination,
which could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that distracts
the driver, such as adjusting controls, talking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the cigarette
lighter, the windows, the moon roof, or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to children.

Before driving1
21
10_IS F_U
1-1. Key informationKeys ............................................... 22
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .................... 26
Wireless remote control ......... 37
Doors ............................................ 39
Trunk ............................................. 43
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ................................... 47
Driving position memory (driver’s seat) .......................... 48
Seat position memory (front passenger’s seat) ........ 52
Head restraints .......................... 54
Seat belts ..................................... 57
Steering wheel........................... 64
Anti-glare inside rear view mirror ......................................... 66
Outside rear view mirrors ...... 67 1-4. Opening and closing the
windows and moon roof
Power windows .......................... 69
Moon roof .................................... 71
1-5. Refueling Opening the fuel tank cap ..... 75
1-6. Theft deterrent system Engine immobilizer system.... 78
Alarm............................................ 80
Theft prevention labels (U.S.A.)...................................... 82
1-7. Safety information Correct driving posture ......... 83
SRS airbags ................................ 85
Front passenger occupant classification system.............. 97
Child restraint systems ......... 102
Installing child restraints....... 106

22
10_IS F_U
1-1. Key information
Keys
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart accesssystem with push-button start
(→ P. 2 6 )
• Operating the wireless remote control function
(→ P. 3 7 )
Mechanical keys
Key number plate
■ Card key (Canada only)
Electronic key
Operating the smart access sys-
tem with push-button start
(→ P. 2 6 )
Mechanical key

23
1-1. Key information
1
Before driving
10_IS F_U
Using the mechanical keyTake out the mechanical key.
The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock
cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(→ P. 477)
■Card key
●The mechanical key that is stored inside the card key should be used only if a
problem arises, such as when the key does not operate properly.
●If it is difficult to take out the mechanical key, push down the lock release button
using a pen tip etc. If it is still difficult to pull it out, use a coin etc.
●To store the mechanical key in the card
key, insert it inside while pressing the
lock release button.

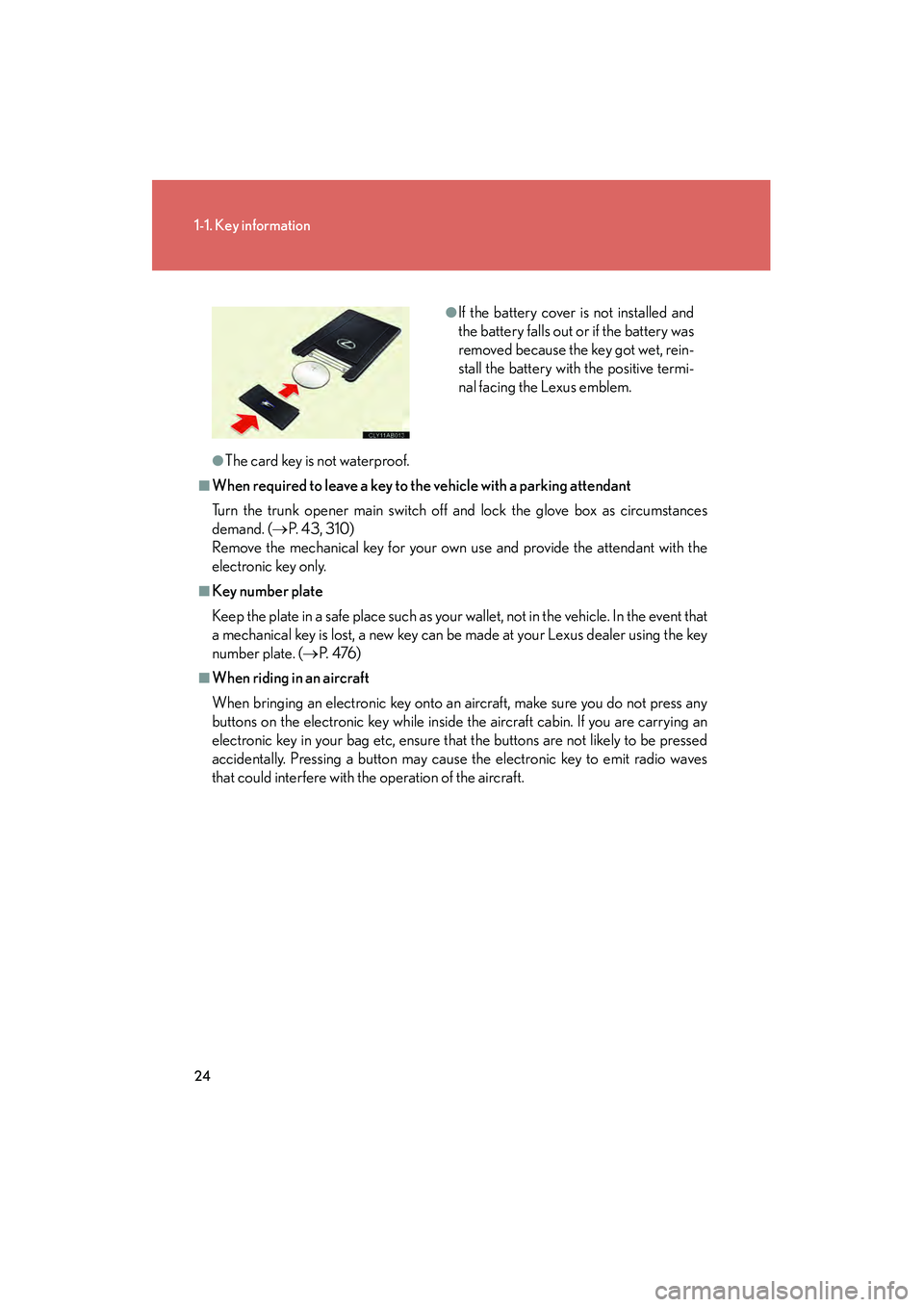

24
1-1. Key information
10_IS F_U
●The card key is not waterproof.
■When required to leave a key to the vehicle with a parking attendant
Turn the trunk opener main switch off and lock the glove box as circumstances
demand. (→P. 4 3 , 3 1 0 )
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a mechanical key is lost, a new key can be made at your Lexus dealer using the key
number plate. ( →P. 4 76 )
■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc, ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves
that could interfere with the operation of the aircraft.
●If the battery cover is not installed and
the battery falls out or if the battery was
removed because the key got wet, rein-
stall the battery with the positive termi-
nal facing the Lexus emblem.
