488
10_IS F_U

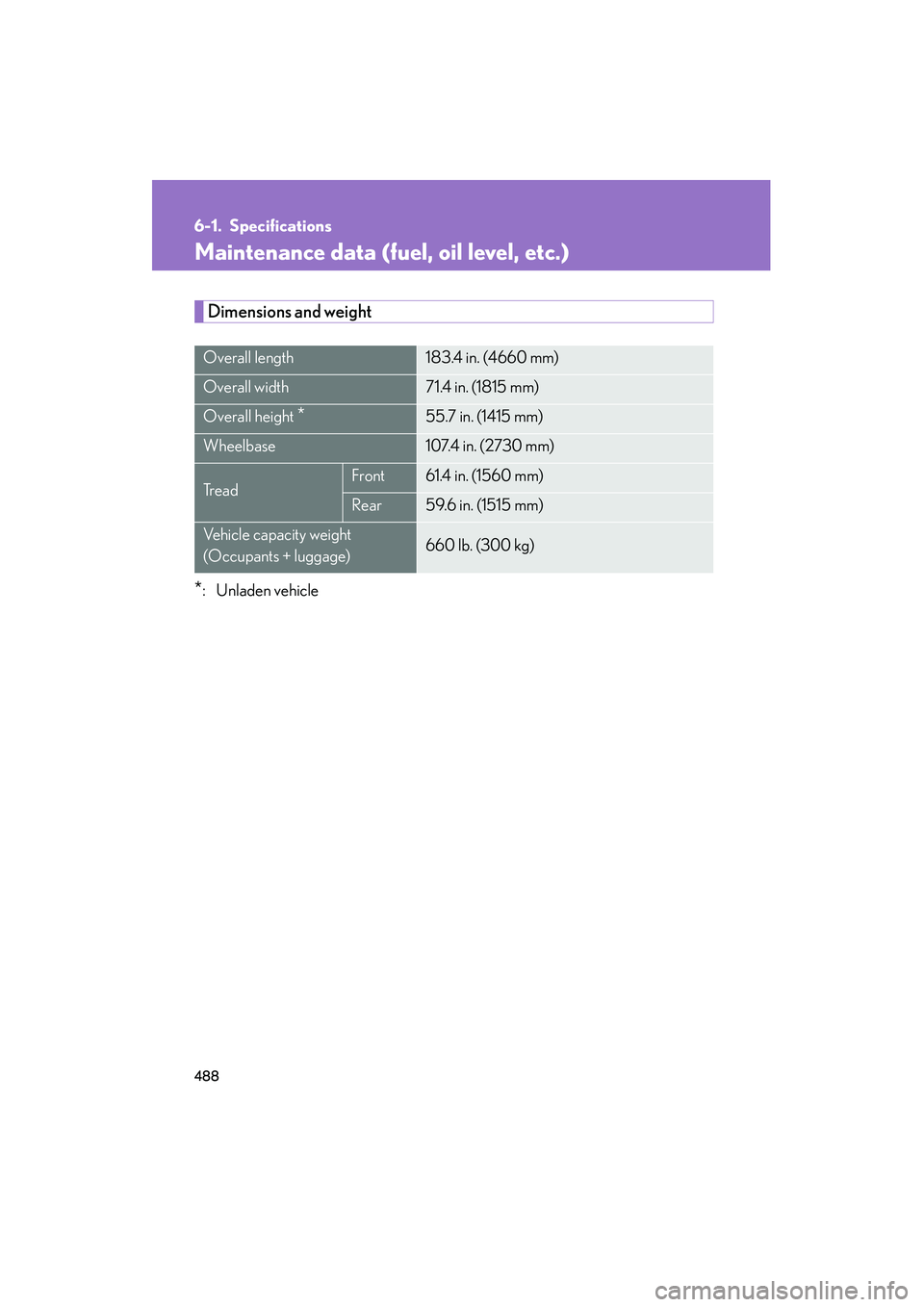

6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicle
Overall length183.4 in. (4660 mm)
Overall width71.4 in. (1815 mm)
Overall height *55.7 in. (1415 mm)
Wheelbase107.4 in. (2730 mm)
Tr e a dFront61.4 in. (1560 mm)
Rear59.6 in. (1515 mm)
Vehicle capacity weight
(Occupants + luggage)660 lb. (300 kg)
505
6-1. Specifications
6
Vehicle specifications
10_IS F_U■
Tire dimensions
Section width
Tire height
Wheel diameter
Tire section names
Bead
Sidewall
Shoulder
Tr e a d
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer
Uniform Tire Quality GradingThis information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the U.S.
Department of Transportation.
It provides the purchasers and/or prospective purchasers of Lexus vehi-
cles with information on uniform tire quality grading.
Your Lexus dealer will help answer any questions you may have as you read
this information.
